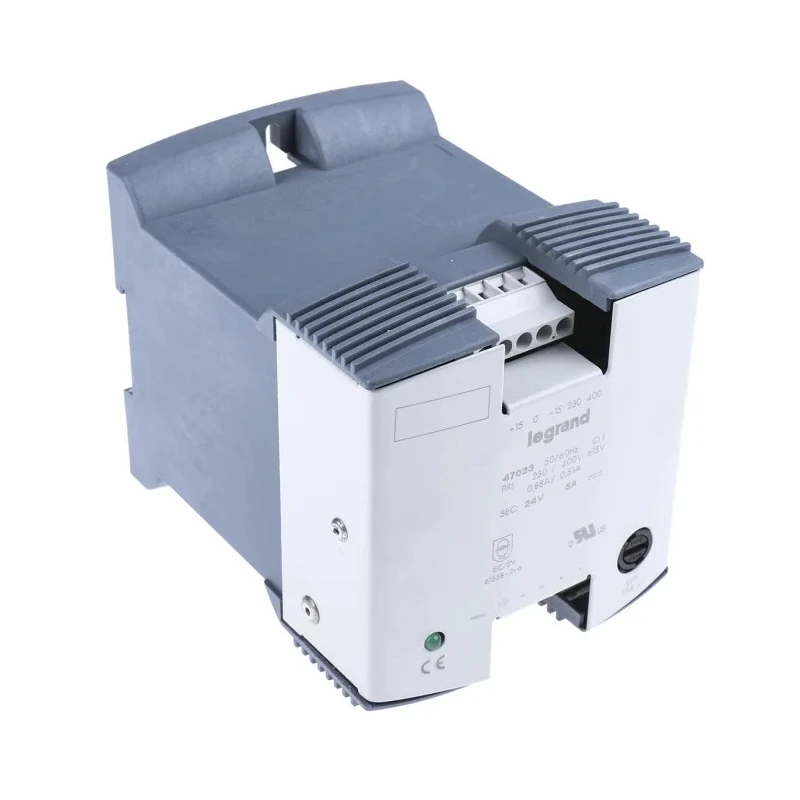

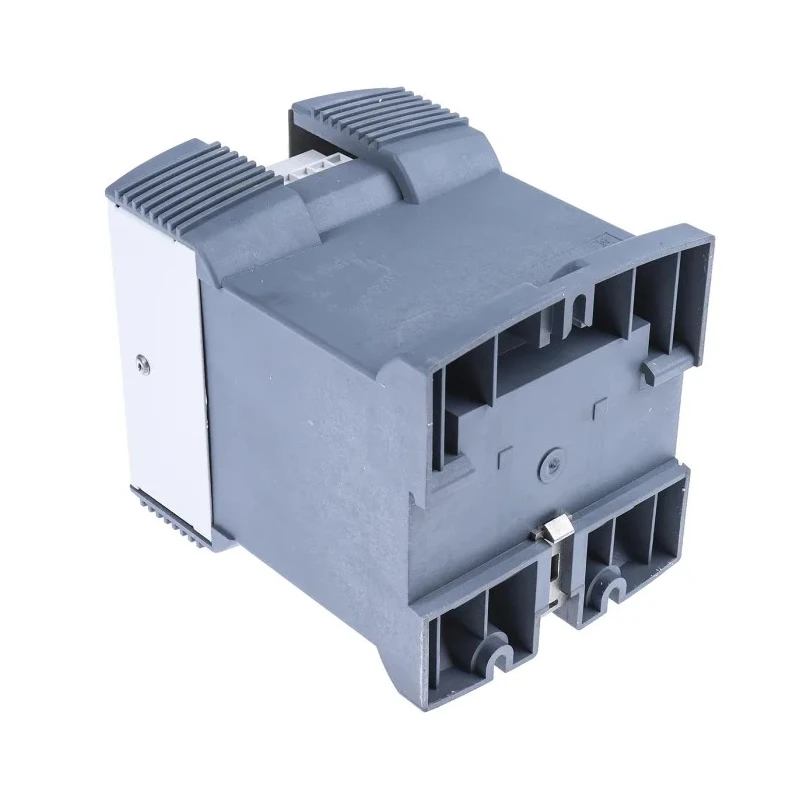

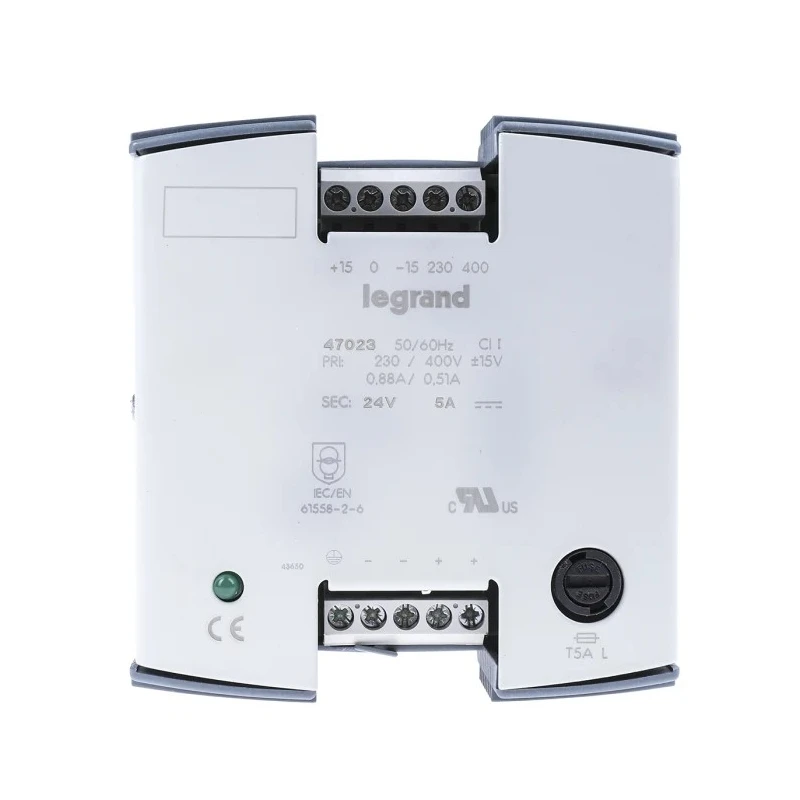

Legrand DIN Rail Linear Power Supply 400V AC Input 24V DC, 5A Output, 120W 0 470 23
Specifications
| Country of Origin | France |
|---|---|
| Brand | Legrand |
| Power | 120W |
| Height | 105mm |
| Model | 0 470 23 |
| Depth | 115mm |
| Width | 105mm |
| Output Current | 5A |
| Maximum Operating Temperature | 60°C |
| Sub Type | Linear |
| Maximum Input Voltage | 400V ac |
| Electrical Phase | 1 |
| Maximum Output Voltage | 24V dc |
| Minimum Input Voltage | 230V ac |
Key Features
- Input voltage range from 230V AC to 400V AC for versatile supply conditions.
- Output current of 5 amps with a stable 24 volts DC output voltage.
- Linear type with integrated filtering, safety transformer, and capacitors to ensure clean power.
- Compact dimensions with 105mm width, 105mm height, and 115mm depth.
- Operating temperature range from -10°C to 60°C suited for industrial environments.
- Green LED status indicator for clear operational monitoring.
- Integral output protection fuse safeguards connected devices.
- Includes insulated coupling bar for earth terminal connections up to 15A.
Product Description
Legrand 0 470 23 DIN Rail Linear Power Supply provides a reliable 24V DC output at 5A with a robust 120W power rating. It accepts a single-phase AC input voltage ranging from 230V to 400V, making it suitable for varied electrical supply conditions.
This power supply uses a linear topology integrating a safety transformer, interference filtering, and capacitors to ensure stable and noise-free output power, with ripple factor and noise less than 3%.
Featuring a compact design measuring 105mm wide, 105mm high, and 115mm deep, it fits standard DIN rail mounting systems commonly found in industrial control panels.
Operating temperature ranges from -10°C to 60°C, suitable for demanding industrial environments. The unit includes green LED indication for operational status and an integral output protection fuse for enhanced device safety.
Earth terminal connections are facilitated by an insulated coupling bar supporting up to 15A, enhancing installation convenience and safety. Input voltage range from 230V AC to 400V AC for versatile operation. Stable 24V DC output voltage delivering 5A output current.
Linear power supply design with filtering and safety transformer. Compact DIN rail mounting with dimensions of 105mm x 105mm x 115mm. Wide operating temperature range between -10°C and 60°C. Green LED for clear status indication.
Integral output protection fuse for safety. Insulated coupling bar for earth terminal connections up to 15A. Low ripple factor and noise below 3% for smooth power output. Certified to CAN/CSA with approvals for EN, IEC, and UL standards.
This power supply is ideal for industrial equipment, machinery control, ITE commercial setups, and other automation systems requiring clean and reliable DC power. Its rugged construction and certifications make it a dependable choice for professional electrical installations.
Explore more power supply solutions from top manufacturers in the Electronics & Electricals category on EnvMart.
Explore more products in our DIN Rail Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dimensions of this unit are 105mm in width, 105mm in height, and 115mm in depth.
This model is a linear power supply, which integrates a safety transformer and filtering for clean output power.
The maximum operating temperature for this power supply is 60°C, making it suitable for industrial environments.
It includes an integral output protection fuse that safeguards connected devices from overloads.
The ripple factor and noise level of the output are less than 3%, ensuring smooth power delivery.
This unit is designed for DIN rail mounting, fitting standard systems commonly used in industrial control panels.
It includes an insulated coupling bar that supports earth terminal connections up to 15A, enhancing installation safety.
This model is certified to CAN/CSA standards and has approvals for EN, IEC, and UL standards.
It is suitable for industrial equipment, machinery control, ITE commercial setups, and other automation systems requiring reliable DC power.
The country of origin for this power supply is France.
