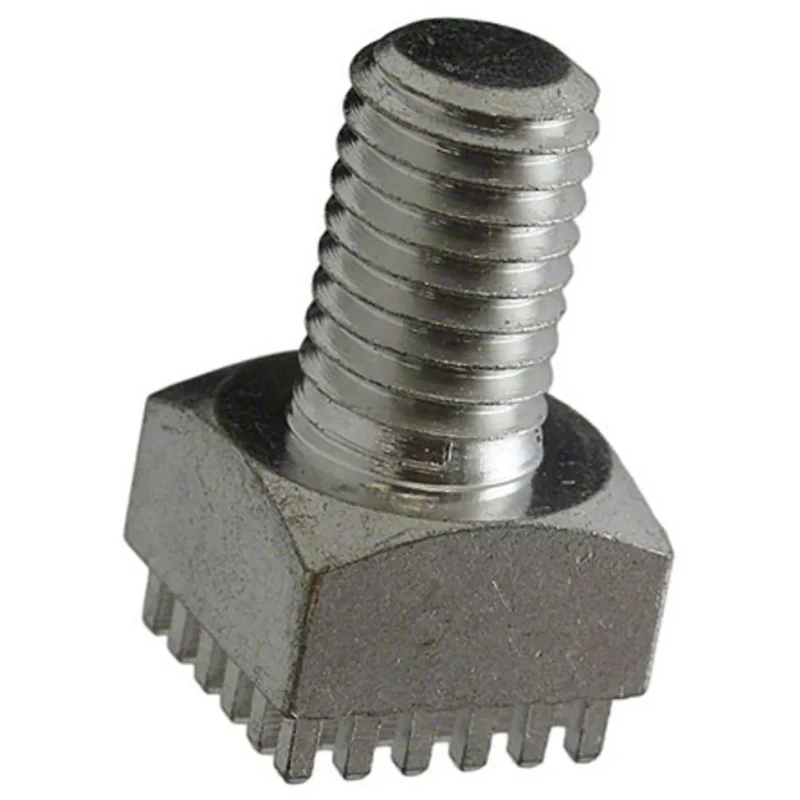

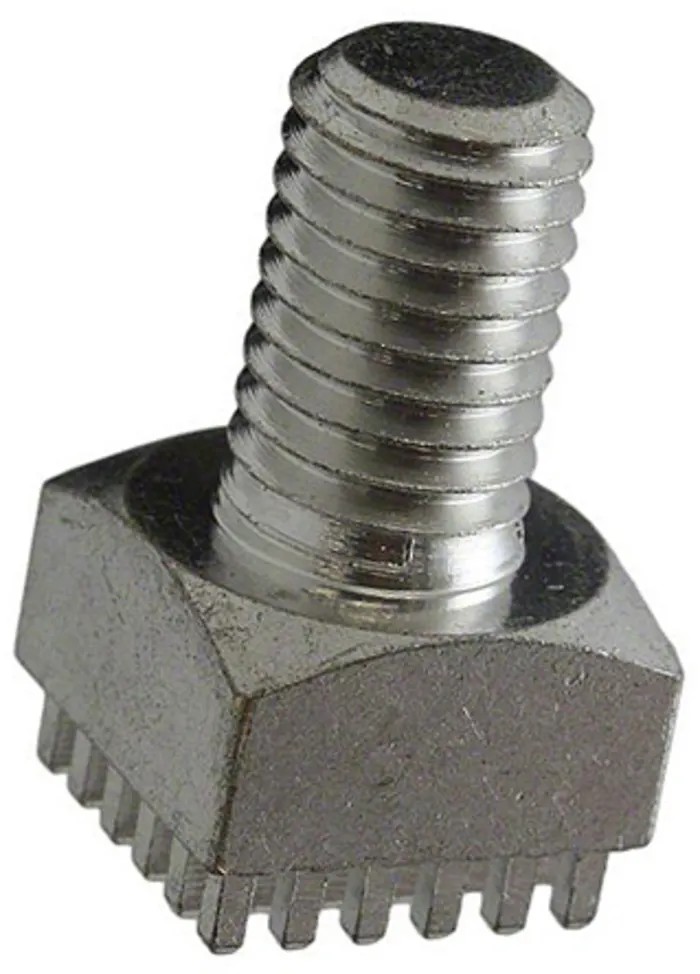

Wurth Elektronik Brass Vertical Screw Terminal 340A M10 Pitch 2.54mm REDCUBE Series 7461100

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik Brass Vertical Screw Terminal 340A M10 Pitch 2.54mm REDCUBE Series 7461100

Name: Wurth Elektronik Brass Vertical Screw Terminal 340A M10 Pitch 2.54mm REDCUBE Series 7461100
Brand: Wurth Elektronik
SKU: 189047



Category Screw Terminals Brand Wurth Elektronik Condition New

Specifications

Country of Origin	India
Screw Size	M10
Brand	Wurth Elektronik
Orientation	Vertical
Body Material	Brass
Current	340A
Model	7461100
Series	REDCUBE
Number of Legs	36
Number of Rows	6
Pitch	2.54mm
Body Plating	Tin

Key Features

Constructed from brass body with tin plating for corrosion resistance.
Vertical orientation with 6 rows and 36 legs for robust PCB connection.
Features M10 screw size and 2.54mm pitch for standard terminal compatibility.
Utilizes REDE CUBE series full plain pin plate for efficient high-current transfer.
Press-fit mounting offers secure, gas-tight electrical connections without soldering.
Rugged construction provides resistance to vibration and shock in industrial environments.
Eliminates PCB thermal stress by avoiding soldering processes.
Ideal for power supplies, converters, battery systems, and emergency power applications.

Product Description

Wurth Elektronik 7461100 Brass Vertical Screw Terminal offers a reliable solution for transferring high electric currents of up to 340 amperes to printed circuit boards (PCB). This screw terminal uses advanced press-fit technology which creates gas-tight and secure connections, ensuring high retention forces superior to traditional soldering or screw connections. Its vertical orientation and 6 row configuration with 36 legs facilitate robust and multi-point PCB integration.

Manufactured from brass with tin plating, this terminal combines excellent electrical conductivity with corrosion resistance. The M10 screw size and 2.54mm pitch make it compatible with standard PCB layouts. The REDE CUBE series' full plain pin plate is specially designed for efficient high-current transfer.

Press-fit technology helps eliminate the need for soldering, thereby reducing thermal loads on PCBs and improving manufacturing efficiency. Its rugged construction allows resistance to vibration and mechanical shocks, making it suitable for demanding industrial, agricultural, automotive, medical, and renewable energy applications.

This terminal is particularly effective in power supply units, DC to AC converters, battery and emergency power systems, and renewable energy installations such as wind and solar power systems. It is engineered to deliver durable performance and cost-effectiveness in high-current PCB connections.

Brass body with tin plating ensures corrosion resistance and electrical performance. Press-fit mounting provides gas-tight and vibration-resistant PCB connections. Vertical screw terminal configuration with 6 rows and 36 legs.

Supports currents up to 340A using robust REDE CUBE technology. Eliminates soldering, reducing thermal stress on PCBs during assembly. Easy integration into automated production with simple press-fit tooling. Suitable for diverse industries including renewable energy, automotive, and medical.

Secure mechanical connection resists vibration and shock load. Explore more high-quality wire terminals and connectors in the Electronics & Electricals category at EnvMart to suit your industrial and commercial needs.
