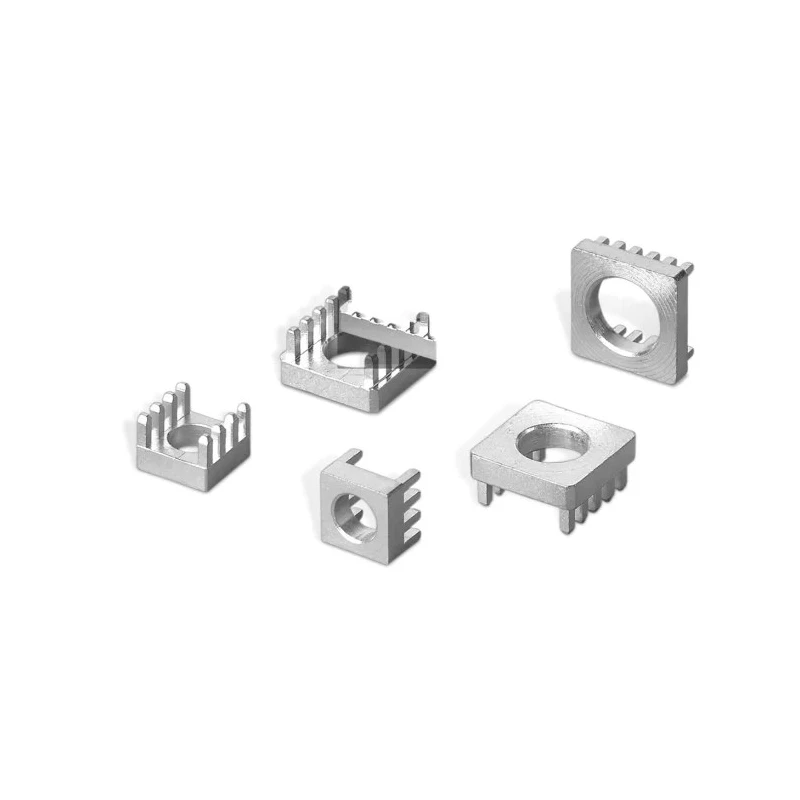

Wurth Elektronik Brass Screw Terminal Straight 160A 8 Legs 4 Rows REDCUBE Series 7461070

Wurth Elektronik 7461070 brass screw terminal, straight orientation, is engineered for electronic applications requiring secure, high current wire-to-board connections. Rated for 160A current with 8 legs arranged in 4 rows, this terminal provides reliable mechanical and electrical performance on printed circuit boards.

The terminal body is constructed from high-quality brass material for strength and excellent conductivity, with a tin-plated finish to enhance corrosion resistance and soldering compatibility. Its design features a snap-in mechanism allowing easy mounting onto PCBs with a 2.54mm pitch spacing, complying with major standards including RoHS, DIN 76-1:2016-08, DIN EN 61760-2, and DIN ISO 2768-1m.

This product series, REDCUBE, supports currents up to approximately 300A on the PCB when used with press-fit elements, facilitating secure electrical and mechanical bonding without requiring wave or reflow soldering. Press-fit processing recommendations emphasize supporting the PCB against bending and adhering to maximum torque limits to avoid damage.

This screw terminal is ideal for industrial, manufacturing, and electrical engineering applications where robust high-current connections and compliance with quality standards are critical. Typical uses include power distribution boards, control panels, and device assembly requiring reliable, long-lasting terminal connections.

Key features include snap-in construction, brass body with tin plating, and adherence to multiple international electrical and environmental standards. This ensures high performance and durability in demanding operational conditions.

The terminal is made of brass material for durability and reliable conductivity. Tin plating on the body enhances corrosion resistance and solderability. Snap-in design simplifies mounting and secure placement on PCBs. Standard 2.54mm pitch ensures compatibility with industry PCB hole spacing.

Complies with RoHS and DIN standards including DIN 76-1:2016-08 and DIN EN 61760-2 for quality assurance. Suitable for wave and reflow soldering is not applicable; uses press-fit technique to avoid mechanical damage. Maximum torque guidelines must be followed to prevent mechanical destruction of terminals.

Supports industrial applications requiring high current wire to board connections. REDCUBE series terminals enable current transfer up to approximately 300A using press-fit elements. Explore the range of Screw Terminals on EnvMart for premium electronic components designed for performance and reliability in industrial and commercial settings.
