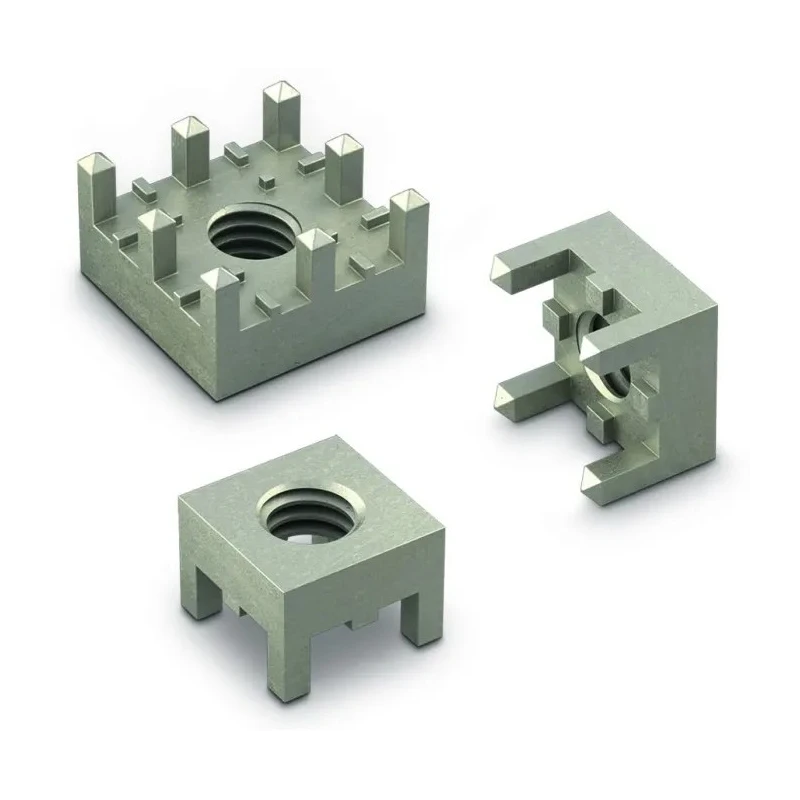

Wurth Elektronik Brass Screw Terminal Vertical, 85A, 8 Legs, 3 Rows, 2.54mm Pitch, Tin Plated Brass 74650094R

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik Brass Screw Terminal Vertical, 85A, 8 Legs, 3 Rows, 2.54mm Pitch, Tin Plated Brass 74650094R

Name: Wurth Elektronik Brass Screw Terminal Vertical, 85A, 8 Legs, 3 Rows, 2.54mm Pitch, Tin Plated Brass 74650094R
Brand: Wurth Elektronik
SKU: 209580



Category Screw Terminals Brand Wurth Elektronik Condition New

Specifications

Country of Origin	India
Screw Size	M4
Brand	Wurth Elektronik
Orientation	Vertical
Body Material	Brass
Current	85A
Model	74650094R
Series	REDCUBE
Number of Legs	8
Number of Rows	3
Pitch	2.54mm
Standards/Approvals	Compliant (2011/65/EU&2015/863), RoHS, REACH, Halogen Free
Body Plating	Tin

Key Features

Vertical orientation provides efficient PCB mounting and wire connection.
High current rating of 85 amperes ensures reliable power handling.
Constructed with brass body and tin plating for corrosion resistance.
Features 8 legs arranged in 3 rows with a 2.54mm pitch for compact board layouts.
Snap-in design supports automated pick and place and reflow soldering.
Offers high tightening torque due to solid milled material construction.
Low heat development optimizes thermal management for multilayer PCBs.
Compliant with RoHS, REACH, and Halogen Free standards.

Product Description

Wurth Elektronik 74650094R Brass Screw Terminal Vertical is a high-quality power terminal designed to facilitate secure and efficient wire-to-board connections in demanding electronic and electrical applications. Built from solid brass with tin plating, this terminal delivers excellent corrosion resistance and mechanical stability. The vertical orientation and compact 2.54mm pitch allow for versatile PCB layouts, making it suitable for industrial manufacturing processes and automated assembly lines.

The terminal supports currents up to 85 amperes, making it ideal for power distribution and industrial control circuitry. Its snap-in design enables compatibility with pick and place machines and automated reflow soldering, enhancing production efficiency. Manufactured according to RoHS and REACH directives, it aligns with environmental and safety standards.

This product is part of the REDCUBE series from Wurth Elektronik, known for reliable PCB terminal solutions with optimized thermal performance and high tightening torque. The terminal's milled solid material construction reduces heat development, ensuring system reliability especially in multilayer PCB designs.

Vertical orientation provides efficient PCB mounting and wire connection. High current rating of 85A ensures reliable power handling. Brass body with tin plating for corrosion resistance. 8 legs arranged in 3 rows with a 2.54mm pitch.

Snap-in design supports automated pick and place and reflow soldering. High tightening torque for secure connections. Low heat generation for optimized thermal conditions. Compliant with RoHS, REACH, and Halogen Free standards.

This terminal is commonly applied in electronics manufacturing, power supply units, industrial automation, telecommunications, and commercial equipment assembly requiring dependable electrical connections.
