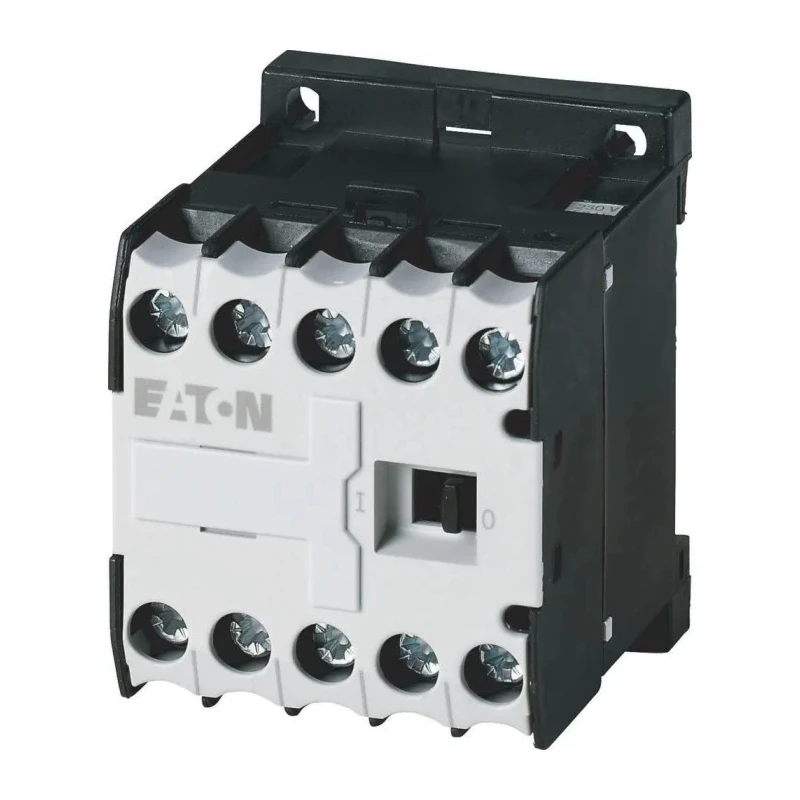

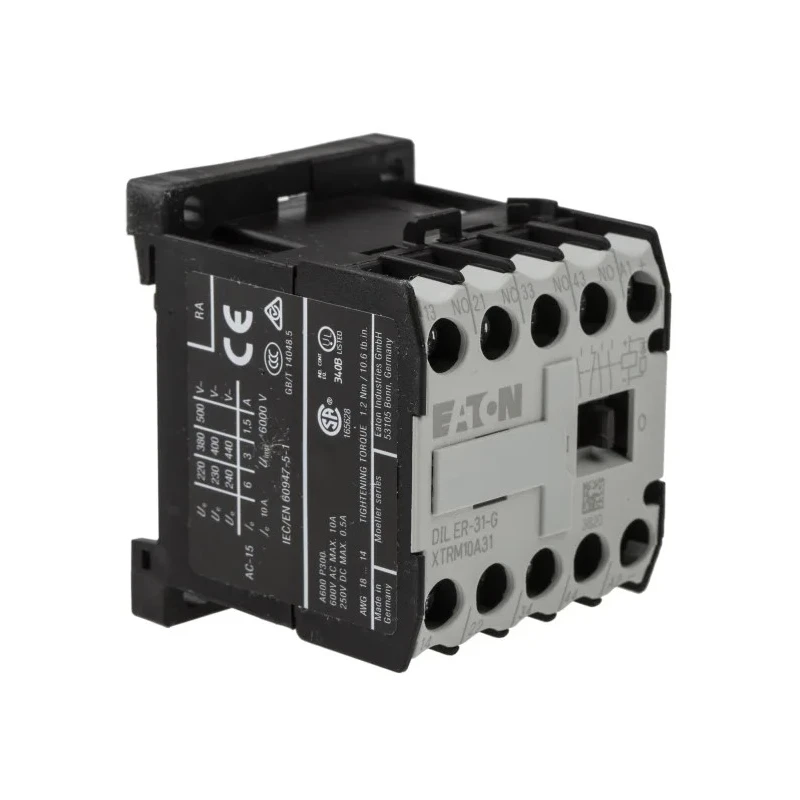

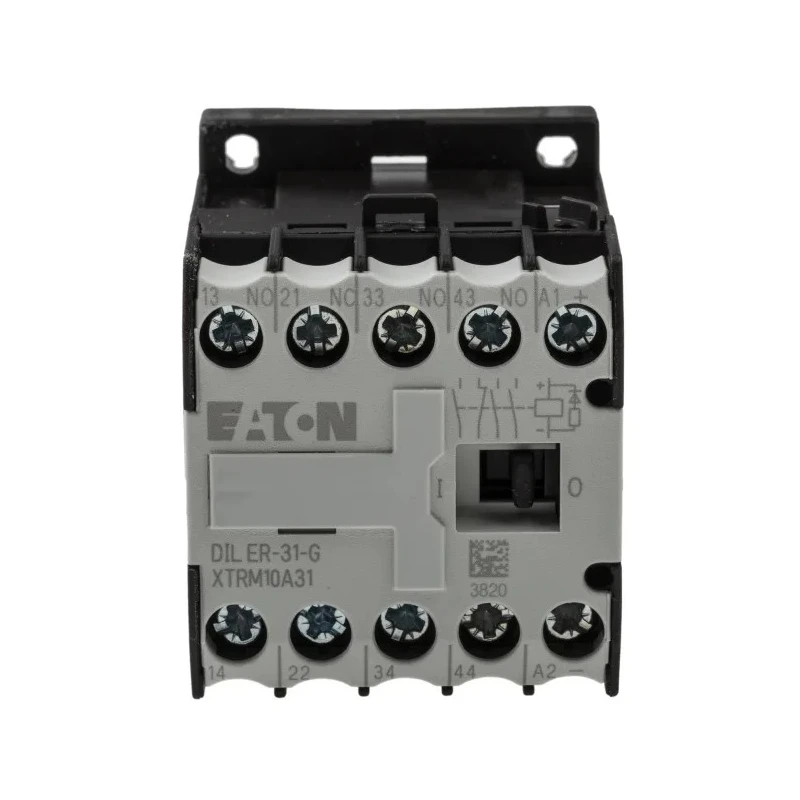

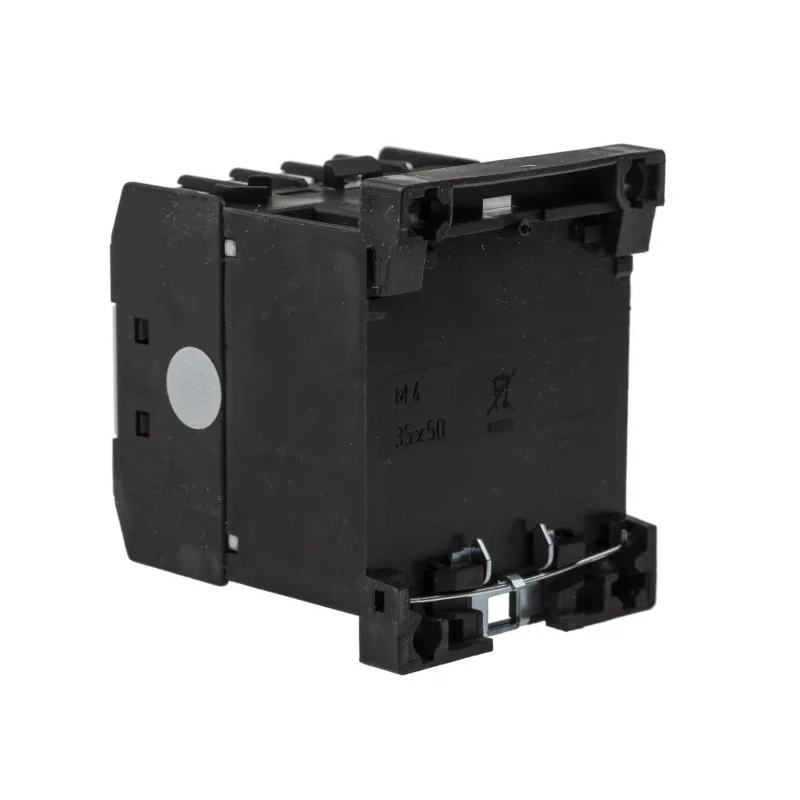

Eaton DILER Contactor 24V DC Coil 4-Pole 3A 3 NO/1 NC 400V AC 010157 DILER-31-G(24VDC)

Free Delivery in India | Lowest Global Shipping Charges

Eaton DILER Contactor 24V DC Coil 4-Pole 3A 3 NO/1 NC 400V AC 010157 DILER-31-G(24VDC)

Name: Eaton DILER Contactor 24V DC Coil 4-Pole 3A 3 NO/1 NC 400V AC 010157 DILER-31-G(24VDC)
Brand: Eaton
SKU: 188182
Price: 88.64 USD
Availability: InStock



Category Contactors Brand Eaton Condition New

Specifications

Country of Origin	Germany
Brand	Eaton
Function	Straight
Length	58mm
Model	010157 DILER-31-G(24VDC)
Depth	54mm
Width	45mm
Mount Type	DIN Rail
Series	DILER
Maximum Operating Temperature	40°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Number of Poles	4
Contact Voltage	400V ac
Coil Voltage	24V dc
Normal State Configuration	3 NO/1 NC
Contact Current	3A
Auxiliary Contact Configuration	3 NO/1 NC
Operational Current Ie	4A
Control Circuit Voltage Uc	24V dc
Contactor Application	Contactor Relay
Pole and Throw Configuration	3
Eaton DILER Contactor, 24V dc Coil, 4-Pole, 3 A, 4 NO, 400V acBrand	Eaton

Key Features

Operates at a coil voltage of 24V DC for reliable electromagnetic control.
Features 4 poles with a contact current capacity of 3A and contact voltage of 400V AC.
Includes a contact configuration of 3 normally open and 1 normally closed for versatile switching.
DIN rail mount type with screw terminals ensures easy installation and connection.
Wide operating temperature range from -25°C to 40°C suitable for various industrial environments.
Compact dimensions measuring 58mm length, 45mm width, and 54mm depth for space-saving in panels.
Lightweight design of approximately 211 grams facilitates handling and installation.

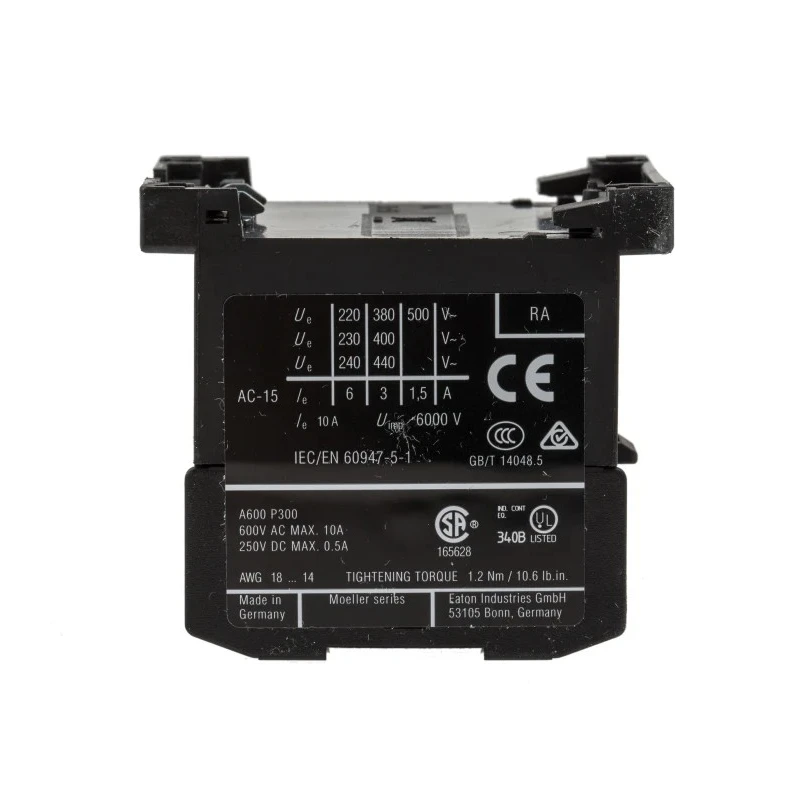

Designed according to standards including CSA, EN 60947-5-1, IEC/EN 60947, UL, VDE 0660, and carries CE marking.

Product Description

Eaton 010157 DILER-31-G(24VDC) Contactor is a precision-engineered 4-pole contactor with a 24V DC coil suitable for controlling heavy-duty electrical loads in industrial and HVAC applications. Its electromagnetic operation allows control of motors, heating systems, and other equipment safely and efficiently.

This contactor is designed for robust performance with a contact current rating of 3A at 400V AC and a versatile contact configuration of 3 normally open plus 1 normally closed contacts. The device supports a control circuit voltage of 24V DC and operational current of 4A to suit a wide range of control systems.

The compact dimensions (58mm L x 45mm W x 54mm D) and lightweight 211g body allow easy integration into control panels with limited space. The unit mounts securely on a DIN rail and uses screw terminals for reliable electrical connections.

It features a broad operating temperature capability ranging from -25°C to 40°C, making it adaptable to various industrial environments and ensures stable operation under differing climatic conditions. The contactor complies with key international standards including CSA, IEC/EN 60947 series, UL, VDE, and is CE marked, guaranteeing quality and safety.

Its IP20 finger-safe rating provides protection against finger contact and foreign objects larger than 12mm, enhancing user safety during installation and maintenance. Operates on 24V DC coil voltage. 4-pole design supports 3 NO and 1 NC contact configurations.

Contact voltage rating of 400V AC and 3A contact current. DIN rail mounting and screw terminal connection. Suitable for industrial, manufacturing, and HVAC system applications. Lightweight and compact for easy installation.

Complies with international standards including CSA, IEC, UL, VDE, and CE marking. Broad temperature range and IP20 protection rating.

Choose Eaton DILER Contactors for reliable and efficient industrial electrical control components. Browse other Eaton automation and control gear products at EnvMart for comprehensive system solutions.
