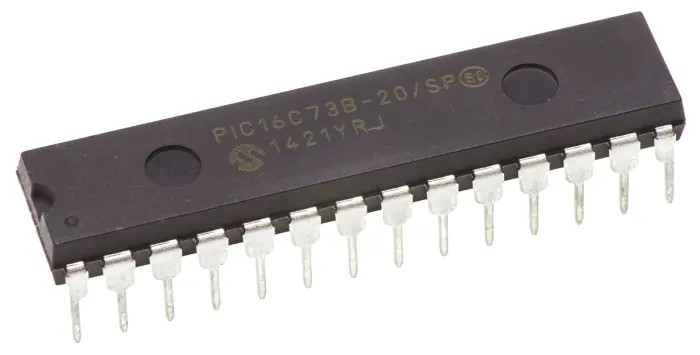

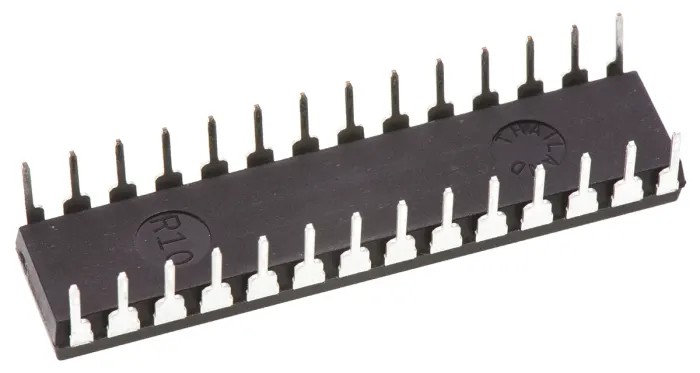

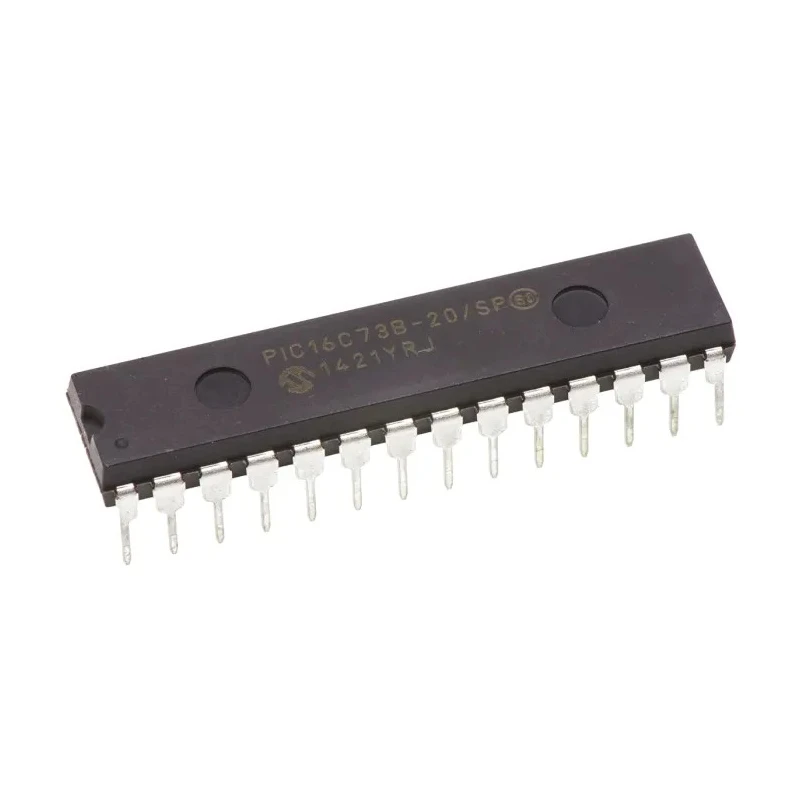

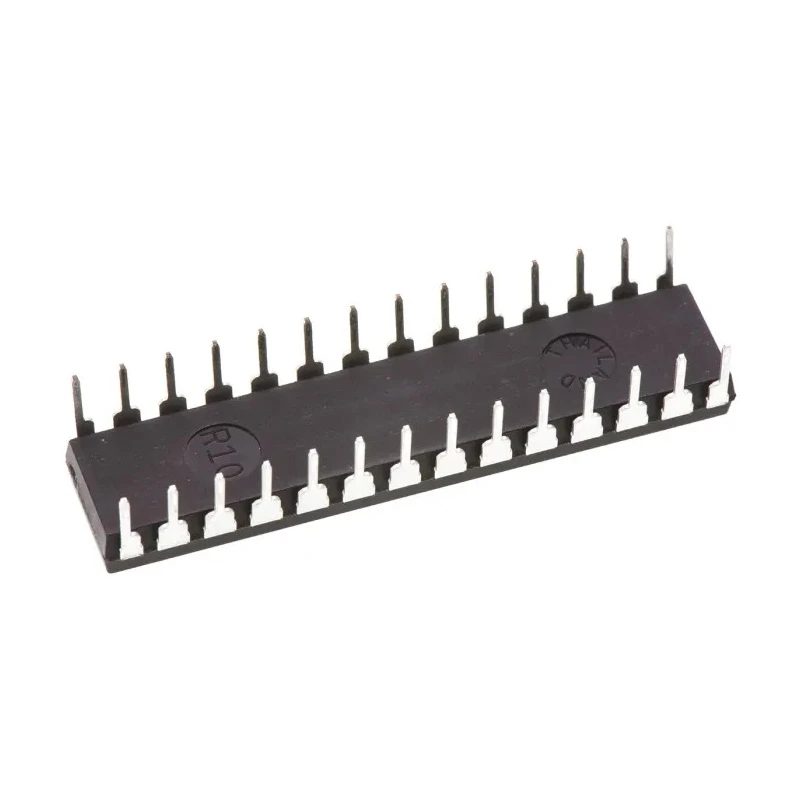

Microchip 8-bit PIC16C Microcontroller EPROM 7kB 20 MHz 28-Pin SPDIP PIC16C73B-20/SP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.43mm |
| Length | 35.18mm |
| Model | PIC16C73B-20/SP |
| Width | 7.49mm |
| Mount Type | Through Hole |
| Series | PIC16C |
| Maximum Operating Temperature | 70°C |
| Package Type | SPDIP |
| Minimum Operating Temperature | 0°C |
| Ram size | 192bit |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Automotive Standard | ISO/TS 16949 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 4V |
| Device Core | PIC |
| Program Memory Size | 7kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 22 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 5 x 8 Bit |
| Program Memory Type | EPROM |
Key Features
- Utilizes Microchip's PIC architecture for efficient 8-bit processing.
- Operates at a maximum clock frequency of 20 MHz for reliable performance.
- Features 7 kB EPROM program memory with 192 bits RAM for robust data handling.
- Includes 22 programmable I/O pins suited for versatile interfacing.
- Supports multiple timers and ADC channels for enhanced control functionality.
- Comes in a through-hole 28-pin SPDIP package suitable for easy PCB mounting.
- Operates within a wide voltage range of 4 V to 5.5 V ensuring compatibility.
- Built with RoHS compliant materials meeting environmental standards.
Product Description
Microchip PIC16C73B-20/SP is an 8-bit microcontroller featuring the PIC16C family’s well-established PIC architecture, suitable for embedded system designs requiring high performance and flexibility. This device includes an EPROM memory of 7 kB and supports a maximum clock frequency of 20 MHz, enabling efficient processing and data management.
It encompasses 22 programmable input/output pins, a valuable feature for complex interfacing applications. The microcontroller integrates three timers alongside five 8-bit analog to digital converters, providing advanced timing and sensing capabilities. The device is packaged in a 28-pin SPDIP form factor designed for through-hole mounting, facilitating ease of assembly on standard PCBs.
Operating voltage ranges from 4 to 5.5 volts with a maximum power dissipation of 1 watt, enabling usage across diverse power supply conditions. Its operating temperature from 0°C to 70°C permits use in various industrial and commercial environments. The device adheres to RoHS compliance and automotive standard ISO/TS 16949, reflecting quality and environmental responsibility.
Common applications include automotive controls, consumer electronics, industrial automation, and other embedded systems requiring compact, efficient microcontroller solutions. The PIC16C73B-20/SP represents a legacy yet robust choice, ideal for maintaining and upgrading existing designs.
Utilizes Microchip's PIC architecture for efficient 8-bit processing. Operates at a maximum clock frequency of 20 MHz for reliable performance. Features 7 kB EPROM program memory with 192 bits RAM for robust data handling.
Includes 22 programmable I/O pins suited for versatile interfacing. Supports multiple timers and ADC channels for enhanced control functionality. Comes in a through-hole 28-pin SPDIP package suitable for easy PCB mounting.
Operates within a wide voltage range of 4 V to 5.5 V ensuring compatibility. Built with RoHS compliant materials meeting environmental standards. Functional across 0°C to 70°C operating temperature for industrial applications.
Explore the Microchip range for advanced microcontrollers including newer PIC16F series for flash memory applications. Discover more Microchip semiconductor products and Microcontrollers on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a maximum clock frequency of 20 MHz, allowing for efficient processing capabilities.
This model features 7 kB of EPROM program memory, which is suitable for various embedded applications.
It operates within a wide voltage range of 4 V to 5.5 V, ensuring compatibility with different power supply conditions.
The dimensions are 35.18 mm in length, 7.49 mm in width, and 3.43 mm in height, making it suitable for compact designs.
It functions effectively within an operating temperature range of 0°C to 70°C, suitable for various environments.
It comes in a through-hole 28-pin SPDIP package, facilitating easy PCB mounting.
It adheres to RoHS compliance and the automotive standard ISO/TS 16949, reflecting quality and environmental responsibility.
This model features 192 bits of RAM, which supports its data handling capabilities.
The country of origin for this microcontroller is India.
