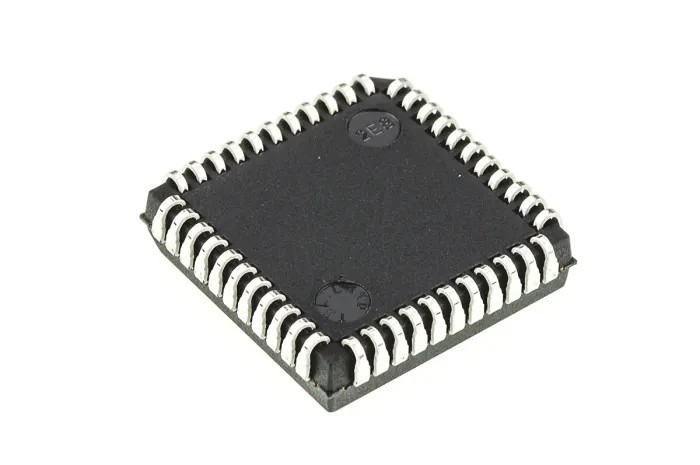

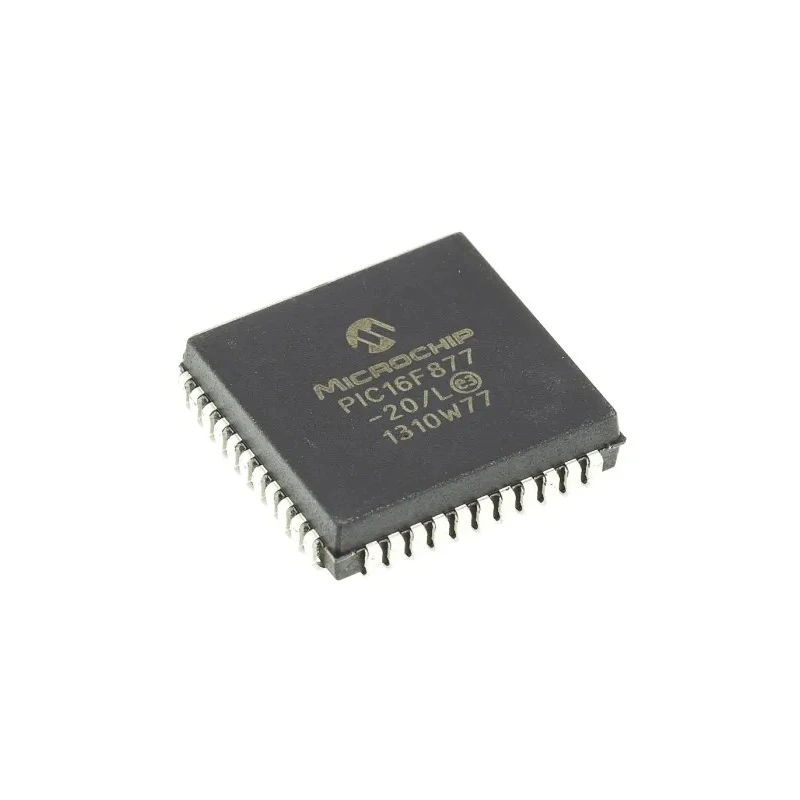

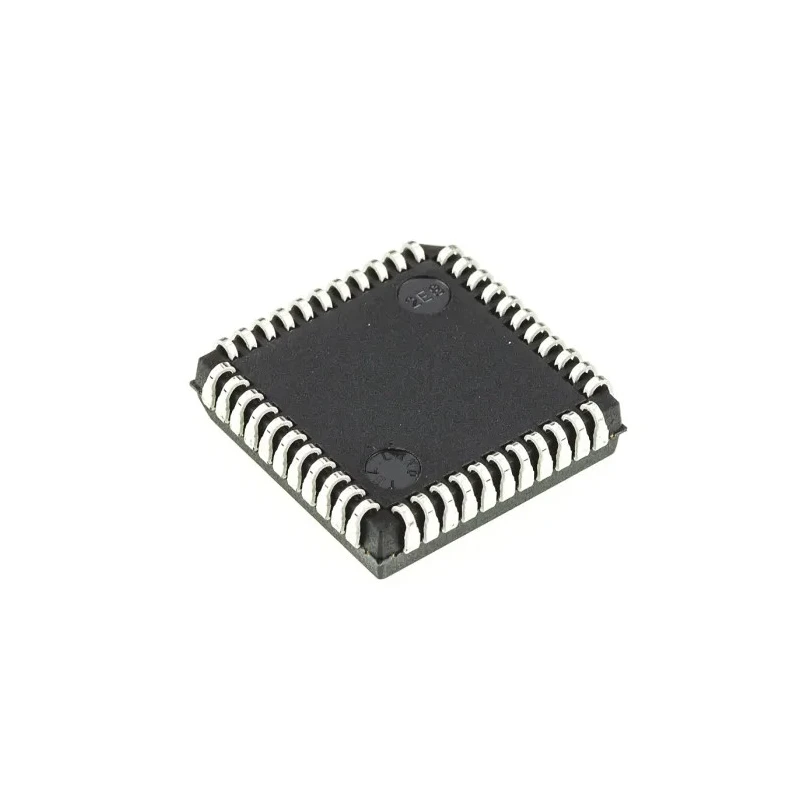

Microchip 8-bit PIC16F Microcontroller 20 MHz 14kB Flash 44-Pin PLCC PIC16F877-20/L
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.68mm |
| Length | 16.66mm |
| Model | PIC16F877-20/L |
| Width | 16.66mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 70°C |
| Package Type | PLCC |
| Minimum Operating Temperature | 0°C |
| Ram size | 368bit |
| Standards/Approvals | RoHS |
| Pin Count | 44 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 14kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 33 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Provides 33 programmable I/O pins for versatile control.
- Contains 368-bit RAM and 14kB Flash program memory for efficient data handling.
- Supports a maximum supply voltage of 5.5V and minimum of 2V.
- Includes 3 timers and 8-channel 10-bit ADC for diverse timing and analog input applications.
- Equipped with multiple communication peripherals including USART, SPI, and I2C support.
- Surface mountable PLCC package with 44 pins measuring 16.66mm x 16.66mm x 3.68mm.
- Operates within temperature range 0°C to 70°C and has maximum power dissipation of 1W.
- Built on RISC architecture supporting 35 instructions and an 8-level deep hardware stack.
Product Description
Microchip PIC16F877-20/L is an 8-bit PIC microcontroller designed for a broad range of electronic applications. It features 14kB Flash memory and operates up to 20 MHz clock frequency, making it suitable for mid-performance embedded systems. The microcontroller supports 33 programmable input/output pins providing flexible interfacing capabilities.
This device includes 368-bit RAM and a program memory size of 14kB with FLASH type. It supports a maximum supply voltage of 5.5V and a minimum of 2V, with an operating temperature range from 0°C to 70°C, and a maximum power dissipation of 1W. The package is a surface mount 44-pin PLCC measuring 16.66mm length, 16.66mm width, and 3.68mm height. Compliance with RoHS standards ensures environmental safety in usage and manufacturing.
The microcontroller architecture is based on a RISC design with 35 instructions and an 8-level hardware stack, allowing efficient processing with up to 5 MIPS. It contains 3 timers and 8 ADC channels (10-bit resolution) that provide accurate timing and analog signal conversion. Communication peripherals include USART for serial communication, SSP module for SPI and I2C protocols, and a Parallel Slave Port available on specific models.
This microcontroller is ideal for various industrial, educational, and development applications such as embedded development systems, automation controls, and industrial instrumentation. Its wide operating voltage and temperature ranges make it reliable for challenging environments.
Provides 33 programmable I/O pins for versatile control. Contains 368-bit RAM and 14kB Flash program memory for efficient data handling. Supports a maximum supply voltage of 5.5V and minimum of 2V. Includes 3 timers and 8-channel 10-bit ADC for diverse timing and analog input applications.
Equipped with USART, SPI, and I2C communication peripherals. Compact 44-pin PLCC surface mount package measuring 16.66mm x 16.66mm x 3.68mm. Operating temperature range of 0°C to 70°C with 1W max power dissipation. Built on RISC architecture supporting 35 instructions and 8-level hardware stack.
Explore more Microcontrollers and electronic components at EnvMart for your embedded system design and development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz.
It features a program memory size of 14kB, which is of FLASH type.
The operating temperature range for the PIC16F877-20/L is from 0°C to 70°C.
This model provides 33 programmable I/O pins for versatile control.
The maximum supply voltage supported by this microcontroller is 5.5V.
It includes USART, SPI, and I2C communication peripherals for diverse interfacing options.
The dimensions of this microcontroller are 16.66mm x 16.66mm x 3.68mm.
This microcontroller is built on RISC architecture, supporting 35 instructions and an 8-level deep hardware stack.
It includes 3 timers for various timing applications.
This model contains 368 bits of RAM.
The maximum power dissipation for the PIC16F877-20/L is 1W.
Yes, it complies with RoHS standards, ensuring environmental safety in usage and manufacturing.
