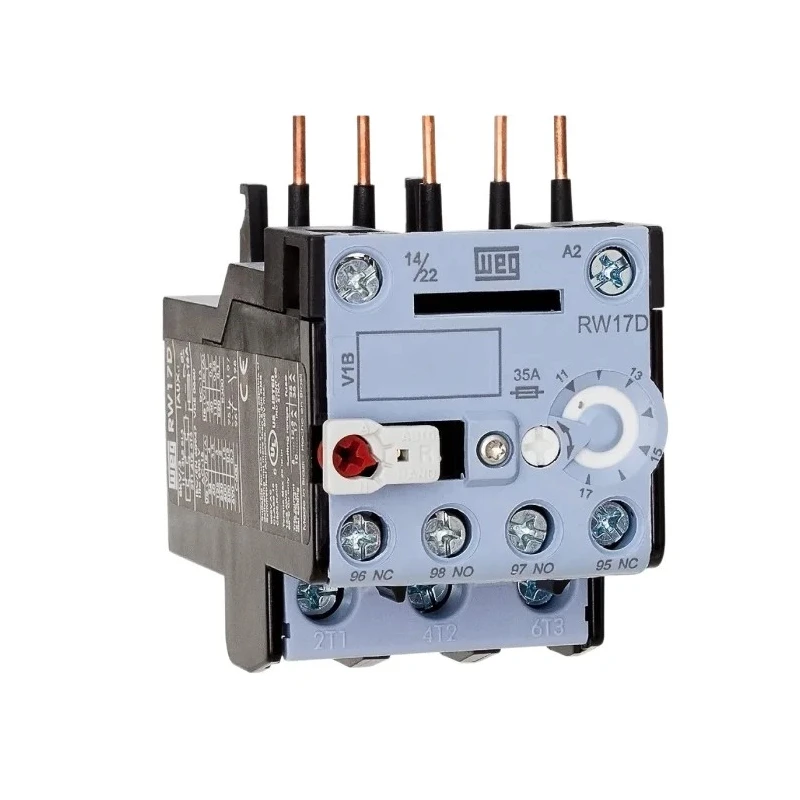

WEG Thermal Overload Relay, 12.5A F.L.C, 1 NO/1 NC, 1.4W Power, DIN Rail Mount RW17

Free Delivery in India | Lowest Global Shipping Charges

WEG Thermal Overload Relay, 12.5A F.L.C, 1 NO/1 NC, 1.4W Power, DIN Rail Mount RW17



Category Thermal Overload Relay Brand WEG Condition New

Specifications

Country of Origin	Brazil
Brand	WEG
Length	71.5mm
Model	RW17
Depth	82.5mm
IP Rating	IP20, IP10
Width	45mm
Mount Type	DIN Rail
Series	RW17
Power Rating	1.4W
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Supply Voltage	100, 50V
Contact Voltage	690V ac
Reset Method	Automatic & Manual
Normal State Configuration	1 NO/1 NC
Relay Contact Current	12.5, 8A
Number of Auxiliary Contacts	2
Pole and Throw Configuration	3
FLC Motor Rating	12.5A
Adjustable Current Range	8 → 12 A

Key Features

Features 1 normally open and 1 normally closed contact configuration.
Adjustable current range between 8 A and 12 A for precise motor protection.
DIN rail mountable design for easy installation.
Includes screw terminal type for secure connections.
Rated for contact voltage up to 690 V AC.
Operates efficiently within temperature range of -25°C to 60°C.
Provides IP20 and IP10 ratings ensuring basic protection against ingress.
Complies with IEC and European standards IEC 60947 series and 2009/125/EC directives.

Product Description

WEG RW17 Thermal Overload Relay is designed for motor protection in industrial electrical applications. Featuring reliable performance with a rated full load current (FLC) of 12.5A, it is ideal for safeguarding motors from overload conditions by using thermally activated relay elements. The relay is equipped with 1 normally open (NO) and 1 normally closed (NC) auxiliary contact for flexible control integration.

This model supports both automatic and manual reset methods allowing operators to select according to the safety protocol. The adjustable current range from 8 to 12 Amperes enables precise tripping settings matching various motor specifications. It mounts conveniently on a DIN rail with screw terminals for robust electrical connections.

Operating within ambient temperatures from -25°C to 60°C, the relay is suitable for diverse industrial environments. Its contact voltage capacity reaches 690V AC, compatible with typical motor circuit voltages. IP20 and IP10 ratings confer basic protection against dust and accidental contact, making this product suitable for indoor industrial use.

Conforming to IEC 60947 standards and European directives (2009/125/EC), the WEG RW17 ensures compliance with international safety and quality guidelines. Manufactured in Brazil, it guarantees robust construction and reliable longevity.

Features 1 NO and 1 NC contacts for versatile control operations. Adjustable current range allows tailored motor protection settings. DIN rail mounting simplifies installation in electrical panels. Dual reset method facilitates flexible reset procedures post-trip.

Compliance with multiple IEC standards ensures high safety and quality.

This Thermal Overload Relay is suited for industrial, commercial, and manufacturing environments requiring dependable motor protection and automation control gear. Explore more WEG control gear products on EnvMart for diverse electrical applications and enhanced equipment safety.
