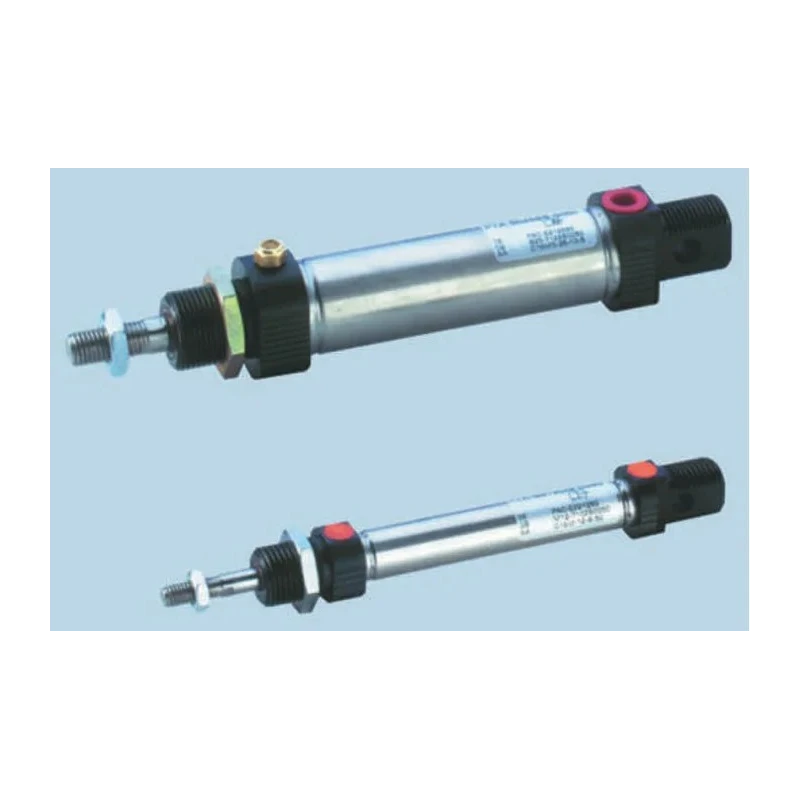

Parker 320 mm Pneumatic Piston Rod Cylinder Double Acting Both Ends Tapped Buffer Cushion Stainless Steel P1A-S025DS-0320

Free Delivery in India | Lowest Global Shipping Charges

Parker 320 mm Pneumatic Piston Rod Cylinder Double Acting Both Ends Tapped Buffer Cushion Stainless Steel P1A-S025DS-0320

Name: Parker 320 mm Pneumatic Piston Rod Cylinder Double Acting Both Ends Tapped Buffer Cushion Stainless Steel P1A-S025DS-0320
Brand: Parker
SKU: 187440
Price: 149.55 USD
Availability: InStock



Category Pneumatic Piston Rod Cylinder Brand Parker Condition New

Specifications

Country of Origin	India
Brand	Parker
Body Material	Stainless Steel
Operating Temperature	-20°C to +80°C
Length	452mm
Model	P1A-S025DS-0320
Operating Pressure	10 bar max
Mount Type	Both Ends Tapped
Series	P1A
Medium	Compressed air, filtered, lubricated or non-lubricated
Maximum Operating Temperature	80°C
Stroke Length	320mm
Rod Type	Double
Action Type	Double Acting
Piston Rod	Stainless steel
Seals	Fluorocarbon/Nitrile rubber
Standards/Approvals	ISO 6432
Cushioning Type	Buffer
Piston Rod Gender	Female
Piston Rod Thread Size	M10
End covers	Anodised aluminium
Barrel	Stainless steel

Key Features

Constructed with high-quality stainless steel for barrel and piston rod ensuring corrosion resistance.
Includes buffer type cushioning to extend cylinder lifespan.
Features an M10 female threaded piston rod with double rod type design.
Operates effectively under compressed air, either filtered and lubricated or non-lubricated.
Complies with ISO 6432 standard for mini cylinders.
Supports a maximum operating pressure of 10 bar and a temperature range from -20°C to 80°C.
End covers are anodised aluminium for durability.

Product Description

Parker P1A-S025DS-0320 Pneumatic Piston Rod Cylinder with a 320 mm stroke length is a robust double acting cylinder designed for precise linear motion control in industrial and manufacturing settings. It incorporates both ends tapped mountings for secure installation and a buffer cushioning system that minimizes wear and prolongs service life.

The cylinder barrel and piston rod are made of stainless steel, providing excellent corrosion resistance suitable for diverse environments, including pneumatic automation and fluid power applications. The piston rod features a female M10 thread and is of a double rod type, facilitating various tooling attachments and integration options.

Intended for use with compressed air, the cylinder operates efficiently at pressures up to 10 bar, supporting both filtered lubricated and non-lubricated mediums. The operating temperature range spans from -20°C to +80°C, ensuring compatibility with a wide range of industrial conditions.

This compact cylinder conforms to ISO 6432 standards, guaranteeing high reliability and interchangeability for mini cylinders across global applications. The anodised aluminium end covers contribute to the unit's durability and resistance to mechanical stresses.

Robust stainless steel barrel and piston rod. Buffer cushioning for extended lifespan. Double acting operation for versatile motion control. Both ends tapped mounting for easy installation. Complies with ISO 6432 standards for mini cylinders.

Operates with compressed air up to 10 bar. Wide operating temperature range from -20°C to 80°C.

Ideal for pneumatic automation in manufacturing, packaging, water treatment, and laboratory equipment, this Parker pneumatic piston rod cylinder enhances durability and precision. Suitable for industrial tools requiring consistent and reliable pneumatic actuation.
