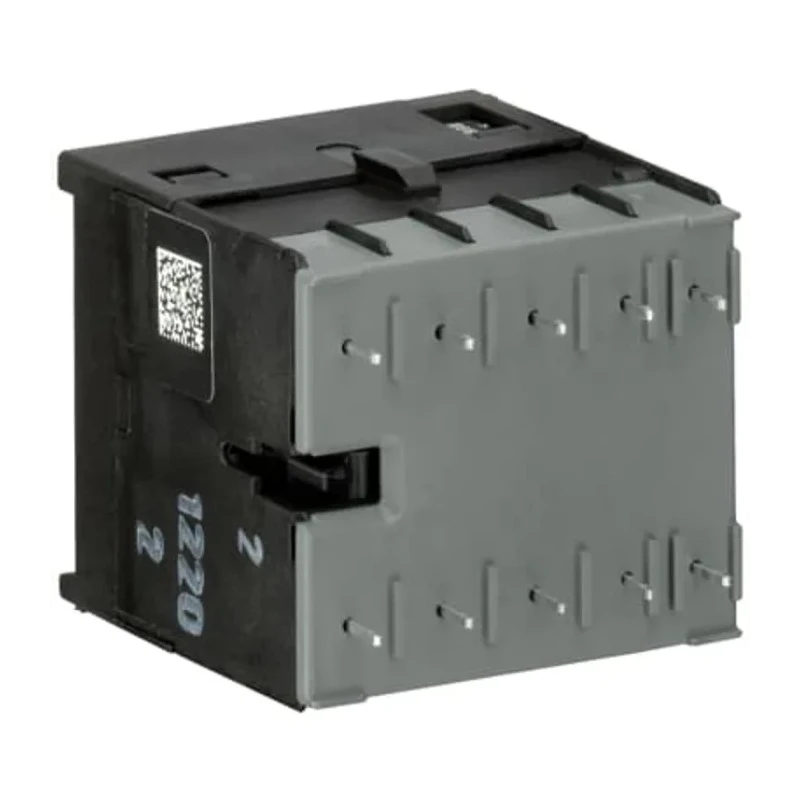

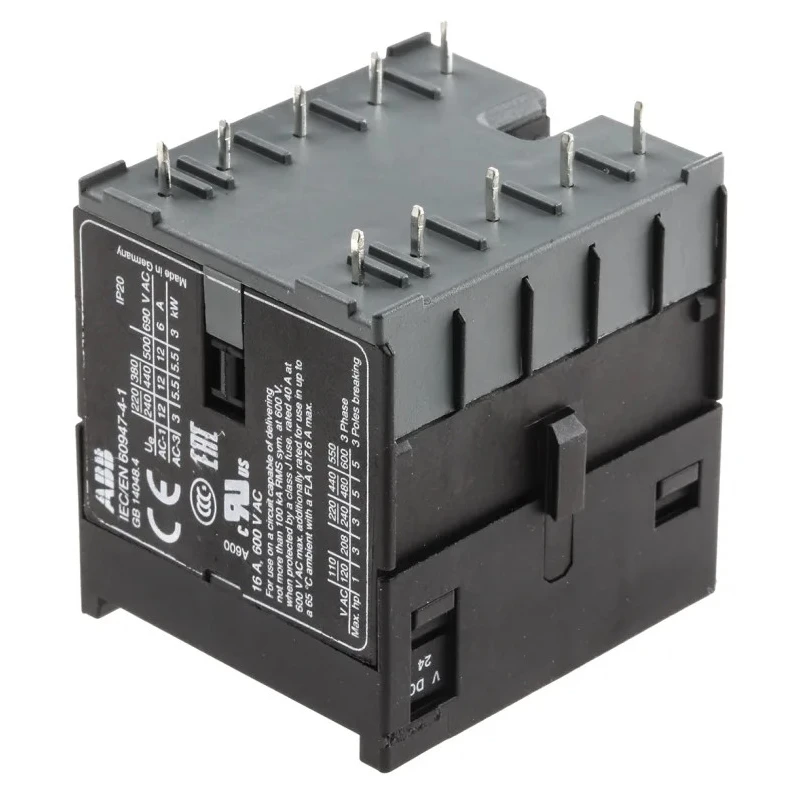

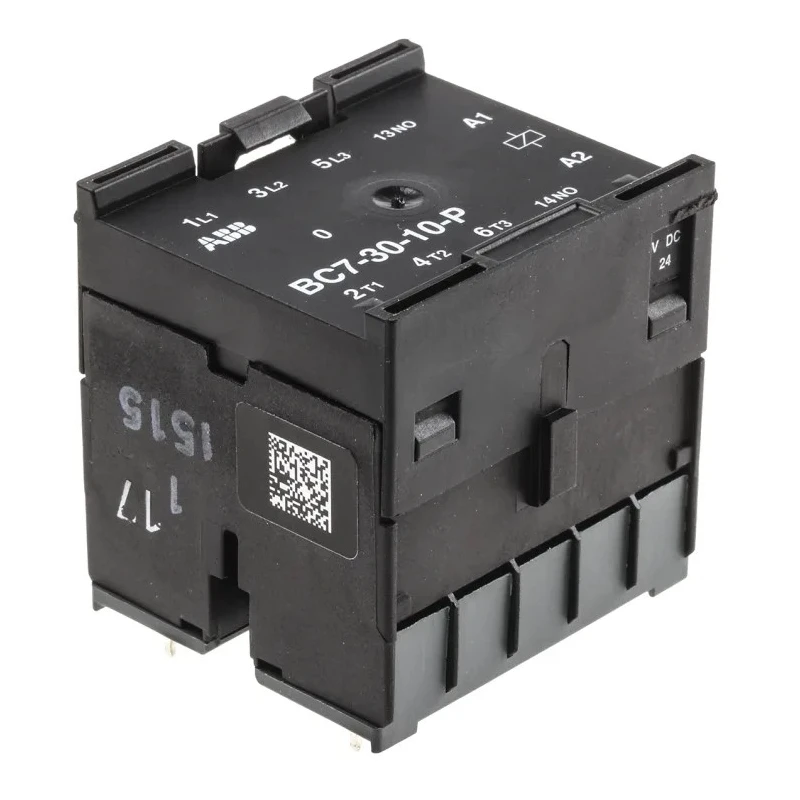

ABB Contactor Relay 24V DC Coil, 3-Pole, 9A, 5.5 kW Power Rating, 690V AC Contact Voltage BC7-30-10-P01
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | ABB |
| Function | Motor Control, Resistive Load, Self Locking |
| Length | 45.5mm |
| Model | BC7-30-10-P01 |
| Depth | 51.5mm |
| Width | 47.5mm |
| Mount Type | DIN Rail |
| Series | BC7 |
| Power Rating | 5.5kW |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder Pin |
| Number of Poles | 3 |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 1 |
| Operational Current Ie | 6.8A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Motor Control, Resistive Load |
| ABB B Contactor, 24V dc Coil, 3-Pole, 6 A, 4 kW 24V dc, 3 NO, 690V acBrand | ABB |
Key Features
- Features 3 poles with a 9A contact current rating for robust electrical load management.
- Supports a high contact voltage of 690V AC for demanding industrial environments.
- Equipped with a 5.5 kW power rating suitable for various motor and resistive loads.
- Includes 1 auxiliary contact to enhance circuit control capabilities.
- Compact DIN rail mounting design enables easy installation in control panels.
- Suitable for operating temperature range from -25°C to 55°C, ensuring versatility in different environments.
- Terminal type is solder pin for secure and stable connections.
- Self-locking function enhances operational safety and reliability.
Product Description
The ABB BC7-30-10-P01 Contactor Relay is a precision-engineered device featuring a 24V DC coil voltage optimized for industrial automation and control applications. This 3-pole contactor is designed to handle up to 9A contact current with a power rating of 5.5 kW, supporting contact voltages up to 690V AC. Its robust construction and reliable performance make it ideal for use in motor control, resistive loads, and other industrial electrical systems.
Its compact dimensions of approximately 47.5mm width, 45.5mm length, and 51.5mm depth allow for efficient use of space in control cabinets and panels. The DIN rail mount design simplifies installation and maintenance.
The relay includes one auxiliary contact (3 NO configuration) which facilitates additional circuit control options, expanding its versatility in complex electrical assemblies. The solder pin terminals ensure secure and durable electrical connections.
Operating effectively within a temperature range of -25°C to +55°C, the BC7-30-10-P01 is well-suited for diverse industrial environments. It complies with recognized standards including IEC/EN 60947 series and UL certifications, underlining its quality and safety assurance.
3 poles with a 9A current rating for robust load handling. Supports contact voltages up to 690V AC for high-demand uses. 5.5 kW power rating suitable for various motor control tasks. Includes an auxiliary contact for versatile circuit control.
Compact and DIN rail mountable for easy integration. Operating temperature range of -25°C to 55°C. Solder pin terminal type for reliable connectivity. Conforms to IEC/EN and UL standards for safety and quality.
This Contactor Relay is widely used in industrial automation systems, electrical control panels, motor control circuits, and mechanical assemblies. Its reliable switching and robust performance support efficient and safe operation in manufacturing, HVAC, water treatment, and other industrial sectors.
Explore the range of ABB contactors for various power ratings and coil voltages to match your specific industrial control requirements at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a contact current rating of 9A, making it suitable for robust electrical load management.
The power rating is 5.5 kW, which is suitable for various motor and resistive loads.
This unit supports a maximum contact voltage of 690V AC, suitable for demanding industrial environments.
It operates with a 24V DC coil voltage, optimized for industrial automation and control applications.
The dimensions are approximately 47.5mm in width, 45.5mm in length, and 51.5mm in depth.
It features a compact DIN rail mounting design, allowing for easy installation in control panels.
It operates effectively within a temperature range of -25°C to +55°C, ensuring versatility in different environments.
Yes, it includes one auxiliary contact configured as 3 NO, which enhances circuit control capabilities.
It is equipped with solder pin terminals for secure and stable connections.
It is widely used in motor control, resistive loads, and various industrial electrical systems.
It complies with recognized standards including IEC/EN 60947 series and UL certifications, ensuring quality and safety assurance.
It is designed for motor control and resistive load applications, featuring a self-locking function for enhanced operational safety.
