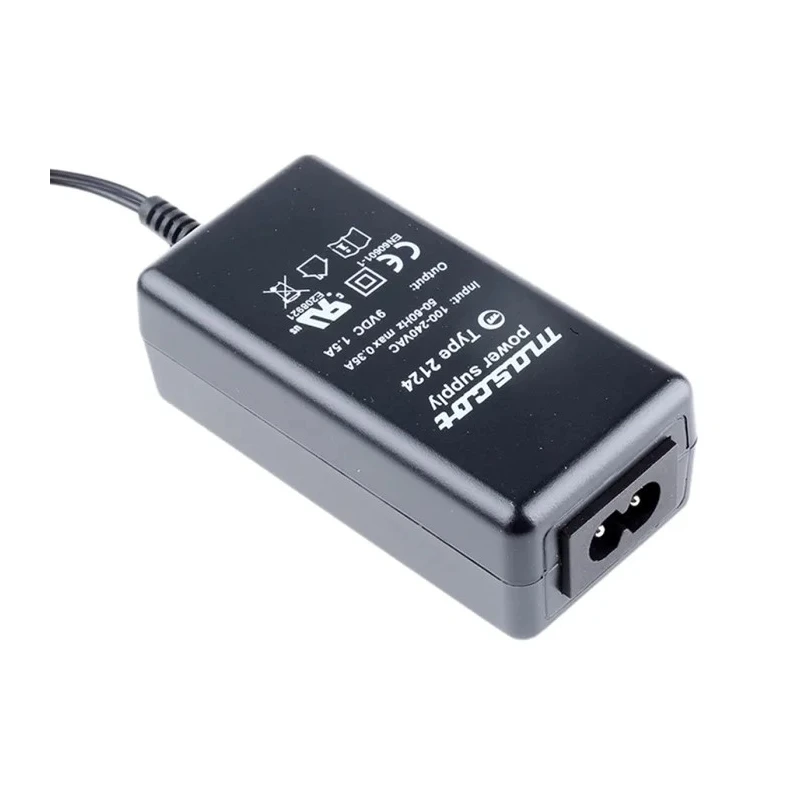

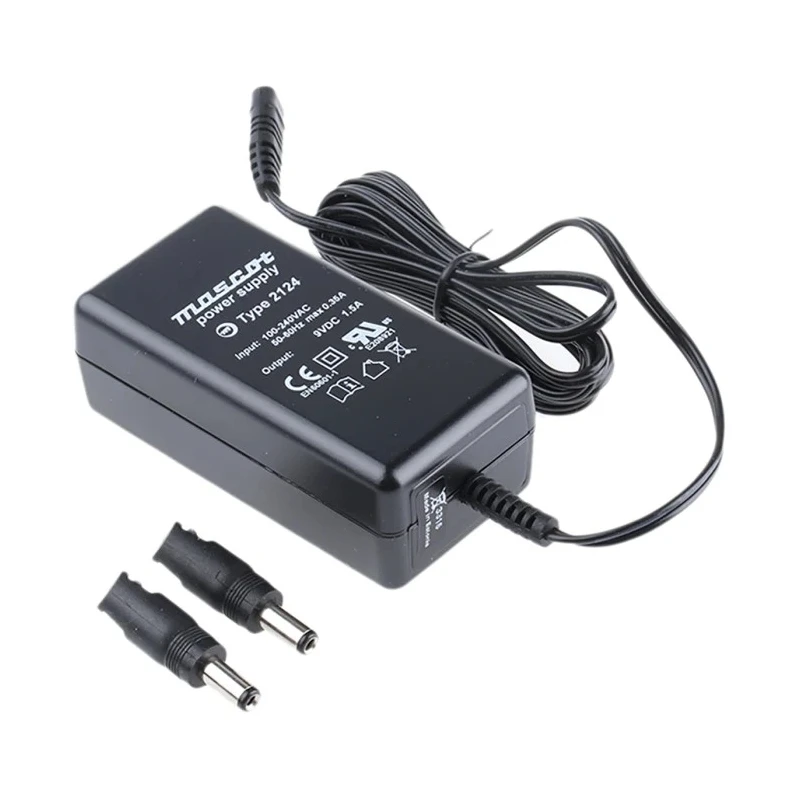

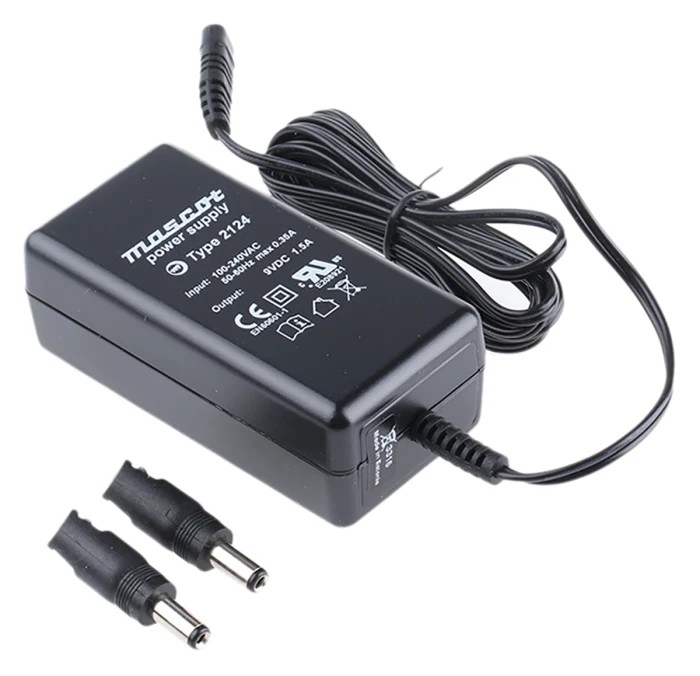

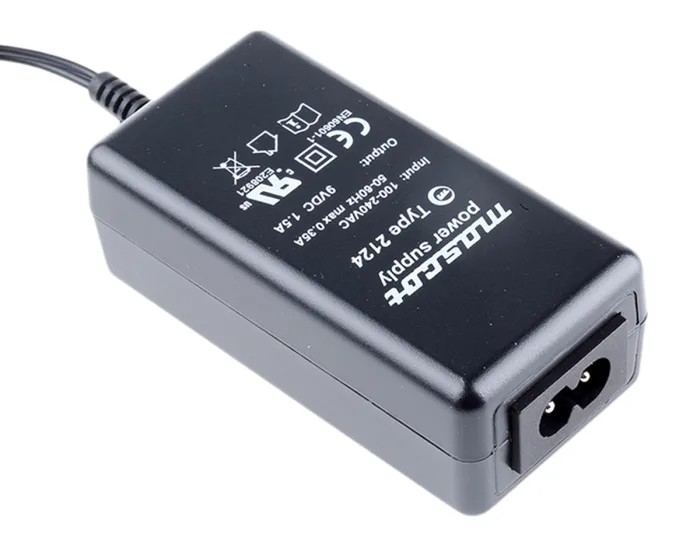

Mascot AC/DC Adapter with Single Output 9V DC 5W Power, 2.1 x 5.5 x 12 mm and 2.5 x 5.5 x 12 mm Female Coaxial 2124000042
Specifications
| Country of Origin | India |
|---|---|
| Brand | Mascot |
| Power | 5W |
| Efficiency | 83% |
| Length | 90mm |
| Depth | 32mm |
| Cable Length | 1800mm |
| Width | 45mm |
| Series | 2124 |
| Maximum Operating Temperature | 40°C |
| Load Regulation | ±1 % |
| Minimum Operating Temperature | -20°C |
| Plug Type | 2-Pin (IEC) |
| Number of outputs | 1 |
| Maximum Input Voltage | 240V ac |
| Output Voltage | 9V dc |
| Standards/Approvals | EN 60601-1-2 |
| Minimum Input Voltage | 100V ac |
| Output Connector Type | 2.1 x 5.5 x 12 mm Female Coaxial Plug with Snap Lock, 2.5 x 5.5 x 12 mm Female Coaxial Plug with Snap Lock |
| Input Connector Type | IEC 320 |
| Adapter Current | 1.5A |
| Mascot AC/DC Adapter 2-Pin (IEC) 230V ac Output 3 A, 9 V dcBrand | Mascot |
Key Features

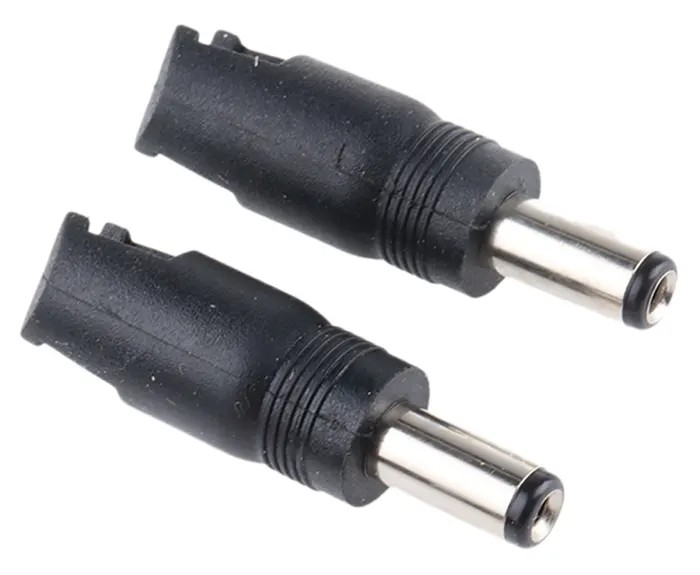

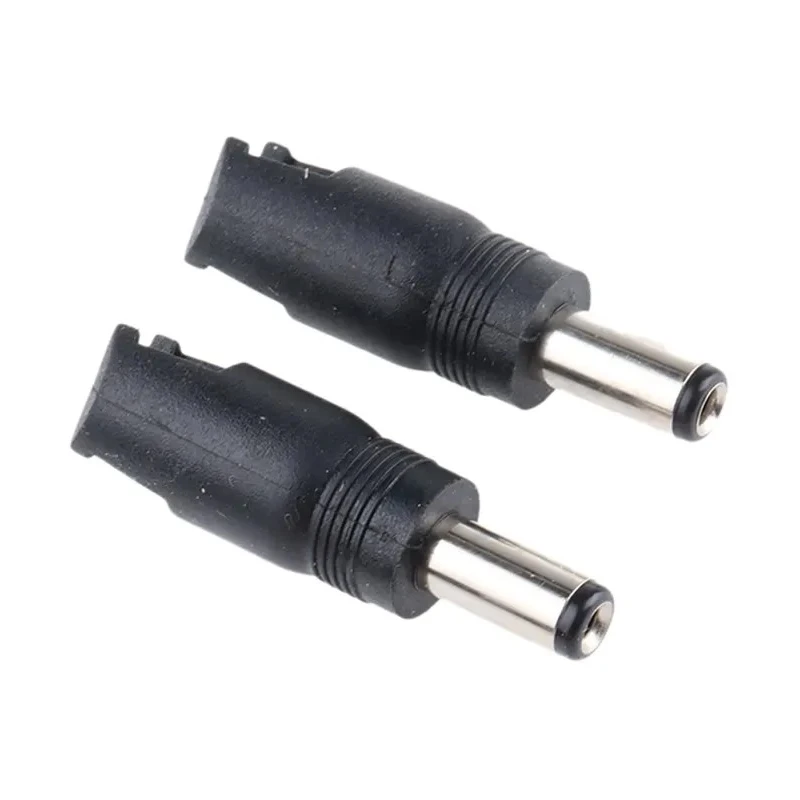

- Equipped with both 2.1 x 5.5 x 12 mm and 2.5 x 5.5 x 12 mm female coaxial plugs with snap lock for secure connections.
- Single output adapter delivering 9V DC at 5W power rating suitable for various applications.
- Includes an 1800mm cable length for flexible installation options.
- Designed for medical and commercial use with compliance to EN 60601-1-2 standards.
- Operates efficiently with 83% efficiency and load regulation within ±1%.
- Input voltage range spans from 100V to 240V AC with adapter current of 1.5A.
- Supports operating temperatures from -20°C to 40°C ensuring reliable performance.
- Includes IEC 320 input connector and snap-lock feature for easy and safe device connection.
Product Description
The Mascot 2124000042 AC/DC Adapter is a high-quality power supply unit designed for medical and industrial applications requiring a reliable single output of 9V DC at 5W power. This adapter features dual female coaxial plugs with snap lock in sizes 2.1 x 5.5 x 12 mm and 2.5 x 5.5 x 12 mm, allowing versatile connectivity options tailored to specific device requirements.
Engineered for efficiency and safety, the adapter complies with EN 60601-1-2 medical standards and offers fully regulated output with overvoltage and short circuit protection. The device assures isolation of 4kV input/output and robust EMC immunity per EN 50082-1, suitable for demanding environments.
With an output cable length of approximately 1.8 meters and IEC 320 type input connector, installation is flexible and user-friendly. The adapter operates reliably within a broad input voltage range of 100 to 240V AC, with an adapter current rating of 1.5A. Efficiency is rated at 83%, along with tight load regulation of ±1% to ensure stable power delivery.
Compact in size with dimensions of 90mm length, 45mm width, and 32mm depth, the unit supports ambient operating temperatures from -20°C to 40°C. This makes it suitable for a variety of commercial and healthcare applications requiring a safe and compliant power source.
Equipped with both 2.1 x 5.5 x 12 mm and 2.5 x 5.5 x 12 mm female coaxial plugs with snap lock for secure connections. Single output adapter delivering 9V DC at 5W power rating suitable for various applications. Includes an 1800mm cable length for flexible installation options.
Designed for medical and commercial use with compliance to EN 60601-1-2 standards. Operates efficiently with 83% efficiency and load regulation within ±1%. Input voltage range spans from 100V to 240V AC with adapter current of 1.5A.
Compact dimensions: Length 90mm, Width 45mm, Depth 32mm. Supports operating temperatures from -20°C to 40°C ensuring reliable performance. Includes IEC 320 input connector and snap-lock feature for easy and safe device connection.
This product is ideal for use in industrial, laboratory, medical, and commercial power supply applications requiring rigorously certified switch mode power supplies. Explore more AC/DC Adapters and power solutions in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has dimensions of 90mm in length, 45mm in width, and 32mm in depth.
The input voltage range spans from 100V to 240V AC.
The adapter includes a cable length of approximately 1800mm.
It operates with an efficiency rating of 83%.
The load regulation is within ±1%.
It supports operating temperatures from -20°C to 40°C.
The input connector type is IEC 320.
Yes, it complies with EN 60601-1-2 standards, making it suitable for medical applications.
The adapter current rating is 1.5A.
It is designed for medical and commercial use, particularly in applications requiring a reliable power source.
