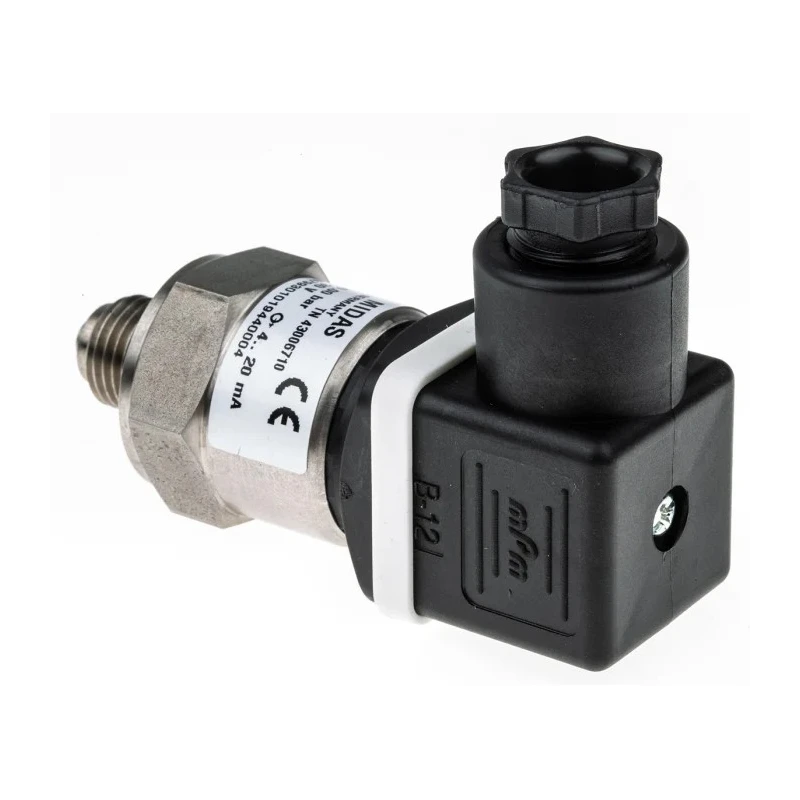

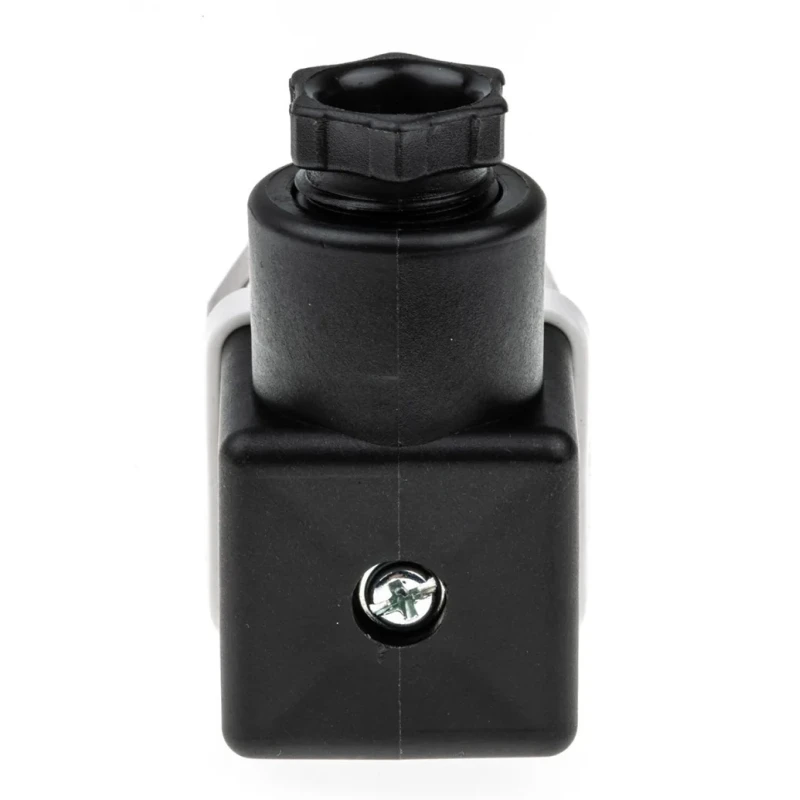

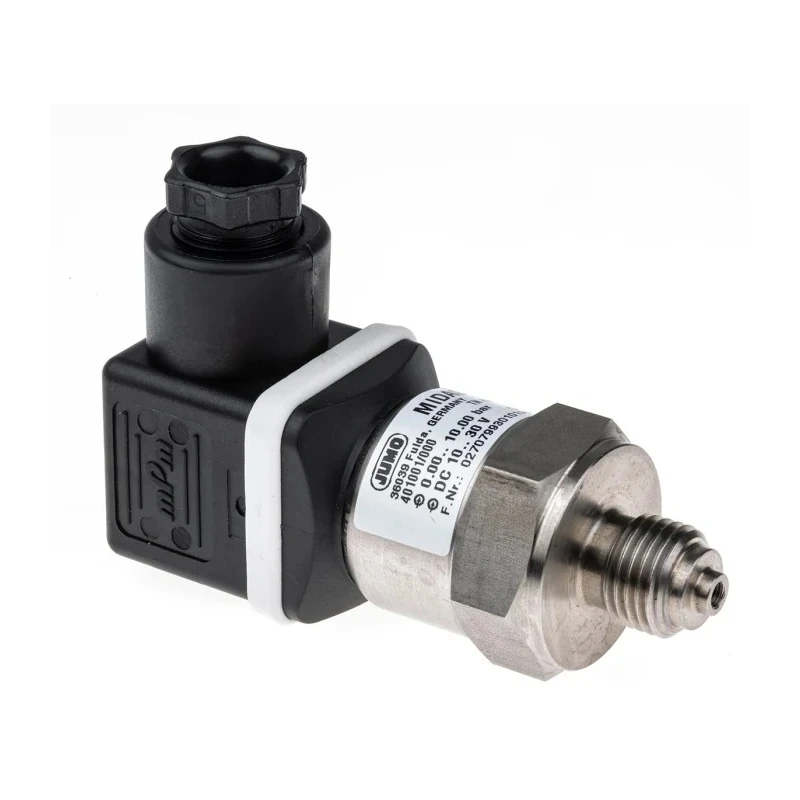

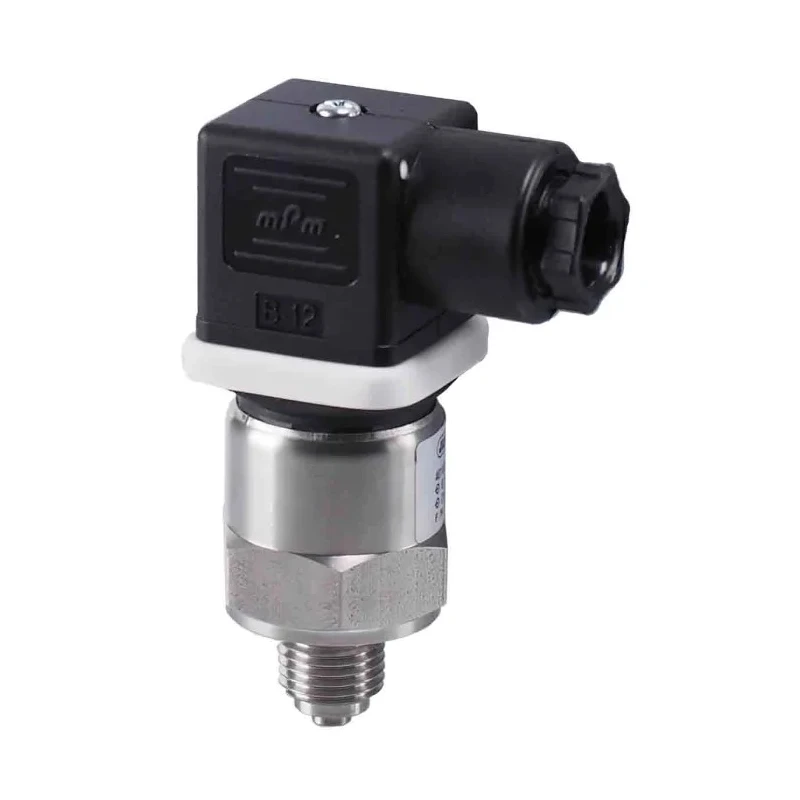

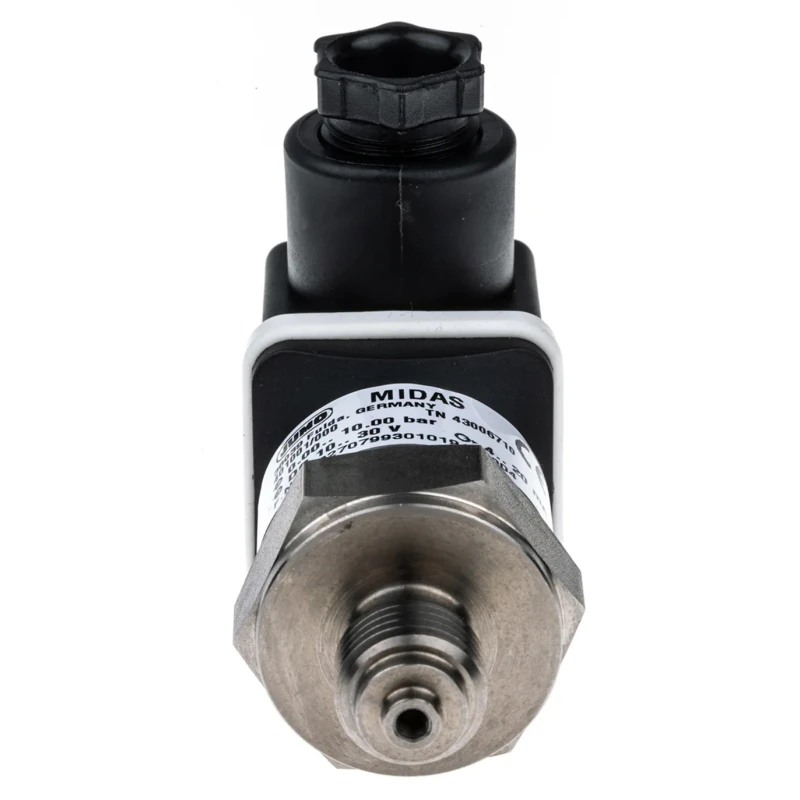

Jumo MIDAS Series Pressure Sensor Analogue Output 0 bar Minimum Pressure, Gauge Reading 401001/000-459-405-502-20-601-61/000
Specifications
| Country of Origin | Germany |
|---|---|
| Accuracy | 0.5 % |
| Brand | Jumo |
| Response time | 3ms |
| Model | 401001/000-459-405-502-20-601-61/000 |
| IP Rating | IP67 |
| Housing Material | Stainless Steel |
| Output type | Analogue |
| Series | JUMO MIDAS |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -20°C |
| Maximum Pressure Measurement | 10bar |
| Minimum Pressure Measurement | 0bar |
| Maximum Supply Voltage | 24V |
| Minimum Supply Voltage | 10V dc |
| Pressure Reading Type | Gauge |
| Media Measured | Liquid, Gas |
Key Features
- Provides accurate pressure measurement with 0.5 % accuracy.
- Compatible with both liquid and gas media.
- Equipped with stainless steel housing for durability and corrosion resistance.
- Offers fast response time of 3 milliseconds.
- Operates within a supply voltage range of 10V to 24V DC.
- Rated for operating temperatures from -20°C to 125°C.
- Features IP67 protection rating ensuring resistance to dust and water ingress.
- Complies with multiple standards including Pressure Directive 97/23/EC and DIN specifications.
Product Description
Jumo 401001/000-459-405-502-20-601-61/000 is a precision MIDAS Series pressure sensor featuring analogue output tailored for gauge pressure measurement from 0 bar up to a maximum of 10 bar. This sensor is constructed with a stainless steel housing, which ensures robust performance and excellent media compatibility, extending its service life even in challenging industrial environments.
The device offers rapid response with a 3 ms response time and delivers highly accurate pressure readings with a 0.5 % accuracy rating. It operates reliably within a supply voltage range of 10V to 24V DC and withstands operating temperatures between -20°C and 125°C, making it suitable for a broad spectrum of applications.
Equipped with an IP67 rating, this pressure sensor is resistant to dust and water ingress, confirming its robustness for outdoor and industrial use. It meets rigorous standards including Pressure Directive 97/23/EC and DIN EN 175 301-803, along with additional IP65 certification, ensuring compliance and operational safety.
The compact design of the Jumo MIDAS Series sensor facilitates installation in spaces where size is a critical factor. Common applications include refrigeration systems, compressors, building automation, and utility vehicles, highlighting its versatility across sectors such as industrial automation, HVAC, and manufacturing.
Accurate 0.5 % pressure measurement over a range of 0 to 10 bar. Durable stainless steel housing for long-term media compatibility. Fast 3 ms response time suitable for dynamic pressure monitoring. IP67-rated protection for harsh industrial environments.
Operates on 10-24 V DC supply voltage for flexibility in system integration. Wide operating temperature range from -20°C to 125°C supports varied industrial conditions. Conforms to multiple international standards ensuring reliability and safety.
Ideal for applications in refrigeration, compressors, building automation, and utility vehicles. Compact and robust design to fit tight installation spaces. Manufactured in Germany, ensuring high-quality engineering.
This Jumo MIDAS Series pressure sensor represents an essential component for accurate and reliable pressure measurement in industrial and HVAC applications. Its robust construction and compliance with key standards make it a trusted choice for engineers and professionals seeking precise analogue pressure sensors.
Explore more Pressure Sensors and related components to optimize your industrial automation and control systems on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures gauge pressure from 0 bar up to a maximum of 10 bar.
It provides an accuracy of 0.5 % for pressure measurements.
It is compatible with both liquid and gas media.
The response time is 3 milliseconds, allowing for rapid pressure monitoring.
It operates within a supply voltage range of 10V to 24V DC.
The sensor can operate in temperatures ranging from -20°C to 125°C.
The housing is made of stainless steel, providing durability and corrosion resistance.
It has an IP67 rating, ensuring resistance to dust and water ingress.
It features an analogue output for pressure readings.
Common applications include refrigeration systems, compressors, building automation, and utility vehicles.
It complies with the Pressure Directive 97/23/EC and DIN EN 175 301-803 standards.
It is manufactured in Germany, ensuring high-quality engineering.
