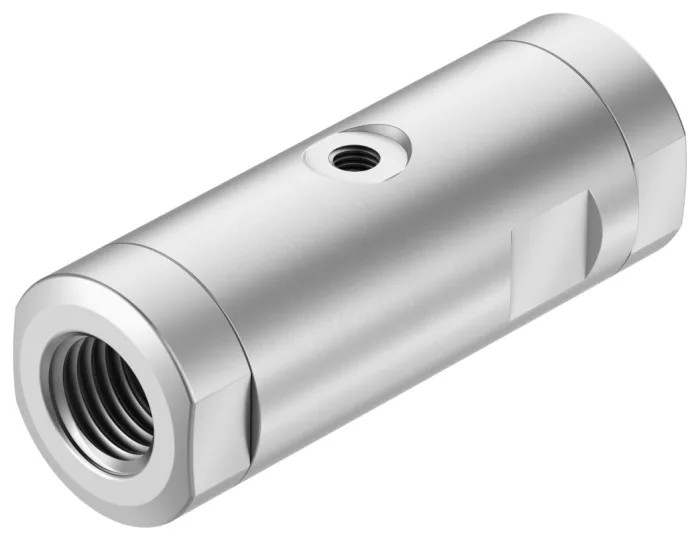

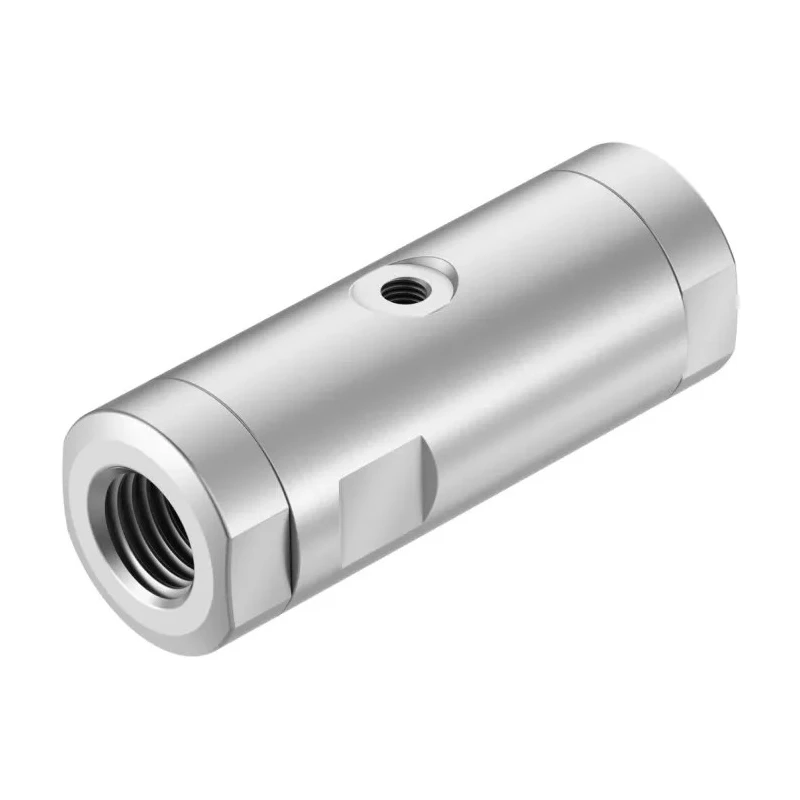

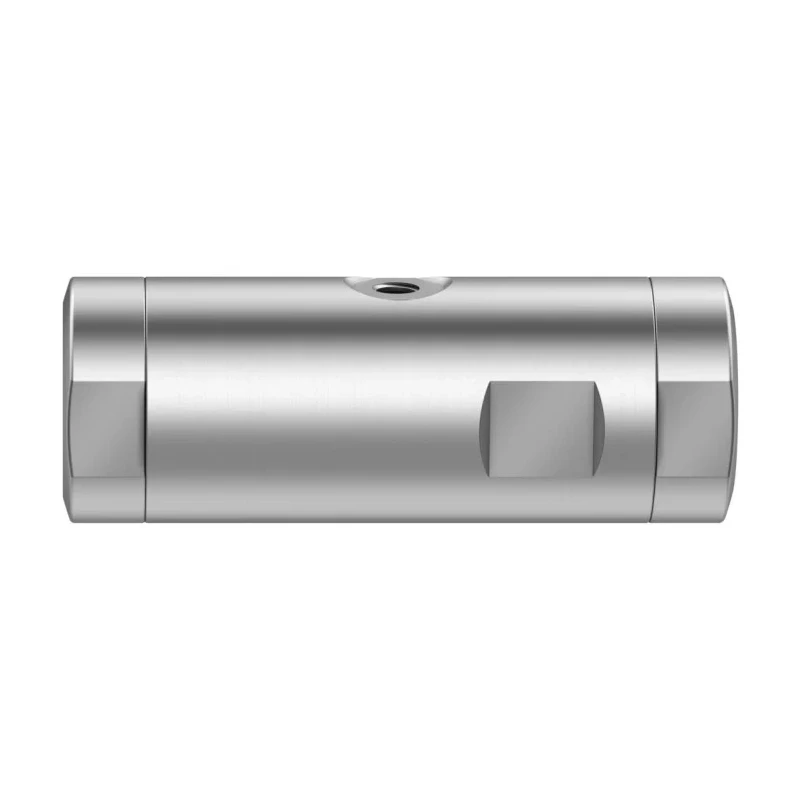

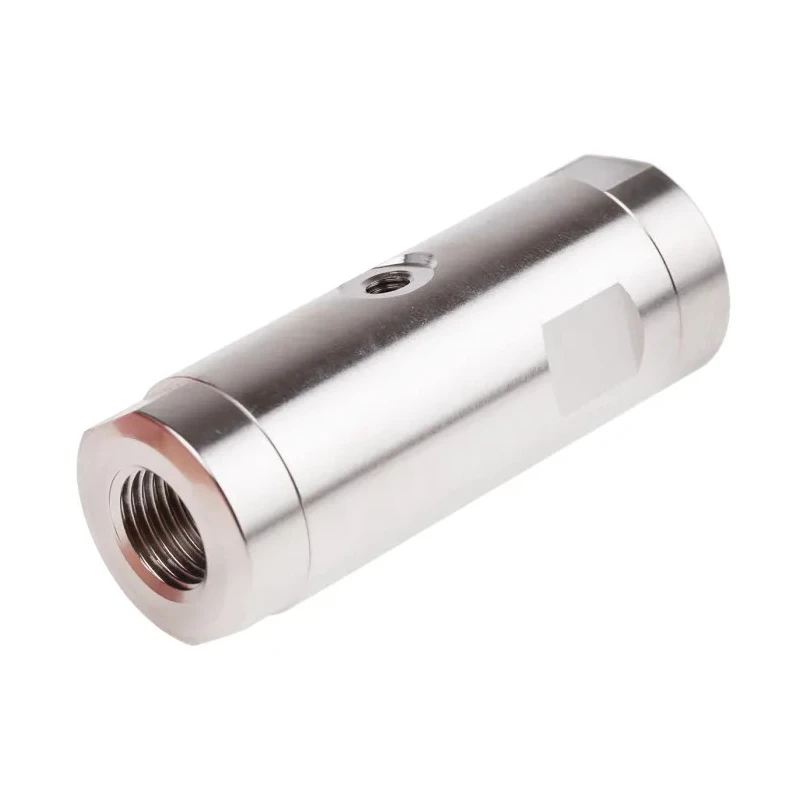

Festo VZQA Series Pneumatic Pinch Valve High Alloy Stainless Steel 1/4 in Female Inlet & Threaded VZQA-C-M22U-6-GG-V4V4E-4

Festo VZQA-C-M22U-6-GG-V4V4E-4 pneumatic pinch valve is engineered to deliver precise and reliable control in industrial pneumatic applications. Constructed with high alloy stainless steel, it provides robustness and a hygienic design suitable for fluid process industries.

The valve features female inlet and outlet connections sized at 1/4 inch with threaded outlet allowing easy integration into existing pneumatic tubing systems. It is designed to operate safely up to a maximum pressure of 6.5 bar, with a proof pressure rating of 16 bar, ensuring reliable performance under demanding conditions.

This pinch valve operates with either normally open (N/O) or normally closed (N/C) function, providing minimal flow resistance and preventing blockage. Its elastomer sleeve seal is replaceable without the need for specialist tools, facilitating maintenance and minimizing downtime.

Operating temperature ranges from -5°C to 60°C, making it suitable for a wide variety of industrial environments including food, beverage, pharmaceutical, and chemical processing.

The valve meets critical industry standards such as ISO 8573-1:2010 for compressed air purity, DIN 32676 for hygienic fittings, and ASME-BPE for bioprocessing equipment standards, assuring quality and safety.

Applications suitable for this valve include flow shut-off for liquids containing solids or gases, with pneumatic actuation providing efficient operation in automated or semi-automated fluid process control systems.

Overall, the Festo VZQA series pinch valve offers a hygienic, durable, and versatile solution for flow control in pneumatic systems. Designed for pneumatic flow control with normally open and normally closed options. Constructed from high alloy stainless steel ensuring durability and hygienic use.

Supports a maximum operating pressure of 6.5 bar and proof pressure of 16 bar. Operates within temperature range of -5°C to 60°C for versatile industrial applications. Features replaceable elastomer pinch valve sleeve to maintain sealing without specialist tools.

Simple installation with multiple connector variants for flexible pneumatic system integration. Compliant with ISO 8573-1:2010, DIN 32676, and ASME-BPE standards. Ideal for fluids containing solid particles or gases such as air in pneumatic systems.
