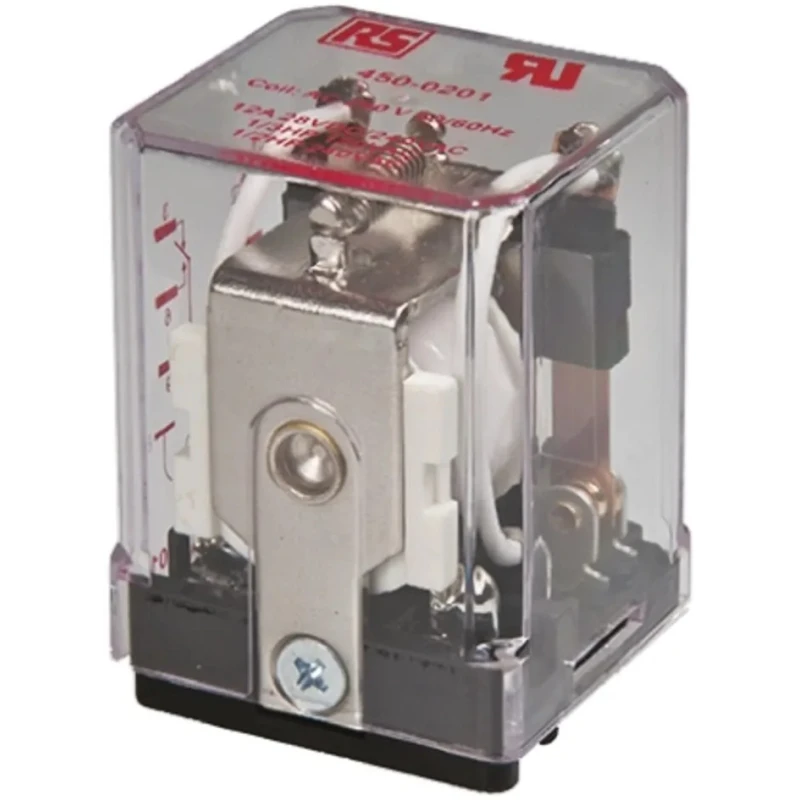

RS PRO PCB Power Relay, 12V dc Coil, 15A Switching Current, SPDT 450-0223
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Height | 35.6mm |
| Length | 27mm |
| Model | 450-0223 |
| Width | 13.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -45°C |
| Switching Current | 15A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ max |
| Standards/Approvals | UL, EN, CE |
| Mechanical Life | 10 million operations |
| Coil Resistance | 188Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 900mW |
| Electrical Life | 100000 operations |
| 10A 1PCO RELAY 12VDCBrand | Idec |
Key Features
- Operates with a coil voltage of 12V dc offering efficient power usage.
- Supports a switching current of up to 15A suitable for medium power circuits.
- SPDT contact configuration ensuring versatile switching capability.
- Designed for PCB mounting with PCB pin terminals for easy installation.
- Operates within a temperature range of -45°C to 70°C for various environments.
- Switching power rated at 3.6 kVA for AC applications and rated for DC voltage up to 28V.
- Constructed with silver alloy contacts providing low contact resistance and durable operation.
- Mechanical life expectancy up to 10 million operations ensuring long-term durability.
Product Description
RS PRO 450-0223 PCB Power Relay features a 12V dc coil and supports a 15A switching current in SPDT contact configuration. It is engineered for mounting on printed circuit boards using PCB pin terminals, making it an ideal choice for electronic and industrial automation applications.
Designed to operate reliably in extreme temperature conditions ranging from -45°C to 70°C, this relay accommodates switching DC voltages up to 28V and AC voltages to 240V, with a switching power rating of 3.6 kVA. The relay's coil resistance measures 188Ω with a coil power consumption of 900mW, allowing efficient operation in control circuits.
The silver alloy contact material ensures low contact resistance capped at 50mΩ and excellent electrical conductivity for prolonged service life. It offers mechanical durability rated for 10 million operations and electrical durability for 100,000 operations, facilitating reliable performance in demanding industrial environments.

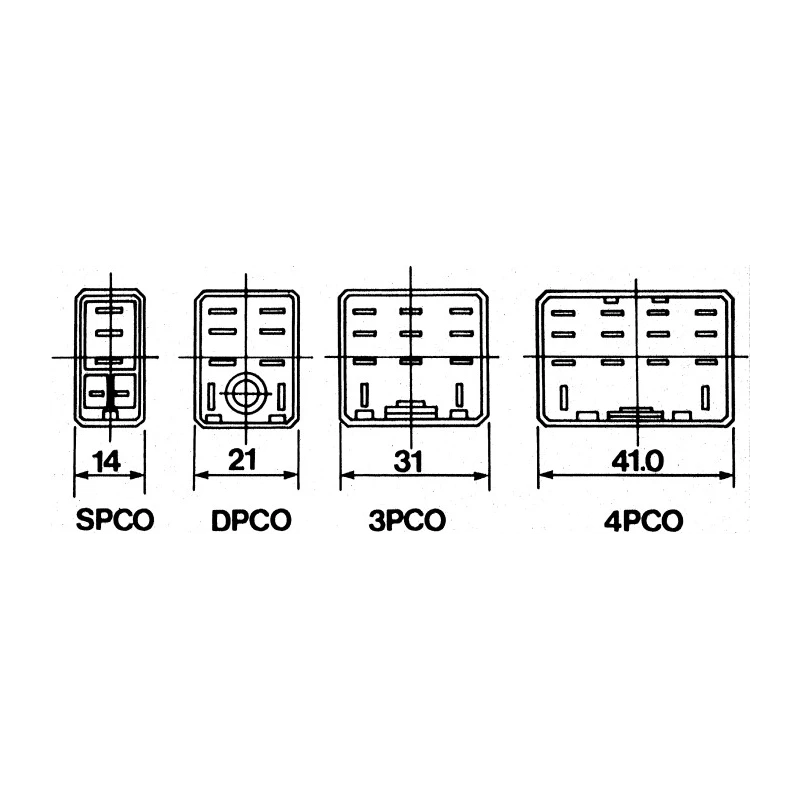

With compact dimensions of 27 mm length, 35.6 mm height, and 13.5 mm width, the relay seamlessly integrates into PCB assemblies without occupying excessive space. Operates with 12V dc coil voltage providing stable switching control.
Supports 15A switching current compatible with moderate power electronic loads. SPDT contact configuration allowing flexibility in circuit design. Designed for PCB mounting with PCB pin terminal connections for easy installation.
Wide operating temperature range from -45°C to 70°C suitable for harsh conditions. Switching ratings of 3.6 kVA AC and 28V DC making it versatile for different power types. Silver alloy contacts for low resistance and reliable conductivity.
Mechanical life of 10 million operations and electrical life of 100,000 operations for durability. Compact physical dimensions to fit within constrained PCB spaces.
This RS PRO PCB Power Relay 450-0223 is suitable for industrial automation, control panels, electrical assemblies, and other commercial electronic applications requiring dependable power relay switching. For comprehensive product selection, explore related Power Relays and contactors in EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 12V DC, allowing for efficient power usage in control circuits.
It supports a maximum switching current of 15A, making it suitable for medium power circuits.
The relay has compact dimensions of 27 mm in length, 35.6 mm in height, and 13.5 mm in width, allowing for easy integration into PCB assemblies.

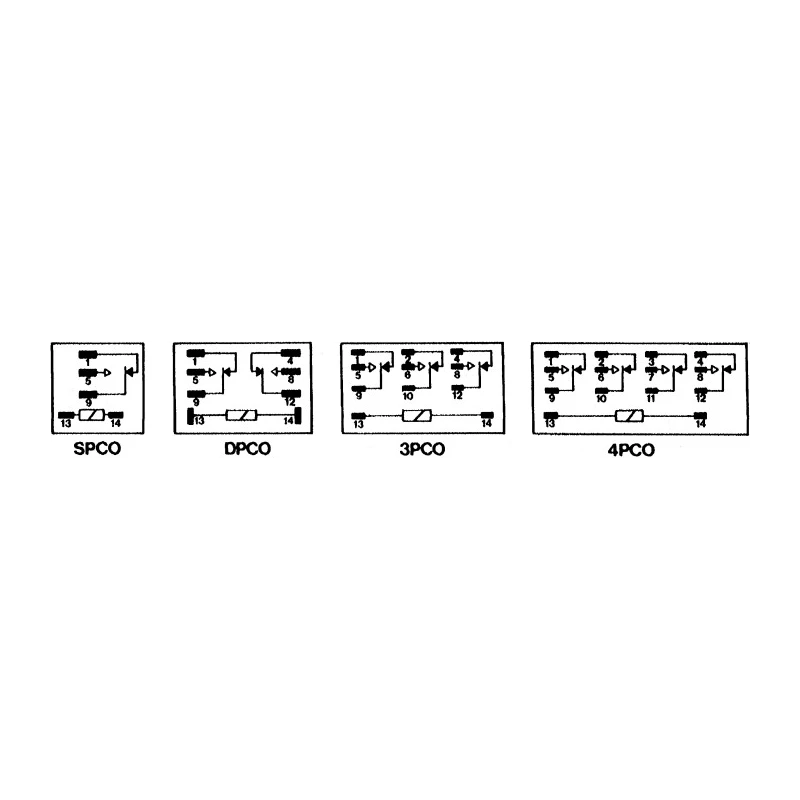

This model features an SPDT (Single Pole Double Throw) contact configuration, providing versatile switching capabilities.
It operates reliably within a temperature range of -45°C to 70°C, suitable for various environmental conditions.
The relay can switch AC voltages up to 240V and DC voltages up to 28V, making it versatile for different power types.
The contacts are constructed from silver alloy, which provides low contact resistance and enhances electrical conductivity.
The mechanical life expectancy of this relay is rated for up to 10 million operations, ensuring long-term durability.
The coil resistance is measured at 188Ω, with a coil power consumption of 900mW, allowing for efficient operation.
This model is compliant with UL, EN, and CE standards, ensuring it meets safety and performance requirements.
It is designed for PCB mounting and features PCB pin terminals for easy installation in electronic assemblies.
The electrical life of this relay is rated for 100,000 operations, providing reliable performance in demanding applications.
