Telemecanique Sensors XCKP Series Plunger Limit Switch, 1 NO/1 NC, IP67 IP66, Plastic Housing, 240V AC, 3A XCKP2110P16

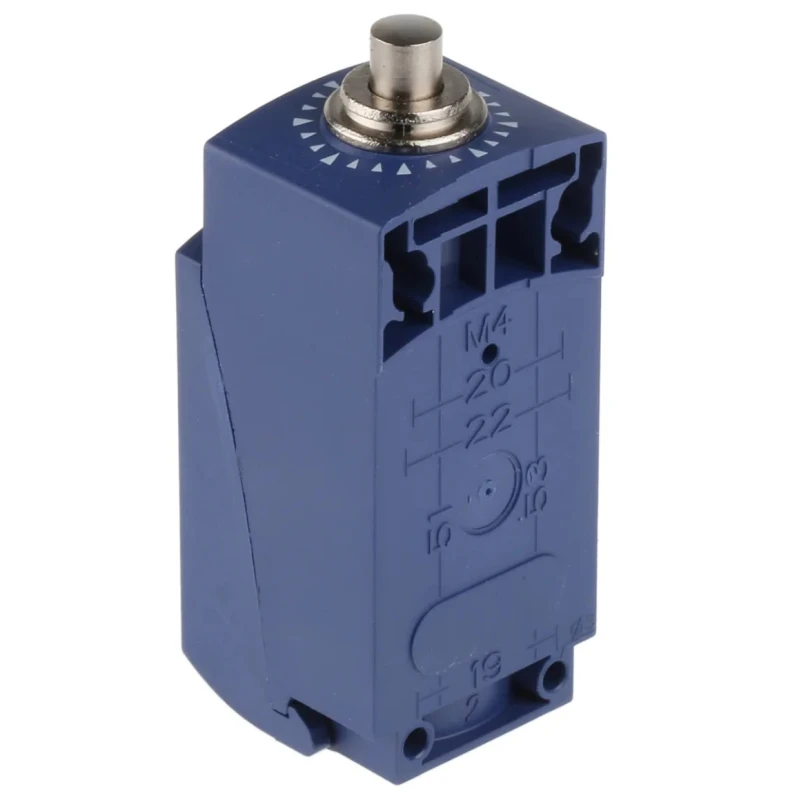

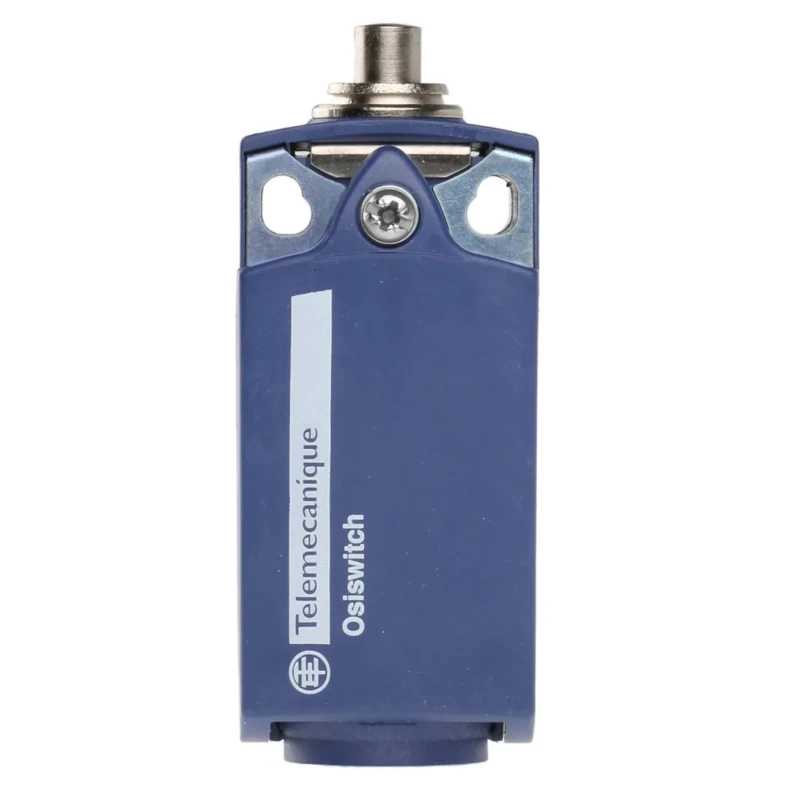

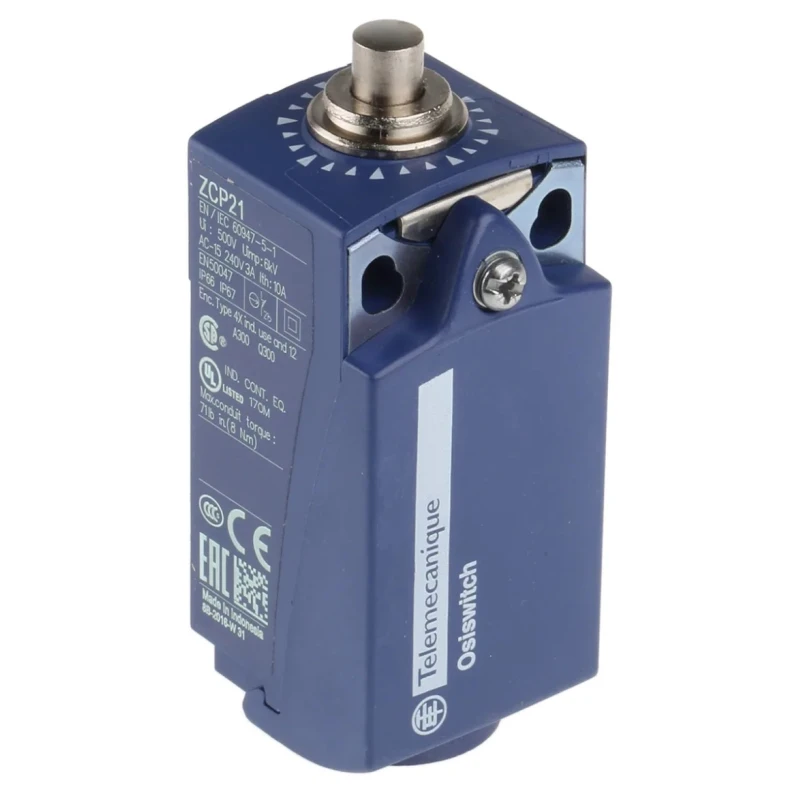

Telemecanique Sensors XCKP2110P16 plunger limit switch is a compact and robust device designed for industrial automation, electrical control, and mechanical installations requiring precise position detection and safety interlocks.

The switch features a plunger actuator with snap-action contacts configured as 1 normally open and 1 normally closed, providing distinct and reliable switching performance.

Constructed with durable plastic housing rated to IP67 and IP66 standards, the device is well-protected against dust ingress and water jets, making it suitable for harsh and wet environments.

It supports switching currents up to 3A at 240V AC and is also rated for DC switching up to 250V, ensuring compatibility with common industrial control voltages. The limit switch is engineered for a mechanical life expectancy of 15 million cycles, greatly reducing maintenance frequency in continuous operation scenarios.

Operating temperature from -25°C to 70°C allows deployment across a wide range of climatic conditions. The unit uses screw clamp terminals facilitating secure and manageable wiring installations.

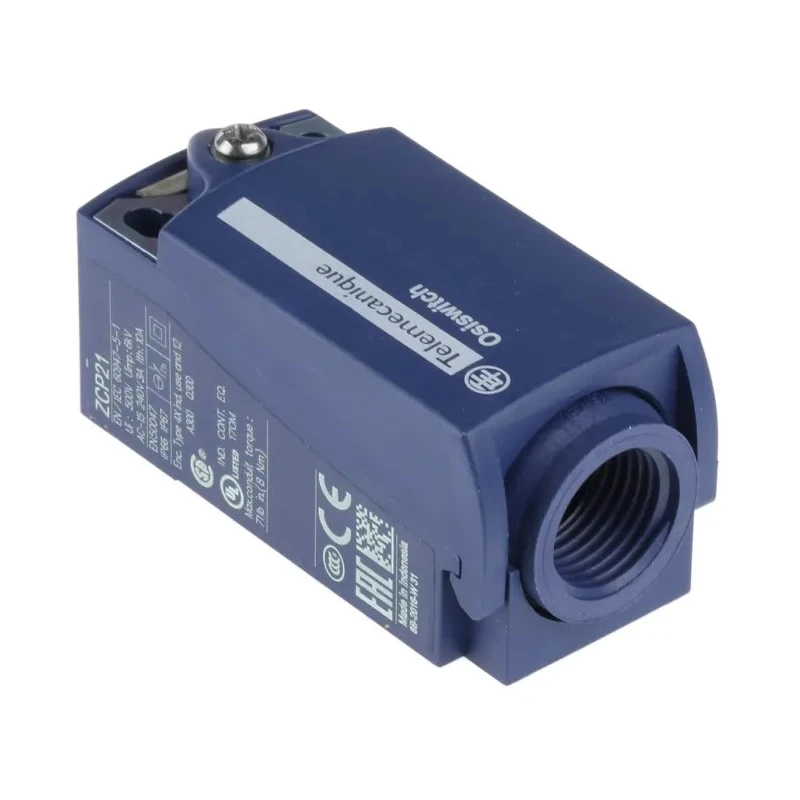

Physical dimensions are 65mm in length, 31mm width, and 30mm depth, featuring an M16 conduit entry for wiring protection. An actuator force of 45N ensures consistent triggering under various load conditions.

Industry certifications including UL, RoHS, REACH, CSA, and CCC provide assurance of quality, safety, and regulatory compliance.

This switch is ideal for applications such as conveyor end-of-travel detection, machine guard interlocks, pneumatic cylinder piston position confirmation, lift door position monitoring, and packaging machinery limit detection.

Features 1 normally open and 1 normally closed snap-action contact for precise switching. Plastic housing provides protection with IP67 and IP66 ratings against dust and water. Operates reliably at 240V AC with a switching current of 3A.

Mechanical life rated at 15,000,000 cycles for long-term durability. Operating temperature range from -25°C to 70°C for varied environments. Screw clamp terminals ensure secure and easy wiring connections. Compact size with dimensions of 65mm length, 31mm width, and 30mm depth.

Actuator uses a plunger type requiring 45N operating force for consistent actuation. Complies with UL, RoHS, REACH, CSA, and CCC standards for safety and environmental compliance. Browse the full range of Limit Switches and industrial automation sensors at EnvMart for reliable solutions tailored to your control and safety needs.
