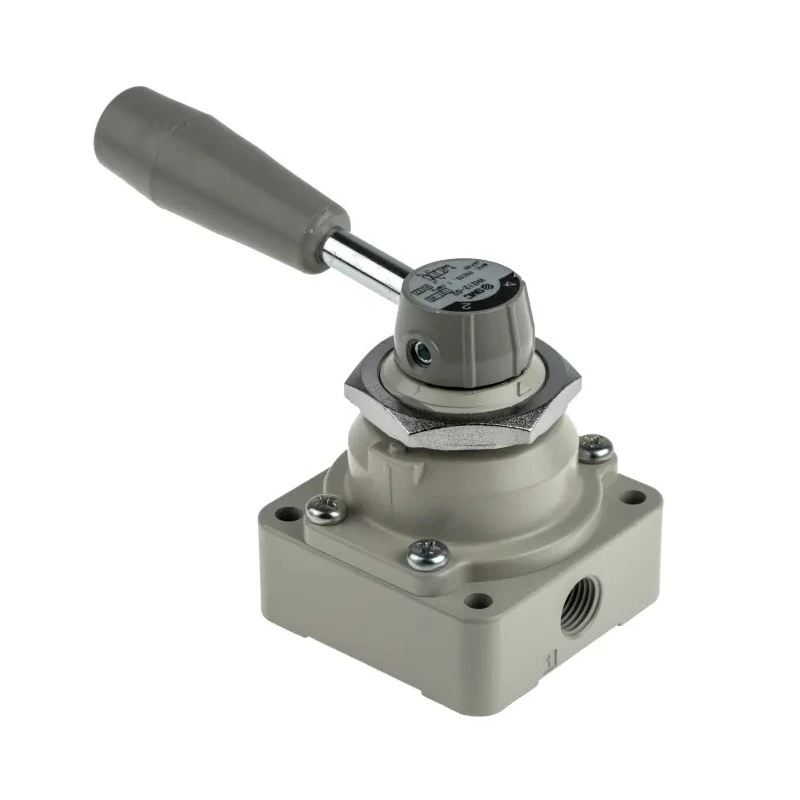

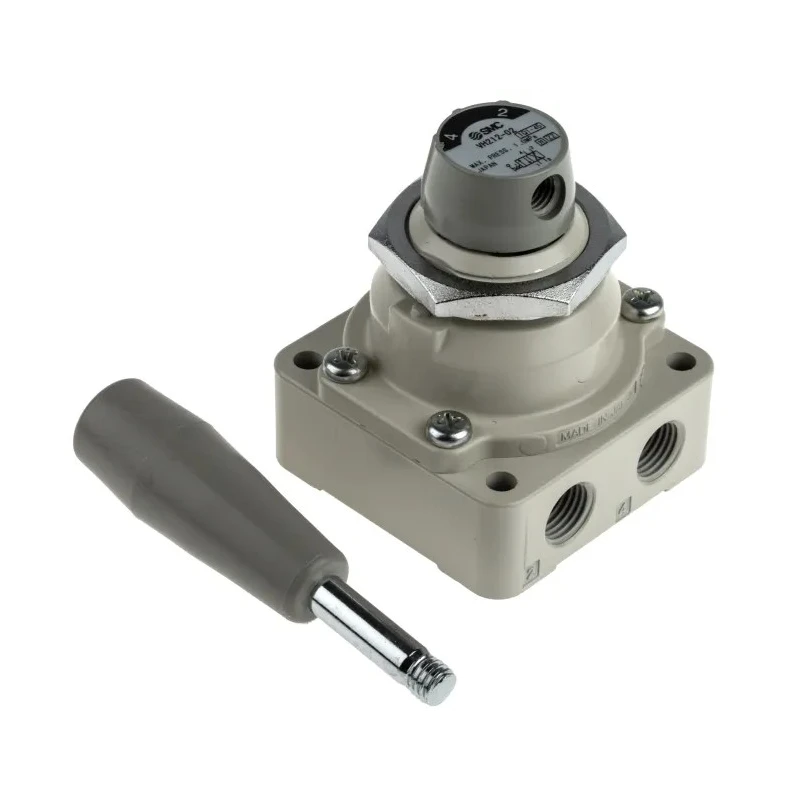

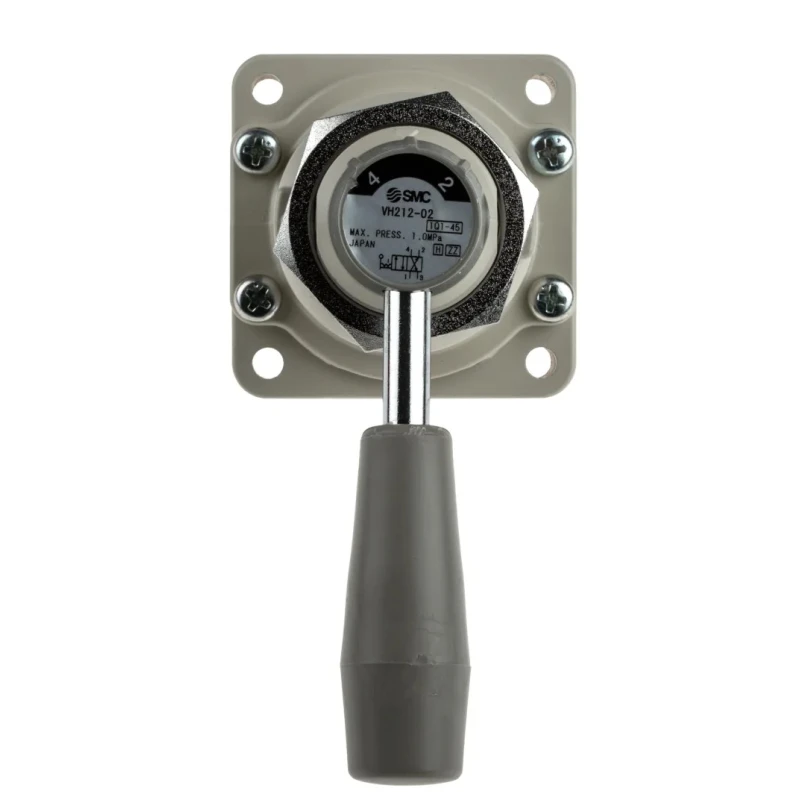

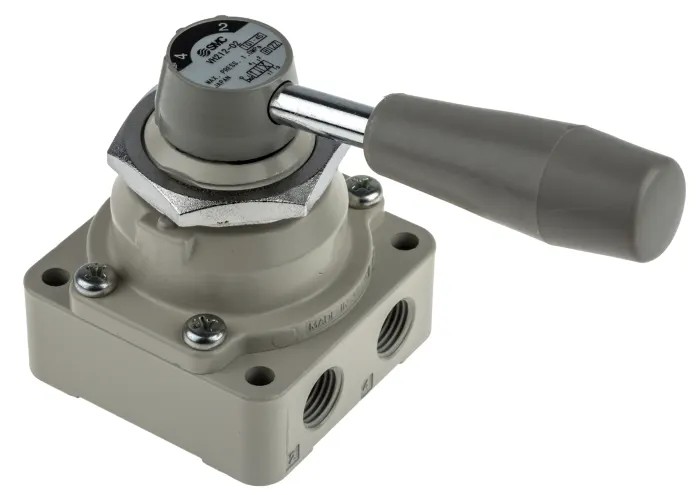

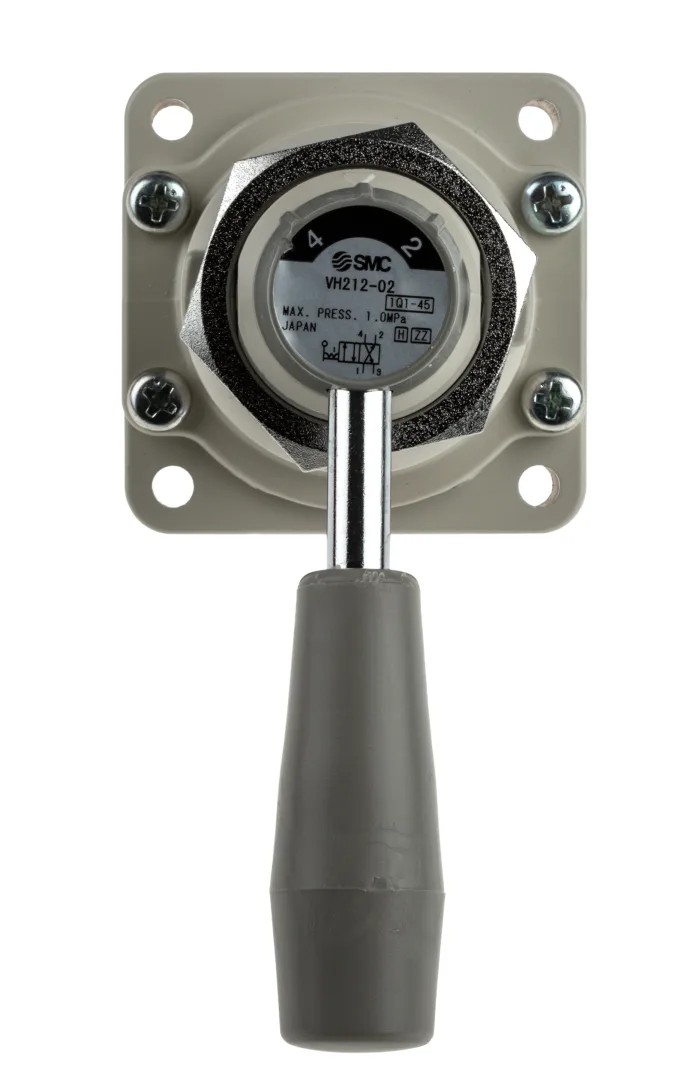

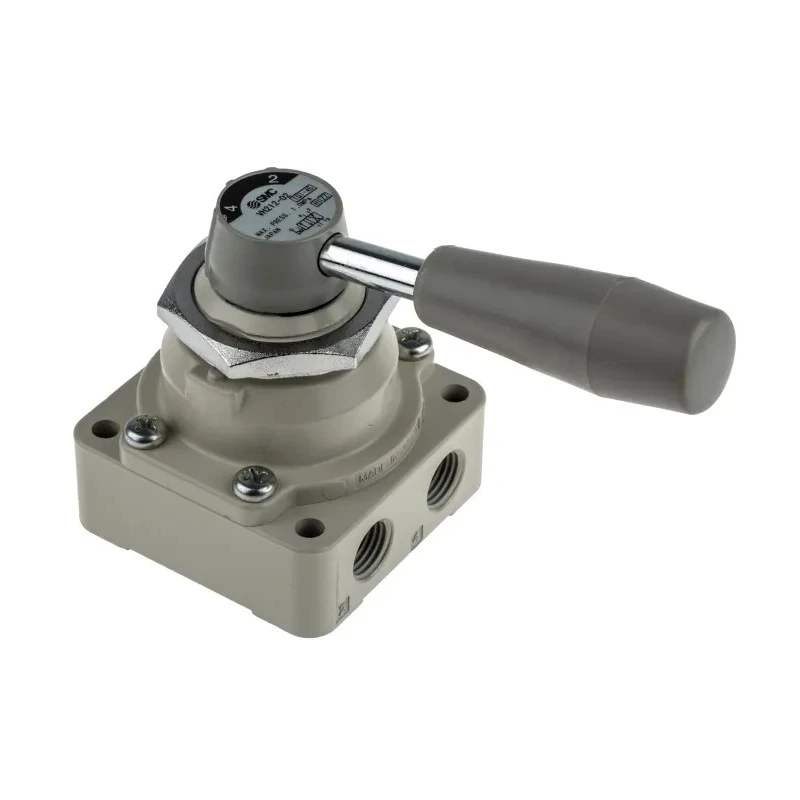

SMC Pneumatic Manual Control Valve Handle VH Series NPT Rc 1/4, 4-Port 2-Position, Die Cast Aluminium Body VH212-02
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Body Material | Die Cast Aluminium |
| Maximum Operating Pressure | 1 Mpa |
| Model | VH212-02 |
| Series | VH |
| Number Of Ports | 4 |
| Maximum Operating Temperature | +60°C |
| Thread Size | 1/4 in |
| Port Size | Rc 1/4 |
| Minimum Operating Temperature | -5°C |
| Control Mechanism | Handle |
| Connection Thread Standard | NPT |
| Valve Function | 4/2 |
| Control Button/Switch Colour | Red |
| SMC Handle Pneumatic Manual Control Valve VH Series, NPT Rc 1/4, III BBrand | SMC |
Key Features
- Constructed with die-cast aluminium body for corrosion resistance.
- Features a manual handle with red control button for intuitive operation.
- Four ports enabling versatile air flow control in pneumatic circuits.
- Suitable for maximum operating pressure up to 1 MPa.
- Operates reliably within -5°C to +60°C ambient temperature range.
- Designed for use in industrial pneumatic system manual control applications.
- NPT Rc 1/4 threaded ports ensure secure, leak-free pipe connections.
- Useful for directional control, tool changeover, machine isolation, and pilot control tasks.
Product Description
SMC VH212-02 Pneumatic Manual Control Valve Handle VH Series is engineered for precise manual control of compressed air flow in industrial pneumatic systems. Featuring a robust die-cast aluminium body, this valve operates as a 4-port, 2-position control device with a convenient handle mechanism highlighted by a red control button for clear visual feedback.
The valve includes Rc 1/4 NPT threaded ports designed for secure pipe fitting and minimal leakage, capable of withstanding up to 1 MPa operating pressure. Its working temperature spans from -5°C to +60°C, making it suitable for a variety of manufacturing, assembly line, and maintenance environments.
This pneumatic manual control valve is widely applicable for directional air flow control in factory circuits, pneumatic jigs and fixtures, tool changeovers, machine isolation during maintenance, and pilot tasks within control panels requiring a manual override. The handle operation allows local, reliable switching without the need for electrical actuation.
Die-cast aluminium body delivers durability and corrosion resistance. Manual handle with red control button for easy tactile operation. Four distinct ports for flexible air flow routing. Maximum operating pressure rating of 1 MPa suits medium-pressure systems.
Operable within ambient temperatures from -5°C to +60°C. NPT Rc 1/4 threaded connections ensure leak minimization and pipe compatibility. Robust design ideal for industrial, manufacturing, HVAC, and maintenance applications.
Simple manual actuation aids in local override and system isolation.
SMC’s VH212-02 combines reliability and user-friendly manual operation in a compact form, ideal for pneumatic valve needs in diverse industrial settings. For more pneumatic valve options and accessories, explore the Pneumatic Manual Control Valve category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 1 MPa.
This unit operates reliably within an ambient temperature range of -5°C to +60°C.
It features four ports, allowing for versatile air flow control in pneumatic circuits.
The valve uses a manual handle for control, which includes a red control button for intuitive operation.
The ports are sized at Rc 1/4 and follow the NPT thread standard, ensuring secure and leak-free connections.
The body of this valve is constructed from die-cast aluminium, providing corrosion resistance.
This model is manufactured in Japan.
It is suitable for directional control, tool changeover, machine isolation, and pilot control tasks in industrial pneumatic systems.
The valve functions as a 4/2 control device, allowing for two positions of operation.
Yes, the manual handle features a red control button that provides clear visual feedback during operation.
The four ports enable flexible routing of air flow, enhancing the versatility of pneumatic circuit configurations.
It is designed for use in industrial pneumatic systems requiring manual control applications.
