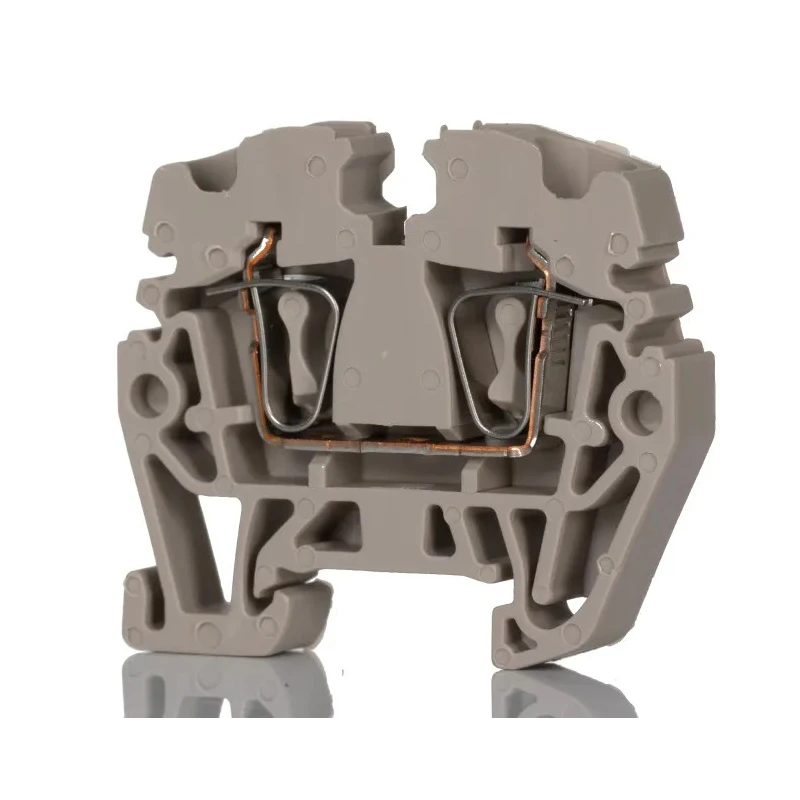

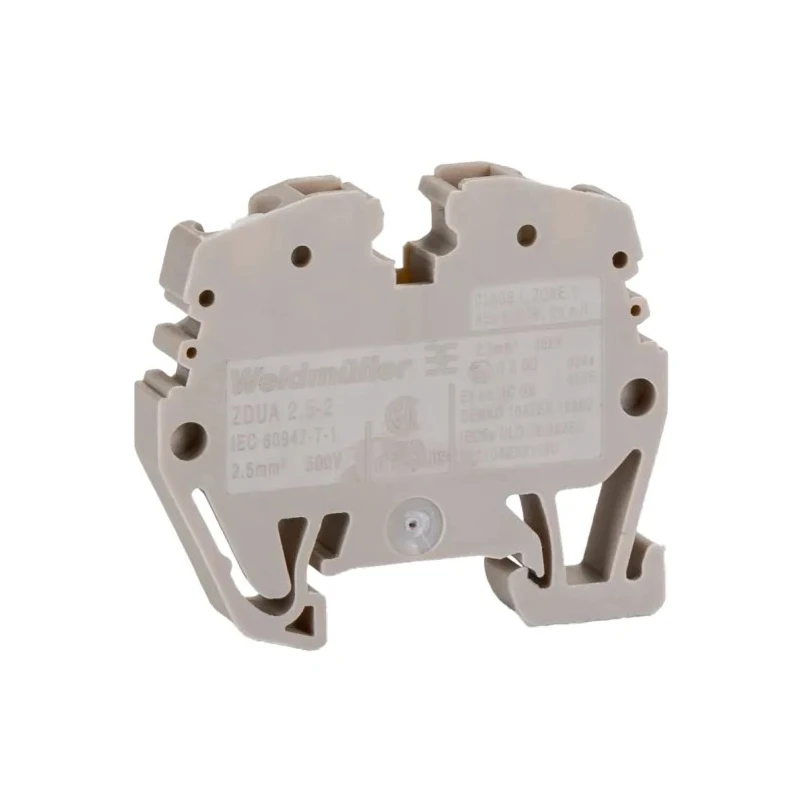

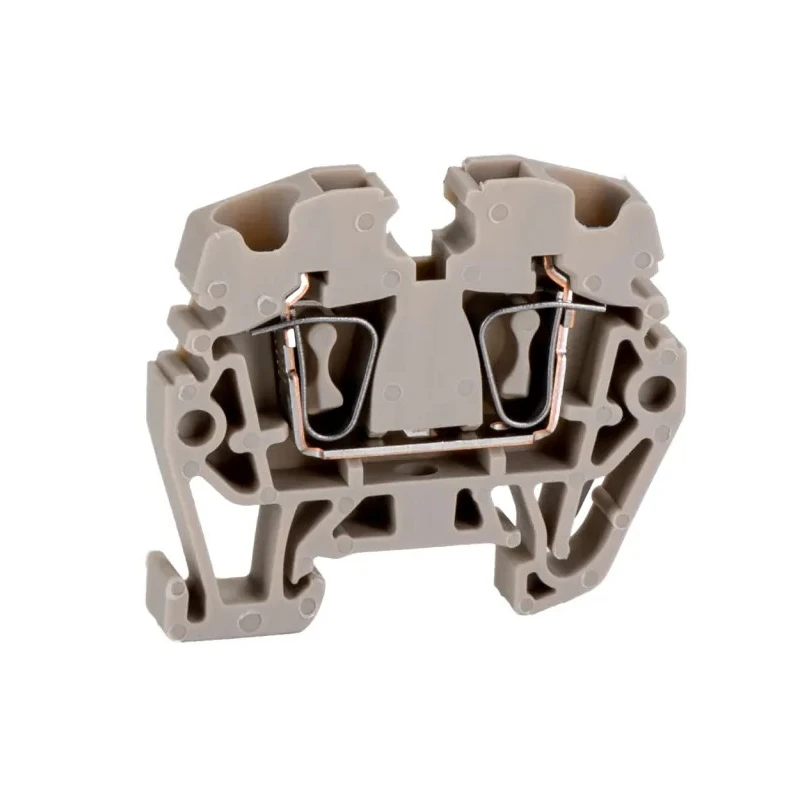

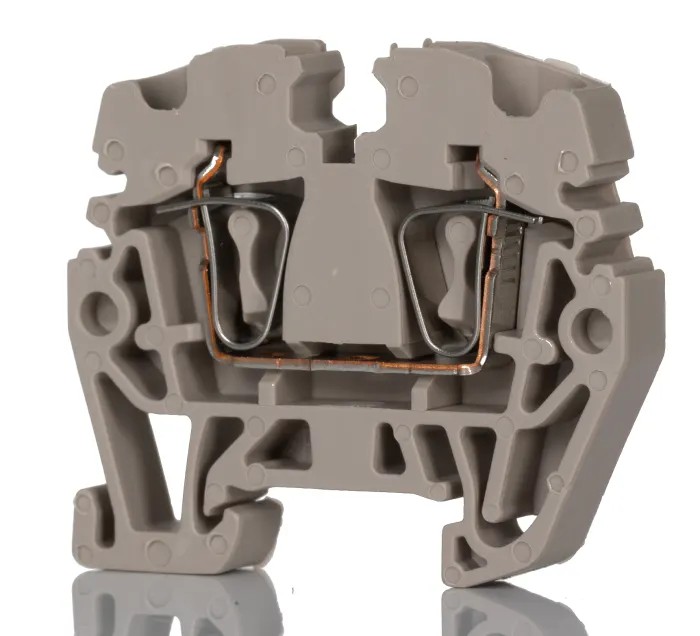

Weidmüller ZDUA Series DIN Rail Terminal Block 500V 24A 2.5mm² 1-Level Solder IECEx/ATEX 1720920000

Free Delivery in India | Lowest Global Shipping Charges

Weidmüller ZDUA Series DIN Rail Terminal Block 500V 24A 2.5mm² 1-Level Solder IECEx/ATEX 1720920000

Name: Weidmüller ZDUA Series DIN Rail Terminal Block 500V 24A 2.5mm² 1-Level Solder IECEx/ATEX 1720920000
Brand: Weidmuller
SKU: 186166
Price: 0.94 USD
Availability: InStock



Category DIN Rail Terminal Block Brand Weidmuller Condition New

Specifications

Country of Origin	Czech Republic
Voltage	500V
Brand	Weidmüller
Colour	Dark Beige
Series	ZDUA
Termination Type	Solder
Maximum Operating Temperature	130°C
Number of Levels	1
Minimum Operating Temperature	-60°C
Hazardous Area Certification	IECEx/ATEX
Standards/Approvals	ATEX, CCC, CE, CSA, UKCA, UR
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	12AWG
Cable CSA	2.5mm²
Terminal Block Current	24A

Key Features

Compact dimensions of 35 (H) x 5.1 (W) x 30mm (D) optimize panel space.
Clip-on DIN rail mounting allows quick and secure installation.
Supports conductor sizes ranging from 26 AWG to 12 AWG, or 0.13 to 4mm².
Low power loss of 0.77W ensures efficient operation.
Operates across -60°C to 130°C temperature range.
Plastic insulation provides protection against electrical hazards.
Certified by ATEX, IECEx, CCC, CE, CSA, UKCA, and UR standards.
Suitable for use in packaging, control devices, and beverage production.

Product Description

Weidmüller 1720920000 ZDUA Series DIN Rail Terminal Block is designed for robust and efficient electrical connectivity in industrial and hazardous environments. This 1-level solder terminal block supports cable sizes up to 2.5mm² and operates at 500V with a maximum current rating of 24A. Its compact form factor, measuring 35mm in height, 5.1mm in width, and 30mm in depth, ensures minimal space usage in dense control panels.

The terminal block features a practical clip-on DIN rail mounting system allowing for quick, tool-free installation and easy handling during wiring. Its plastic insulated body serves as a safeguard from electrical hazards and limits power loss to only 0.77W, promoting energy efficiency even under demanding loads.

Designed to perform reliably across a wide temperature range of -60°C to 130°C, it suits applications in hazardous locations certified by IECEx and ATEX, as well as meeting various international standards including CCC, CE, CSA, UKCA, and UR certifications.

This product is suitable for packaging industry machinery, control devices, and beverage production equipment, where dependable, neat wiring is crucial. The pack includes five terminal blocks, facilitating multiple connectivity points in a single installation.

Its top-mounted conductor entries provide straightforward wire insertion, greatly simplifying system setup in busy workspace environments. Compact size reduces panel space consumption. Easy clip-on mounting speed installation times.

Wide conductor size support from 0.13mm² to 4mm² enables flexible wiring. Low power loss contributes to energy-efficient system operation. Wide temperature tolerance enhances usability in extreme conditions. Multiple certifications guarantee compliance with safety and quality standards.

Plastic housing offers electrical insulation and durability. Pack of 5 supports multi-point wiring needs. Explore more Weidmüller DIN Rail Terminal Blocks and ensure reliable electrical distribution in your industrial projects with EnvMart.
