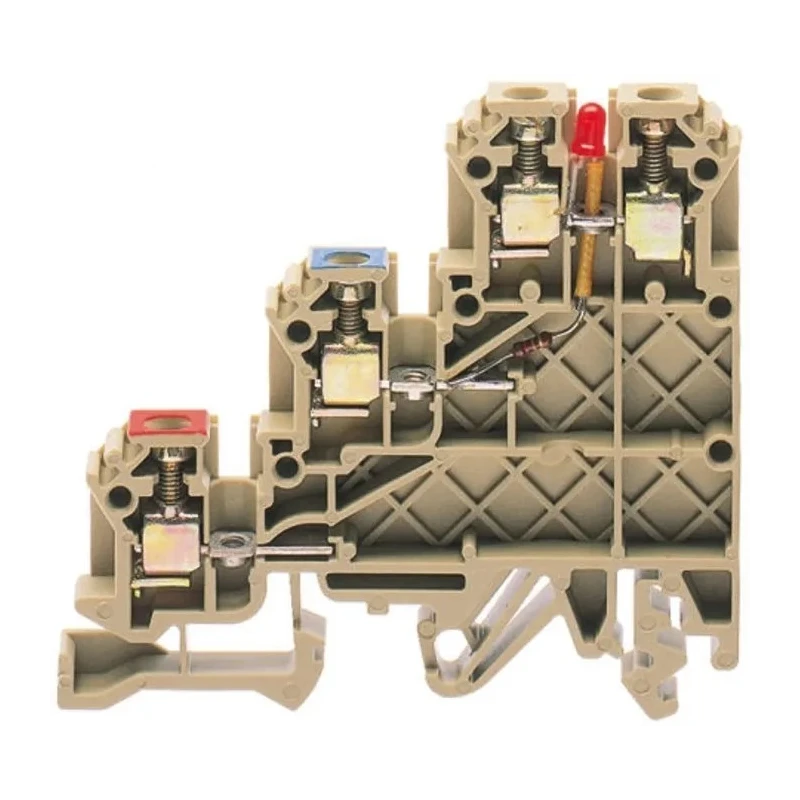

RS PRO DIN Rail Terminal Block Red, 0.2mm² to 2.5mm² Cable CSA, 3-Level, 24V DC, 24A 501-893

The RS PRO 501-893 DIN Rail Terminal Block Red is a high-quality electrical component designed for industrial and commercial applications requiring reliable and compact wiring solutions at 24V DC and up to 24A current capacity.

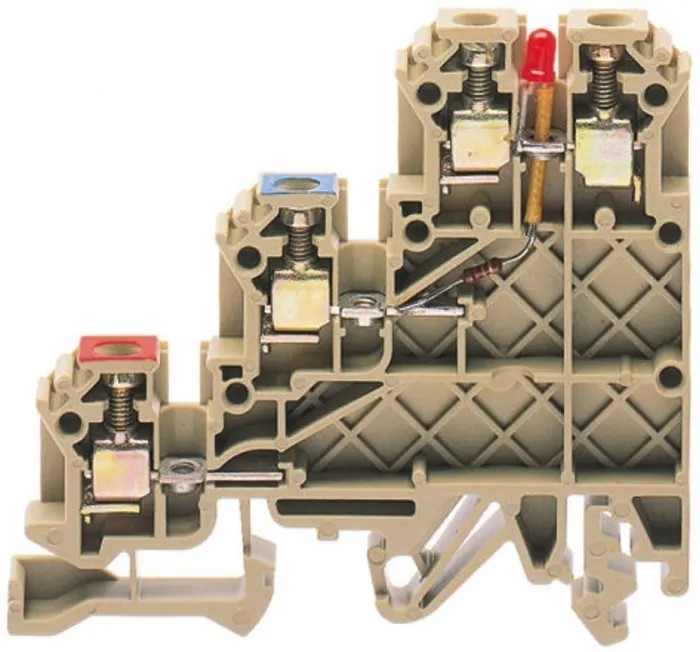

This product features a triple level or three-tier terminal block configuration, enhancing connection density especially useful in sensor and actuator wiring systems. It supports cable cross-sections ranging from a minimum wire size of 0.2mm² to a maximum of 2.5mm², allowing a flexible range of wiring options including AWG sizes 24 to 14.

All three levels can be interconnected using a compatible jumper bar, simplifying distribution of common potentials and streamlining complex wiring layouts. The unique 3 in 1 out design helps in providing common potentials easily, which is ideal for automation and control panel wiring.

Special 24V PNP/NPN variants are equipped with internally connected red LEDs, providing visual status indicators to assist in fault detection and operational monitoring. The terminal block also supports easy labeling through 5mm clip-in markers fitted to each level, enhancing organization and maintenance.

The combi foot enables mounting onto both standard Top Hat and G rails, offering versatile and secure installation flexibility in electrical enclosures and distribution boards.

This product is unfused and does not hold hazardous area certification, designed primarily for safe industrial use under specified voltage and current ratings. It does not carry formal approvals but is manufactured under reliable German standards.

The triple tier design expands wiring capacity for dense applications. Cross connection feature via jumper bars facilitates common potentials. 3 in 1 out design simplifies wiring in control systems. Integrated red LED in 24V PNP/NPN version improves diagnostics.

Supports 5mm clip-in markers for clear circuit identification. Combi foot suitable for multiple DIN rail types ensures mounting flexibility. Supports wire sizes from 0.2 to 2.5 mm² and AWG 24 to 14. Maximum terminal current rating of 24A for robust electrical performance.

Manufactured in Germany ensuring high build quality and dependability.

Widely used across industrial electrical wiring, control panel assembly, automation systems, and manufacturing equipment distribution terminals. Optimal for environments requiring dense terminal block configurations and reliable electrical connections.
