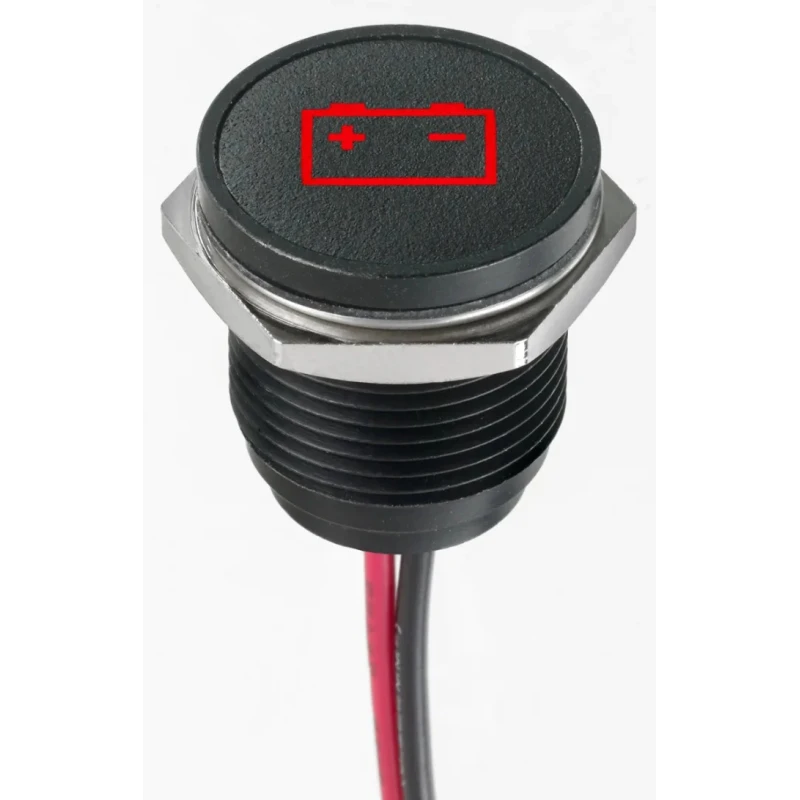

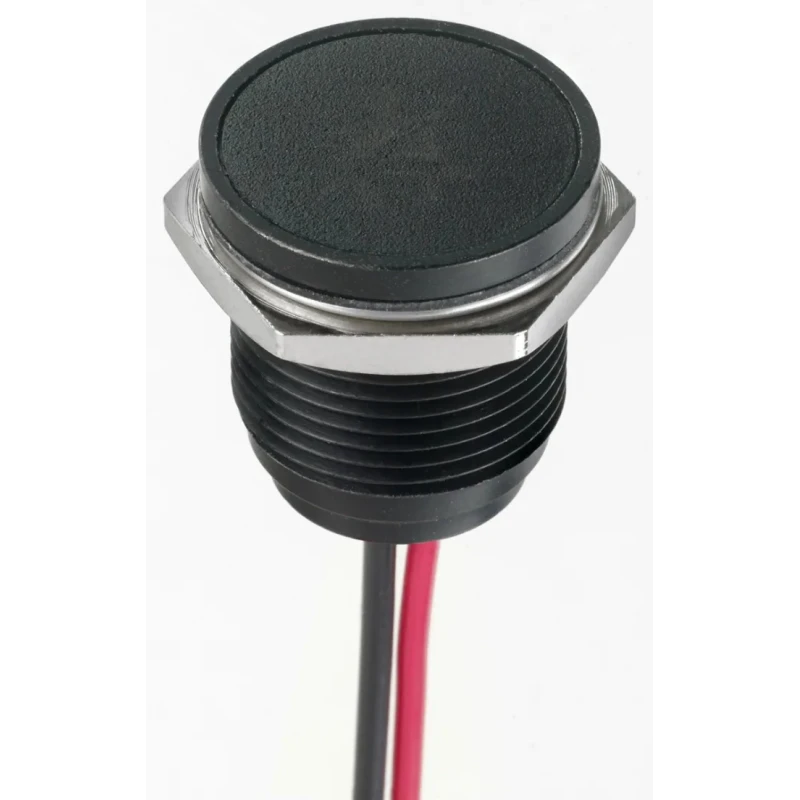

APEM Red LED Panel Mount Indicator 16 mm Lead Wire Termination IP67 13.2V dc Q16F5BXXHR12E-3AG

Free Delivery in India | Lowest Global Shipping Charges

APEM Red LED Panel Mount Indicator 16 mm Lead Wire Termination IP67 13.2V dc Q16F5BXXHR12E-3AG

Name: APEM Red LED Panel Mount Indicator 16 mm Lead Wire Termination IP67 13.2V dc Q16F5BXXHR12E-3AG
Brand: APEM
SKU: 186161
Price: 15.71 USD
Availability: InStock



Category Panel Mount LED Indicator Brand APEM Condition New

Specifications

Country of Origin	United Kingdom
Brand	APEM
Length	19.4mm
Model	Q16F5BXXHR12E-3AG
IP Rating	IP67
Series	Q 16
Number Of Leds	1
Maximum forward current	20mA
Viewing angle	30-100°
Sub Type	LED Indicator
Terminal type	Lead Wire
Lens Colour	Red
Luminous Intensity	800mcd
Standards/Approvals	RoHS
LED Colour	Red
Lens Finish	Diffused
Maximum Supply Voltage	13.2V dc
Minimum Supply Voltage	10.8V
Mount Hole Size	16 mm
Multicolour/Single Colour	Single Colour
LED Orientation	Top

Key Features

The indicator features a 16 mm panel mount design suitable for flush bezel installation.
It uses a single red LED with a luminous intensity of 800 mcd for high visibility.
The bezel is plated brass finished in black chrome for enhanced durability and aesthetics.
IP67 ingress protection allows usage in harsh industrial and outdoor environments.
Designed for applications in automotive, construction, marine, and materials handling industries.
Operating voltage ranges between 10.8 V minimum and 13.2 V maximum DC supply.
Viewing angle ranges from 30 to 100 degrees with the LED oriented at the top.
The lens is diffused and engraved with automotive symbols, ensuring clarity only when lit.

Product Description

APEM Q16F5BXXHR12E-3AG is a high-quality red LED panel mount indicator from the Q 16 Series, featuring a 16 mm mounting hole size and lead wire termination. This LED indicator is designed to operate with a DC voltage supply between 10.8 V and 13.2 V, providing reliable illumination for panel applications requiring robust and visible status indication.

Constructed with a plated brass bezel finished in black chrome, the indicator ensures both durability and aesthetic appeal, making it suitable for demanding industrial environments. The lens is diffused with a top-oriented LED, delivering a luminous intensity of 800 mcd and a wide viewing angle of 30 to 100 degrees for excellent visibility.

The device is sealed to IP67 standards, offering protection against dust ingress and immersion in water, which makes it ideal for automotive, construction, marine, and materials handling applications where harsh conditions prevail.

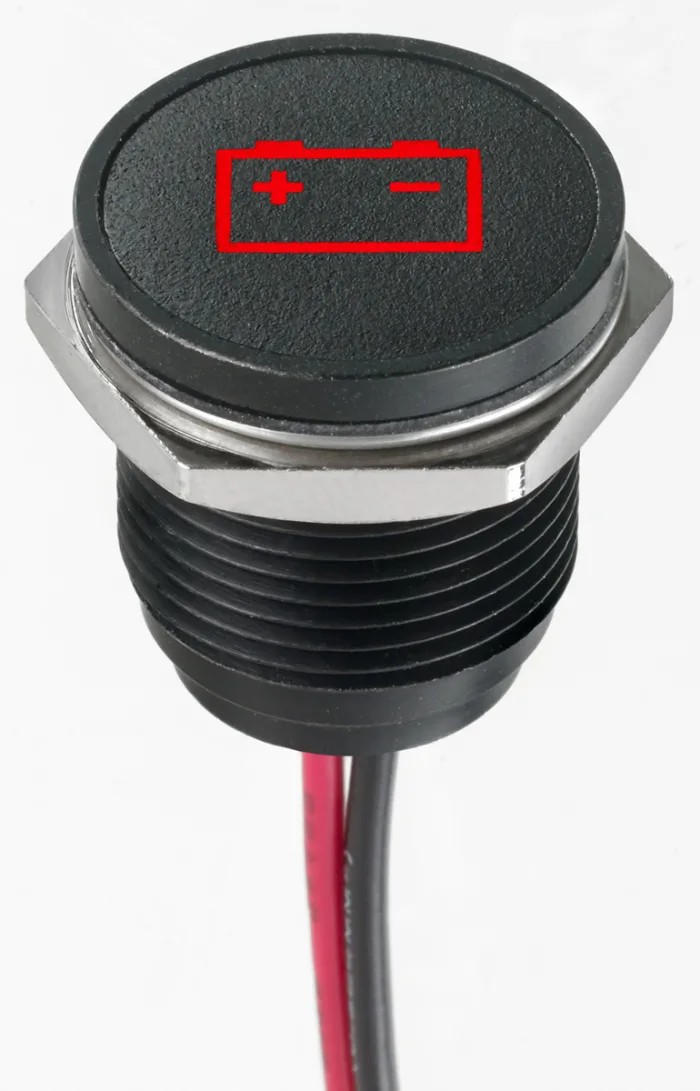

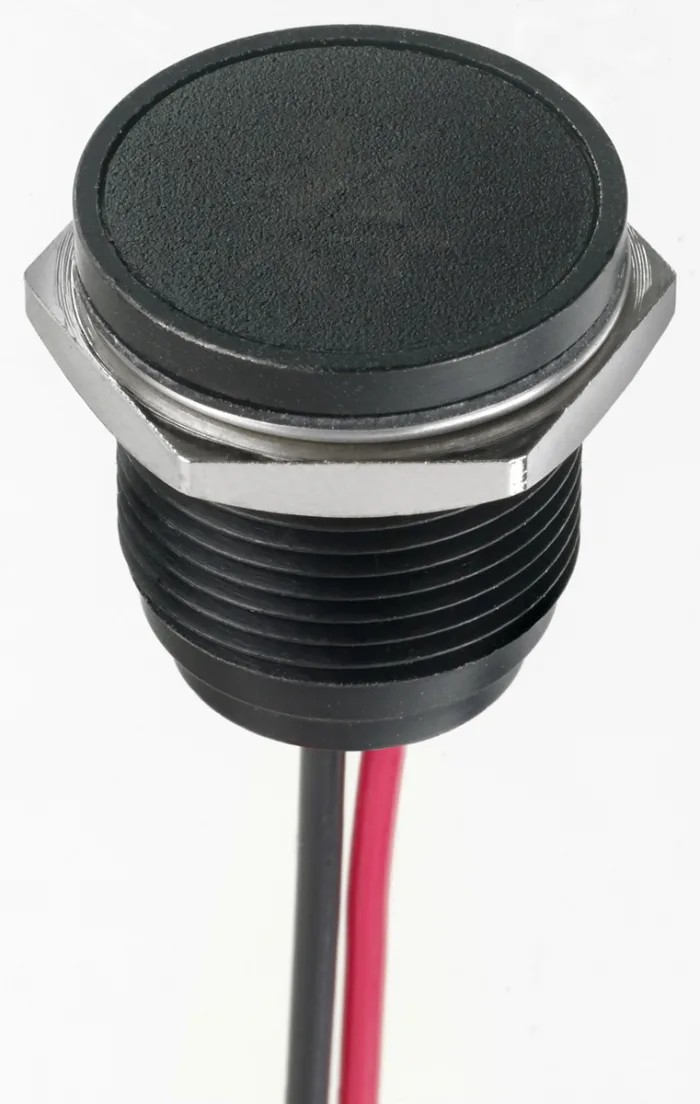

The Q16 series incorporates the 'secret until lit' feature, with black polycarbonate inserts that conceal symbols until the indicator is activated. This feature enhances panel aesthetics and reduces visual clutter when indicators are off.

The indicator features a 16 mm panel mount design for flush bezel installation. Equipped with a single red LED that provides bright, eye-catching illumination. Built with a plated brass bezel finished in black chrome to resist corrosion and wear.

IP67 rated for dust and water ingress protection. Suitable for use in automotive, construction, marine, and materials handling sectors. Designed to operate at a maximum forward current of 20 mA and supply voltage up to 13.2 V dc.

Features a diffused lens for even light distribution and engraved symbols for sharp clarity. Compliance with RoHS ensures environmentally friendly manufacturing standards.

This APEM LED panel mount indicator is an essential component for industrial control panels, vehicles, and machinery requiring reliable and clear indication with high ingress protection. Explore the comprehensive range of electronic components in the Panel Mount LED Indicator category at EnvMart for compatible products and accessories.
