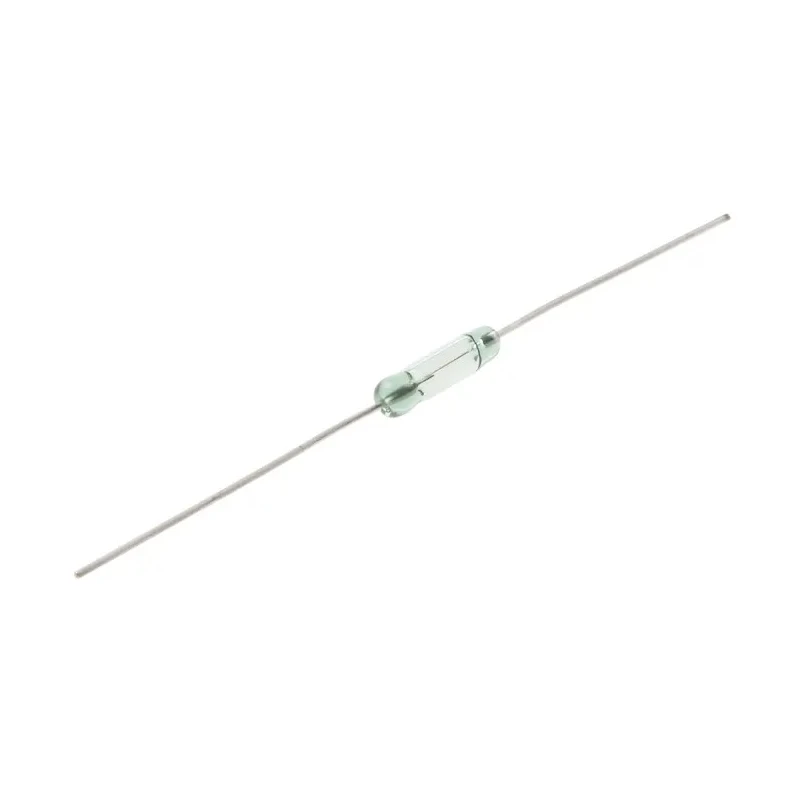

Cynergy3 SPST PCB Reed Switch 10 mA 30 V ac/dc

Cynergy3 VDA200H/5-15 SPST PCB Reed Switch is a compact and robust electronic switch designed for precise, low-power switching in industrial, electrical, and automation applications. Operating at a maximum switching current of 10 mA and voltage up to 30 V ac/dc, this reed switch is ideally suited for printed circuit board (PCB) mounting and integration with various sensing devices.

The switch features a single pole single throw (SPST) contact configuration, which provides dependable and rapid switching action. Constructed with Durel contact material, the device delivers excellent electrical performance and mechanical reliability, supporting an electrical lifecycle of 105 to 106 switching cycles and mechanical life up to 109 operations, making it suitable for long-term industrial use.

The VDA200H/5-15 model includes a wire terminal type for ease of installation on PCBs and operates effectively within a broad temperature range from -40°C to 150°C, making it adaptable to harsh environmental conditions. Its quick operating time including bounce is 0.2 ms, with a maximum release time of 0.05 ms, ensuring responsiveness in control circuits.

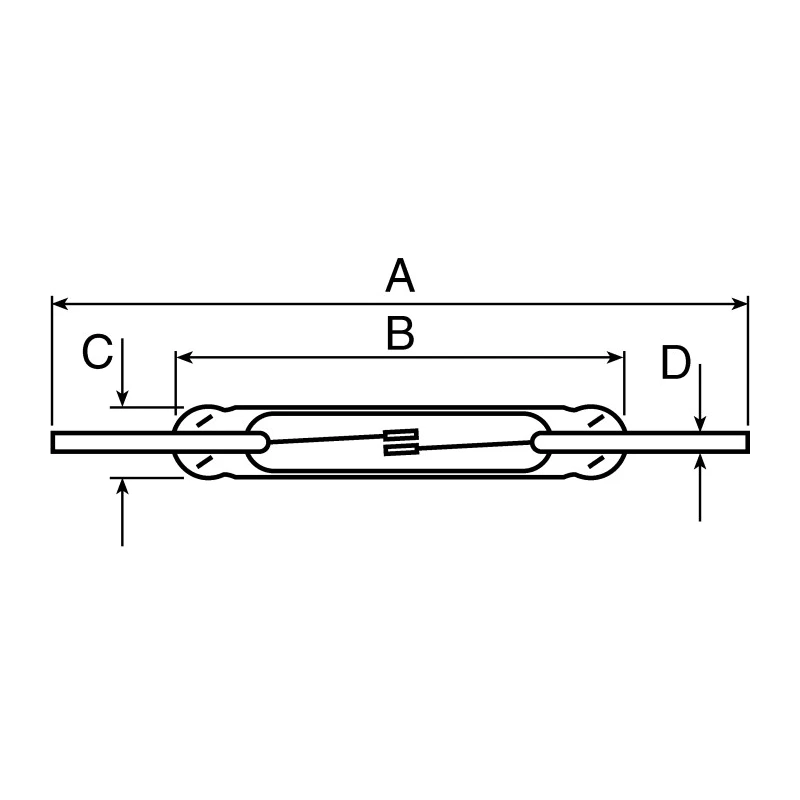

With dimensions of 5.4 mm length and 1.4 mm width, the reed switch is space-efficient for compact electronics. The device is designed to be compatible with magnets having an AT value range of 5 to 20 AT, facilitating versatile applications including proximity sensing, level detection, and security systems.

The Cynergy3 VDA200H/5-15 reed switch originates from China, adhering to quality manufacturing standards without specific approvals or certifications. Single pole single throw contact configuration for reliable switching.

Maximum switching current of 10 mA and voltage up to 30 V ac/dc for low power applications. Durable Durel contact material ensures long electrical life. Wide operating temperature range from -40°C to 150°C for versatile environmental use.

Compact dimensions ideal for PCB mounting and integration. Quick operating and release times improve switch response. Wire terminal type facilitates easy PCB integration. Compatible with magnets in the 5 to 20 AT range for various sensor applications.

No formal standards or approvals indicated. Manufactured in China under strict quality controls.

This SPST PCB reed switch is highly recommended for use in industrial automation, electrical controls, proximity sensing, and other low-voltage switching needs. Explore EnvMart's extensive range of Reed Switches and related electronic components for comprehensive solutions.
