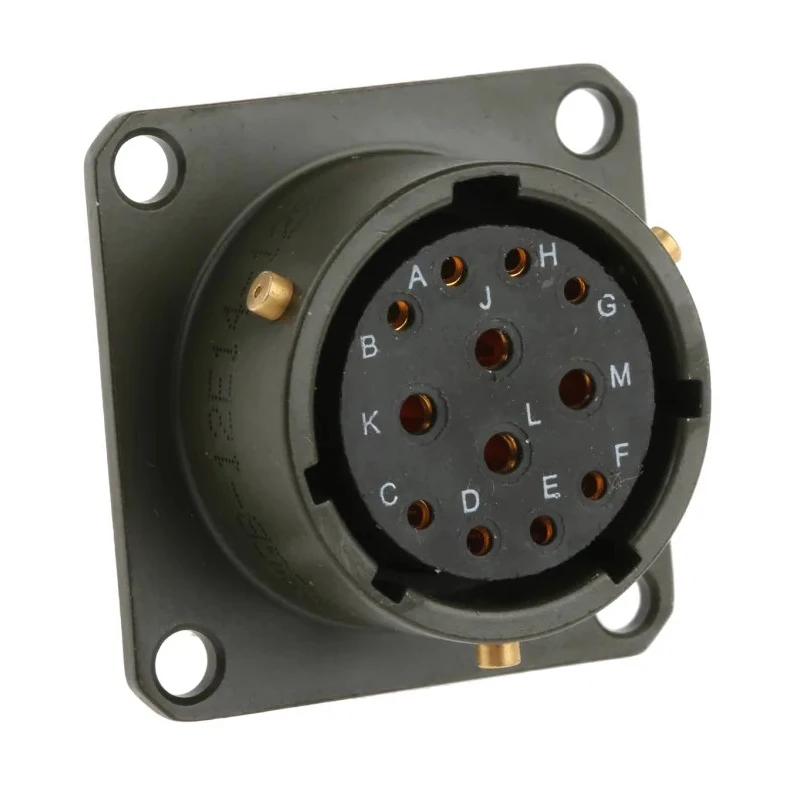

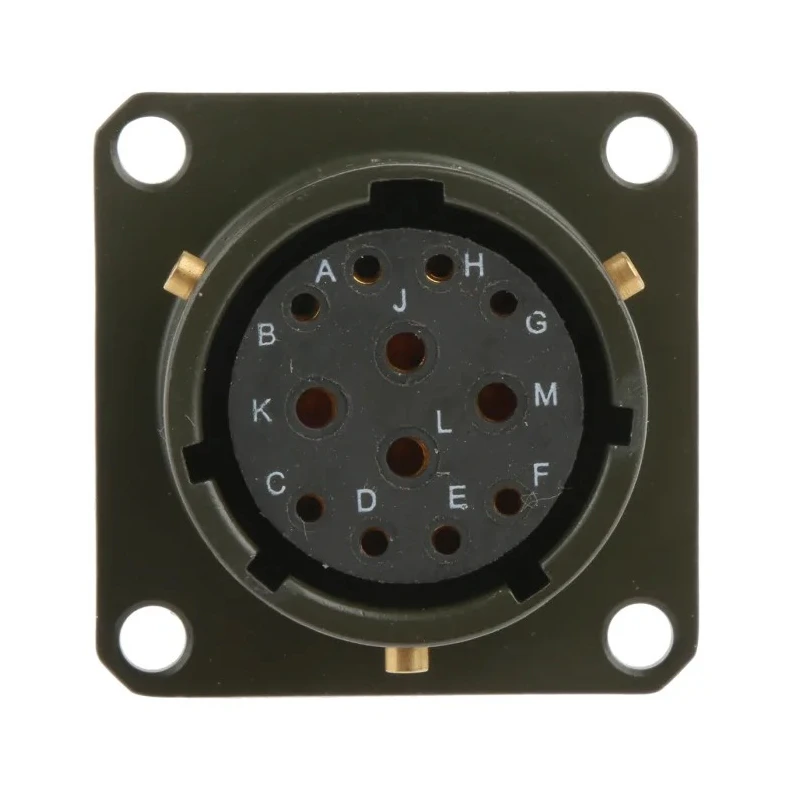

Amphenol Limited MIL Spec Circular Connector Brass Straight 12 Way Box Mount Female Contacts Olive Shell 62GB-12E14-12SN
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500, 700V ac |
| Brand | Amphenol Limited |
| Colour | Olive |
| Orientation | Straight |
| Model | 62GB-12E14-12SN |
| Mount Type | Box Mount |
| Housing Material | Aluminium |
| Contact Material | Brass |
| Series | 62GB |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Resistance | 5 mΩ max |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shell Size | 14 |
| Military Standard | MIL-DTL-26482 |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Shell Plating | Zinc Cobalt |

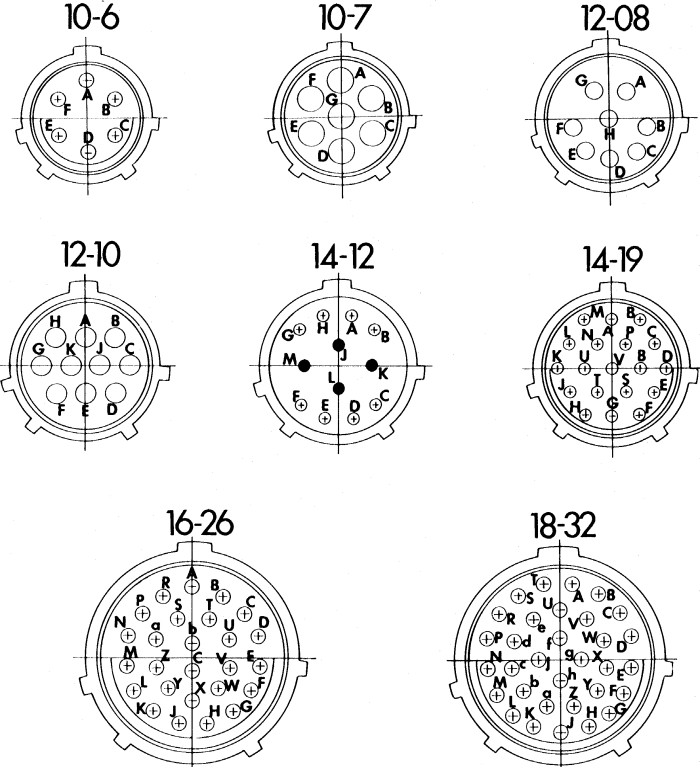

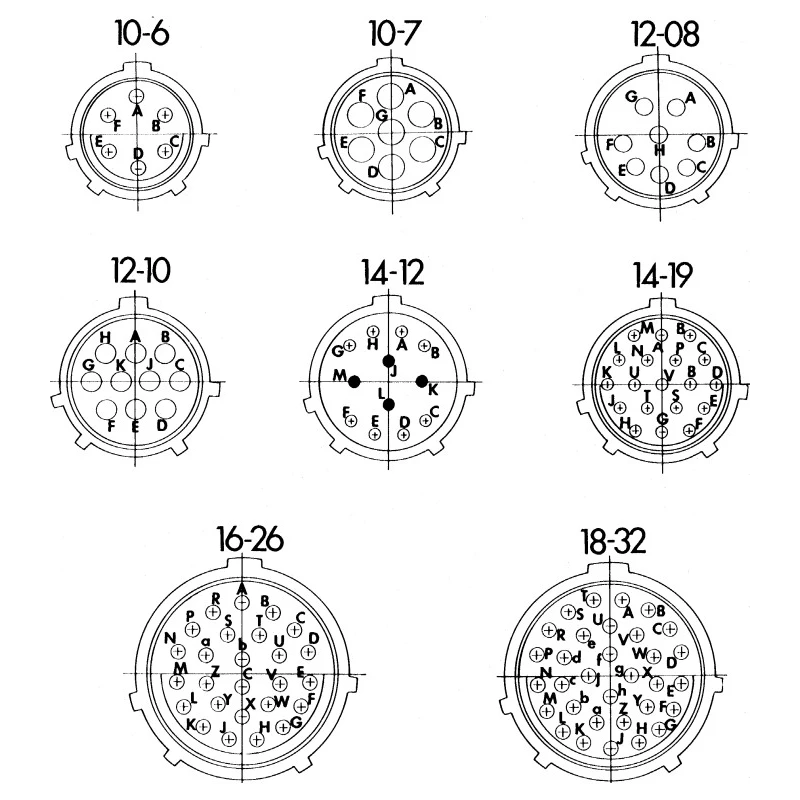

| Insert Arrangement | 14-12 |
| Connector, circular, UK 105, MIL C 26482, socket, chassis mount, 12 wayBrand | AB Electronic |
Key Features
- Constructed with brass contacts and a brass shell with olive drab zinc cobalt plating for corrosion resistance.

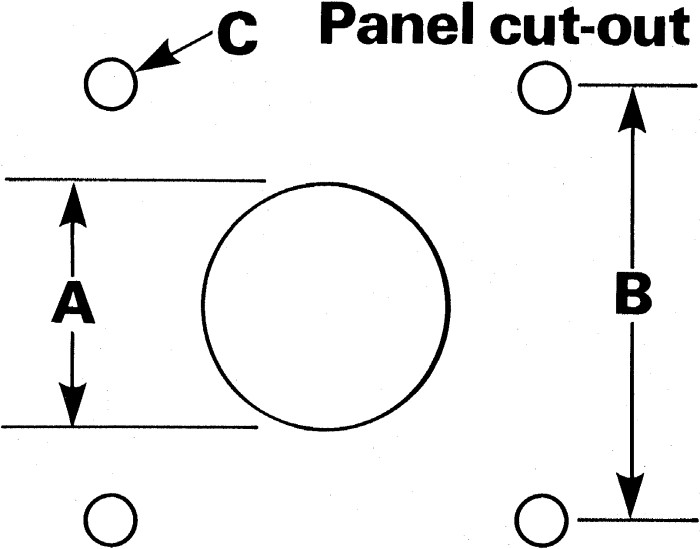

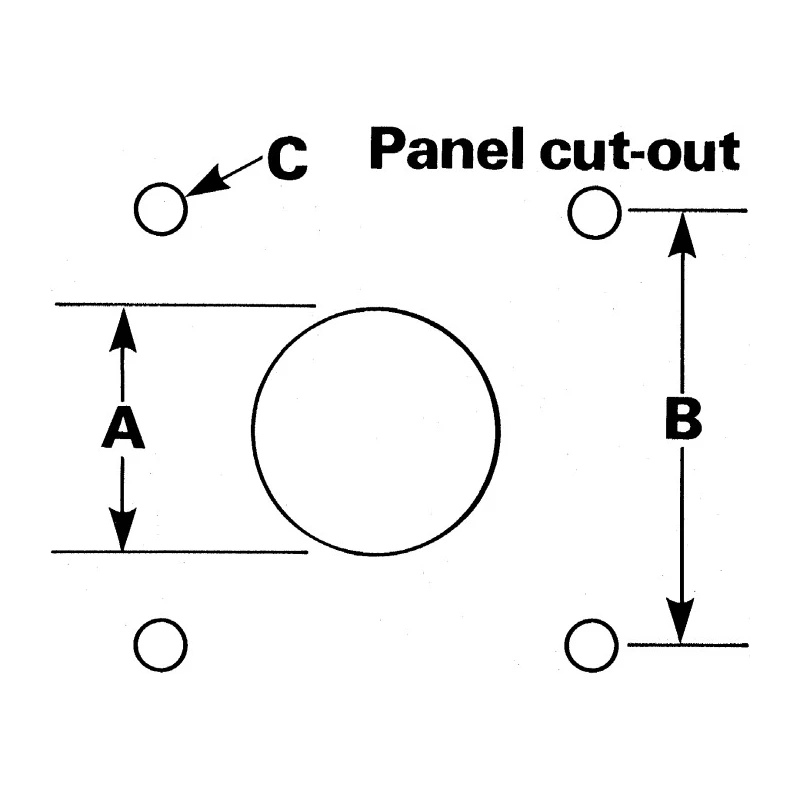

- Straight orientation with box mount for secure chassis installation.
- Operates under voltage up to 700V AC with a mechanical life of 500 mating cycles.
- Features a bayonet locking system and keyed design to prevent mismating.

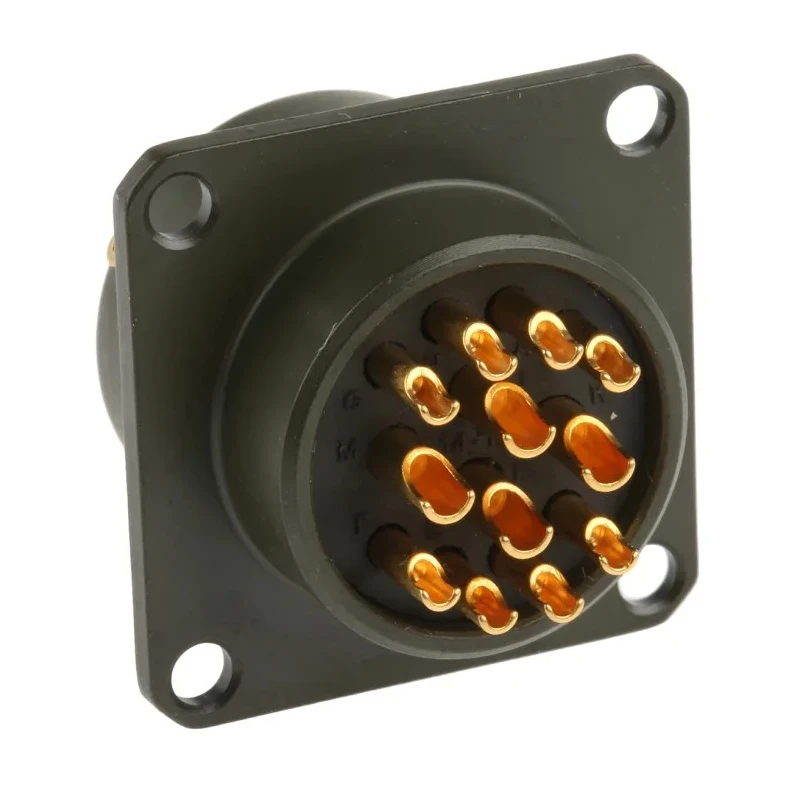

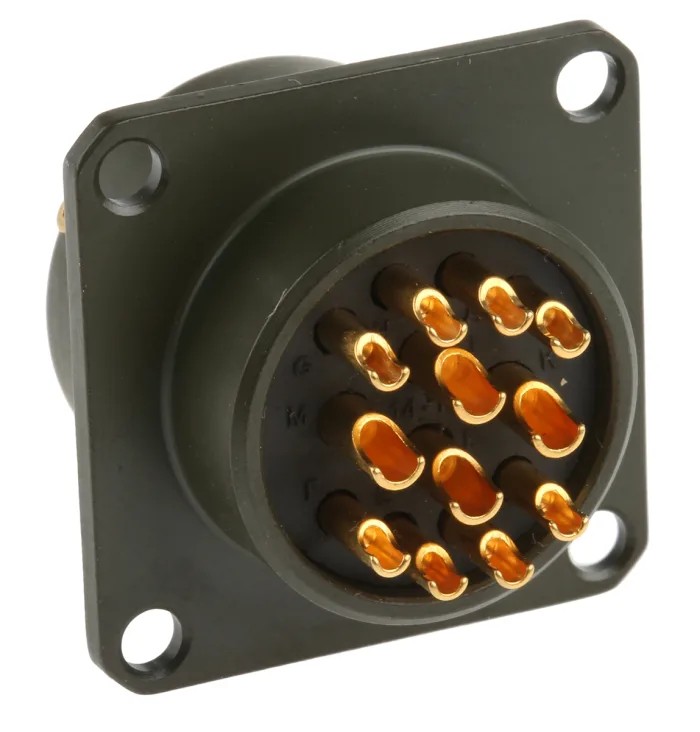

- Terminated by solder bucket type gold plated female contacts for reliable connections.
- Environmental sealing ensures performance in harsh and extreme temperature conditions ranging from -55°C to 125°C.
- Suitable for military and industrial applications requiring high reliability and ruggedness.
Product Description
Amphenol Limited 62GB-12E14-12SN MIL Spec Circular Connector is a high-quality box mount circular connector meeting the stringent MIL-DTL-26482 military standard. It features a 12 way female insert arrangement in shell size 14 with gold plated brass female contacts. The connector's shell is made from solid aluminium with a zinc cobalt olive drab finish to provide excellent corrosion resistance in harsh environments.
The straight orientation and box mount style enable secure mounting on panels or chassis, while the bayonet locking mechanism provides a reliable mating connection, enhanced by a keyed design preventing mismating. Rated for voltages up to 700V AC, the connector performs reliably across a broad temperature range from -55°C to 125°C and offers a mechanical life expectancy of up to 500 mating cycles.
The contact resistance is maintained below 5 mΩ, ensuring low electrical losses suitable for sensitive military and industrial equipment. The termination style is solder bucket with gold plating on contacts to provide stable and durable connections for signal transmission. The use of polychloroprene rubber inserts aids environmental sealing, protecting against moisture and contaminants.
This rugged MIL Spec connector is ideal for applications in military, aerospace, industrial control, and other harsh environment scenarios where dependable performance is critical. Its robust materials and stringent construction standards ensure long-term reliability and durability under demanding conditions.
Constructed with brass contacts and gold plating for superior conductivity and corrosion resistance. Designed for high reliability with a bayonet locking system to secure connections. Operates at voltages up to 700V AC, capable of harsh environment use from -55°C to 125°C.
12 contacts arranged in a size 14 shell with insert arrangement 14-12. Environmental sealing protects against damage from moisture and contaminants. Box mount style ensures easy and secure panel installation. Complies with MIL-DTL-26482 military specifications for rugged connector performance.
Explore the full range of Mil Spec Circular Connectors on EnvMart for reliable industrial and military-grade electrical interconnections.
