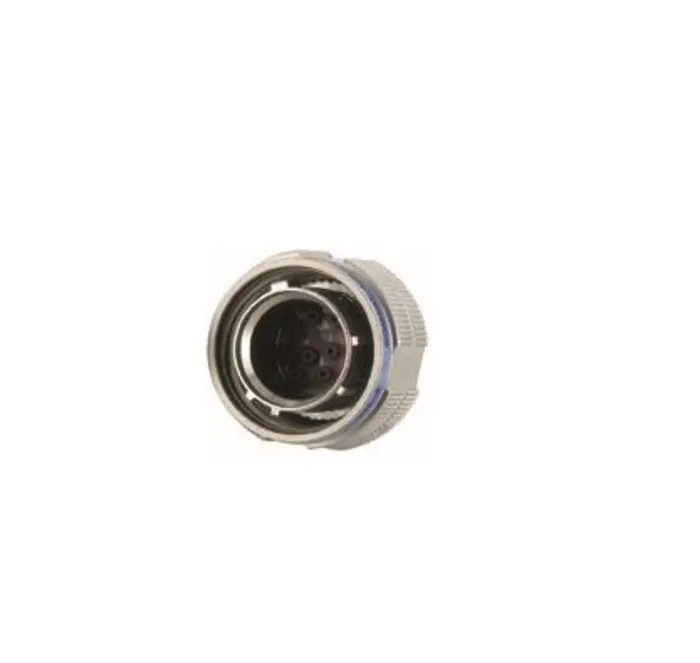

Amphenol Limited MIL-DTL-38999 Series III Circular Connector 13 Way Panel Female with Male Contacts Copper D38999/26FB35PN
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Amphenol Limited |
| Colour | Silver |
| Orientation | Straight |
| Current | 5A |
| Model | D38999/26FB35PN |
| Mount Type | Panel |
| Housing Material | Aluminium |
| Contact Material | Copper Alloy |
| Series | D38999 III |
| Termination Type | Crimp |
| Maximum Operating Temperature | 200°C |
| Minimum Operating Temperature | -65°C |
| Contact Plating | Gold |
| Number of Contacts | 13 |
| Contact Gender | Male |
| Connector Gender | Female |
| Shell Size | B13 |
| Military Standard | MIL-DTL-38999 Series III |
| Mating Type | Self-Locking |
| Connector Size | Subminiature |
| Shell Plating | Electroless Nickel |
Key Features
- Designed to MIL-DTL-38999 Series III military specifications for high reliability.
- Features 13 contacts with crimp termination type for secure connections.
- Supports up to 550V voltage and 5A current rating suitable for demanding applications.
- Constructed with aluminium housing and electroless nickel plated shell for corrosion resistance.
- Capable of operating in extreme temperatures from -65°C to 200°C.
- Includes self-locking mating type to ensure a secure connection.
- Straight orientation with strain relief to improve durability and longevity.
- Copper alloy contacts plated in gold for optimal conductivity and corrosion resistance.
Product Description
Amphenol Limited D38999/26FB35PN is a MIL-DTL-38999 Series III circular connector designed for high-performance military, aerospace, and industrial applications. This product features a sturdy aluminium housing with an electroless nickel plated shell, providing excellent protection against corrosion and wear in harsh environments.
The connector contains 13 male contacts with gold plating over copper alloy to ensure reliable signal transmission and durability. The straight shell and panel mount type offer a secure and compact installation solution with self-locking mating for dependable connection integrity.
Rated for 550 volts and 5 amperes, this subminiature connector supports a wide operating temperature range from -65°C to +200°C, making it suitable for use in severe environments requiring robust electrical connections.
The crimp termination type facilitates dependable wire attachment, and the inclusion of strain relief enhances cable durability by preventing mechanical stress at the connector interface.
Complies with MIL-DTL-38999 Series III military standards. 13 way male contacts with crimp termination for secure electrical connections. Aluminium housing with electroless nickel plated shell for superior corrosion resistance.
Supports operation from -65°C to 200°C temperature range. Self-locking mating type ensures consistent mechanical engagement. Straight orientation suitable for panel mounted applications. Copper alloy contacts plated in gold for optimized conductivity and corrosion protection.
Designed for use in industrial, aerospace, and military environments.
This circular connector is engineered to meet the stringent demands of military and aerospace systems, where reliable electrical connections in extreme environmental conditions are crucial. Its robust construction and premium materials ensure long-term performance and durability.
Explore more high-quality connectors and related components in the Electronics & Electricals category on EnvMart for your specialized industrial needs.
Explore more products in our Mil Spec Circular Connectors category.
