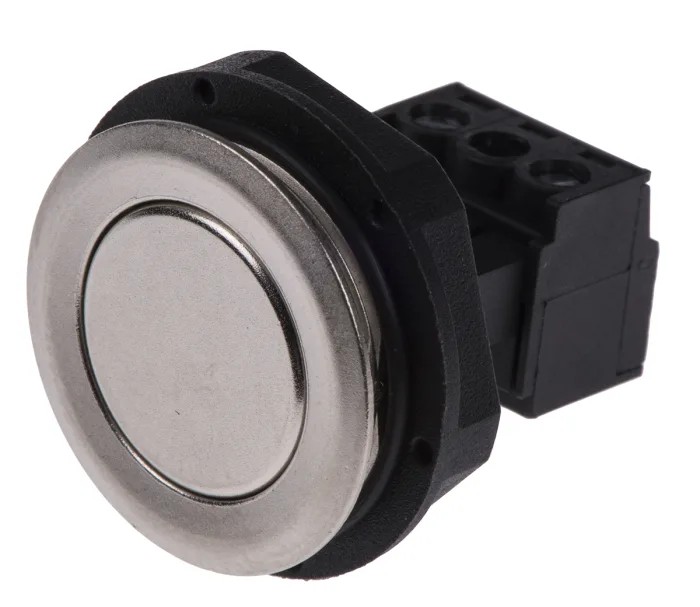

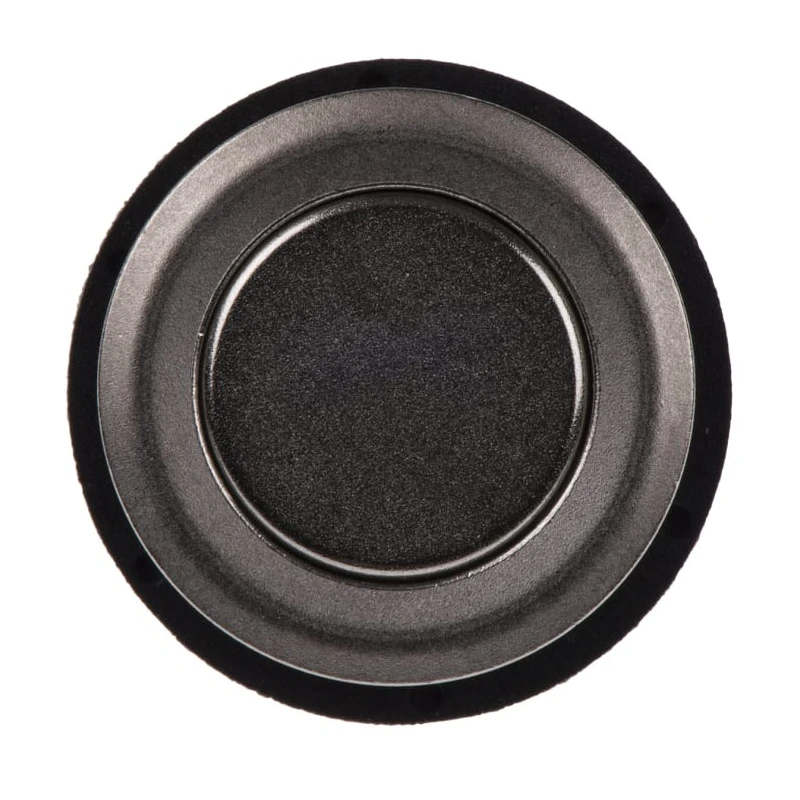

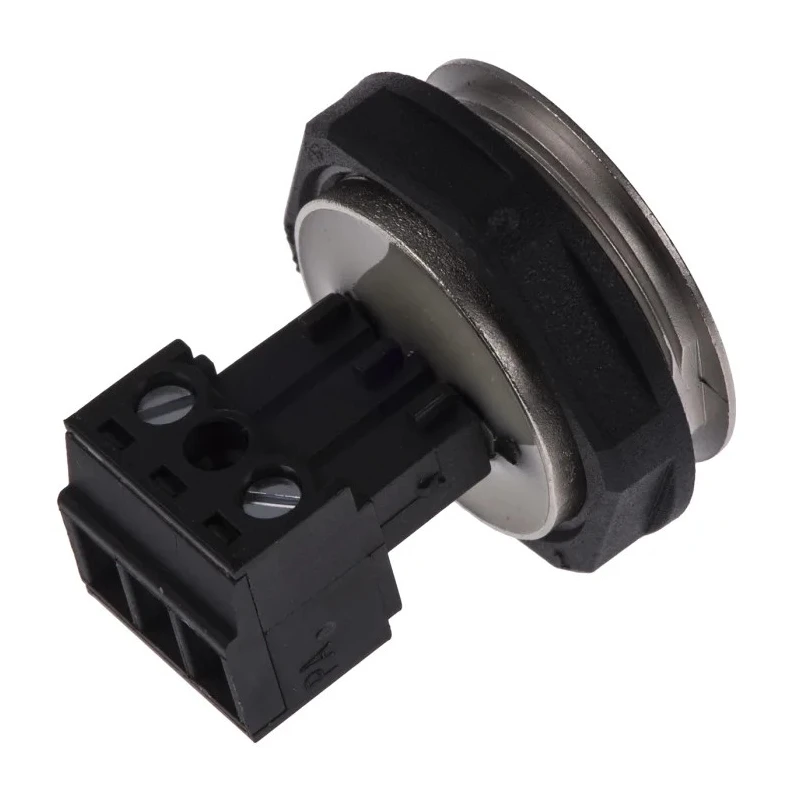

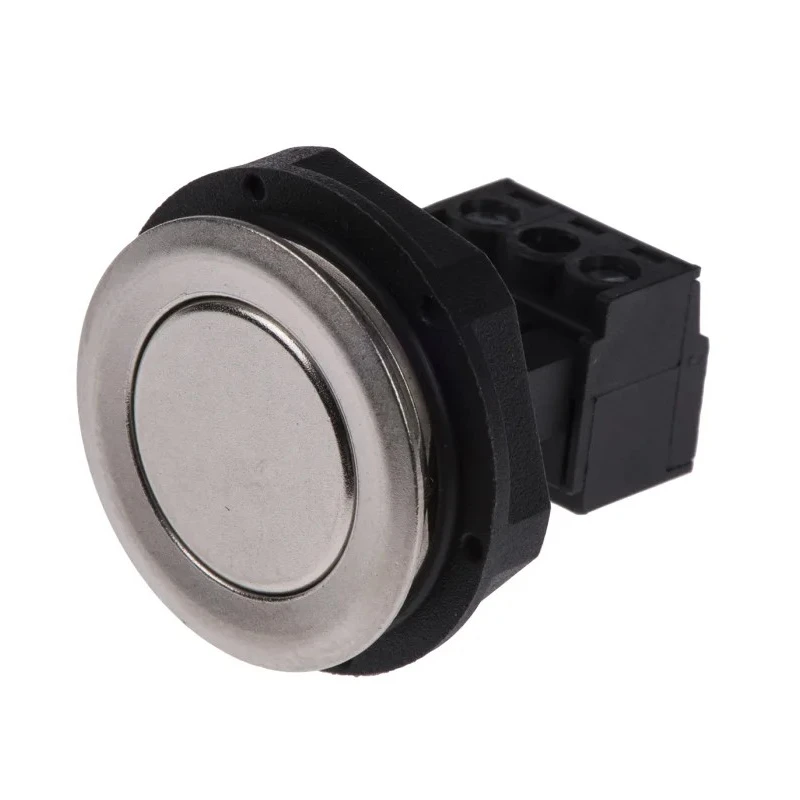

Schurter MCS 19 Series Momentary Push Button Switch SPST Through Hole 19 mm Cutout IP65 IP67 48 V dc/ac 1241.2802
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schurter |
| IP Rating | IP65, IP67 |
| Mount Type | Through Hole |
| Series | MCS 19 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPST |
| Contact Rating | 50mA / 24Vdc |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 19 mm |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 48V dc |
| Actuator Style | Button |
| Switch Contact Current | 125mA |
| Contact AC Voltage | 48V ac |
Key Features
- The switch operates momentarily for precise control in automation and electrical applications.
- It features a silver actuator button with no illumination for straightforward operation.
- The through-hole mount type ensures secure installation on panels.
- Designed with screw terminal type and silver contacts for reliable electrical connection.
- Compatible with 48 V dc and 48 V ac voltages and supports contact current up to 125 mA.
- Rated for robust outdoor and industrial environments with IP65 and IP67 ingress protections.
- Operates reliably in temperatures from -20°C to 60°C.
- Includes nut and O-ring seal to ensure a secure and sealed panel fit.
Product Description
Schurter 1241.2802 MCS 19 Series is a momentary push button switch engineered for robust industrial and electrical applications. Featuring a 19 mm panel cutout diameter, this switch employs a SPST contact configuration and is designed for through-hole mounting to guarantee strong connectivity and easy panel integration.
Its actuator has a silver color and button style, providing precise momentary switching. Not illuminated, it suits environments requiring simple visual design or external status indicators.
The switch supports both 48 V dc and 48 V ac operation with a contact current rating of 125 mA, suitable for low-power control circuits. It uses screw terminals and silver contacts to provide durable and reliable electrical connections with minimal resistance.
With IP65 and IP67 ingress protection ratings, this switch is resistant to dust and water, making it ideal for challenging environments including industrial automation, control panels, instrumentation, and outdoor electrical enclosures.
Operating temperature ranges from -20°C to 60°C ensure its functionality in a wide array of climatic conditions. The package includes a nut and O-ring seal to ensure a secure fit and additional protection from environmental factors.
The switch operates momentarily to provide quick activation only while the button is pressed. Silver actuator button ensures visible, tactile control. Through-hole mount type offers secure panel attachment. Contact configuration is single pole, single throw (SPST) for simple on/off control.
The IP65 and IP67 ratings guarantee dust ingress protection and waterproof sealing. Suitable for electrical automation, HVAC controls, manufacturing panels, and instrumentation.
This product is a new, industry-standard component built for demanding electrical and control system requirements, combining durability and precision. It forms an essential part of automation and electrical control assemblies.
EnvMart offers this Schurter Push Button Switch under the MCS 19 series for customers seeking reliable, momentary switches with rugged construction and proven performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a single pole, single throw (SPST) contact configuration, allowing for simple on/off control.
It has IP65 and IP67 ingress protection ratings, ensuring resistance to dust and water, making it suitable for challenging environments.
The maximum operating temperature for this switch is 60°C, allowing it to function effectively in a variety of climatic conditions.
This model is compatible with both 48 V dc and 48 V ac voltages, making it versatile for different electrical applications.
The required panel cutout size for this switch is 19 mm, designed for through-hole mounting.
The contact current rating for this switch is 125 mA, suitable for low-power control circuits.
It utilizes screw terminals, which provide a reliable electrical connection and easy installation.
The minimum operating temperature for this switch is -20°C, ensuring functionality in colder environments.
Yes, the package includes a nut and O-ring seal to ensure a secure fit and additional environmental protection during installation.
The actuator is silver in color and has a button style, providing a clear and tactile control mechanism.
This switch complies with RoHS standards, ensuring it meets specific environmental and safety requirements.
This model is suitable for use in industrial automation, control panels, instrumentation, and outdoor electrical enclosures.
