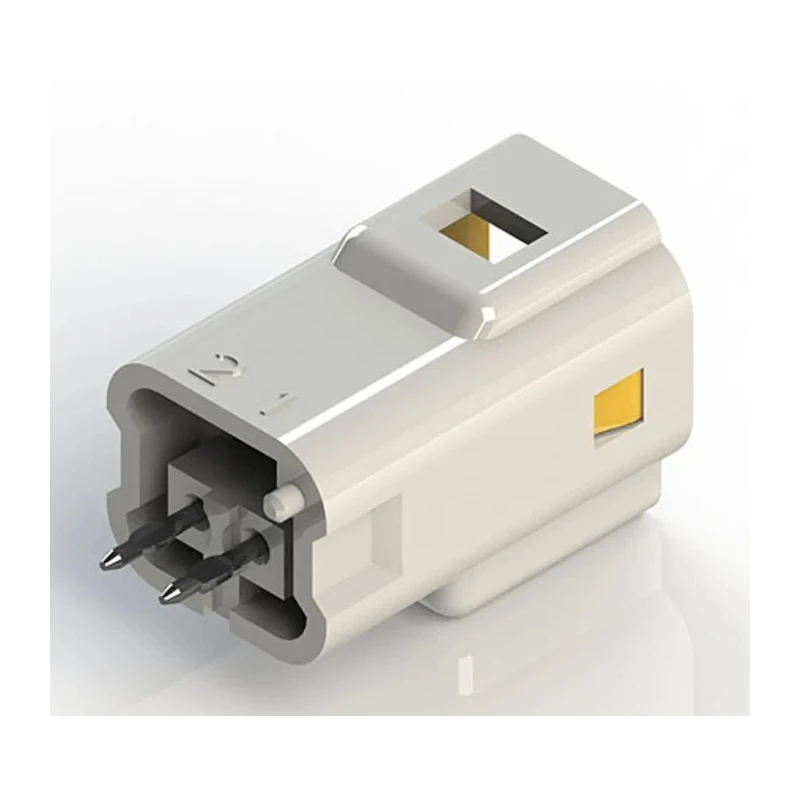

EDAC Compact Power Connector 2 Pole Surface Mount 3A 250V Brass Contacts Fibreglass Reinforced Polybutylene 560-002-420-101

EDAC 560-002-420-101 Compact Power Connector provides a reliable 2 pole surface mount connector solution rated for 3 amps current at 250 volts.

This connector is part of the EDAC 560 series known for superior quality and waterproof IP67 rated performance. The connector features brass contacts plated with tin for excellent conductivity and corrosion resistance. The housing is constructed from fibreglass reinforced polybutylene terephthalate providing mechanical strength and temperature resistance.

Operating temperature ranges from -40°C to +105°C, making this connector suitable for demanding industrial environments. The solder termination ensures a durable and secure connection for wire assemblies. EDAC also offers related tooling and accessories compatible with the 560 series connectors.

The 560 series has a 2.5 mm pitch and supports wire sizes from 1.0 mm to 1.7 mm. Available in multiple pole configurations, this 2 pole variant supports compact power connector applications in lighting, industrial pumps, test equipment, emergency vehicles, construction, welding equipment, automotive and broadcast systems.

The integrated seal and double latch design fully protects against water ingress, guaranteeing long service life in harsh conditions. EDAC’s robust connector series is engineered to facilitate easy crimp, poke, and mating operations, minimizing assembly time.

Features a 2 pole format with male connector gender for secure connections. Constructed with brass contact material ensuring good conductivity and reliability. Housing made of fibreglass reinforced polybutylene terephthalate for durability and high temperature resistance.

Operates reliably between -40°C to 105°C suitable for tough environments. Solder termination offers a strong mechanical and electrical contact. Tin plating enhances corrosion resistance and solderability. Fully waterproof with IP67 rating suitable for industrial applications.

Compact size with 2.5 mm pitch and wire compatibility from 1.0 mm to 1.7 mm. Ideal for use in lighting, automotive, construction, and broadcast systems. Manufactured in China ensuring quality assurance.

This connector is categorized under Compact Power Connectors, fitting applications in electronics, power supplies, and industrial equipment requiring robust waterproof connections. Discover more high-quality connectors and accessories to support your industrial and electronic component needs here at EnvMart.
