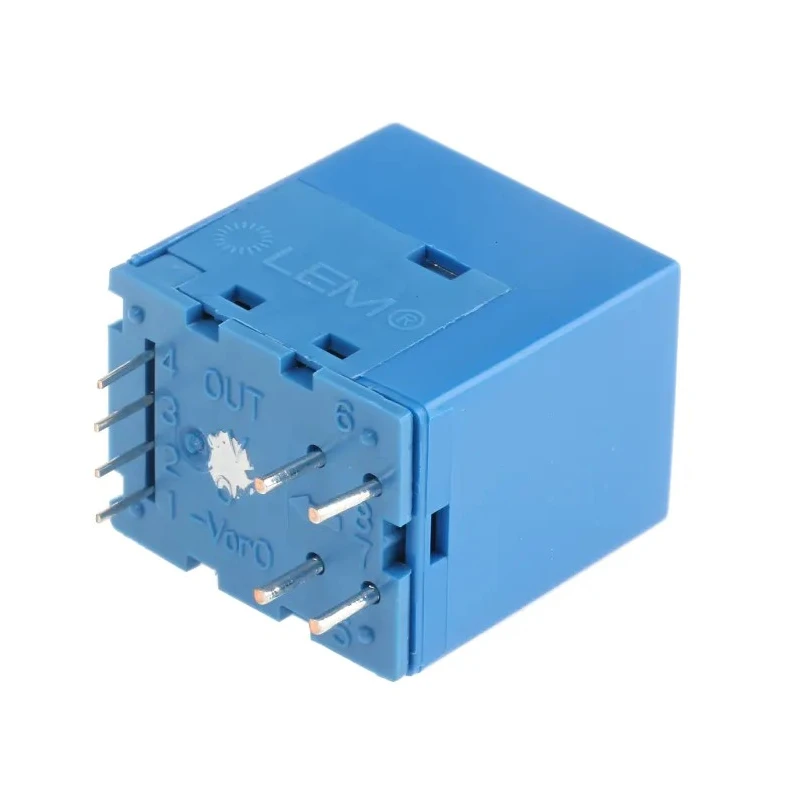

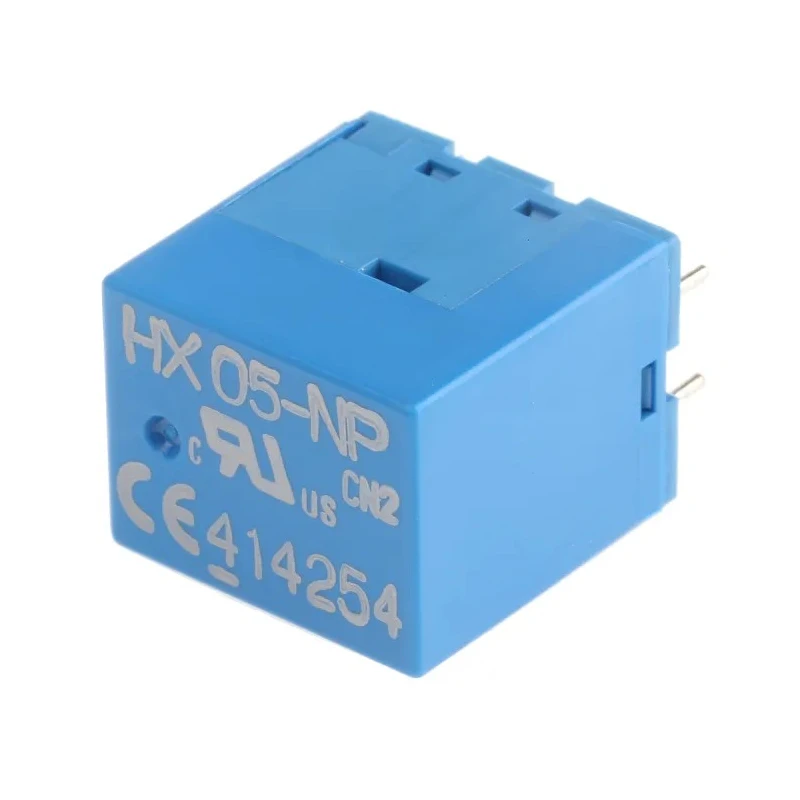

LEM HX Series Current Transformer 5 A 15V 0.8mm Bore HX 05-NP

Free Delivery in India | Lowest Global Shipping Charges

LEM HX Series Current Transformer 5 A 15V 0.8mm Bore HX 05-NP



Category Current Transformers Brand LEM Condition New

Specifications

Country of Origin	China
Brand	LEM
Model	HX 05-NP
Mount Type	PCB
Series	HX
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Bore Diameter	0.8mm
Supply Voltage	15V
Standards/Approvals	EN, IEC, CSA, UL
Primary Current	5A
Minimum Operating Frequency	0Hz
Maximum Operating Frequency	200kHz
LEM HX Series Current Transformer 10 A 15V 1mm BoreBrand	LEM

Key Features

Designed for PCB mounting with a 0.8mm bore diameter.
Supports a primary current of 5 Amps with a supply voltage of 15 Volts.
Operating temperature range from -40°C to 105°C for robust performance.
Meets EN, IEC, CSA, and UL standards for quality and safety.
Maximum operating frequency of 200 kHz ensures high-speed applications compatibility.
Body material certified with UL94-V0 for flame retardance.
Low power consumption design enhances efficiency.
High noise immunity for accurate readings in industrial environments.

Product Description

LEM HX 05-NP Current Transformer 5 A 15V 0.8mm Bore is a precision instrument designed for accurate current sensing in industrial, laboratory, and automation systems. This transformer features a compact 0.8mm bore diameter suitable for PCB mounting, ensuring easy integration into electronic control gear and process control circuits.

It supports a primary current of 5 Amps and operates efficiently at 15 Volts supply voltage. The transformer is engineered to withstand a wide operating temperature range from -40°C to 105°C, making it reliable in harsh industrial environments.

Certified to comply with international standards including EN, IEC, CSA, and UL, it guarantees safety and performance reliability. With a maximum operating frequency of 200 kHz, the HX 05-NP model supports fast switching applications often required in automation and control gear.

The body material is UL94-V0 rated, providing flame retardant properties essential for electrical safety. Its design emphasizes low power consumption and high noise immunity to maintain accuracy and efficiency in demanding electrical applications.

Its dual primary option adds flexibility in installation, allowing this current transformer to be utilized in diverse industrial and commercial signal processing equipment. Designed for PCB mounting with a 0.8mm bore diameter.

Supports 5 Amps primary current and 15 Volts supply voltage. Operates between -40°C and 105°C ensuring versatility in temperature conditions. Certified to EN, IEC, CSA, and UL standards securing safety and compliance. Maximum frequency of 200 kHz suitable for high-speed process control.

UL94-V0 flame retardant body enhances electrical safety. Low power consumption improves energy efficiency. High noise immunity ensures accuracy against electrical interference. Dual primary option for flexible use in various applications.

Product of China adhering to international quality regulations.

This current transformer is ideal for industrial automation, process controls, and electronic systems requiring precise current measurements. For more industrial-grade electrical and automation products, browse our Electronics & Electricals category on EnvMart.
