LEM Current Transformer HX Series 10 A 12V, 15 V 1.1mm Bore HX 10-P/SP2

Free Delivery in India | Lowest Global Shipping Charges

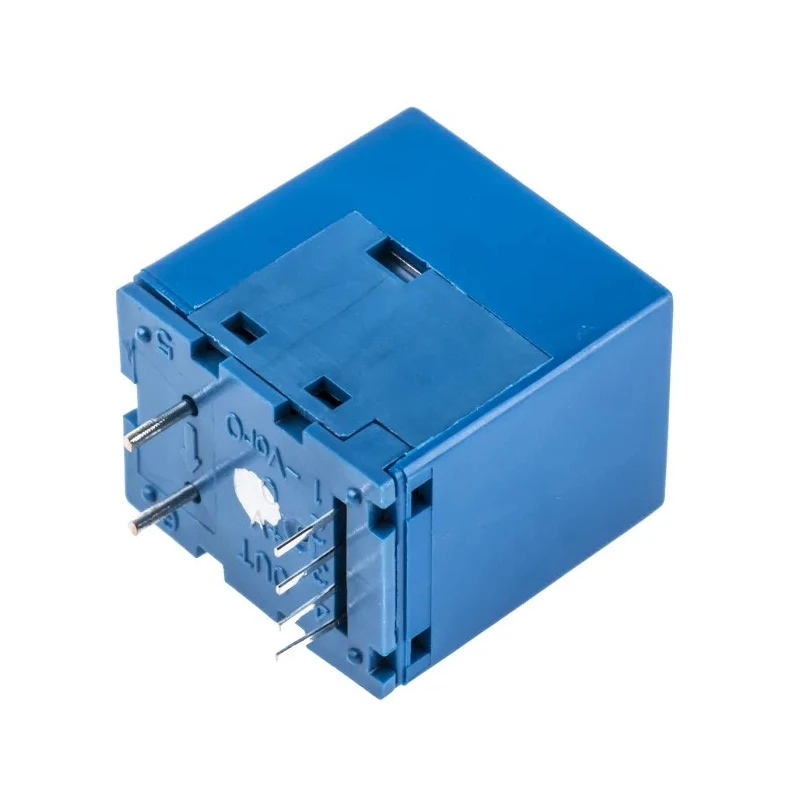

LEM Current Transformer HX Series 10 A 12V, 15 V 1.1mm Bore HX 10-P/SP2



Category Current Transformers Brand LEM Condition New

Specifications

Country of Origin	China
Brand	LEM
Model	HX 10-P/SP2
Depth	30.2mm
Width	15.4mm
Mount Type	PCB
Series	HX
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Bore Diameter	1.1mm
Supply Voltage	12, 15V
Standards/Approvals	JEDEC JESD46-B
Primary Current	10A
HYP hall effect current transducer,10ABrand	LEM

Key Features

The transformer uses Open Loop Hall Effect technology for low power consumption.
It supports AC, DC, and mixed signal current measurements accurately.
Compact size with dimensions 30.2mm depth and 15.4mm width enhances PCB mounting ease.
Operating temperature ranges from -25°C to +85°C for reliable industrial use.
Supply voltage options include 12V and 15V with a load resistance of 2KΩ.
The device complies with JEDEC JESD46-B standards ensuring quality and reliability.
Insulation test voltage rating is 3kV suitable for demanding electrical environments.
Body material conforms to UL94-V0 flammability rating for safety.

Product Description

LEM HX 10-P/SP2 Current Transformer is a precision Open Loop Hall Effect current sensor designed for accurate measurement of currents up to 10 A. Operating with a supply voltage of 12 or 15 V and featuring a 1.1 mm bore diameter, it is optimized for PCB mounting with compact dimensions of 30.2 mm depth and 15.4 mm width. Its robust design supports mixed AC and DC current detection for versatile industrial, electrical automation, and laboratory applications.

The device offers low power consumption characteristics and an extended measuring range three times the nominal primary current, ensuring reliable performance in challenging conditions. Compliance with JEDEC JESD46-B standard and insulation test voltage of 3 kV guarantee electrical safety and durability.

With an operating temperature range from -25°C to +85°C and UL94-V0 rated body material, the transformer is built to endure harsh environmental conditions with high safety standards. Its small size and weight (8 g) facilitate easy integration into compact electronic systems.

Key applications include process control systems, automation & control gear, and electrical measurement setups in industrial and laboratory environments where precise current monitoring is essential.

The transformer uses Open Loop Hall Effect technology for efficient and accurate current sensing. It supports AC, DC, and mixed current signals with high precision. Compact and robust, it is suitable for printed circuit board (PCB) mounting.

Operates reliably in extreme temperature ranges from -25°C to +85°C. Meets JEDEC JESD46-B standards and has a 3 kV insulation test voltage rating. Equipped with a unipolar power supply operating at 12 or 15 V and requires a 2KΩ load resistance.

Its UL94-V0 flame-retardant body material ensures safety in application environments. Lightweight at just 8 grams, ideal for compact design requirements.

This current transformer is a trusted component for reliable current measurement in electrical and automation systems. Explore the broad range of LEM products and related Current Transformers on EnvMart for your industrial and laboratory needs.
