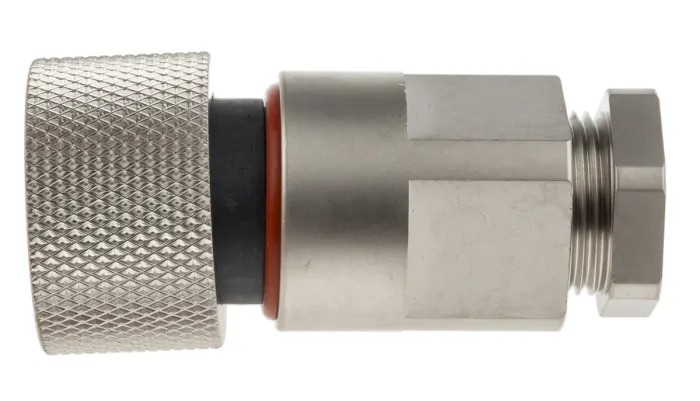

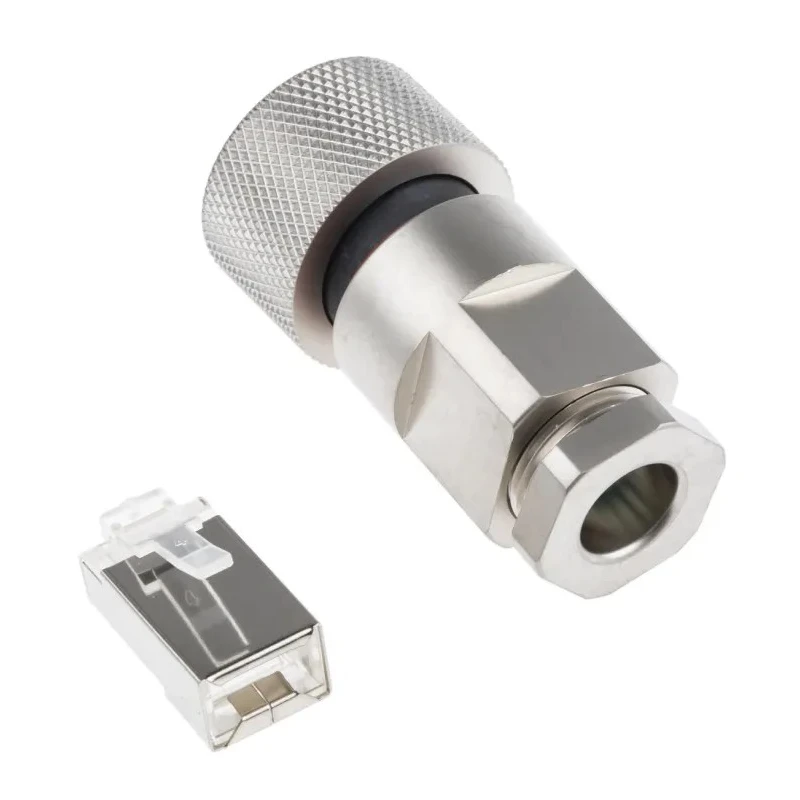

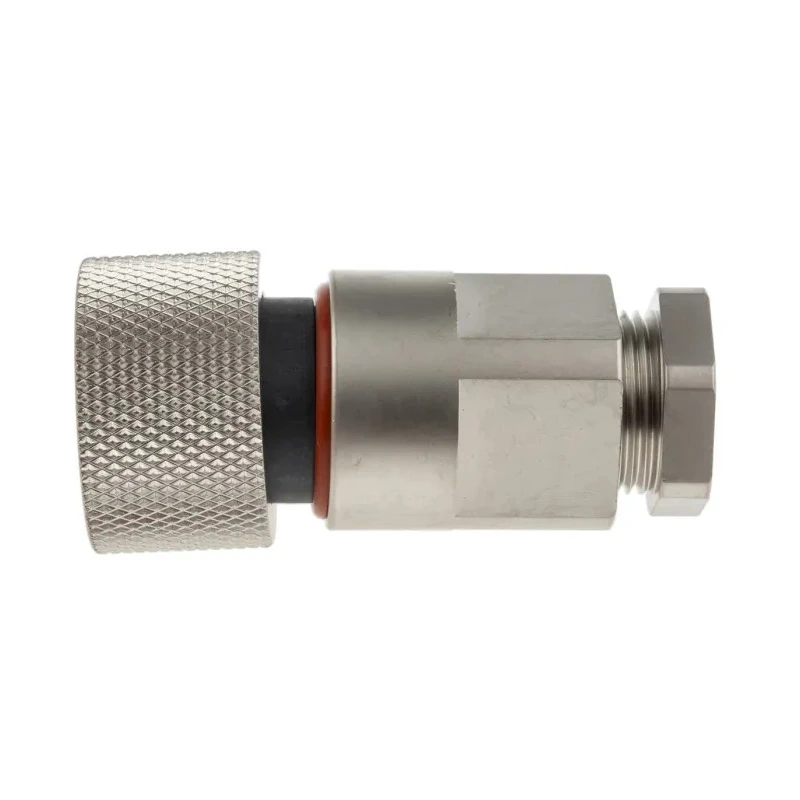

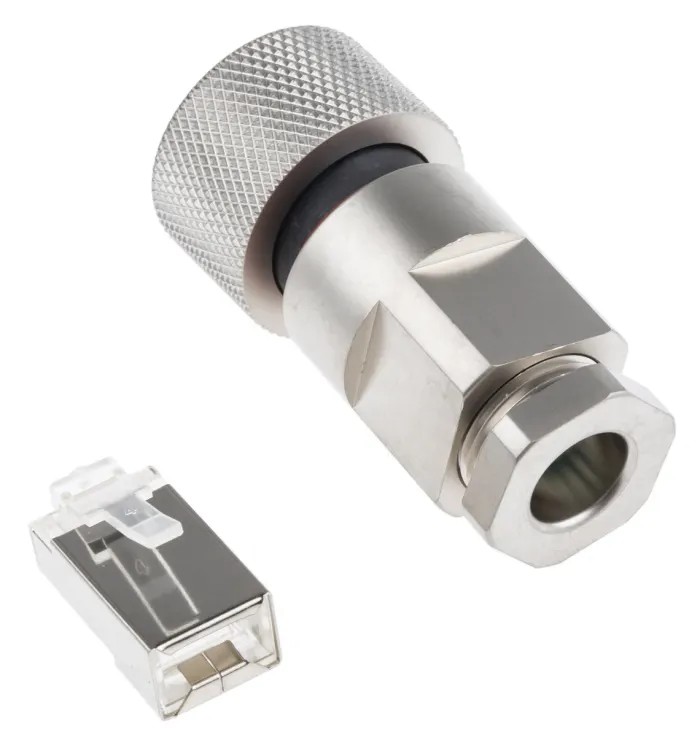

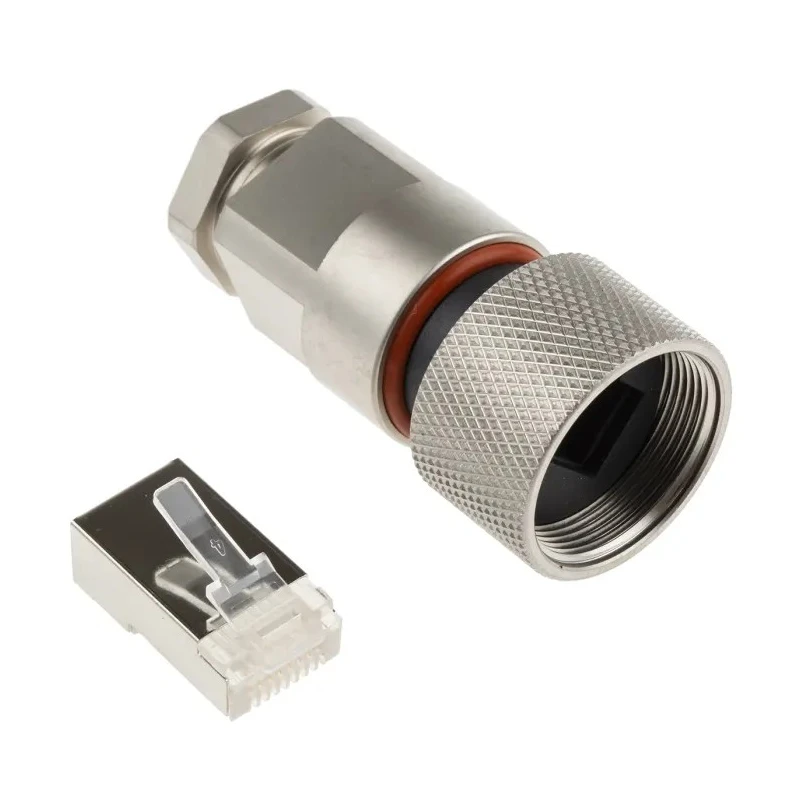

RS PRO Ethernet Series RJ45 Connector Male Cable Shielded Straight 1 Port RJ45

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Ethernet Series RJ45 Connector Male Cable Shielded Straight 1 Port RJ45

Name: RS PRO Ethernet Series RJ45 Connector Male Cable Shielded Straight 1 Port RJ45
Brand: RS PRO
SKU: 185211
Price: 59.83 USD
Availability: InStock



Category Ethernet Connectors Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Orientation	Straight
Length	50mm
Model	RJ45
IP Rating	IP68
Connector Type	Plug
Width	25.4mm
Mount Type	Cable
Contact Material	Copper Alloy
Series	Ethernet
Number Of Ports	1
Termination Type	Screw
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-40°C
Shield Type	Shielded
Contact Plating	Gold
Connector Gender	Male
Ethernet Connector Type	RJ45
RS PRO Ethernet Series RJ45 Connector Male, Cable Shielded Straight 1 PortBrand	RS PRO

Key Features

Shielded RJ45 male connector designed for cable mounting.
IP68 waterproof rating allows extended immersion in water with vacuum seal.
Screw-type termination ensures quick and secure installation without special tools.
Gold-plated copper alloy contacts for excellent corrosion and rust resistance.
Operates reliably in temperatures ranging from -40°C to 80°C.
50 mm length and 25.4 mm width support compact cable applications.
Current rating of 1.5 A suitable for Ethernet network connections.
Suitable for demanding industrial, marine, and military applications.

Product Description

RS PRO RJ45 Ethernet Connector Male 1 Port Cable Shielded with 50 mm length and 25.4 mm width offers a robust solution for Ethernet cable connections in industrial and harsh environments. This cable-mounted connector features a shielded plug design providing protection against electromagnetic interference and environmental factors. Its IP68 waterproof rating guarantees performance during extended water immersion under pressure while maintaining a vacuum seal.

The screw termination type facilitates quick and tool-free installation, ideal for field operations where special tools are unavailable. Gold-plated copper alloy contacts deliver superior conductivity and resistance to corrosion, extending the connector's operational life. The connector supports a current rating of 1.5 A, enabling reliable data transmission in Ethernet networks.

Designed for temperatures ranging from -40°C to 80°C, the connector performs well in extreme conditions making it suitable for outdoor LED lighting, marine, military, and industrial applications. Its compact dimensions of 50 mm length and 25.4 mm width accommodate tight installations while maintaining mechanical strength.

The RS PRO Ethernet series products undergo rigorous testing ensuring quality and durability. This RJ45 connector eliminates the need for special crimping tools thanks to its screw-type termination, providing convenience to engineers and technicians in the field.

Shielded RJ45 male connector designed for cable mounting. IP68 waterproof rating for extended immersion protection. Screw termination enables easy and reliable cable connections. Gold-plated copper alloy contacts for enhanced durability and conductivity.

Temperature range from -40°C to 80°C suitable for harsh environments. 50 mm length and 25.4 mm width for compact installations. Current rating of 1.5 A for network reliability. Applicable for industrial, marine, military, and outdoor lighting uses.

Explore the RS PRO series at EnvMart to access premium Ethernet Connectors and other industrial electronic components designed for quality and performance.
