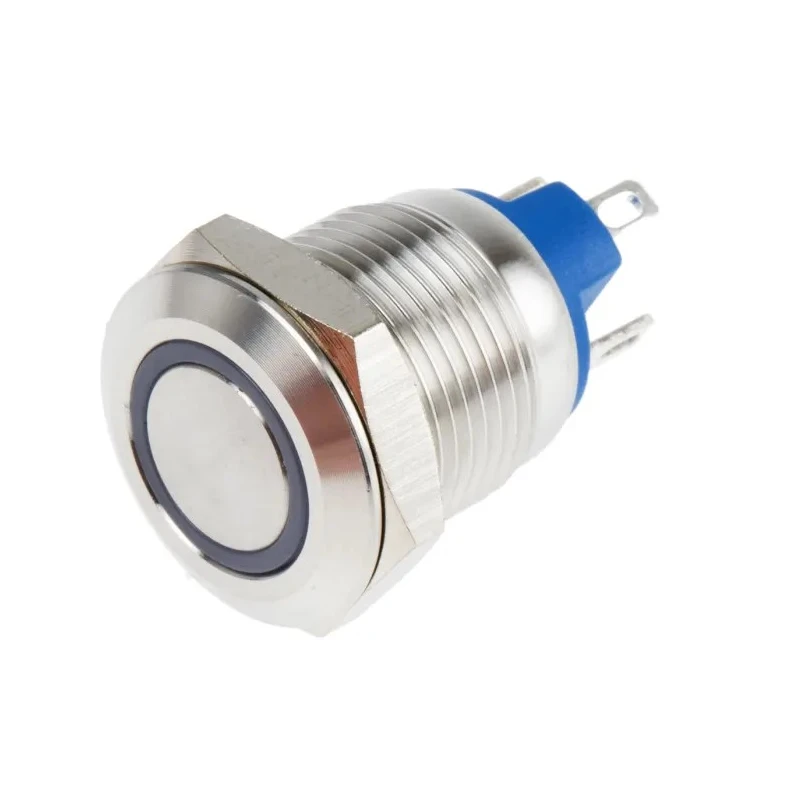

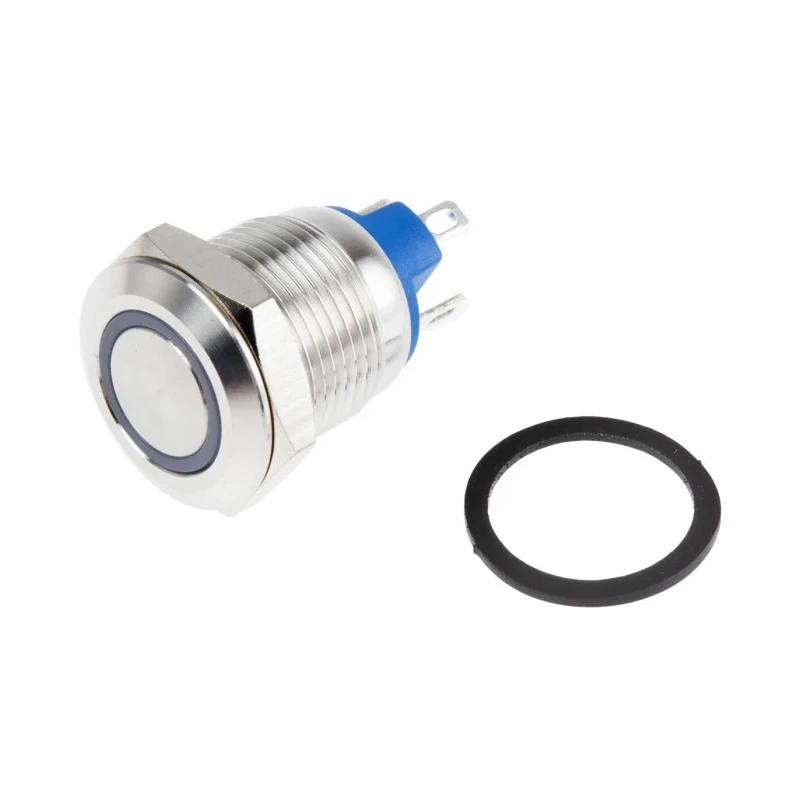

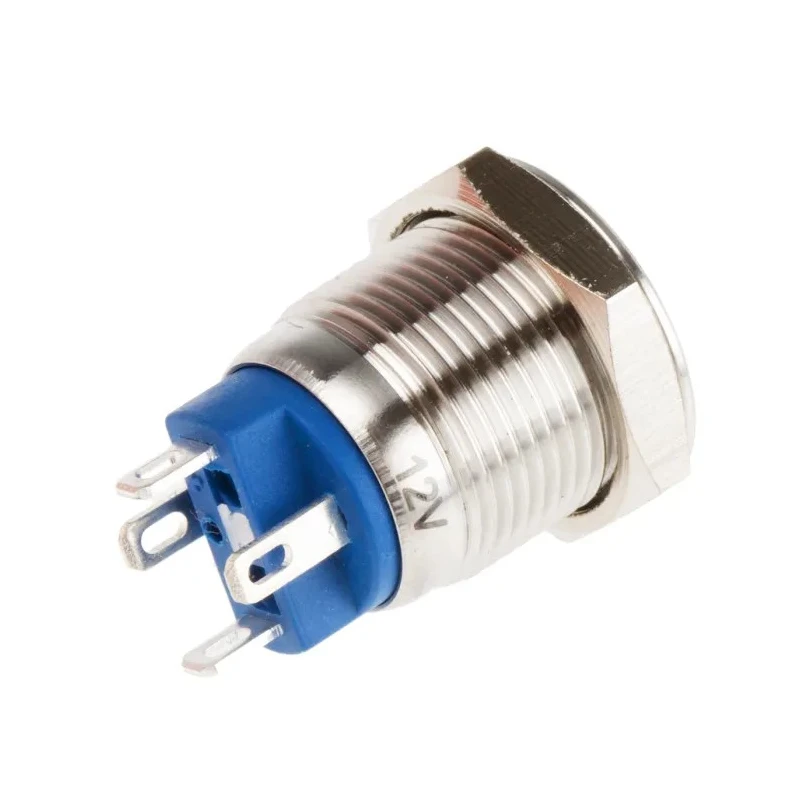

RS PRO Illuminated Push Button Switch Momentary Panel Mount 12 mm Cutout SPST White LED IP65 IP67 36 V dc 111-6532

RS PRO 111-6532 Illuminated Push Button Switch is a momentary, panel mounting switch designed for industrial and commercial use, featuring a compact 12 mm panel cutout. The switch incorporates a white LED indicator that illuminates upon actuation, allowing immediate visual confirmation of operation.

Featuring a robust stainless steel silver-colored actuator with a round style, it is engineered for durability and ease of use. The switch employs a Single Pole Single Throw (SPST) contact configuration with silver alloy contacts to ensure reliable electrical performance and longevity.

This switch is engineered for harsh environments, with an ingress protection rating of IP65 and IP67, making it dust tight and capable of withstanding water spray and temporary immersion, suitable for both indoor and outdoor installations. It holds an IK08 impact resistance rating, offering protection against vandalism and mechanical impact, making it ideal for public spaces such as gyms, museums, trains, trams, vending machines, lift panels, security control systems, and automatic doors.

The actuator features a momentary operation, returning to its original position when released, suitable for control panel applications requiring transient contact. Quick connect terminals simplify installation and wiring, while the electrical ratings allow a DC voltage of 36 V and a contact current of 15 mA, supporting low power applications reliably within operating temperatures ranging from -20°C to 55°C.

The compact 12 mm diameter panel cutout makes it compatible with standard control panels. The device complies with RoHS standards, ensuring environmental sustainability. This push button switch operates momentarily for control applications.

Silver round actuator ensures sleek and durable operation. White LED illumination signals switch activation for ease of monitoring. Designed with IP65 and IP67 ratings, it is dust tight and water resistant. Silver alloy contacts provide excellent conductivity and durability.

Quick connect terminals facilitate easy panel installation and wiring. Suitable for indoor and outdoor use, including public and industrial environments. Operates reliably between temperatures of -20°C to 55°C. Compact 12 mm diameter panel cutout fits standard control panels.

Rated for 36 V dc and 15 mA contact current for low voltage applications.

This RS PRO Push Button Switch is an essential component for industrial automation, electrical control panels, transportation systems, and security installations. For additional products in the same range, explore related RS PRO electrical and switch equipment listings on EnvMart.
