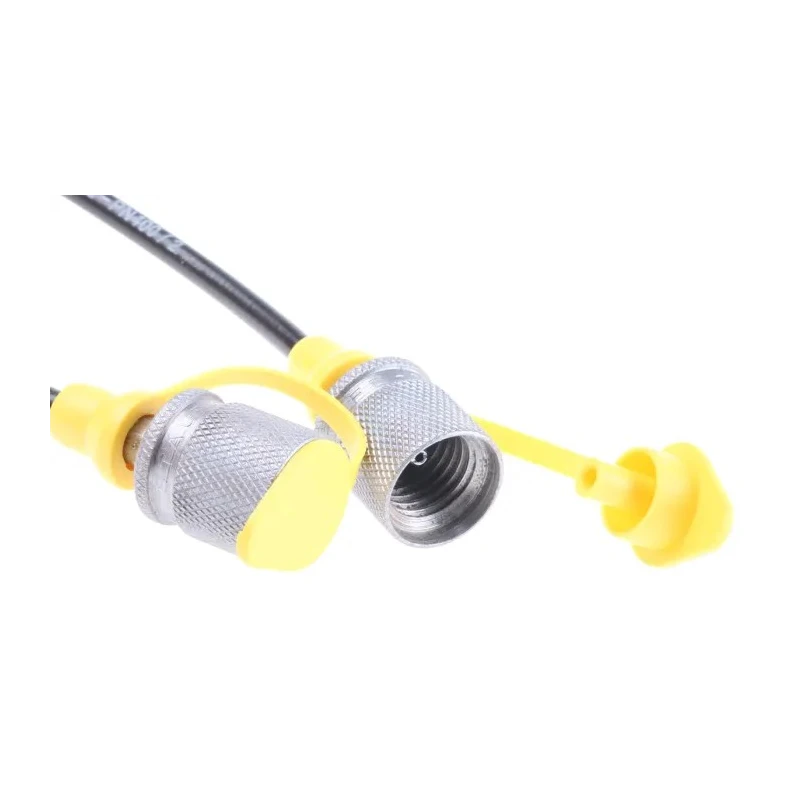

Stauff Hydraulic Test Point Hose 1m Length, Threaded Male M16 x 1/4 to M16, 400 bar Max Operating Pressure SMS 20 1000A

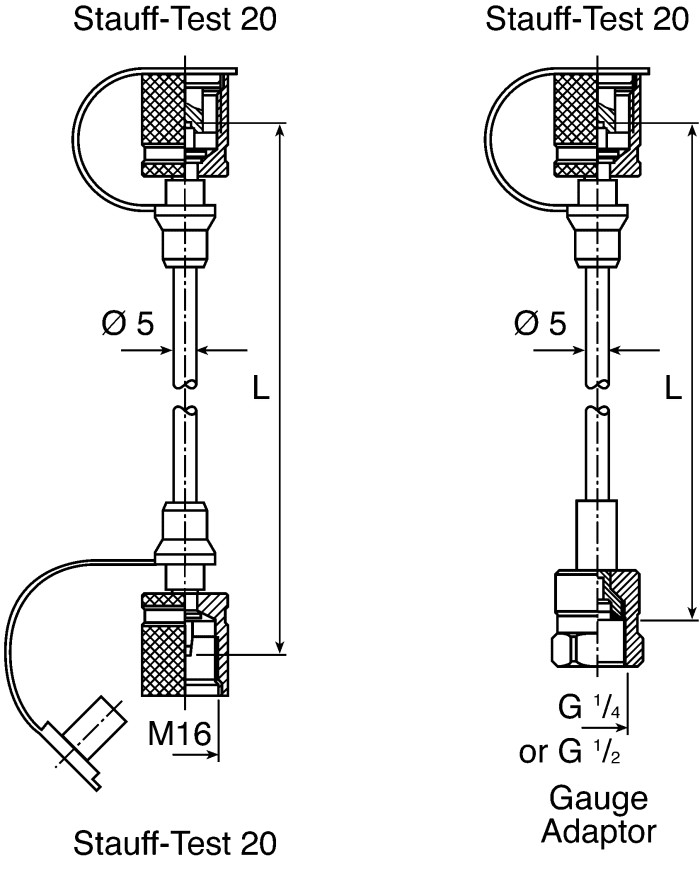

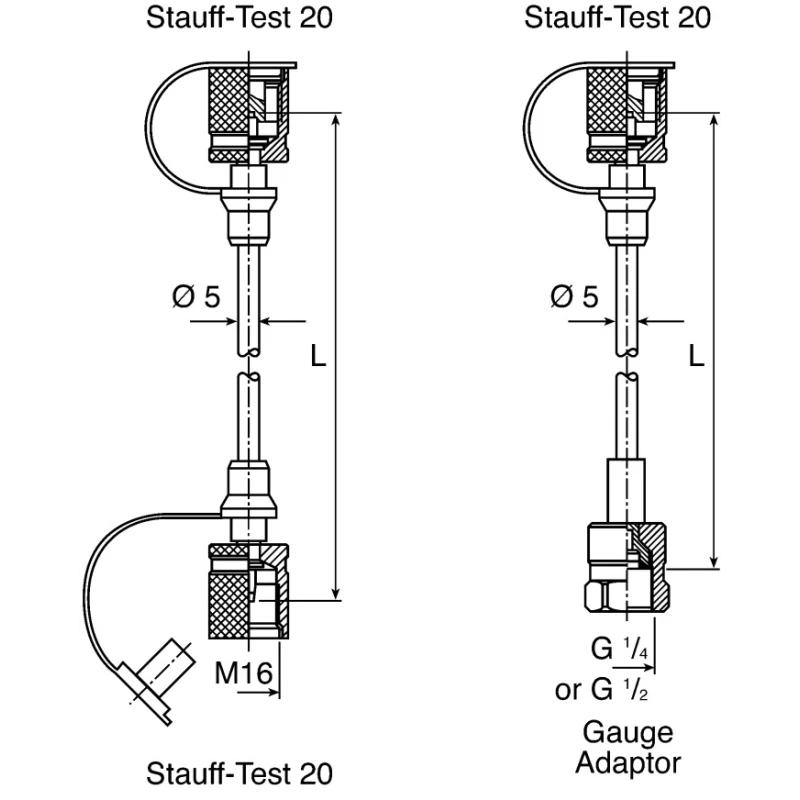

Stauff SMS 20 1000A Hydraulic Test Point Hose is a high-quality hose designed for use in hydraulic instrumentation and systems requiring precise remote monitoring and testing. The hose measures 1 meter in length and features threaded male connections at both ends - M16 x 1/4 at connection A and M16 at connection B, adhering to metric connection standards.

The hose is covered with galvanised steel wire for robust external protection and reinforced internally with synthetic fibre to ensure durability and flexibility. Its hose outside diameter is 5 mm, and it offers a minimum bend radius of 20 mm, providing ease of installation in constrained spaces.

It is rated for a maximum operating pressure of 400 bar and has a burst pressure of 1100 bar, making it suitable for high-pressure hydraulic testing environments. The hose maintains a pressure/temperature factor of 122% at 0°C, scaling down to 77% at 100°C, and can operate safely within a temperature range of -35°C to 100°C.

For accurate pressure measurement with liquid media, the hose requires bleeding before connecting to avoid measurement errors. It is important to protect the hose from fire exposure, contact with sharp corners, and hot surfaces to maintain operational integrity and safety.

This product is manufactured in Germany and forms part of the Stauff SMS series, recognized for quality and reliability in hydraulic and pneumatic tools applications. Constructed with galvanised steel wire cover for durability and protection.

Threaded male connections: M16 x 1/4 to M16, metric standard. Hose outside diameter of 5 mm with a minimum bend radius of 20 mm. Maximum operating pressure of 400 bar with 1100 bar burst pressure. Reinforced with synthetic fibre for strength and flexibility.

Operates efficiently between -35°C and 100°C. Suitable for liquid pressure media measurement; requires bleeding before use. Protect from fire, sharp corners, and hot objects to ensure safety. Made in Germany, ensuring high manufacturing standards.

Ideal for industrial hydraulic, laboratory, construction, and manufacturing applications requiring reliable Hydraulic Test Point Hose solutions. Explore more hydraulic tools and instrumentation in the Hydraulics category at EnvMart for optimized solutions.
