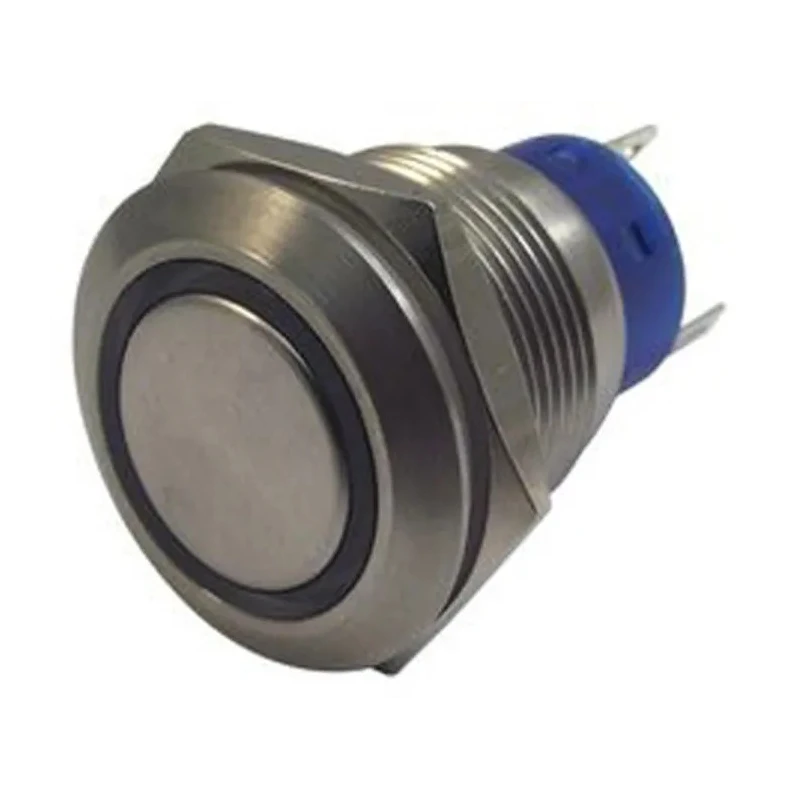

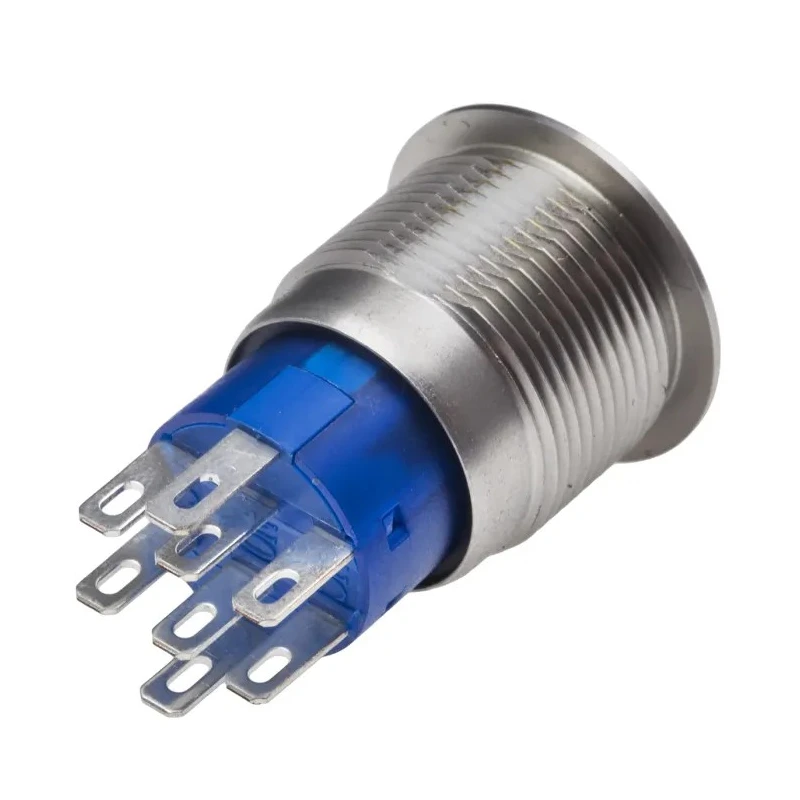

RS PRO Illuminated Momentary Push Button Switch, Panel Mount, 19.2 mm Cutout, DPDT, Red LED, IP67, 250 V AC 111-5814
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 111-5814 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Switch Configuration | 2 NO/2 NC |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 19.2 mm |
| Terminal type | Solder Pin |
| Standards/Approvals | cULus Recognized E 187490, ENEC 18, IK10 |
| LED Colour | Red |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 250V |
| Actuator Style | Round |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
Key Features
- Features a 19.2 mm panel cutout size optimized for compact installations.
- Silver actuator with round style provides ergonomic operation.
- IP67 rated for dust-tight and water resistance ensuring reliability in harsh environments.
- Supports contact AC and DC voltages up to 250 V for versatile electrical applications.
- Switch contact current rated at 5A suitable for industrial control gear and communications equipment.
- Includes solder pin terminals for secure electrical connections.
- Operates within a temperature range from -20°C to 55°C for diverse conditions.
- Complies with cULus Recognized, ENEC 18, and IK10 standards for safety and durability.
Product Description
RS PRO 111-5814 Is an Illuminated Momentary Push Button Switch designed for panel mounting with a 19.2 mm cutout. It features a durable stainless steel construction with corrosion resistance and a silver round actuator style. This switch has a DPDT (Double Pole Double Throw) contact configuration and red LED illumination for clear indication.
The switch operates reliably in harsh industrial and medical environments thanks to its IP67 rating, which guarantees dust-tight and water-resistant performance. It supports contact voltages up to 250 V AC and DC, and a contact current capacity of 5A, making it suitable for various electrical control systems and communications equipment.
The solder pin terminals provide robust and secure electrical connections. Operating temperatures between -20°C and 55°C allow this switch to function under diverse environmental conditions. It carries recognized certifications such as cULus, ENEC 18, and IK10, ensuring compliance with rigorous standards for safety and durability.
This push button switch is ideal for industrial control gear, medical equipment, and premium hobbyist switching uses where reliable actuation and clear illumination are essential. Its short design supports installation in space-restricted panel cutouts.
Features a 19.2 mm panel cutout size optimized for compact installations. Silver actuator with round style provides ergonomic operation. IP67 rated for dust-tight and water resistance ensuring reliability in harsh environments.
Supports contact AC and DC voltages up to 250 V for versatile electrical applications. Switch contact current rated at 5A suitable for industrial control gear and communications equipment. Includes solder pin terminals for secure electrical connections.
Operates within a temperature range from -20°C to 55°C for diverse conditions. Complies with cULus Recognized, ENEC 18, and IK10 standards for safety and durability. Ideal for medical, industrial, and premium hobbyist switching applications.
Explore EnvMart's comprehensive range of Push Button Switches and components for your industrial, electrical, and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The push button switch requires a panel cutout size of 19.2 mm, making it suitable for compact installations.
This model features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile switching applications.
The maximum operating temperature for this switch is 55°C, enabling it to function in a variety of environments.
It has an IP67 rating, indicating that it is dust-tight and water-resistant, suitable for harsh environments.
The switch includes solder pin terminals, providing secure electrical connections for reliable operation.
The switch contact current is rated at 5A, making it suitable for industrial control gear and communications equipment.
It supports contact voltages up to 250 V AC and DC, allowing for versatile electrical applications.
The actuator style is round and the color is silver, designed for ergonomic operation.
The minimum operating temperature for this switch is -20°C, allowing it to operate in colder environments.
It complies with cULus Recognized, ENEC 18, and IK10 standards, ensuring safety and durability in its applications.
This switch is ideal for industrial control gear, medical equipment, and premium hobbyist switching uses.
The switch features a red LED illumination, providing clear indication when the switch is activated.
