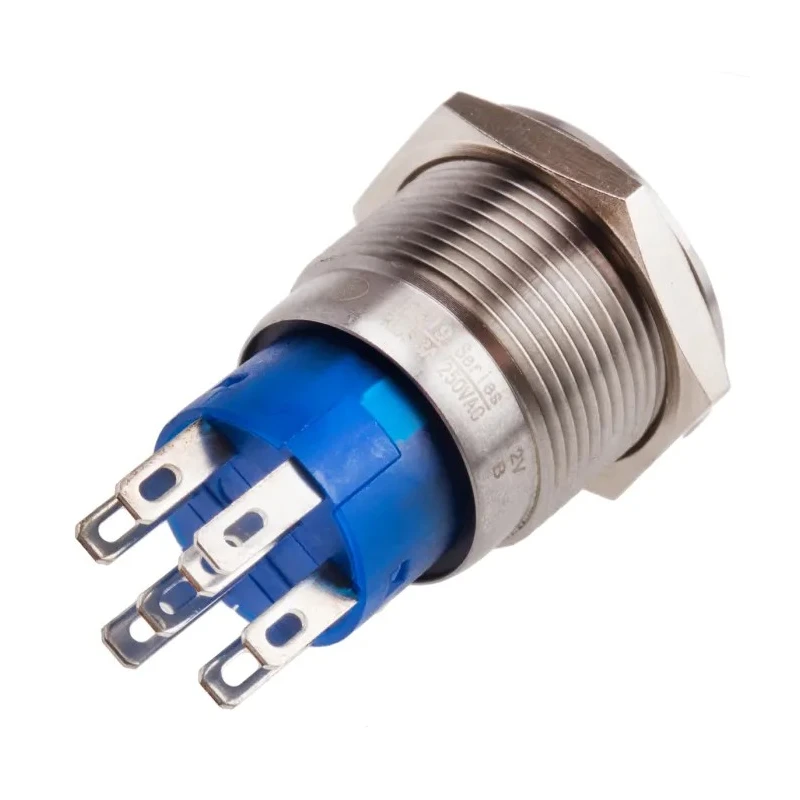

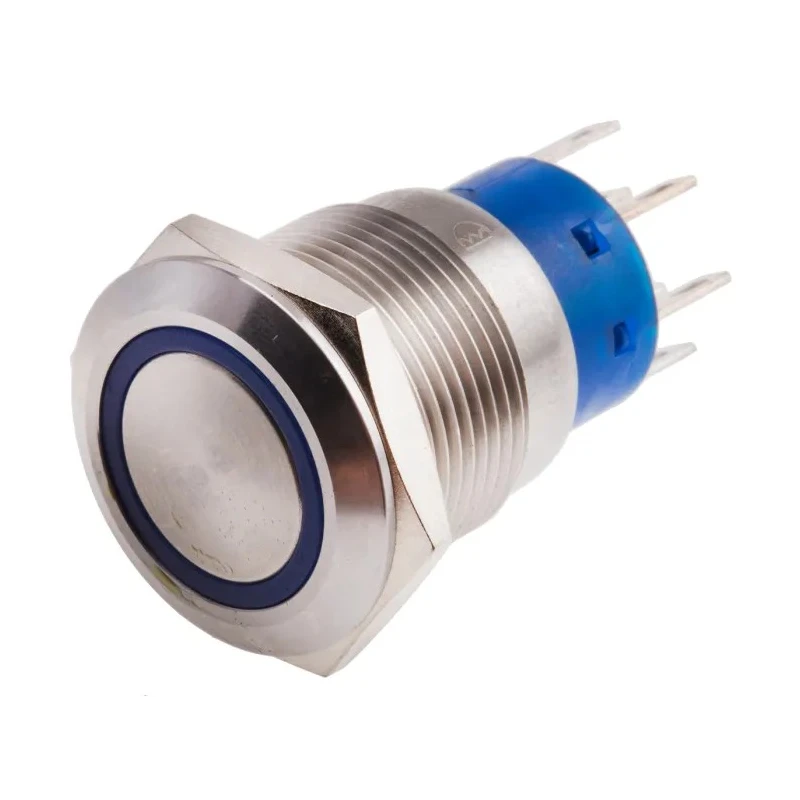

RS PRO Illuminated Latching Push Button Switch, Panel Mount, 19.2 mm Cutout, DPDT, Blue LED, IP67, 250 V AC 5A 111-5785
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 111-5785 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Switch Configuration | 2 NO/2 NC |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 19.2 mm |
| Terminal type | Solder Pin |
| Standards/Approvals | cULus Recognized E 187490, ENEC 18, IK10 |
| LED Colour | Blue |
| Switch Operation | Latching |
| Actuator Colour | Silver |
| Contact DC Voltage | 250V |
| Actuator Style | Round |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch features a DPDT contact configuration supporting 250 V AC voltage.
- It operates with a latching mechanism and has a round silver actuator style.
- Rated IP67 for water and dust resistance, suitable for harsh industrial environments.
- Includes solder pin terminals for reliable electrical connections.
- Rated for 5 A contact current with a temperature range from -20°C to 55°C.
- Silver plated copper contacts ensure firm and stable connections.
- Suitable for medical equipment, industrial control gear, and communications equipment.
- Compact design ideal for space-restricted applications.
Product Description
RS PRO 111-5785 Illuminated Latching Push Button Switch offers high performance and durability with a panel mount design requiring a 19.2 mm cutout. It features a double pole double throw (DPDT) contact configuration with a blue LED for illumination and a latching switch operation.
The switch actuator is round and silver colored, providing ease of use and clear visibility. It is designed to withstand environmental challenges with an IP67 ingress protection rating, guaranteeing protection against dust and water ingress.
This push button switch operates reliably at voltages up to 250 V AC and supports a contact current rating of 5 A. It functions efficiently in temperatures ranging from -20°C to 55°C and includes solder pin terminals for secure electrical connections.
Silver plated copper contacts enhance connection reliability and durability. The compact and short design suits installation in space-restricted applications where conventional larger switches may not fit.
Typical applications include medical equipment, industrial control gear, communications devices, and premium hobbyist switching. The product complies with cULus Recognized E 187490, ENEC 18, and IK10 standards, ensuring safety and quality.
The switch is illuminated with a blue LED to enhance operator feedback. Panel mount type with a 19.2 mm cutout size for easy integration. Latching switch operation for maintaining on/off states without continuous pressure.
High IP67 rating for reliable operation in harsh environments. Silver actuator color and round style for ergonomic design. Suitable for various industrial, communication, and medical equipment uses.
RS PRO products offer dependable quality suitable for industrial, laboratory, manufacturing, and commercial applications. Browse EnvMart's selection of Push Button Switches for compatible automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a double pole double throw (DPDT) contact configuration, allowing for versatile switching capabilities.
The maximum operating temperature for this push button switch is 55°C, making it suitable for a range of industrial applications.
It has an IP67 ingress protection rating, ensuring it is resistant to dust and water ingress, suitable for harsh environments.
This model requires a panel cutout size of 19.2 mm for proper installation.
The switch is rated for a contact current of 5 A, allowing it to handle various electrical loads.
It includes solder pin terminals, which provide reliable electrical connections for installation.
The switch features a blue LED for illumination, enhancing visibility and operator feedback during use.
The minimum operating temperature for this switch is -20°C, allowing it to function in colder environments.
This model complies with cULus Recognized E 187490, ENEC 18, and IK10 standards, ensuring safety and quality.
The actuator style is round and silver colored, designed for ease of use and clear visibility.
It is suitable for various applications including medical equipment, industrial control gear, and communications devices.
This switch operates with a latching mechanism, allowing it to maintain on/off states without continuous pressure.
