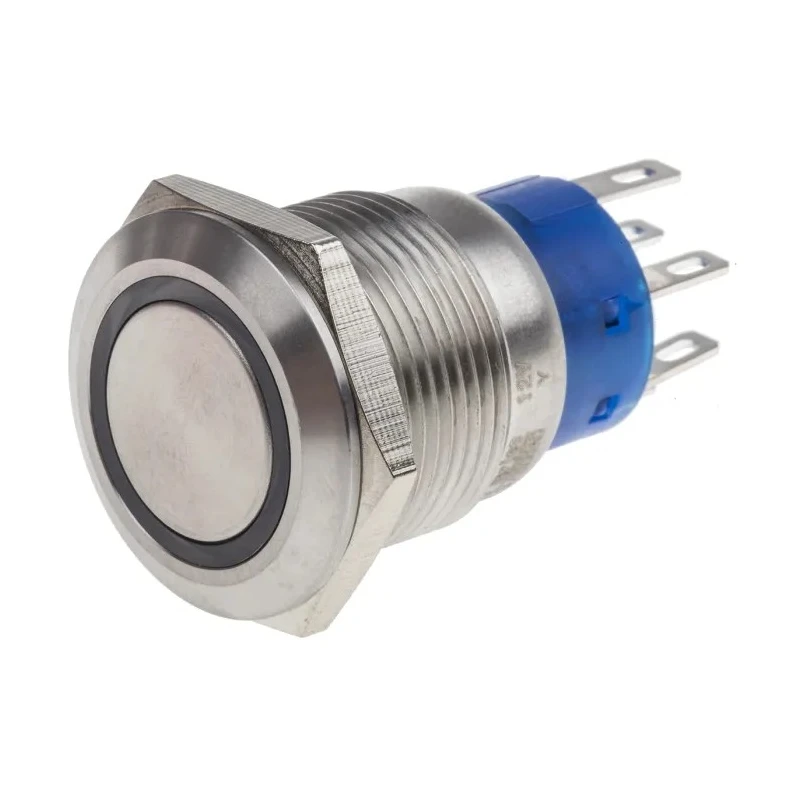

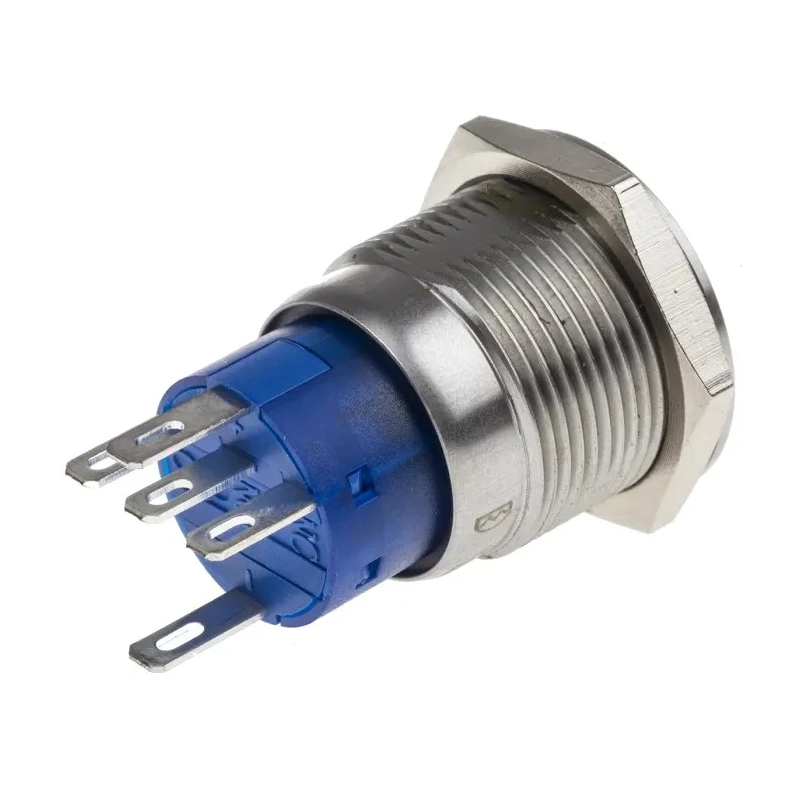

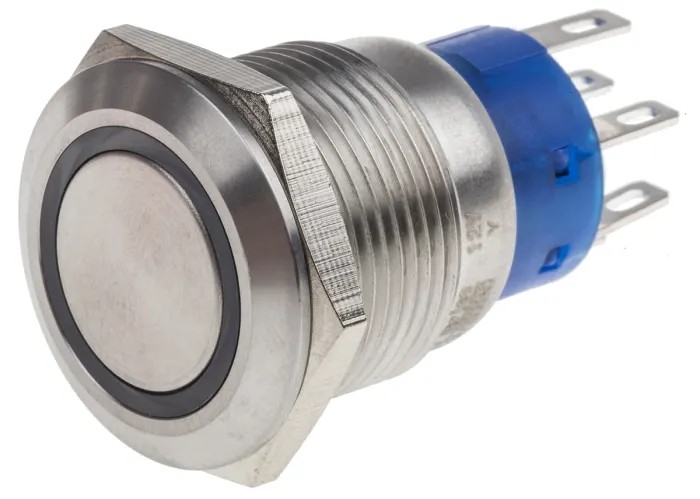

RS PRO Illuminated Momentary Push Button Switch Panel Mount 19.2 mm Cutout SPDT White LED IP67 250V 5A 111-5791
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 111-5791 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Switch Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 19.2 mm |
| Terminal type | Solder Pin |
| Standards/Approvals | cULus Recognized E 187490, ENEC 18, IK10 |
| LED Colour | White |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 250V |
| Actuator Style | Round |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
Key Features
- Stainless steel round actuator with silver color provides durability and sleek appearance.
- Momentary switch operation ensures temporary contact while pressed.
- White LED illumination enhances visibility for user interface applications.
- IP67 rated for high protection against dust and water ingress.
- Silver plated copper contacts for reliable electrical connection.
- Suitable for operating temperatures from -20°C to 55°C.
- Contact ratings support 250V DC and AC voltages with a maximum current of 5A.
- Panel mount type ideal for installation in restricted spaces.
Product Description
RS PRO 111-5791 is an illuminated push button switch designed for momentary operation with a round silver actuator and white LED. It mounts on panels with a 19.2 mm cutout, delivering reliable SPDT switching and is suitable for control panels that require visual feedback through illumination.
The switch features an IP67 rating ensuring excellent protection against dust and water, making it well-suited for harsh industrial and medical environments. Its silver plated copper contacts provide stable and long-lasting electrical connections, supporting up to 250 V AC/DC at 5A.
Operating temperatures span from -20°C to 55°C, allowing it to perform reliably in diverse conditions. The switch’s compact and short design facilitates installation even in space-constrained applications.
Meet cULus Recognized, ENEC 18 certified standards with an IK10 rating for robustness against mechanical impacts. This product is widely applied in medical equipment, industrial control gear, and communication equipment where dependable momentary switching and illuminated user interfaces are essential.
Stainless steel actuator offers durability and aesthetic finish. Momentary SPDT switch operation for temporary contact. White LED enhances operational visibility. IP67 protection for dust and water resistance. Silver plated copper contacts ensure firm electrical connections.
Certified and recognized for safety and performance.
This push button switch belongs to the RS PRO range designed for advanced electrical and automation applications. Explore more RS PRO Push Button Switches and components at EnvMart to complete your control panel and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The push button switch has an IP67 rating, providing excellent protection against dust and water ingress.
It supports a maximum current of 5A.
The switch can handle contact voltages of up to 250V for both AC and DC applications.
The operating temperature range is from -20°C to 55°C.
It features a Single Pole Double Throw (SPDT) configuration for its switching operation.
The required panel cutout size for this switch is 19.2 mm.
The actuator is made of stainless steel with a silver color, and the contacts are silver plated copper for reliable electrical connections.
This model uses solder pin terminals for electrical connections.
It is cULus Recognized, ENEC 18 certified, and has an IK10 rating for mechanical impact resistance.
The actuator has a round style, which contributes to its sleek appearance.
Yes, its IP67 rating and robust construction make it suitable for harsh industrial and medical environments.
It provides momentary operation, ensuring temporary contact while pressed.
