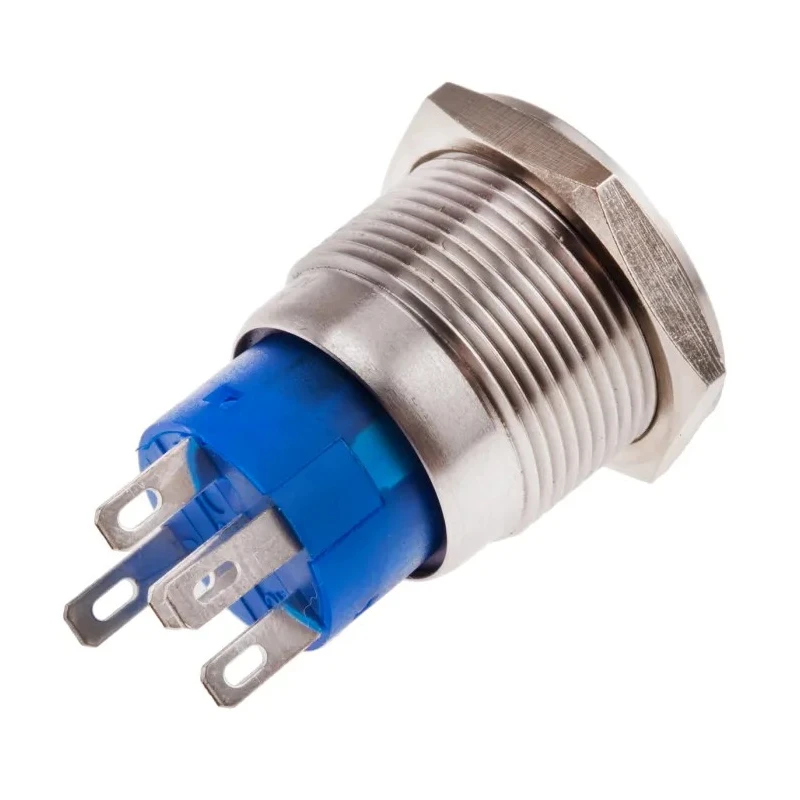

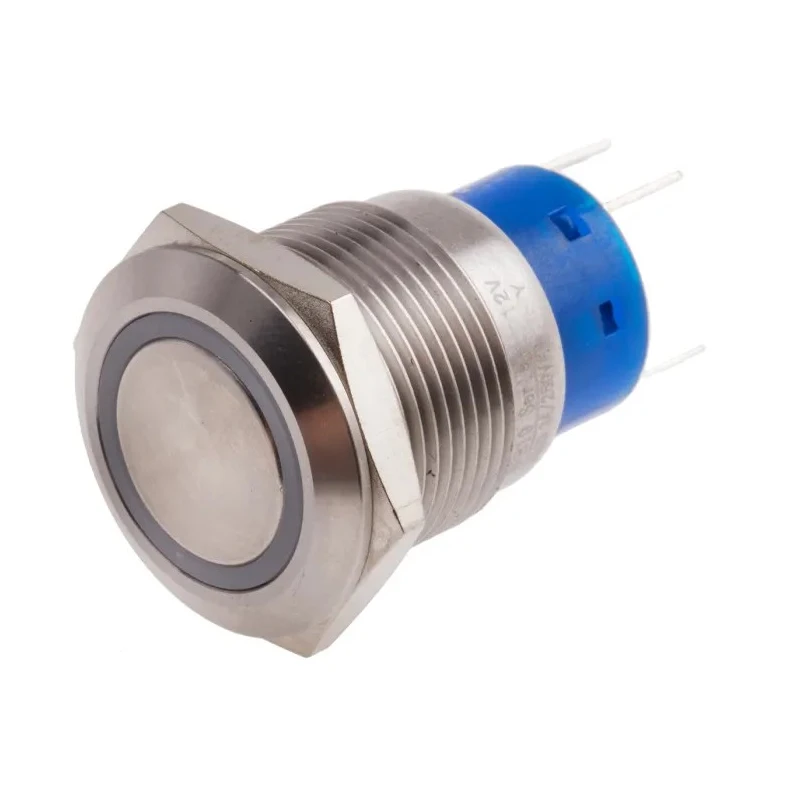

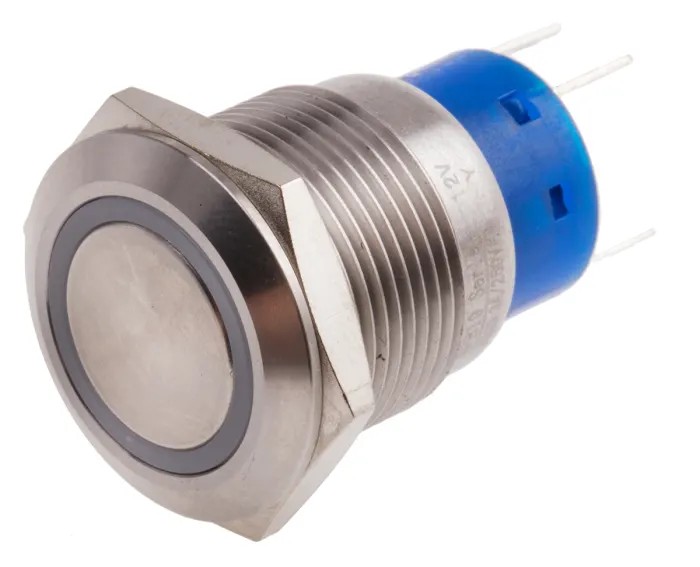

RS PRO Illuminated Momentary Push Button Switch, Panel Mount, 19.2 mm Cutout, SPDT, Yellow LED, IP67, 250 V AC 5A 111-5777
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 111-5777 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Switch Configuration | 1 NO/1 NC |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 19.2 mm |
| Terminal type | Solder Pin |
| Standards/Approvals | cULus Recognized E 187490, ENEC 18, IK10 |
| LED Colour | Yellow |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 250V |
| Actuator Style | Round |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
Key Features
- Features a silver actuator with a yellow LED for clear indication.
- Designed with IP67 rating for protection against dust and water ingress.
- Operates at 250 V AC with a switch contact current of 5A.
- Suitable for industrial, medical, and communication equipment applications.
- Constructed for durability with silver-plated copper contacts for firm connections.
- Operates safely within a temperature range of -20°C to 55°C.
- Compact design allows installation in space-restricted panels.
- IP67 rating ensures performance in harsh environments.
Product Description
RS PRO 111-5777 is an illuminated momentary push button switch designed for panel mounting applications. It features a 19.2 mm panel cutout size and a SPDT (Single Pole Double Throw) contact configuration, which allows for versatile switch operation. The actuator is silver-colored and round styled, equipped with a yellow LED illumination for clear visual status indication.
With an IP67 rating, this switch offers excellent protection against dust and water, making it suitable for installation in industrial machines, medical devices, communication equipment, and other control gear requiring reliable switching components.
The switch operates safely at a maximum contact voltage of 250 V AC and can handle a contact current of 5A. It also has a temperature operating range from -20°C up to 55°C, ensuring dependable performance in a variety of environments. The silver-plated copper contacts provide a firm and reliable connection that enhances durability over repeated operations.
The compact design facilitates installation into panels with limited space, suitable for premium switching needs across industrial automation, laboratory controls, and electrical equipment.
Silver actuator with yellow LED illumination provides clear operational status. Panel mount type with solder pin terminals suitable for secure installation. Momentary operation supports temporary activation for control circuits.
IP67 rated for dust-tight and water immersion protection. Supports 250 V AC operation with 5A contact current capacity. Operating temperature range from -20°C to 55°C allows versatile use. Silver-plated copper contacts ensure high-quality, firm electrical connection.
Compact and short design is ideal for installations with space constraints.
RS PRO products are designed to meet rigorous international standards including cULus Recognition, ENEC 18, and IK10 impact resistance, reinforcing their suitability for challenging industrial and commercial applications.
Explore RS PRO Push Button Switches and other electrical components in the Electronics & Electricals category on EnvMart for quality and reliability in automation and control systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a maximum contact voltage of 250 V AC and can handle a contact current of 5A.
The required panel cutout size for this switch is 19.2 mm.
It has an IP67 rating, providing protection against dust and water immersion.
The operating temperature range for this unit is from -20°C to 55°C.
This switch features a Single Pole Double Throw (SPDT) contact configuration.
It uses solder pin terminals for secure installation.
The actuator is equipped with a yellow LED for clear visual status indication.
The actuator is silver in color and has a round style.
It is cULus Recognized, complies with ENEC 18, and has IK10 impact resistance.
It is suitable for industrial, medical, and communication equipment applications.
This switch operates on a momentary basis, supporting temporary activation for control circuits.
The switch features silver-plated copper contacts, ensuring firm and reliable connections.
