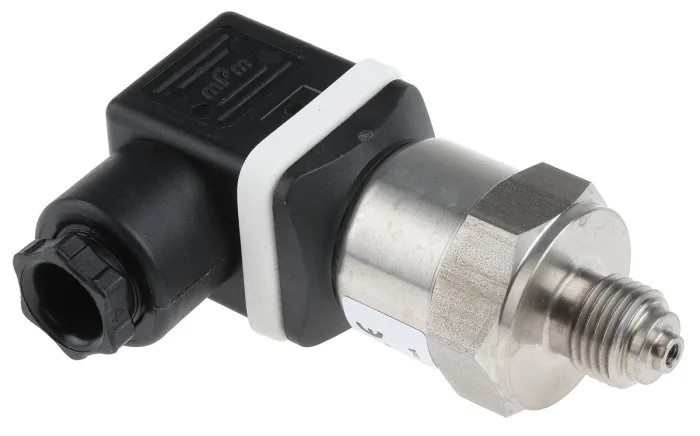

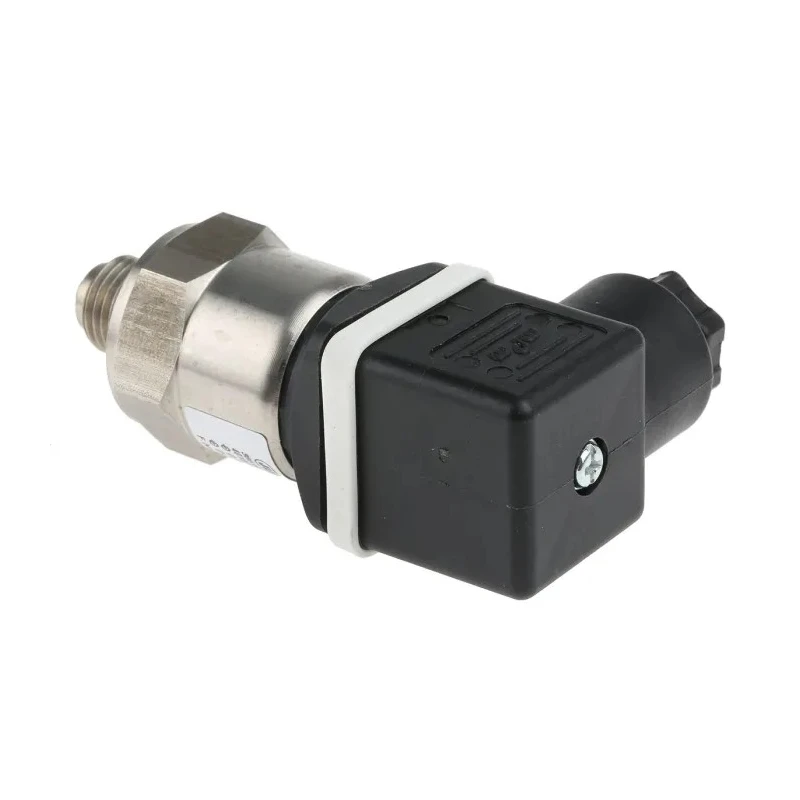

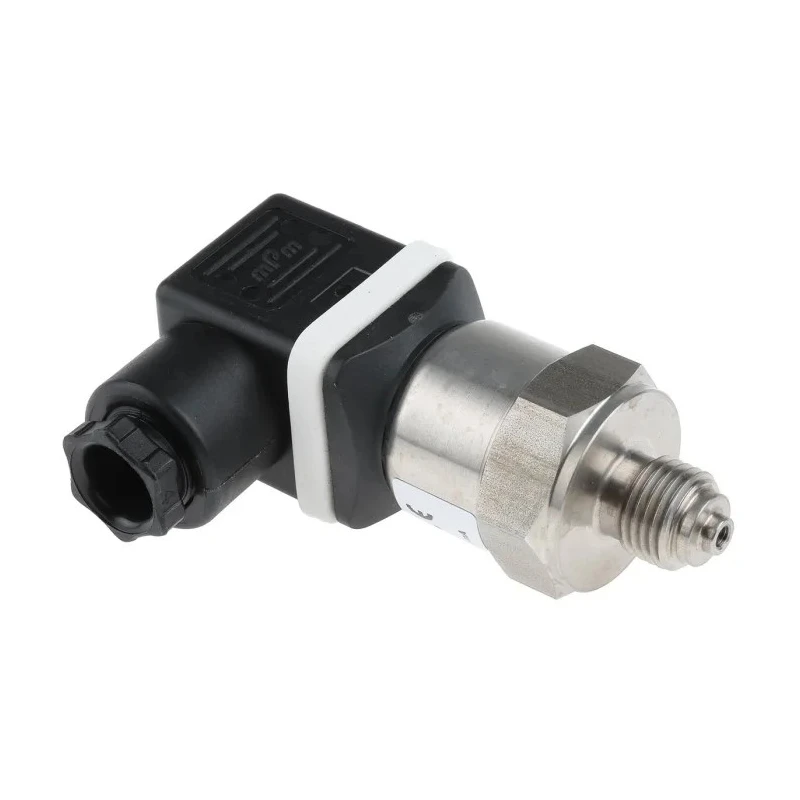

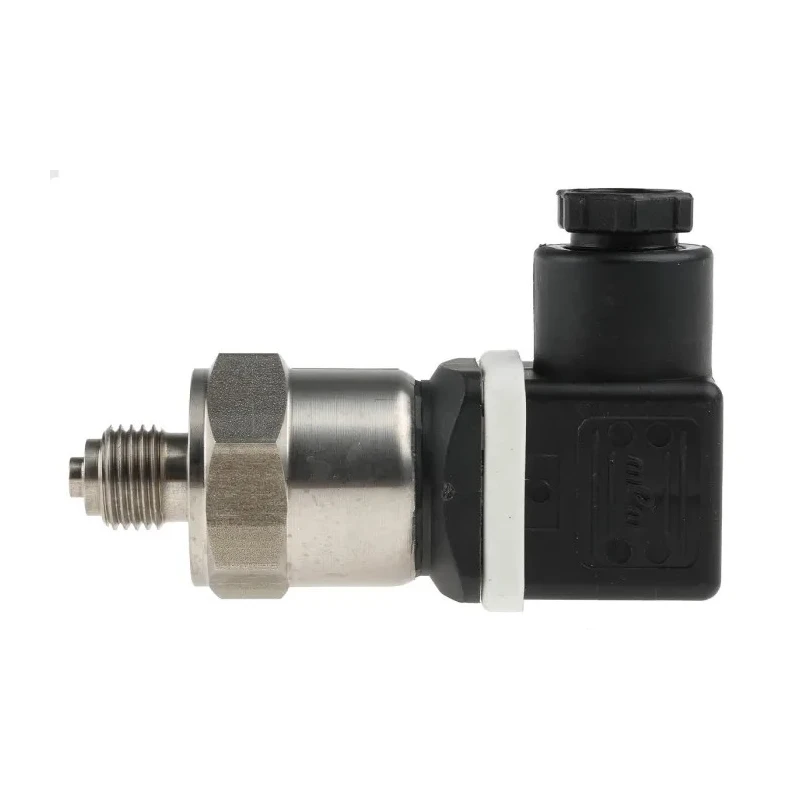

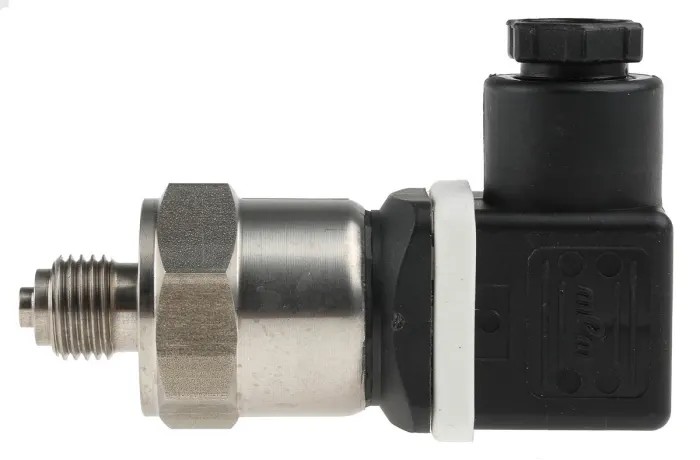

Jumo Pressure Sensor 0 bar to 16 bar Relative Reading Stainless Steel Housing IP65 IP67 401001/000-460-405-502-20-601-61/000

Jumo 401001/000-460-405-502-20-601-61/000 pressure sensor is designed for measuring relative pressures in gaseous and liquid media with a measurement range from 0 bar minimum up to a maximum of 16 bar. Ideal for industrial and automation applications requiring precise and reliable pressure readings.

This sensor features a robust construction with an AISI 303 stainless steel housing, making it resistant to corrosion and suitable for demanding environments. The part exposed to the medium is also made from AISI 303 stainless steel, ensuring excellent durability and longevity.

The sensor outputs a linear 4 to 20 mA signal, facilitating straightforward integration into control systems. The device supports a 2-wire output via cable gland and screw terminal or alternatively via an M12 connector for enhanced connectivity options.

Its ingress protection ratings of IP65 and IP67 provide substantial resistance against solids and liquids, allowing the sensor to perform effectively in harsh industrial conditions. The operating temperature range of -20°C to 125°C enables use across a wide array of applications including hydraulic, pneumatic, and process control systems.

Engineered to standards DIN EN 60529, this pressure sensor meets rigorous quality and safety criteria. It boasts a fast response time of 3 ms, making it suitable for dynamic pressure monitoring tasks where timely data acquisition is critical.

Measures relative pressure from 0 to 16 bar with 0.5% accuracy. Stainless steel AISI 303 housing ensures corrosion resistance. Output signal: 4 to 20 mA for compatibility with control systems. Rated IP65, IP67 ingress protection for harsh environments.

Operating temperature range: -20°C to 125°C for versatile usage. Supports 2-wire output via cable gland or M12 connector. Compliant with DIN EN 60529 standards. Fast 3 ms response time for dynamic pressure sensing. Manufactured in Germany with high-quality standards.

This pressure sensor is ideal for industrial automation, HVAC systems, laboratory instrumentation, water treatment, and manufacturing plants where accurate pressure monitoring is crucial. The sturdy construction and certification compliance ensure reliable long-term operation under tough conditions.

Choose the Jumo 401001/000-460-405-502-20-601-61/000 Pressure Sensor for precise, durable, and industry-approved pressure measurement solutions.
