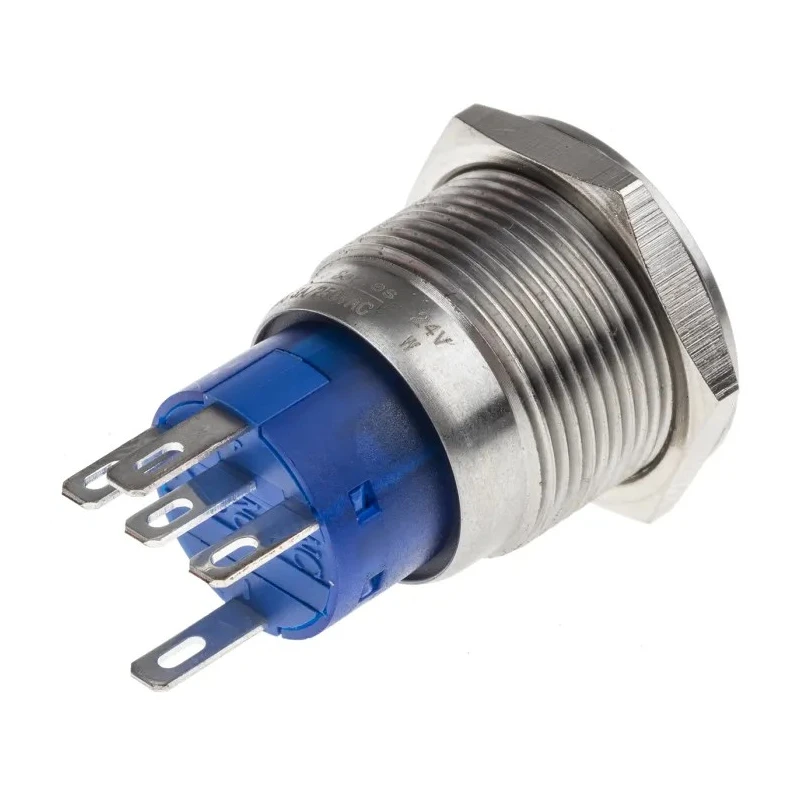

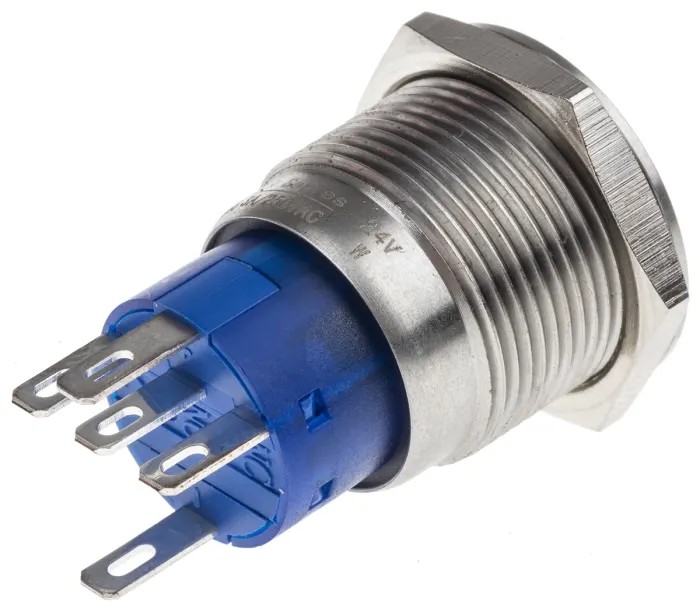

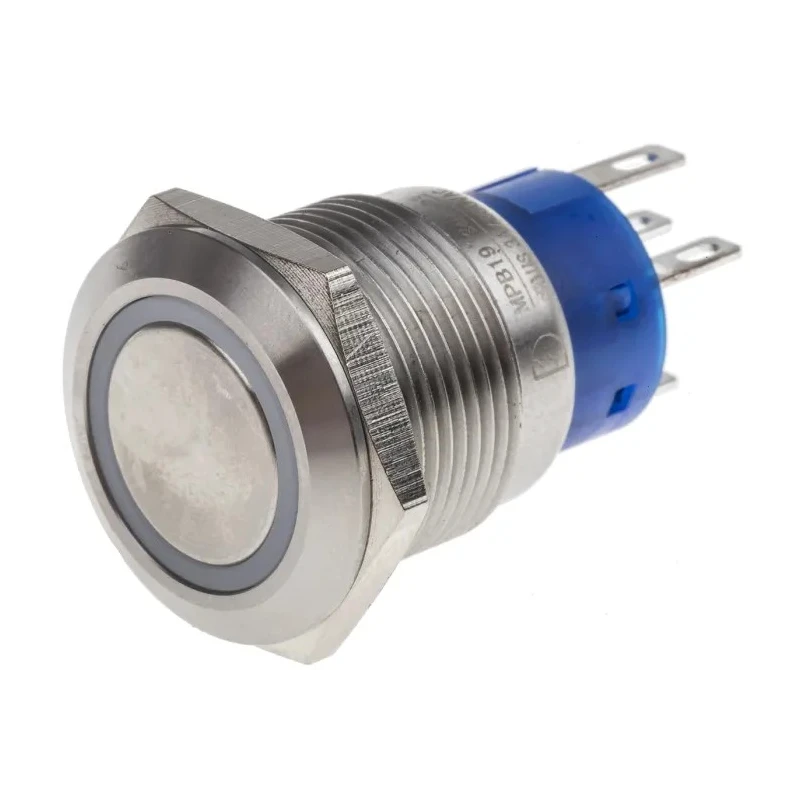

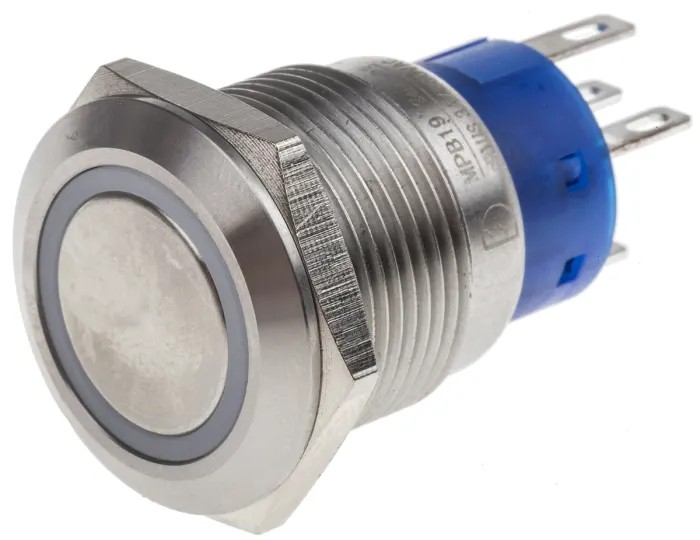

RS PRO Illuminated Latching Push Button Switch, Panel Mount, 19.2 mm Cutout, SPDT, White LED, IP67, 250 V AC, 5A 111-3779
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 111-3779 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Switch Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 19.2 mm |
| Terminal type | Solder Pin |
| Standards/Approvals | cULus Recognized E 187490, IK10 |
| LED Colour | White |
| Switch Operation | Latching |
| Actuator Colour | Silver |
| Contact DC Voltage | 250V |
| Actuator Style | Round |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch features a silver actuator color with a round style for ergonomic operation.
- It includes a white LED illumination for clear status indication.
- Rated IP67, providing robust protection against dust and water ingress.
- Suitable for operation within temperature ranges from -20°C to 55°C.
- Designed for contact voltages of 250 V DC and 250 V AC with a 5A contact current rating.
- Terminal type is solder pin for reliable electrical connections.
- Certified with cULus Recognized E 187490 and IK10 standards.
- Compact size allows installation in space-restricted environments.
Product Description
RS PRO 111-3779 is a high-quality illuminated latching push button switch engineered for panel mounting with a precise 19.2 mm cutout, featuring an SPDT contact configuration and white LED illumination. This switch is designed with a robust silver actuator in a round shape, ensuring ease of use in demanding industrial settings.
The product boasts an IP67 rating, ensuring complete protection against dust and immersion in water up to a specified depth, making it reliable for harsh environments. Its operating temperature range from -20°C to 55°C suits a variety of applications where thermal stability is critical.
The switch is rated for contact voltages of 250 V DC and 250 V AC and supports a maximum contact current of 5A. The solder pin terminal type guarantees secure and durable electrical connections, suitable for rigorous use.
Certified to cULus Recognized E 187490 and IK10 standards, this push button switch meets stringent quality and safety requirements. Its compact design enables installation even in space-limited panels, making it versatile for multiple industrial, medical, and communication applications.
Common use cases include industrial control gear, medical devices, communications equipment, and premium hobbyist switching where reliable, illuminated push button controls are necessary.
The switch features a silver actuator color with a round style for ergonomic operation. It includes a white LED illumination for clear status indication. Rated IP67, providing robust protection against dust and water ingress.
Suitable for operation within temperature ranges from -20°C to 55°C. Designed for contact voltages of 250 V DC and 250 V AC with a 5A contact current rating. Terminal type is solder pin for reliable electrical connections.
Certified with cULus Recognized E 187490 and IK10 standards. Compact size allows installation in space-restricted environments. Ideal for applications in medical equipment, industrial control gear, and communications equipment.
Discover more high-quality Push Button Switches in the Electronics & Electricals category at EnvMart to suit your technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an SPDT (Single Pole Double Throw) contact configuration, allowing for versatile switching applications.
It supports a maximum contact current rating of 5A, making it suitable for various electrical applications.
This unit is designed for contact voltages of 250 V AC and 250 V DC, ensuring compatibility with standard electrical systems.
The switch has an IP67 rating, providing complete protection against dust and immersion in water, making it suitable for harsh environments.
It operates effectively within a temperature range of -20°C to 55°C, accommodating a variety of environmental conditions.
It features a solder pin terminal type, ensuring reliable and secure electrical connections.
The required panel cutout size for installation is 19.2 mm, allowing for a precise fit in panel applications.
The switch includes white LED illumination, providing clear status indication during operation.
It is certified with cULus Recognized E 187490 and IK10 standards, ensuring compliance with safety and quality requirements.
The actuator style is round, designed for ergonomic operation, enhancing user interaction with the switch.
Common applications include industrial control gear, medical devices, and communications equipment, where reliable illuminated switching is necessary.
This product is manufactured in China, reflecting its global sourcing.
