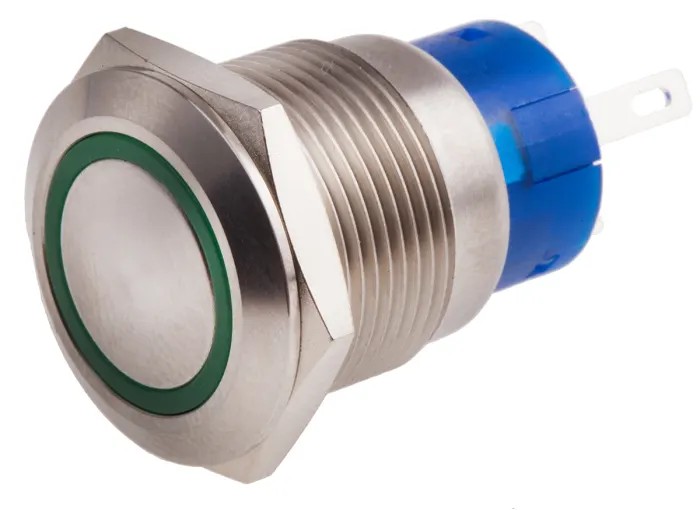

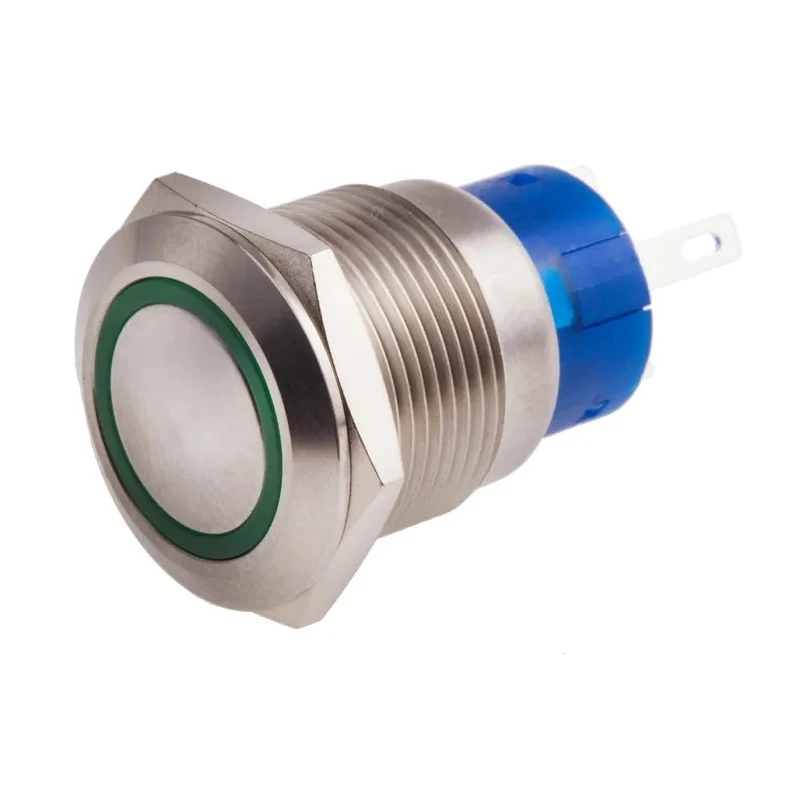

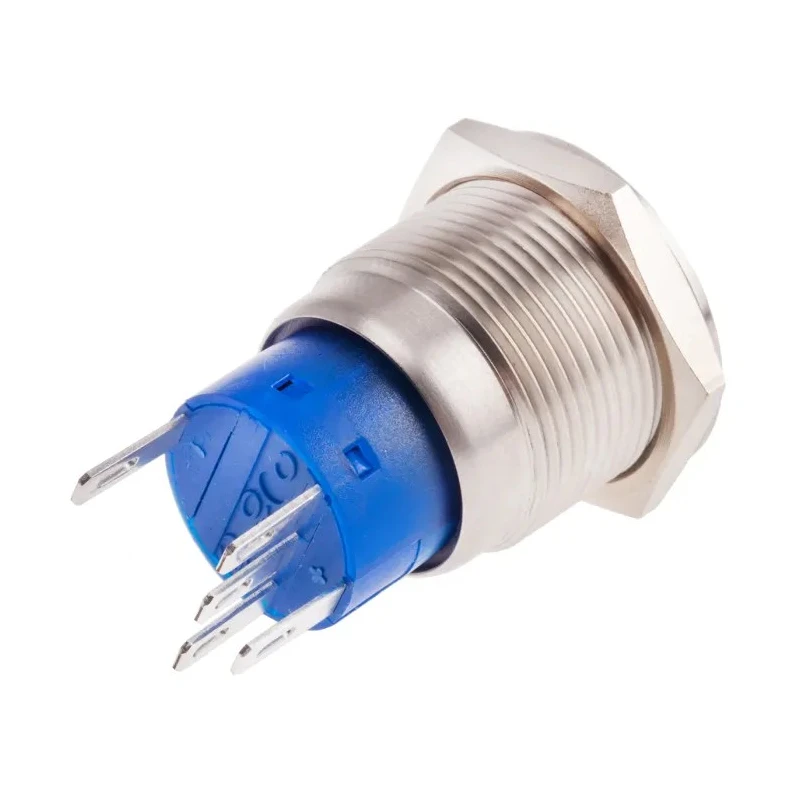

RS PRO Illuminated Momentary Push Button Switch Panel Mount 19.2 mm Cutout SPDT Green LED IP67 250V 5A 111-3773

RS PRO 111-3773 is a high-quality illuminated momentary push button switch designed for panel mounting applications requiring a 19.2 mm cutout. This SPDT (Single Pole Double Throw) switch features a green LED for intuitive visual feedback, enhancing control panel operation.

Its robust construction includes silver plated copper contacts rated for 5 amps and a contact voltage of 250 V AC/DC, ensuring reliable switching in demanding industrial, automation, and medical equipment environments. The round silver actuator provides ergonomic comfort and is designed for momentary operation to maintain safety and efficiency.

The switch boasts an IP67 ingress protection rating, making it suitable for harsh environments by offering full dust-tight sealing and protection against water immersion. With an operating temperature range from -20°C to 55°C, it delivers consistent performance across varied climate conditions.

The compact and short design facilitates installation in space-restricted panels without sacrificing durability or functionality. Solder pin terminals allow for secure mounting and electrical connection stability.

Certified with cULus Recognized and rated IK10 for mechanical impact resistance, this switch ensures both compliance and resilience in industrial automation, communications equipment, and premium hobbyist control setups.

Features a green LED illumination for clear status indication. Designed with a silver round actuator for ergonomic operation. Rated IP67 for dust-tight and waterproof protection in industrial environments. Supports 250 V AC/DC contact voltage and a maximum contact current of 5 amps.

Operates reliably between -20°C and 55°C operating temperatures. Includes silver plated copper contacts ensuring firm and durable electrical connections. Compact design ideal for space-restricted applications. Offers solder pin terminals for secure panel integration.

Complies with cULus Recognized and IK10 mechanical impact standards. Manufactured in China with premium RS PRO quality assurance.

This RS PRO Push Button Switch is suitable for industrial automation, electrical control panels, communications equipment, and medical device applications requiring reliable momentary switching with visual LED indication. Browse more control switches and push button components to find related high-performance products at EnvMart.
