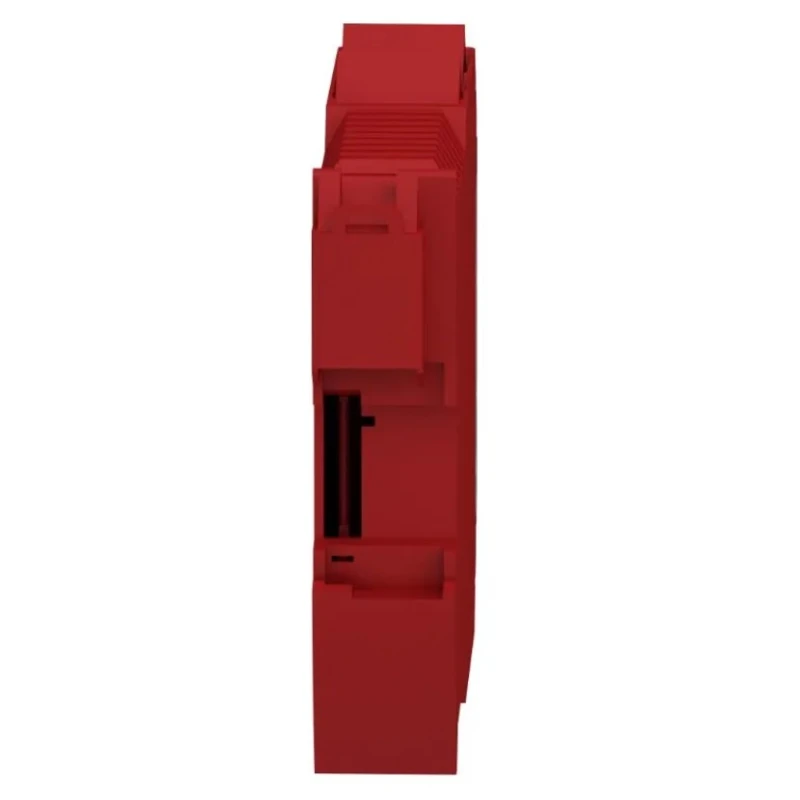

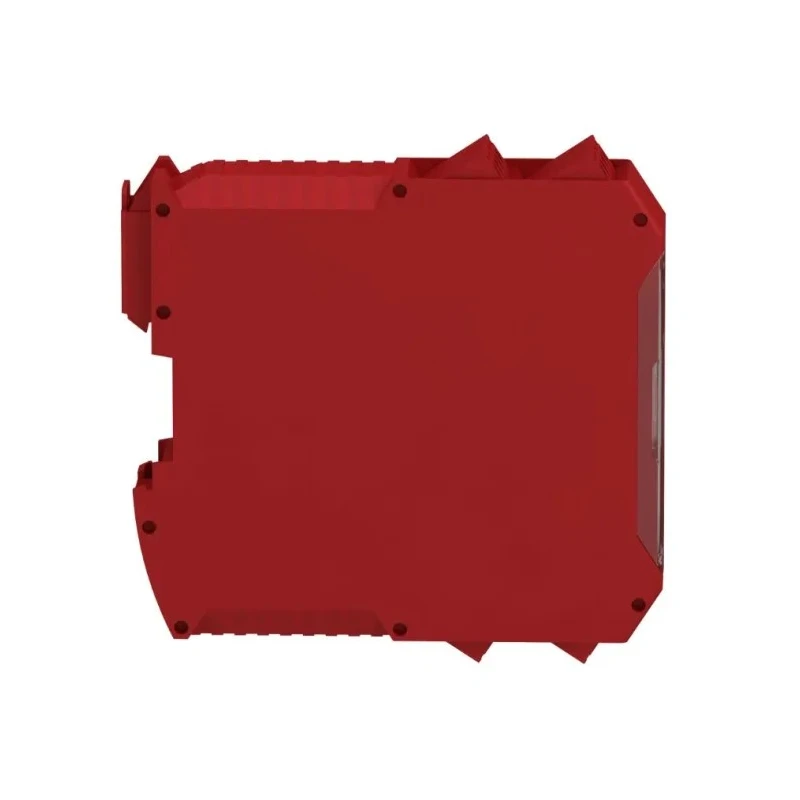

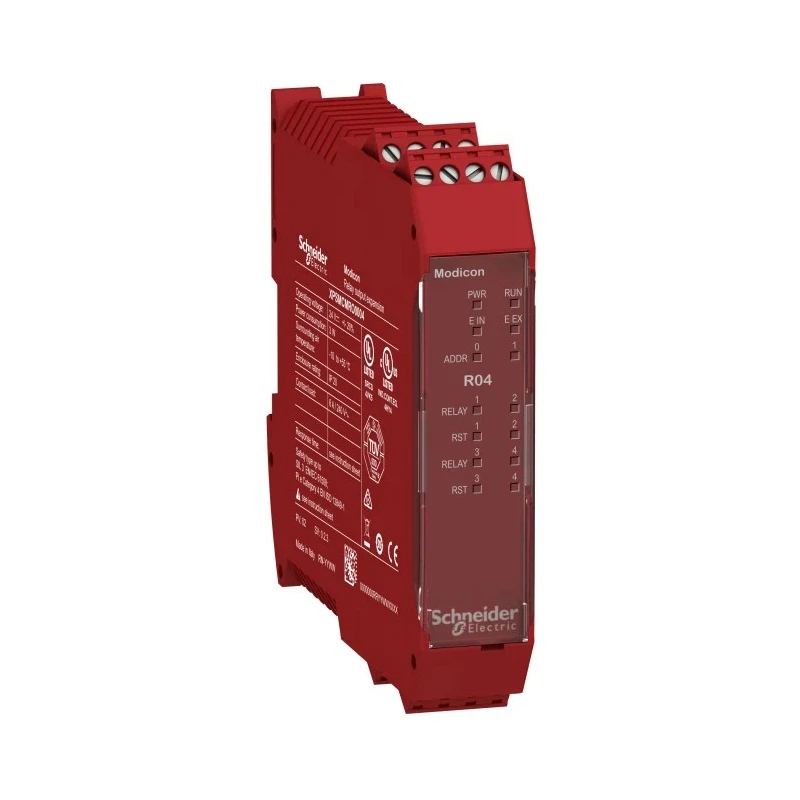

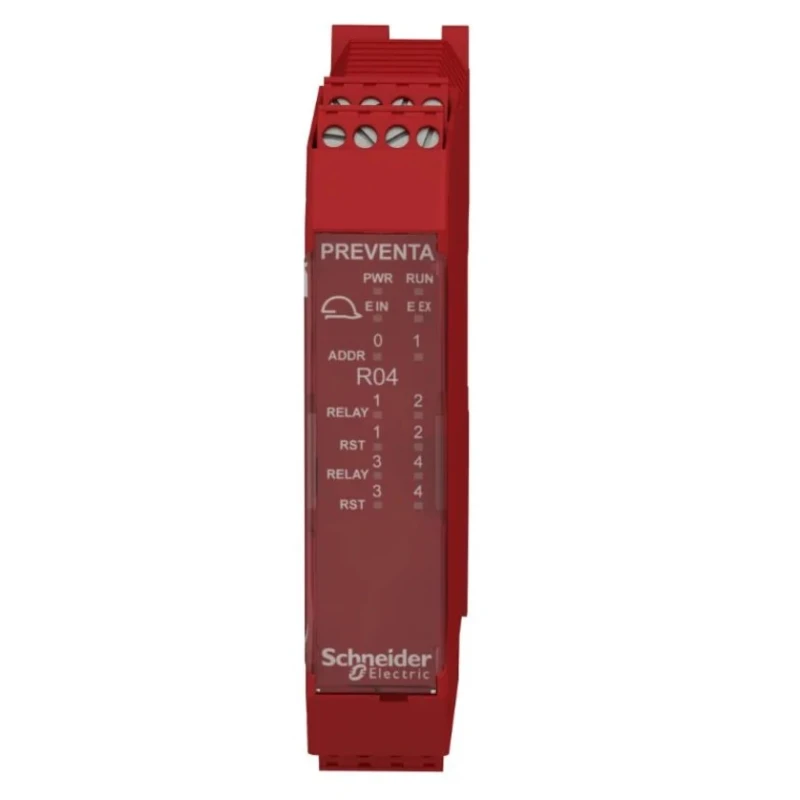

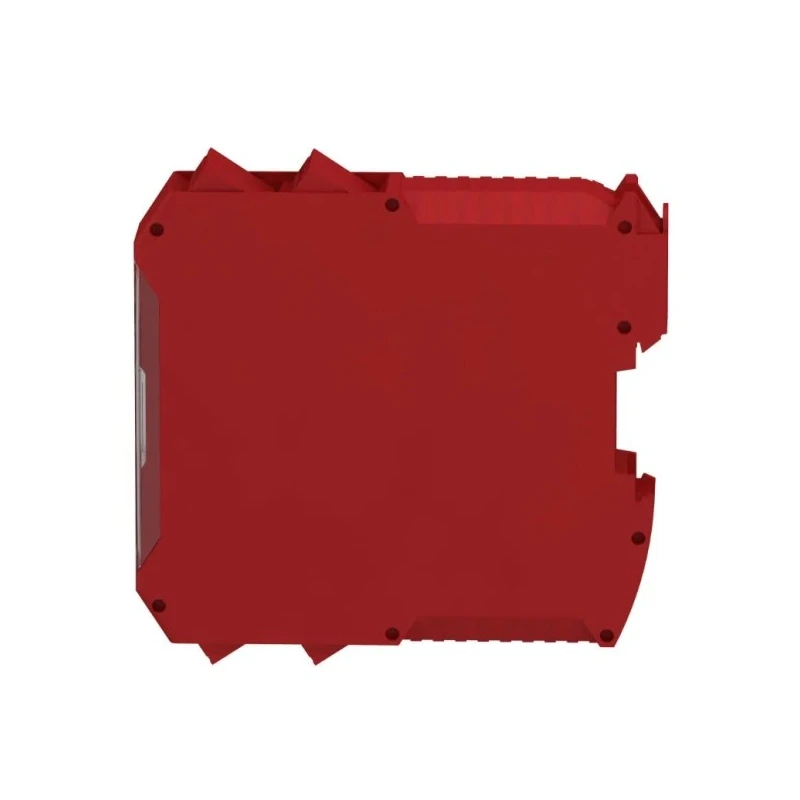

Schneider Electric Preventa Series Output Module, 4 Inputs, 4 Outputs, 24V dc XPSMCMRO0004

Schneider Electric XPSMCMRO0004 Preventa Series Output Module is a compact 4-input, 4-output safety relay module operating at 24V dc, tailored to integrate seamlessly with the Preventa Modular Safety Controller systems in industrial environments.

The module measures 22.5 x 99 x 114.5 mm, suitable for DIN Rail mounting, facilitating easy installation in control panels. It employs screw-type removable terminals that allow secure and flexible wiring connections to machine buses and power supplies.

This output module includes four independent safe relay outputs designed with forcibly guided contacts (2 NO + 1 NC) and corresponding inputs for external device monitoring (EDM). The relay can be configured to adhere to Category 1, 2, and 4 safety architectures, connecting via the expansion bus connector to the safety controller CPU.

Engineered to meet stringent industrial safety standards, the XPSMCMRO0004 system is TUV SUD certified compliant with Cat 4, PLe EN/ISO 13849-1, SILCL 3 IEC/EN 61508, and IEC/EN 60261 standards. The product holds cULus approval for North American safety assurance.

The device features a low power consumption rating of 3 watts and is classified as a green premium and RoHS-compliant product, emphasizing energy efficiency and environmental responsibility. The module does not have hazardous area certification but meets rigorous industrial safety demands.

Compatible with Preventa Modular Safety Controller for industrial safety applications. Compact DIN Rail mount design dimensions 22.5 x 99 x 114.5 mm for easy installation. Features screw-type removable terminal blocks for secure connections.

Provides 4 independent safety relay outputs with corresponding external feedback inputs. Compliant with cULus standards ensuring safety and reliability. Operates with low power rating of 3W improving energy efficiency. Certified for use in safety systems with TUV SUD certification for Cat 4, PLe EN/ISO 13849-1.

Green premium product design and RoHS compliant ensuring environmental safety.

This module is ideal for industrial automation, process control, electrical safety systems, manufacturing, and HVAC applications requiring reliable safety output modules. It is designed to enhance machinery safety by providing reliable safe relay outputs integrated with safety controllers.

Explore integrated Safety IO Modules from Schneider Electric, a leader in industrial safety and automation solutions, to ensure compliance and enhance safety in your industrial systems.
