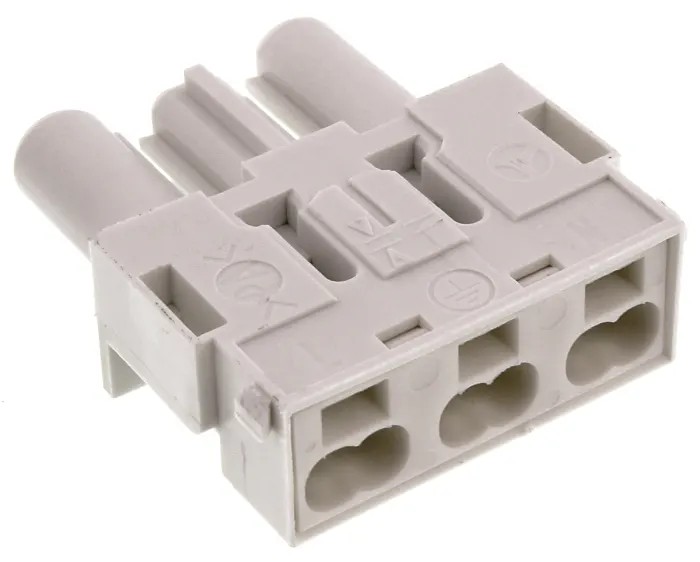

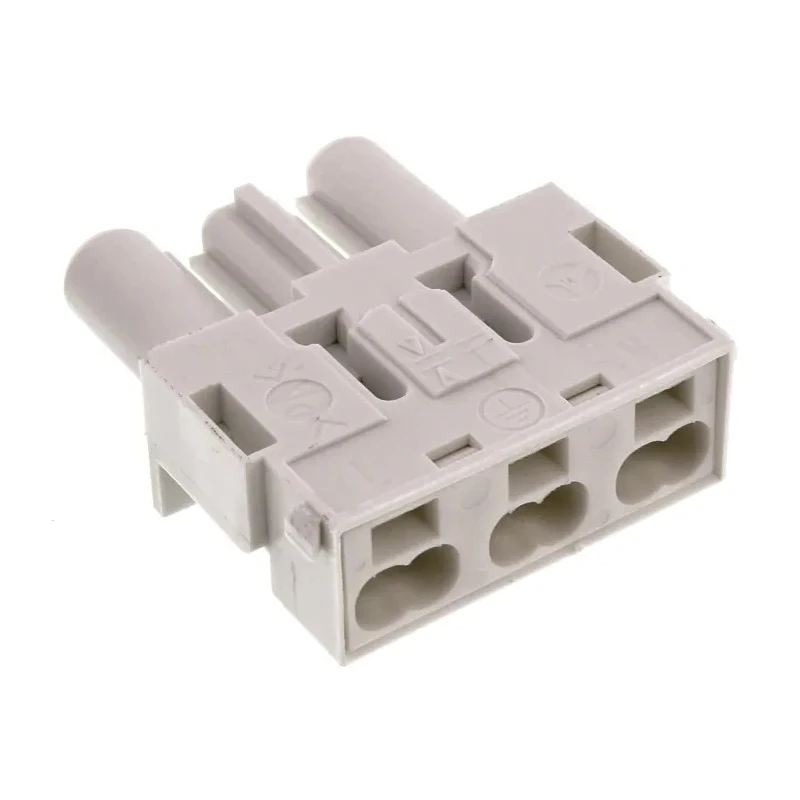

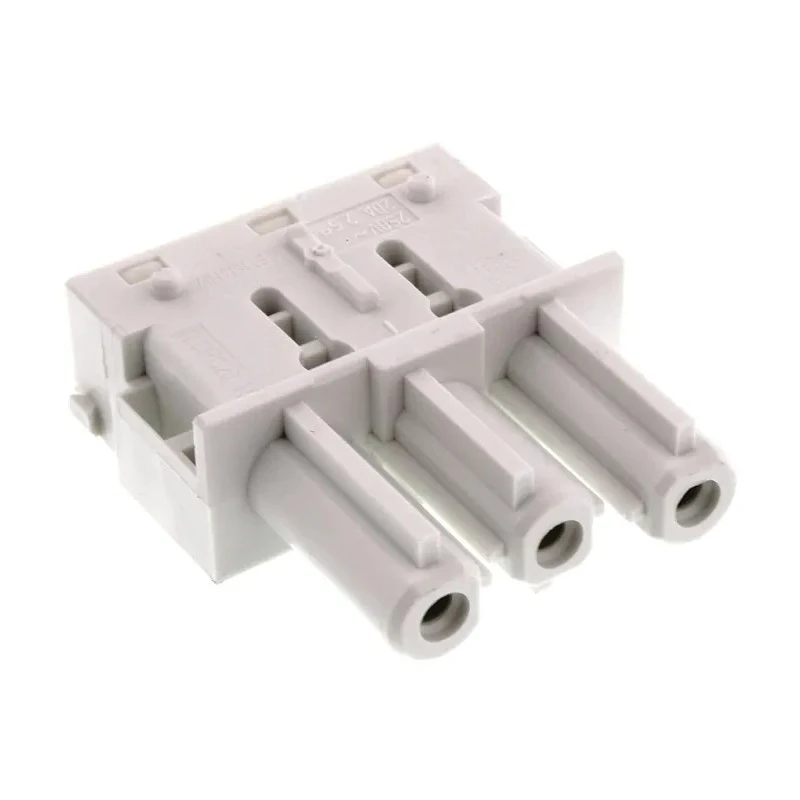

Wieland GST18i3 Series Cable Mini Connector Female Clamp, 3-Pole, 16A, 250V, IP40 GST18i3

Free Delivery in India | Lowest Global Shipping Charges

Wieland GST18i3 Series Cable Mini Connector Female Clamp, 3-Pole, 16A, 250V, IP40 GST18i3

Name: Wieland GST18i3 Series Cable Mini Connector Female Clamp, 3-Pole, 16A, 250V, IP40 GST18i3
Brand: Wieland
SKU: 184510
Price: 10.31 USD
Availability: InStock



Category Lighting Connectors Brand Wieland Condition New

Specifications

Country of Origin	Germany
Voltage	250V
Diameter	10.3mm
Brand	Wieland
Colour	White
Model	GST18i3
IP Rating	IP40
Mount Type	Cable
Contact Material	Copper Zinc Alloy
Termination Type	Clamp
Sub Type	Mini Connector
Wire size	0.5, 1.5mm²
Pole Format	3
Contact Plating	Tin
Contact Gender	Female
Connector Gender	Female
Lighting Connector Current	16A
Wieland GST18 Series Cable, Cable Connector Female Screw, 3-Pole, 16A, IP20Brand	Wieland
Wieland GST18i Series Clamp Spring Clamp Male Clamp, 3-Pole, 16A, IP40Brand	Wieland

Key Features

The connector features a clamp termination type for secure wiring.
Suitable for wire sizes ranging from 0.5 to 1.5mm².
Constructed with brass tin-plated contacts for durability.

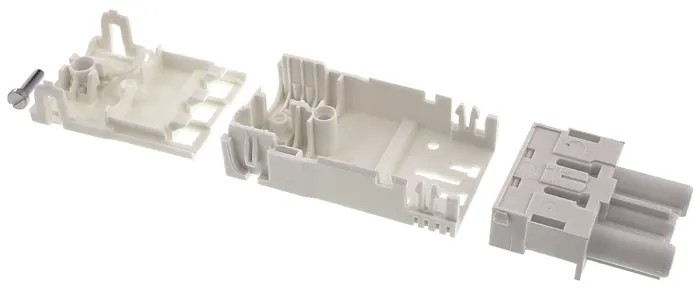

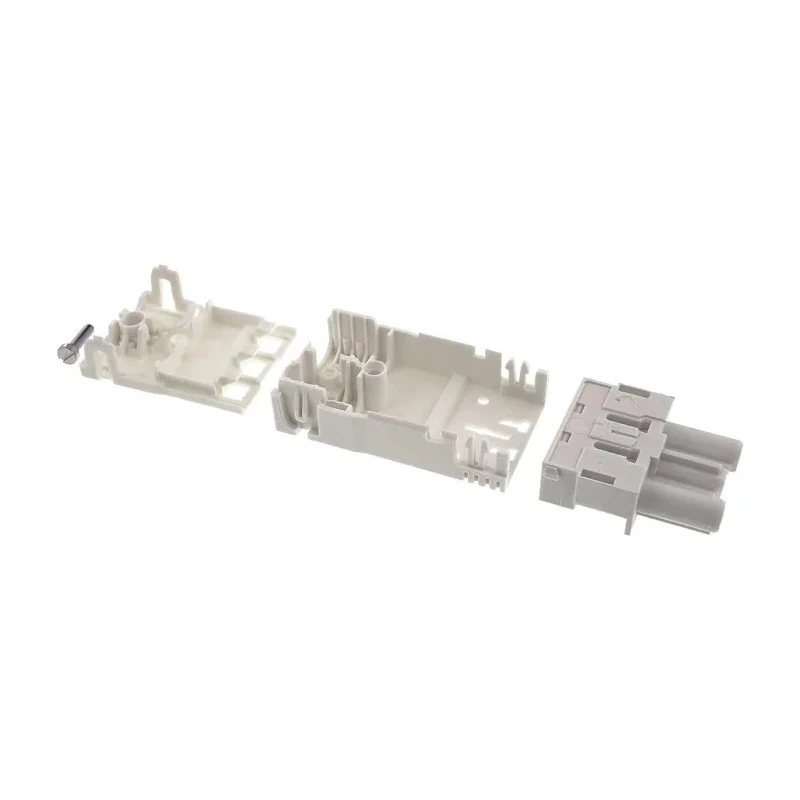

Designed with strain relief including a top cover to enhance mechanical safety.
IP40 rating provides protection against solid objects greater than 1 mm.
The connector supports 50 to 100 connection cycles at 16A resistive load.
Operating temperature rating up to 100°C makes it suitable for industrial environments.
White color housing aids application identification.

Product Description

Wieland GST18i3 Series Cable Mini Connector Female Clamp is a high-quality 3-pole connector rated for 16A current and 250V voltage, featuring an IP40 protection class. This connector is specifically designed for lighting applications, construction sites, data, signal, control, and power wiring tasks. Its clamp termination type and built-in strain relief with a top cover ensure secure and reliable connections, minimizing the risk of disconnections or mis-mating.

The contacts are crafted from brass with tin plating, offering excellent conductivity and corrosion resistance. Operating temperature tolerance up to 100°C allows usage in demanding industrial and manufacturing scenarios. The white-colored thermoplastic housing enhances the product's visibility and identification within installations.

Compliance with DIN VDE 0628 and EN/IEC 61535 standards reinforces the connector’s suitability for professional use in factory-assembled equipment, shop displays, and exhibition stand wiring. It supports 50 to 100 connection cycles at 16A resistive load, ensuring longevity under repeated use.

The connector also features mechanical and color coding, which provides a safe and easy separation of different applications, almost eliminating mismatch errors. An optional locking device and leading earth contact add layers of safety for power and lighting installations.

The connector supports wire sizes from 0.5 to 1.5mm², suitable for various cable applications. Designed for cable mounting with strain relief for enhanced durability. The IP40 rating provides protection against solid objects larger than 1 mm but is not waterproof.

Applications include lighting, factory-assembled equipment, construction wiring, and data or control signal transmission. Widely recognized approvals and certifications make it a trusted component in electrical systems. Explore the range of Lighting Connectors and power connectors at EnvMart to find compatible products and accessories for your industrial, commercial, and construction needs.
