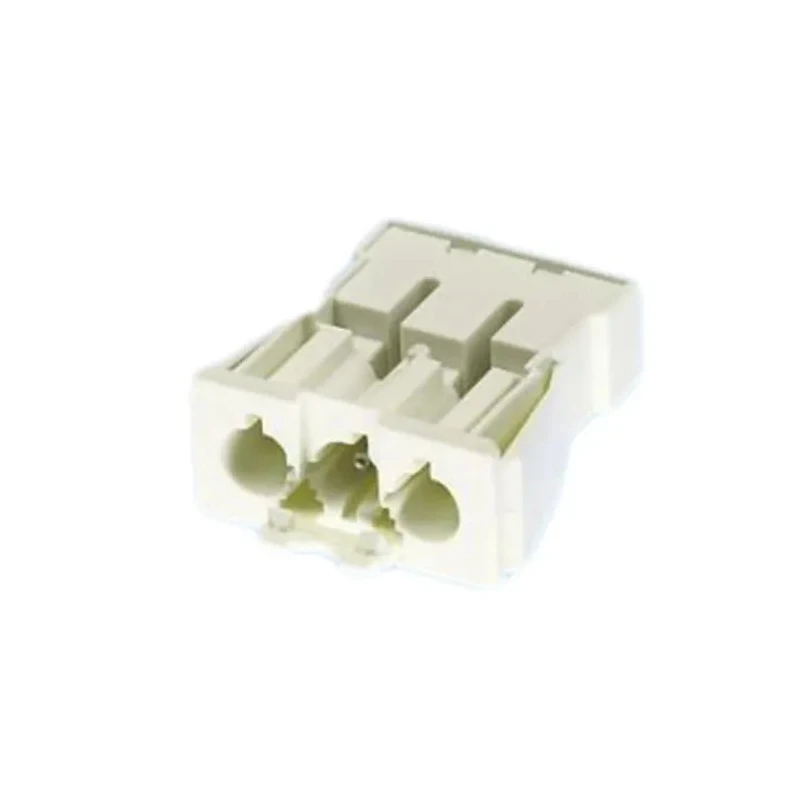

Wieland GST18 Series Panel Mount Connector Male Clamp, 3-Pole, 16A, 250V, IP40 GST18

Wieland GST18 Series Panel Mount Connector Male Clamp, model GST18, is a high-quality 3-pole connector rated for 16A and 250V. Designed for lighting and factory-assembled equipment, it ensures safe, secure electrical connections in industrial and commercial environments.

This connector features brass contact material with tin plating, combining excellent conductivity and corrosion resistance. The clamp termination supports wire sizes ranging from 0.5 mm² to 1.5 mm², making it versatile for various wiring needs. The IP40 rating allows protection against solid objects greater than 1 mm, suitable for indoor applications such as lighting and control panels.

The device provides a panel cut-out of 33 x 15.6 mm, enabling easy mounting, and includes a strain relief mechanism enhancing mechanical safety and cable stability. It supports between 50 to 100 connection cycles at a resistive load of 16A, ensuring long-term reliability.

Its thermoplastic insulating material withstands operating temperatures up to 100°C, making it suitable for demanding industrial environments including construction sites, exhibition stands, and factory-assembled equipment.

Typical applications span lighting installations, data and signal transmission, control systems, and power distribution in industrial, commercial, and HVAC contexts. Designed for safe and reliable electrical connections in lighting and control applications.

Manufactured with brass, tin-plated contacts for durability. Supports wire sizes 0.5 to 1.5 mm² with clamp termination. Panel mount design with a 33 x 15.6 mm cut-out dimension. Rated for 16A current and 250V voltage with IP40 protection.

Thermoplastic insulating material suited for 100°C operating temperature. Includes strain relief for cable support and mechanical safety. Connection cycles range from 50 to 100 at 16A resistive load. Ideal for lighting, control, data, and power applications in industrial settings.
