Manas Digital Air Flow Meter 1000-1 Default reading 4900 readings

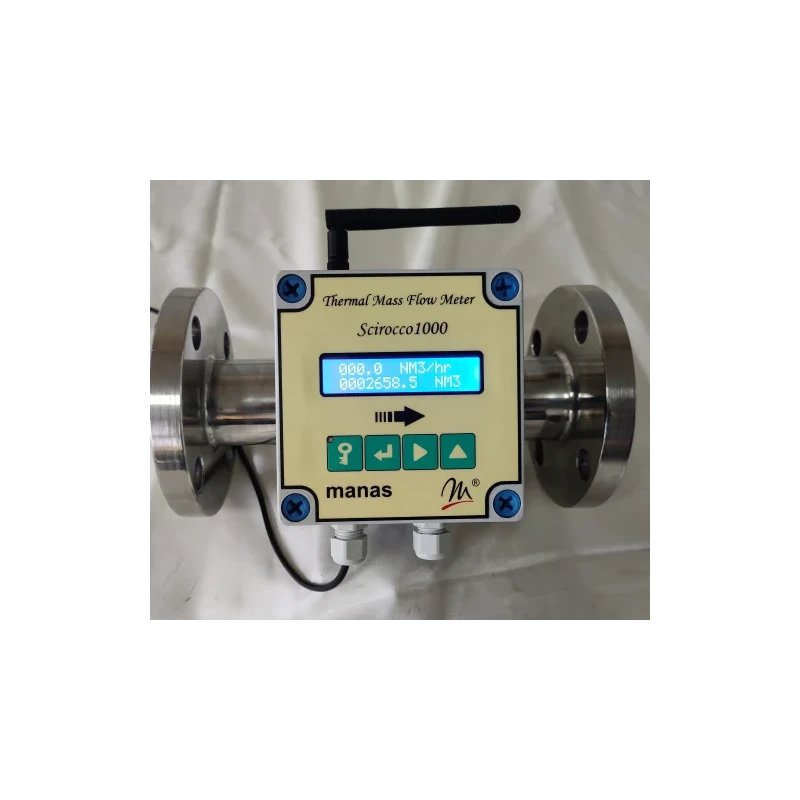

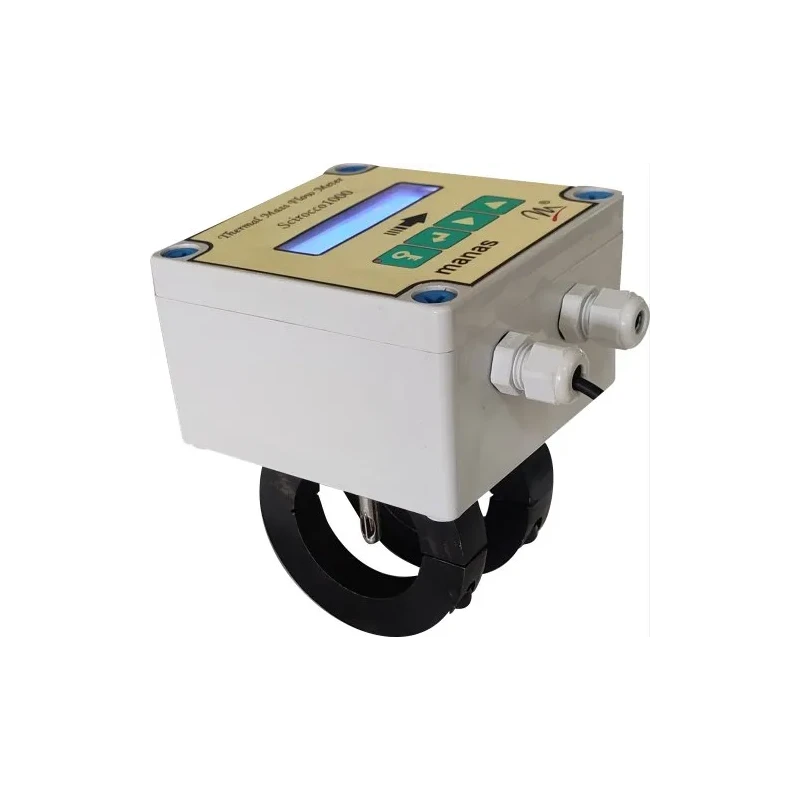

Manas Digital Air Flow Meter 1000-1 Default reading 4900 readings, An air flow meter is a device that measures air flow, i.e. how much air is flowing through a tube. It does not measure the volume of the air passing through the tube, it measures the mass of air flowing through the device per unit time.A Thermal Dispersion Mass Flowmeter contains two Platinum RTD temperature sensors for this purpose. One sensor measures the current fluid temperatureas a reference. The second sensor is heated and has a constant temperature differential relative to the first sensor. When the flow of air/gas starts heat is taken away from the warmer sensor. The amount of heat taken away is having a direct relation with the mass velocity of the fluid.This eliminates the need for temperature and pressure compensation.Thermal Dispersion Mass Flowmeter, Series Scirocco 1000 is available with insertion probe type or Complete Spool type with proper end connection. Insertion probe can be installed directly on the pipe carrying compressed air, with the help of clamps supplied along with probe. Customer can drill holes by given diagram and also drilling jig can provided at extra cost.FeaturesDirect measurement of mass flow. No pressure or temperature compensation required20:1 turndown.Wireless data transfer possible. Remote readings available on wireless. Pulse, milliamps or RS485 output for networking.

• Highly durable
