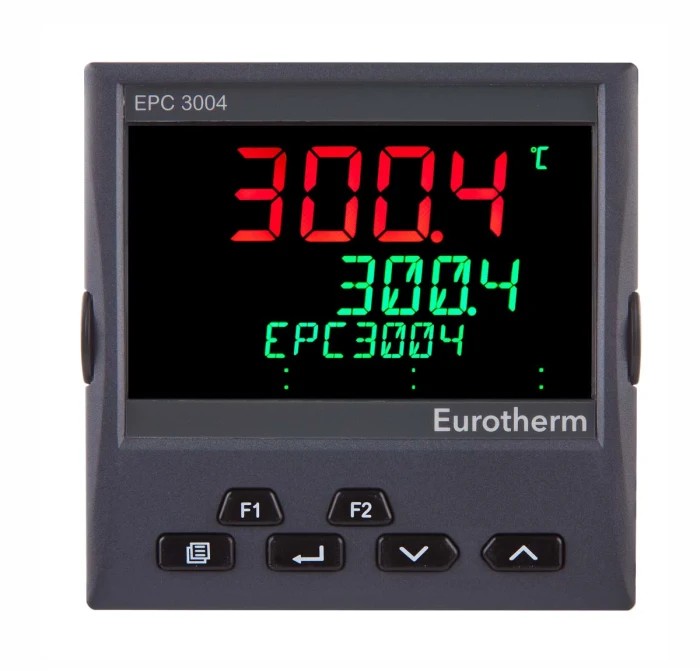

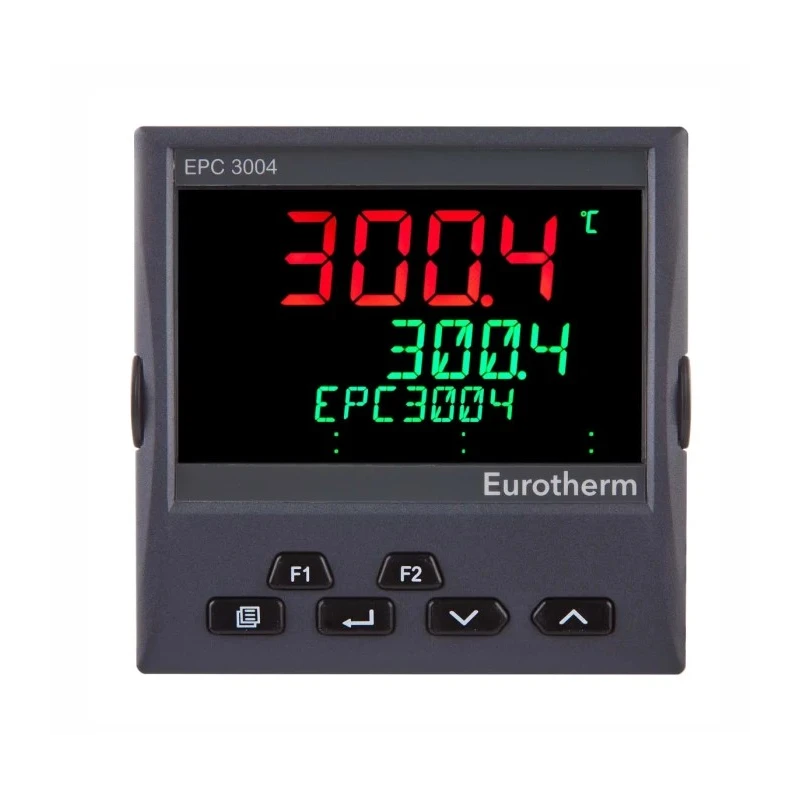

Eurotherm Panel Mount PID Controller 2 Input 3 Output 230V AC EPC3004

Eurotherm EPC3004 panel mount PID controller is a precision programmable temperature controller designed for industrial applications requiring accurate temperature regulation. It supports two universal inputs and three outputs, making it suitable for complex process control tasks.

This controller features a high visibility LCD with backlight that provides clear status and alarm indications using a 3-colour display and natural language messages enhancing operator interface and usability. Its robust panel mount housing has an IP65 ingress protection rating, making it suitable for harsh industrial environments.

Inputs supported include zirconia oxygen probes, thermocouples, pyrometers, PT100/1000 sensors, as well as 4 to 20 mA signals, enabling flexible sensor integration. The controller's PID control algorithm offers fast response with minimal overshoot and oscillation, ensuring stable process control and energy-efficient operation.

Designed with cybersecurity in mind, the EPC3004 features an Ethernet RJ45 connection which is certified to Achilles Level 1 for communication robustness. It supports multiple industrial communication protocols such as Modbus, EIA 485/422/232, Bacnet, and EtherNet/IP, allowing seamless integration into modern control systems.

This device operates reliably over a temperature range of 0°C to 55°C and can handle a maximum current of 2A. Diagnostics and extensive international approvals including UL, CE, FM, and RoHS compliances provide assurance of quality and regulatory adherence.

Additional features include energy measurement capabilities and a battery-free design for long service life and reduced maintenance. The controller measures 96 mm in width, 101 mm in length, and 90 mm in panel depth for standardized installation dimensions.

Industrial use cases include process control in manufacturing plants, HVAC systems, water treatment, and laboratory temperature control. Its ease of configuration is supported by free PC-based backup and configuration software utilizing USB connectivity.

Features a high visibility LCD with backlight for clear display. Supports multiple universal input types including thermocouples and 4 to 20 mA signals. Robust panel mount design with IP65 rating for industrial environments.

Includes Ethernet RJ45 connection certified to Achilles CRT level 1 for secure communications. Fast PID response with minimal overshoot and excellent thermal stability. Capable of energy measurement and extensive digital communications protocols.

Wide operating temperature range from 0°C to 55°C ensures adaptability. Includes diagnostic features and supports Modbus, Bacnet, and EtherNet/IP protocols. Comes with a user-friendly interface and easy setup using application templates.
