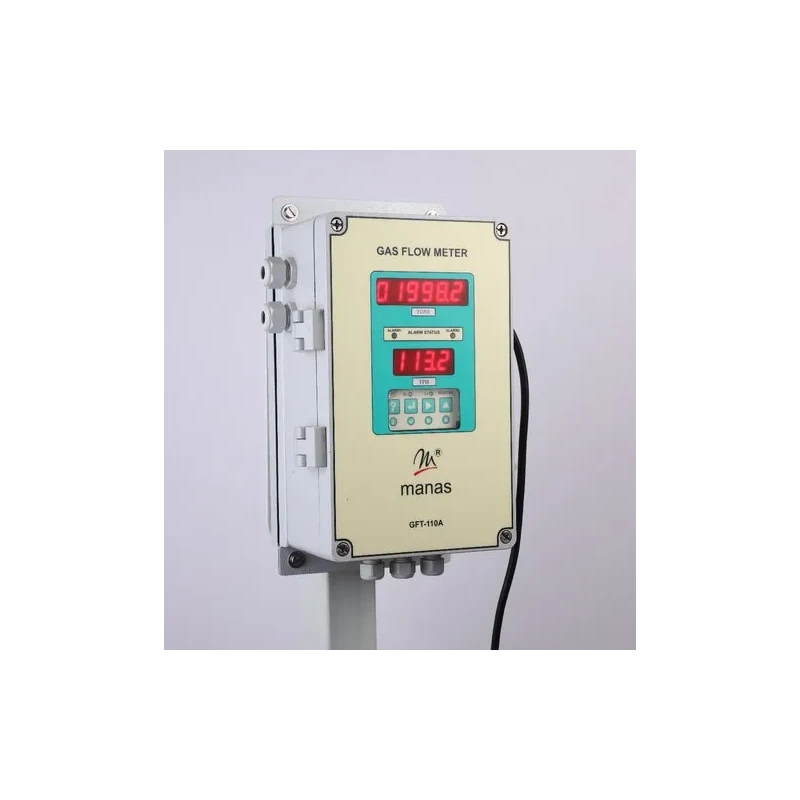

Manas Gas Flow Totalizers GFT-100

SKU ABBEH Category Flow Meter Brand ESPL

Specifications

Accuracy +-0.25% of full scale
Power Supply 85 to 265V AC50Hzsingle phase
Mounting Wall mounting/Panel mounting
Model GFT-100
Enclosure Al Die cast
Pressure Range Max 50 kg/cm2 (g) or Bar (g) max.-programmable
Flow Type Compensated/Uncompensated programmable
Data logging Approx readings 3000 for normal logging & Approx 5500 readings for extended logging
Max Depth 185mm
Dimension PM Type Bazel 144mm H x 72mm WCutout 138mm H x 68mm W
Dimension WM Type 310mm L x 160mm W x 105mm D

Key Features

  • Easy to use
  • Easy to install
  • Great performance
  • Highly durable

Product Description

Manas Gas Flow Totalizers, a totalizer is a running total of how much fluid (gas, liquid, steam) has passed by the sensor within a given time. For example, in the last 60 seconds, there have been 30 gallons of water flowing by the sensor.Other Details:The GFM series GFT-100A is suitable for measurement of mass flow of gasesThe unit display instantaneous mass flow rate and totalized mass of gasIt computes instantaneous density from instantaneous pressure and temperature signalsComputes the mass flow as per guide lines from BS1042/ISO:5167As per standard the equation for mass flow when measured with orifice states:QM= Sq. Root of density X Sq. Root of DPwhere,QM: Mass flow rateDensity: Instantaneous DensityDP: Differential PressureSalient Features:Elegant easy to operate keypadPassword protection on all programming modes (except display mode) to avoid wrong programming by an unauthorized personPrinter interfaces to print online data or saved data (Optional feature)Computer interface to supervisory computer through RS-232 or RS-485 communication linkSeparate terminals are provided for both types of inputs
  • Data logging facility available
  • Suitable for thermic fluids
