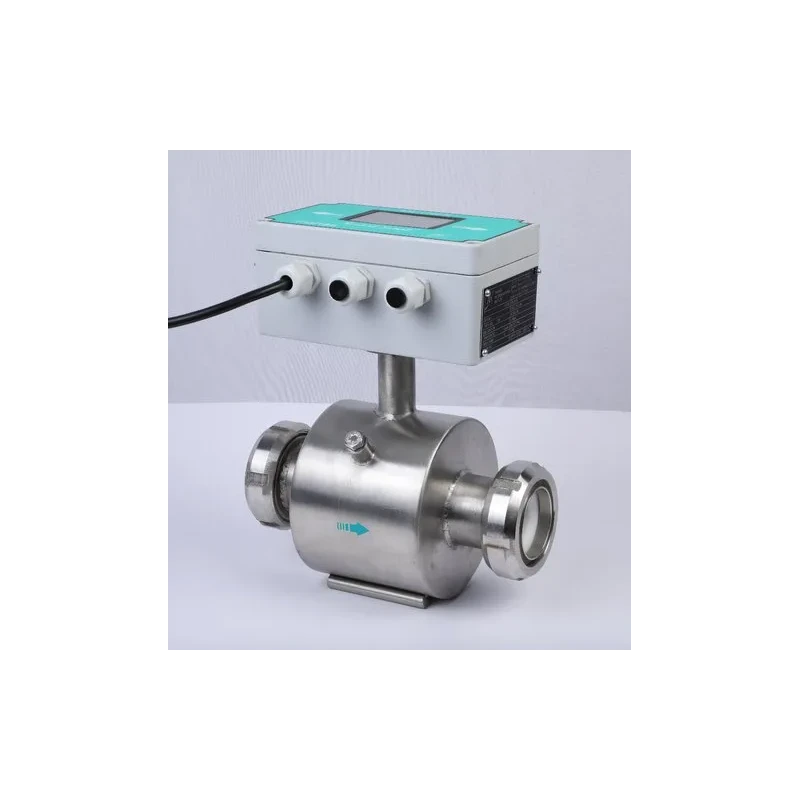

Manas Sanitary Grade Electromagnetic Flow Meter
Specifications
| Accuracy | 0.5% of reading from 100% to 10% flow rate |
|---|---|
| Power Supply | 110V AC 50/60 Hz (Standard) |
| Pressure | 40 Bar max |
| Pipe Material | SS 304 |
| Model | SG-SROAT |
| Power Rating (kW) | 10VA Max |
| Ingress Protection | IP 68 for Primary Flow Sensor |
| Ambient temperature range | 4 to 50 deg C |
| Media temperature | 150 deg C max |
| Flow Velocity Range | 0.1 m/s to 10m/s. (Higher velocities can be catered on request) |
| Coil Housing Material | SS 304 |
| Liner Material | PTFE Food Grade |
| Type of Transmitter | SROAT1000A |
| Electrodes Material | SS 316L |
| End Connections Material | SS 304 |
Key Features
- Easy to use
- Easy to install
- Great performance
Product Description
Manas Sanitary Grade Electromagnetic Flow Meter, Electromagnetic flow meters (or magmeters) are a type of velocity or volumetric flow meter that operate pursuant to Faraday's law of electromagnetic induction which states that a voltage will be induced when a conductor moves through a magnetic field. Magmeters can detect the flow rate of conductive fluids only.Features:Full Stainless Steel BodyEnd Connection in Union Coupling/tri-clover clampHighly Accurate and extremely LinearIsolated 4-20 mA output Proportional to flow rate.Option of Pulse Output available.Description:The Series SG-Sroat of Electromagnetic Flow Meters is specifically designed for measurement of food liquids like milk, cream, juices of various fruits, pharma liquids etc.It is available with integral or remote version of transmitter.The transmitter can have built-in or remote totalizer display. Suitable end connections of SMS Union or DIN Union or Tri-clover Clamp is given as per customer's requirements.Special models are available for mounting on Milk Tankers.Specifications:Size (DN)m/HrLPMLPS251.76729.4520.49322.89548.2540.804384.52375.3981.256517.068117.8091.96363.511.945199.0983.31876.118.095301.5925.026101.628.274471.2387.85310428.274471.2387.853Technical Details:Meter Size (DN)ABCD258020013525 SMS3210020014032 SMS3810020014038 SMS5110520021051 SMS63.510520021563.5 SMS76.110520022076.1 SMS101.6130250305101.6 SMS104130250305104 SMS
- Highly durable
