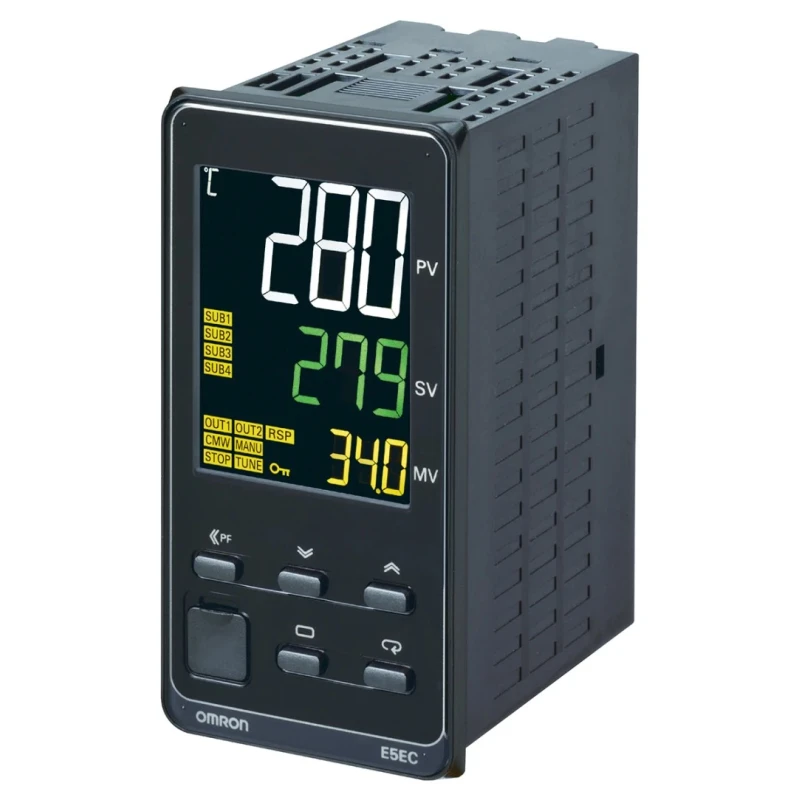

Omron Panel Mount PID Temperature Controller 3 Input, 1 Output Relay 240V ac E5EC

Omron E5EC-RX4ABM-000 is a high-performance Panel Mount PID Temperature Controller designed for precise temperature regulation in industrial and automation applications. This model features three input channels and one relay output, operated at a maximum supply voltage of 240V ac, making it suitable for a variety of process control environments.

The controller is equipped with a large, high-contrast 11-segment white LCD display, providing excellent visibility with an 18mm character height. The three-level display simultaneously shows the process variable (PV), set value (SV), and manipulated variable (MV) with a four-digit resolution, enabling users to monitor multiple parameters at once.

With a rapid 50 ms sampling period, the E5EC ensures responsive control action. It supports extended I/O functionality including 4 auxiliary outputs, 6 event inputs, a transfer output, and remote setpoints, allowing integration into complex automation systems.

The device’s push-in terminal design provides secure and straightforward wiring, increasing installation efficiency. It supports RS485 digital communications, facilitating easy connection to PLCs and other control equipment without programming requirements. Additionally, tool ports on both front and top panels allow convenient programming interfaces.

Operating reliably within a temperature range of -10°C to 55°C, this controller is robustly designed with IP ratings of IP00, IP20, and IP66, providing protection against dust and water ingress in harsh environments. The compact housing is just 60 mm deep, optimizing panel space.

Omron ensures quality and safety compliance with approvals including cULus (UL 61010-1, CSA C22.2 No.61010-1), KC mark, and European standards EN61326-1 and EN 61010-1. This solid certification allows usage in various industrial, laboratory, HVAC, manufacturing, and process control scenarios.

Setup is simplified using Omron's CX-Thermo software compatible with Windows XP and later versions, which connects via USB conversion cable without requiring extra power sources. This facilitates quick configuration and parameter tuning.

This PID temperature controller is ideal for industries requiring accurate thermal management, such as manufacturing, water treatment, food processing, and HVAC systems. Its advanced control features and versatile inputs allow it to handle diverse sensor types, including thermocouples and analogue signals.

Choose the Omron E5EC series for dependable, flexible temperature control solutions. Explore related Temperature Controllers and industrial automation products in the EnvMart catalog.

Equipped with an 11-segment large white LCD display for high visibility. Supports PID control with three-level display showing PV, SV, and MV simultaneously. Includes RS485 digital communications interface for easy integration and PLC connectivity.

Wide operating temperature range from -10°C to 55°C ensuring reliable performance. Robust panel mount design with IP00, IP20, and IP66 ratings for various environmental protections. Push-in terminal type facilitates secure and efficient wiring.

Complies with multiple standards including UL 61010-1, CSA C22.2 No.61010-1, KC mark, and EN61326-1. Compact dimensions with 9mm length, 24mm width, and 60mm panel depth. Extended I/O range including 4 auxiliary outputs and 6 event inputs enhances control flexibility.

Easy setup via CX-Thermo software using USB conversion cable without needing additional power supply.
