Mascot Medical Approved Single Output Switch Mode Desktop AC/DC Adapter 12V DC 60W with 2.1 x 5.5 x 12 mm Female 2020000041

Free Delivery in India | Lowest Global Shipping Charges

Mascot Medical Approved Single Output Switch Mode Desktop AC/DC Adapter 12V DC 60W with 2.1 x 5.5 x 12 mm Female 2020000041

Name: Mascot Medical Approved Single Output Switch Mode Desktop AC/DC Adapter 12V DC 60W with 2.1 x 5.5 x 12 mm Female 2020000041
Brand: Mascot
SKU: 183169



Category AC/DC Adapter Brand Mascot Condition New

Specifications

Country of Origin	India
Brand	Mascot
Power	60W
Efficiency	80%
Length	135mm
Depth	44mm
Cable Length	1800mm
Width	80mm
Series	2020
Maximum Operating Temperature	40°C
Load Regulation	±0.5 %
Minimum Operating Temperature	-20°C
Plug Type	3-Pin (IEC)
Number of outputs	1
Maximum Input Voltage	340, 264V dc
Output Voltage	12V dc
Standards/Approvals	EN 60601-1-2
Minimum Input Voltage	198V ac
Output Connector Type	2.1 x 5.5 x 12 mm Female Coaxial Plug with Snap Lock, 2.5 x 5.5 x 12 mm Female Coaxial Plug with Snap Lock
Input Connector Type	IEC 320
Adapter Current	4.5A

Key Features

This adapter features a fully regulated output with over-voltage and short circuit protection.
Includes 2.1 x 5.5 x 12 mm and 2.5 x 5.5 x 12 mm female coaxial plugs with snap-lock connectors.
Medical approval compliant with EN 60601 standard ensures safe usage in medical environments.
Operating temperature range from -20°C to 40°C suits various ambient conditions.
High efficiency of 80% minimizes energy loss and heat generation.
Includes IEC 320 input connector with 4.5A adapter current and single output.
Cable length is approximately 1.8 meters, providing flexible placement options.
Load regulation maintains output voltage stability within ±0.5% under varying loads.

Product Description

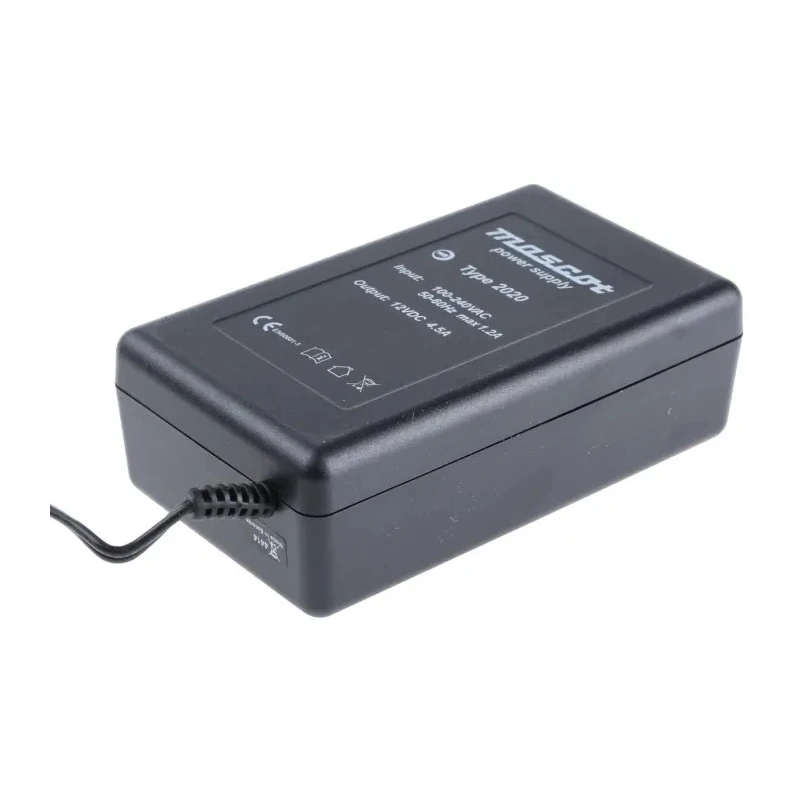

Mascot 2020000041 is a medically approved single output switch mode desktop AC/DC adapter delivering 12V DC voltage at 60W power, certified to EN 60601 standards for medical equipment compatibility.

This desktop power supply features fully regulated output with built-in over-voltage and short circuit protection, ensuring safe and reliable operation in sensitive environments such as hospitals and laboratories.

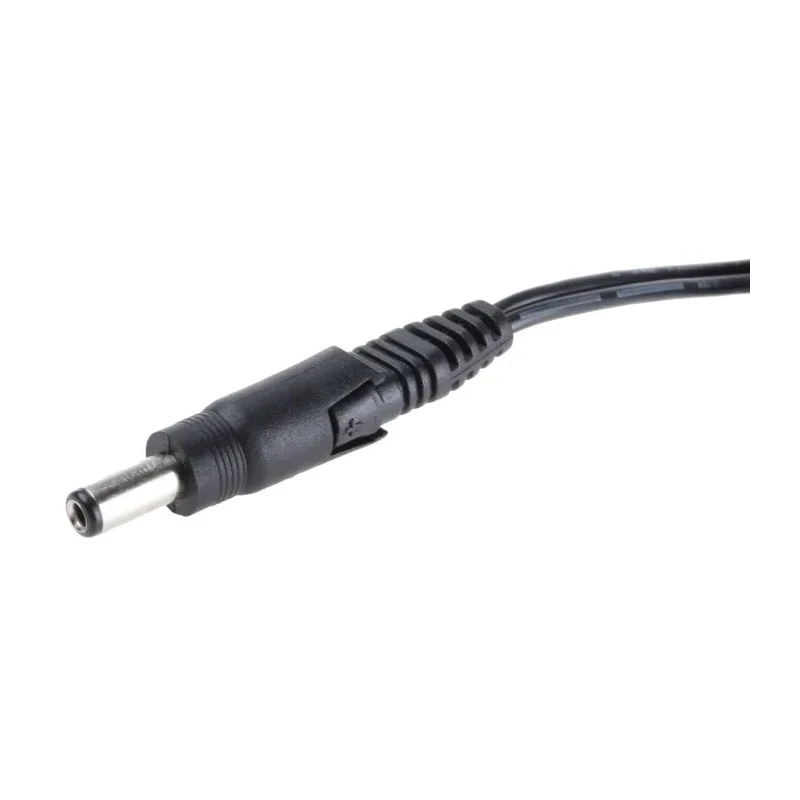

The adapter comes equipped with 2.1 x 5.5 x 12 mm and 2.5 x 5.5 x 12 mm female coaxial plugs featuring snap lock mechanisms for secure and versatile connection options.

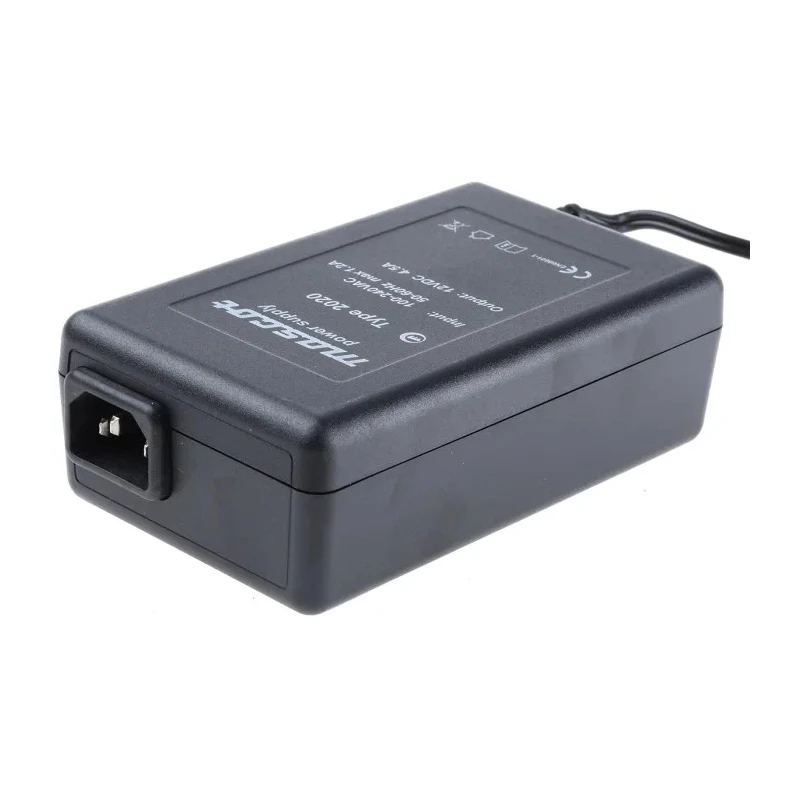

It includes an IEC 320 input connector rated for 4.5A current, supports input voltages from 198V AC up to 264V AC and DC up to 340V, ensuring stable power supply under a wide range of input conditions.

The device has a cable length of approximately 1.8 meters, providing ample reach for desktop and medical instrument integration, with compact dimensions of 135 mm length, 80 mm width, and 44 mm depth to fit small spaces efficiently.

Operating temperature ranges from -20°C to 40°C, making it suitable for various industrial, laboratory, and medical environments requiring high reliability and safety standards. This adapter’s 80% efficiency reduces energy consumption and heat generation.

Load regulation of ±0.5% guarantees consistent output voltage for sensitive electronic devices. The included two loose connectors allow four connection options to fit different device requirements. Mascot 2020000041 is ideal for powering medical devices, testing instruments, industrial electronics, and laboratory equipment requiring safe and regulated DC power.

Explore more AC/DC Adapters and power supply solutions in the Electronics & Electricals category at EnvMart to find compatible units for your applications.
