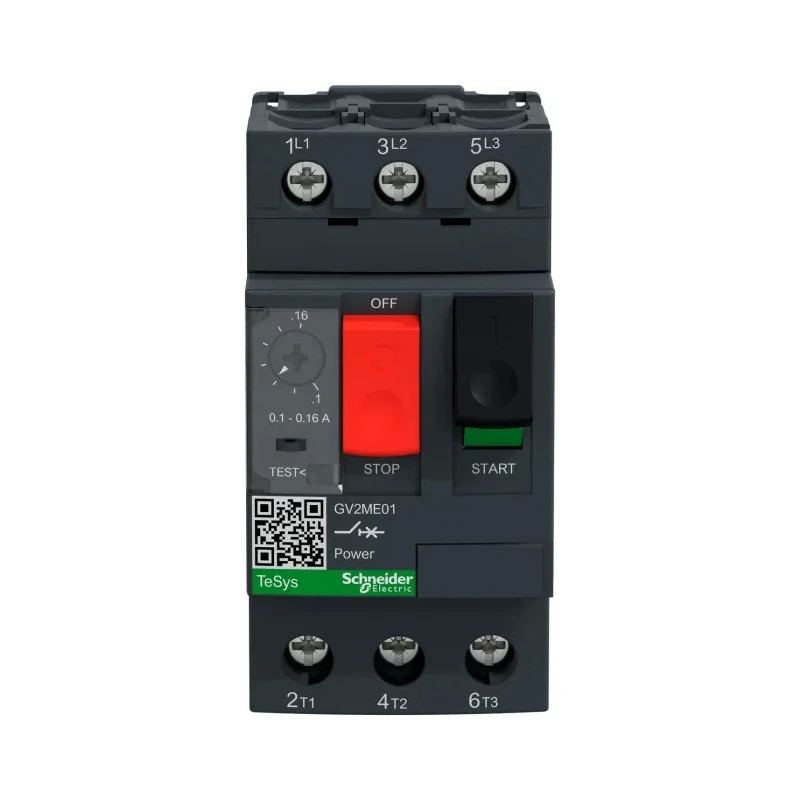

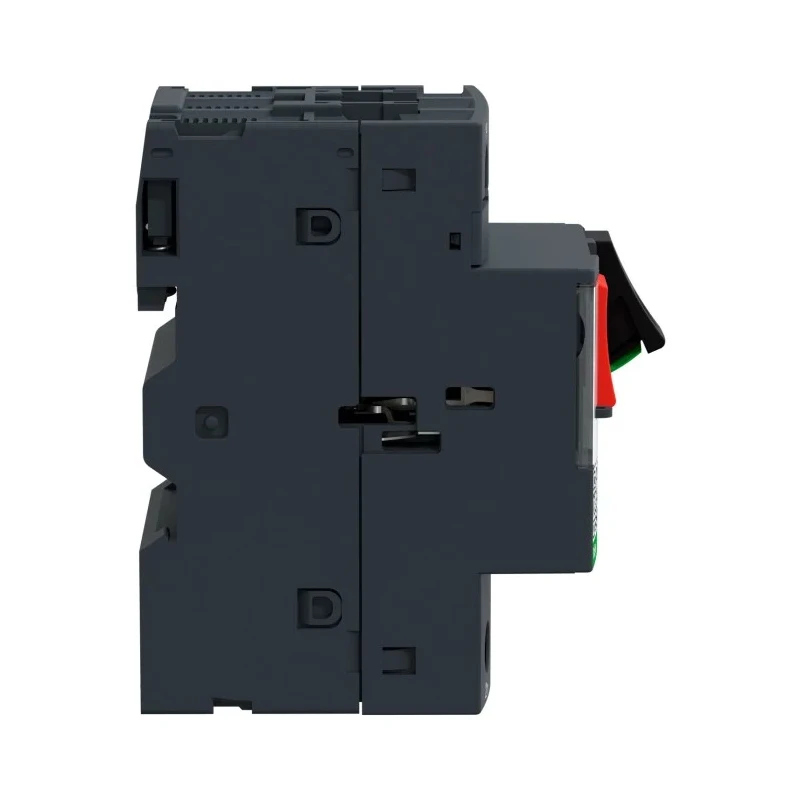

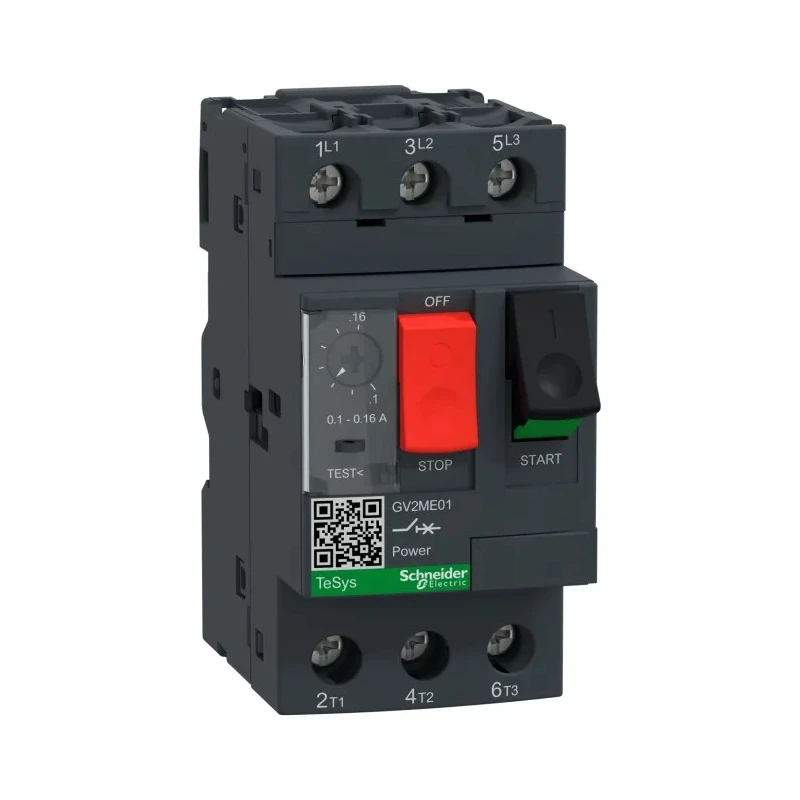

Schneider Electric Motor Protection Circuit Breaker Thermal Magnetic 100mA, 160mA Current, 690V GV2ME

Schneider Electric GV2ME Motor Protection Circuit Breaker is a thermal magnetic motor protection device designed for three-phase motor drive systems. The breaker has a current rating range of 0.1 to 0.16A, and operates with a supply voltage of 690V. Engineered for industrial control systems and automation cabinets, this device provides reliable protection against motor overloads, phase failures, and electrical faults.

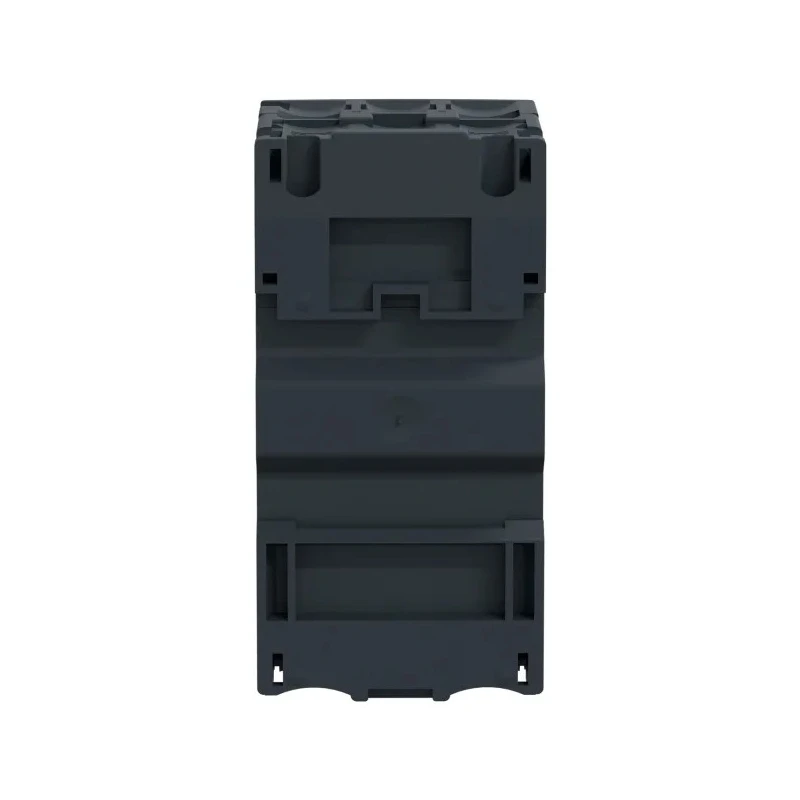

Featuring a robust design, the GV2ME breaker supports installations on 35mm symmetrical DIN rails or fixed panel mounting using an adaptor plate. Its compact dimensions (89mm length, 45mm width, and 78.5mm depth) make it suitable for control panels with limited space requirements.

The circuit breaker withstands operating temperatures from -20°C to 60°C and offers IP20 rated protection with IK04 impact resistance, making it compliant with harsh industrial environments. It has an exceptional breaking capacity of 100kA at voltages up to 690V, ensuring safety under short-circuit conditions.

This model includes phase-failure detection to safeguard motors from damage caused by single-phase operation. The screw clamp terminals with a torque rating of 1.7N·m assure reliable and secure electrical connections. Designed for repeated use, the product supports 100,000 mechanical and electrical endurance cycles, assuring extended longevity in demanding applications.

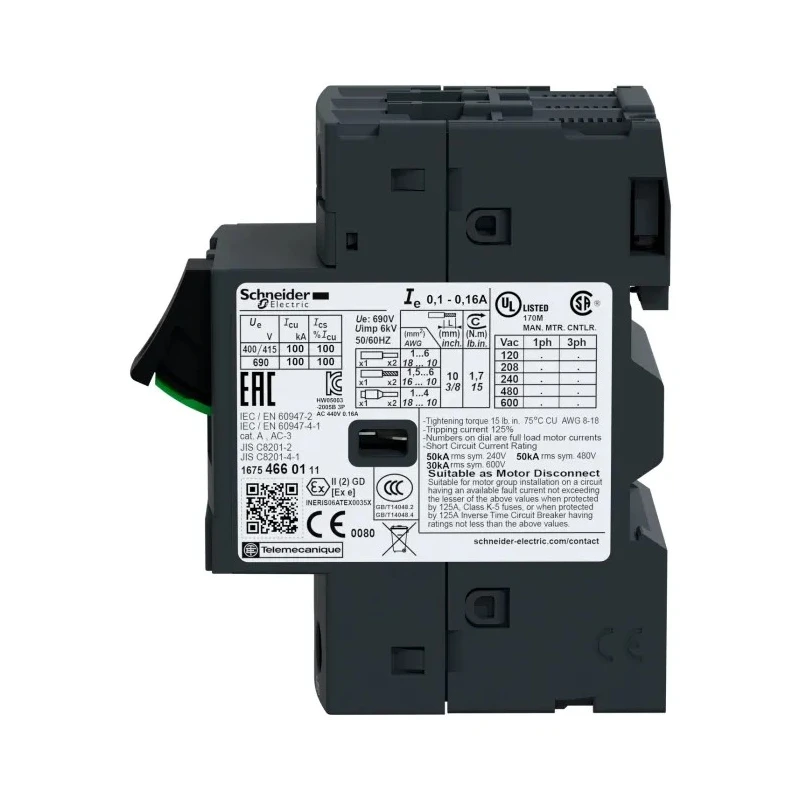

The unit complies with multiple global standards such as IEC/EN 60947 series, UL, CSA, ATEX, REACH/RoHS, and others, making it a trusted choice in electrical motor protection solutions. Its Better World claim emphasizes design for disassembly to promote sustainability.

Ideal for small three-phase motor drives, this circuit breaker is used in pump and fan assemblies operating on 50/60Hz AC networks. It can also be used as a retrofit solution on existing machinery with limited panel space.

Thermal magnetic sensing for overload protection. 3-pole design suitable for three-phase motors. Compact construction with IP20 and IK04 ratings. Operating temperature range from -20°C to 60°C. Breaking capacity of 100kA at 690V.

Phase-failure detection for motor protection. Secure screw clamp terminals with 1.7N·m torque. Durability with 100,000 mechanical and electrical cycles. Compliance with international standards including IEC, UL, CSA, and ATEX.

Versatile mounting options: DIN rail or panel mount. Explore the full range of Schneider Electric motor protection devices and circuit breakers on EnvMart for reliable industrial and automation control solutions.
