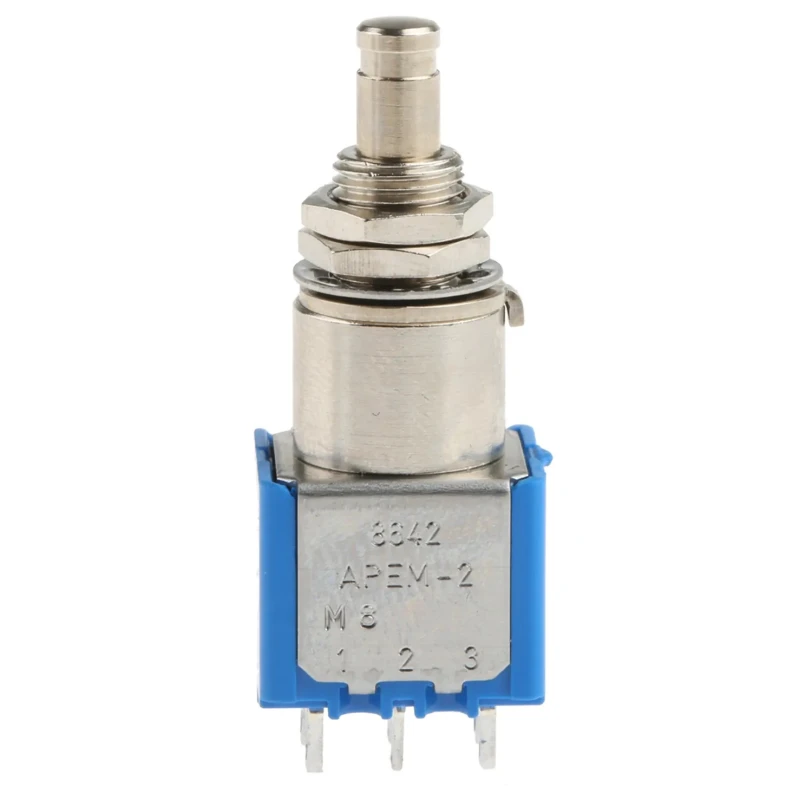

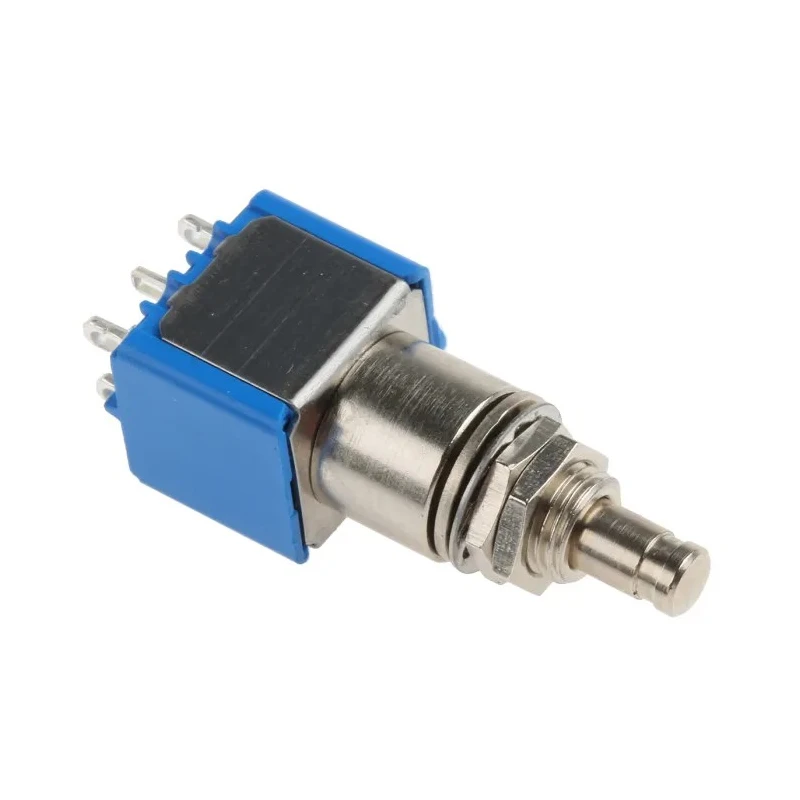

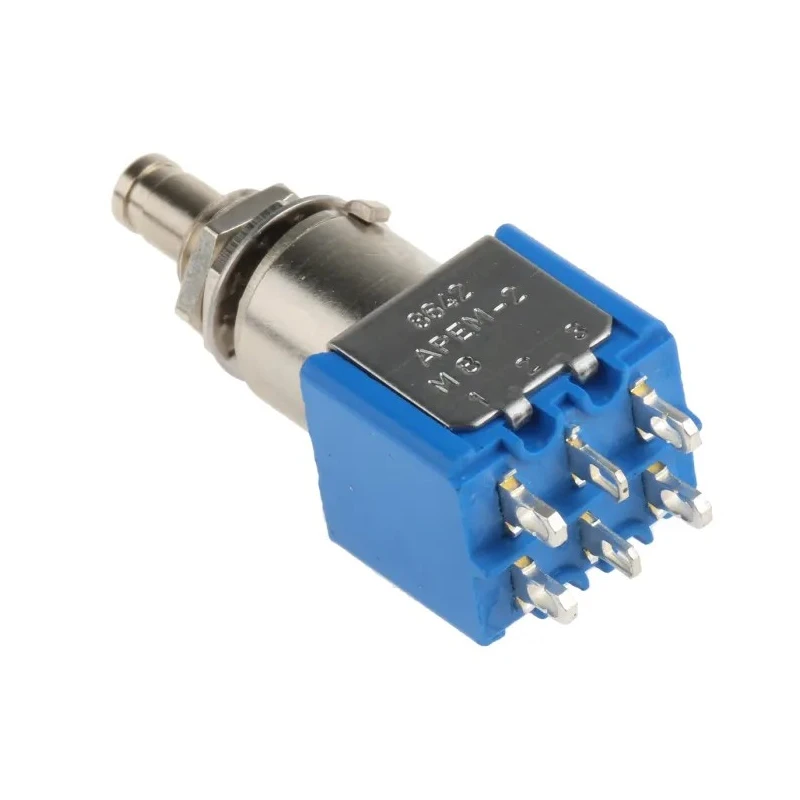

APEM 8000 Series Miniature Push Button Switch Momentary Panel Mount DPDT 6.5 mm Cutout 125 V 4A 8642A
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Model | 8642A |
| Mount Type | Panel |
| Series | 8000 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Insulation resistance | 1000 MOhm @ 500 V dc |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 6.5 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 125V |
| Actuator Style | Cylinder |
| Switch Contact Current | 4A |
| Contact AC Voltage | 125V ac |
| Electrical Life | 30000 cycles |
| Stock No | 103-5732 is an SPDT Momentary switch |
Key Features
- Constructed with a silver actuator and sturdy stainless steel body for durability.
- Features double pole double throw (DPDT) contact configuration for versatile switching.
- Operates reliably with a 125 V AC/DC contact voltage and up to 4 A contact current.
- Includes solder terminal type with a 6.5 mm panel cutout size for compact installation.
- Designed for operation in temperatures ranging from -40°C to 85°C.
- Epoxy sealed terminals and nickel-plated brass actuator ensure excellent environmental protection.
- Switch operation is momentary with a cylinder-style actuator for precise control.
- RoHS compliant and manufactured in France ensuring quality and standards compliance.
Product Description
APEM 8642A is a high-quality miniature push button switch from the 8000 series, designed for panel mounting. This momentary switch features a silver actuator with a durable stainless steel body and epoxy-sealed terminals, ideal for rugged industrial, laboratory, and automation applications requiring compact and reliable switch solutions.
The DPDT contact configuration enables flexible circuit control at up to 125 V AC/DC and 4 A contact current. It incorporates solder-type terminals and requires a 6.5 mm panel cutout for installation. The cylinder-style actuator is nickel-plated brass, compatible with interchangeable coloured caps and optional sealing hoods for enhanced environmental protection.
Operating temperature ranges between -40°C and 85°C ensuring performance in extreme conditions. This switch boasts an electrical life of 30,000 cycles and an insulation resistance of 1000 MOhm at 500 V DC, guaranteeing consistent operation and electrical safety.
Manufactured in France, the switch complies with RoHS standards, making it suited for both commercial and industrial electronic equipment, automation control panels, and laboratory instrumentation.
Constructed with a silver actuator and stainless steel body for durability. Double Pole Double Throw (DPDT) contact configuration for versatile switching. Momentary switch operation suitable for precise control applications.
Epoxy sealed terminals protect against environmental factors. Electrical life rated at 30,000 cycles ensuring longevity. High insulation resistance of 1000 MOhm at 500 V DC for safety. Panel cutout size of 6.5 mm enables compact mounting.
Rated for 125 V AC/DC contact voltage and 4 A contact current. Suitable for industrial, automation, laboratory, and commercial uses. Complies with RoHS standards and manufactured in France. Explore a wide range of APEM Push Button Switches and components available for various industrial electrical and automation needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a contact voltage of 125 V AC/DC and can handle a contact current of up to 4 A.
It features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile switching applications.
The switch requires a panel cutout size of 6.5 mm for proper installation.
This model operates effectively within a temperature range of -40°C to 85°C.
The electrical life of the APEM 8642A switch is rated at 30,000 cycles, ensuring longevity in operation.
It includes solder-type terminals for secure connections during installation.
The actuator is made of silver and is mounted on a sturdy stainless steel body, providing durability.
Yes, this switch is RoHS compliant, ensuring it meets environmental standards.
The insulation resistance is rated at 1000 MOhm at 500 V DC, providing safety in electrical applications.
The actuator features a cylinder style, which allows for precise control during operation.
It is suitable for various applications including industrial, automation, laboratory, and commercial uses.
This switch is manufactured in France, ensuring quality and compliance with standards.
