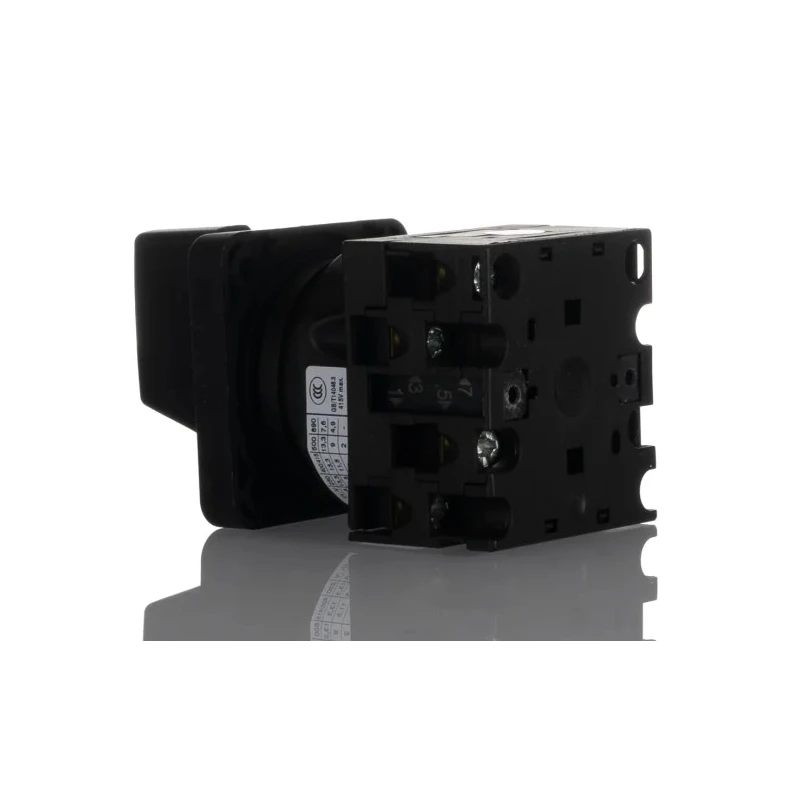

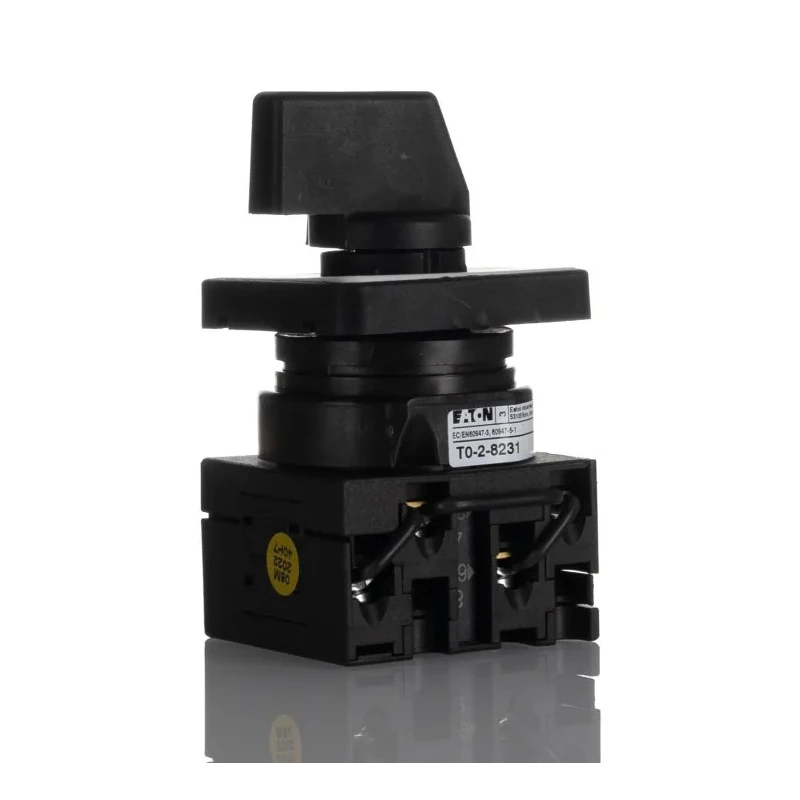

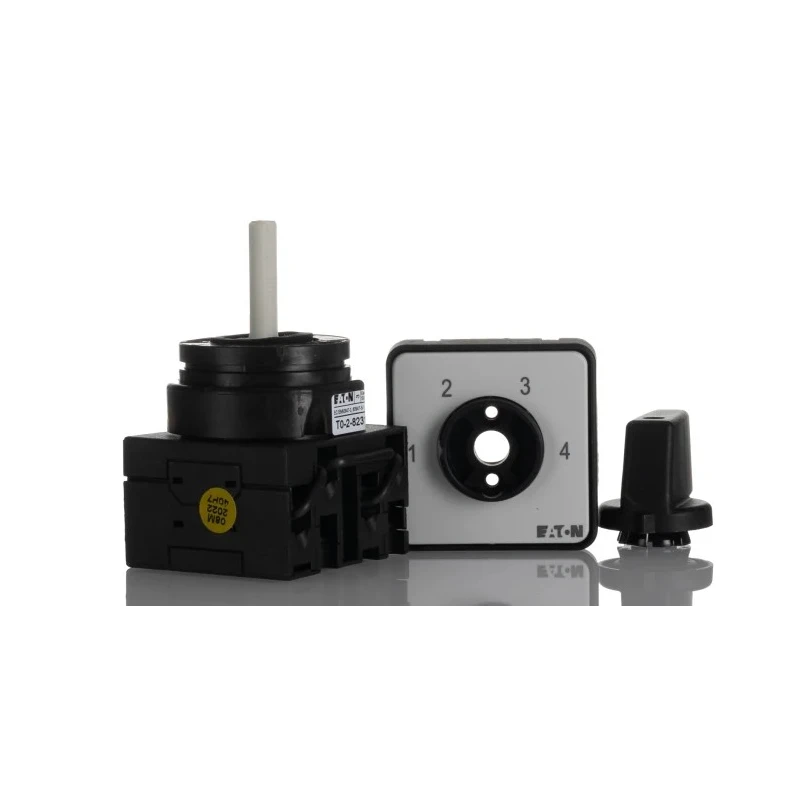

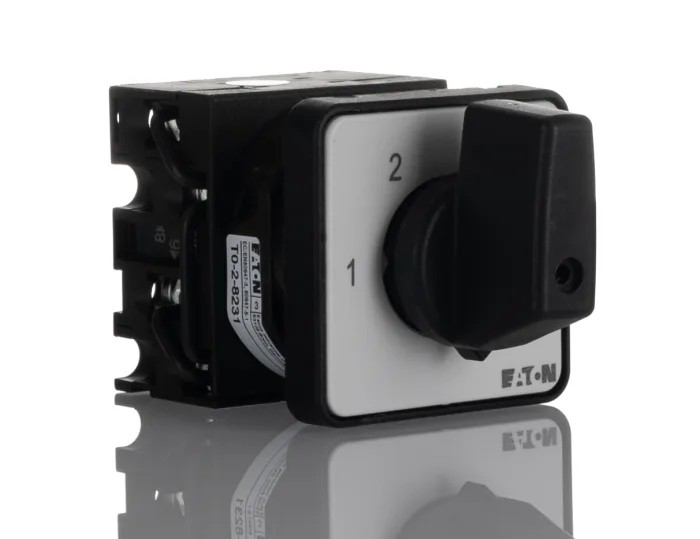

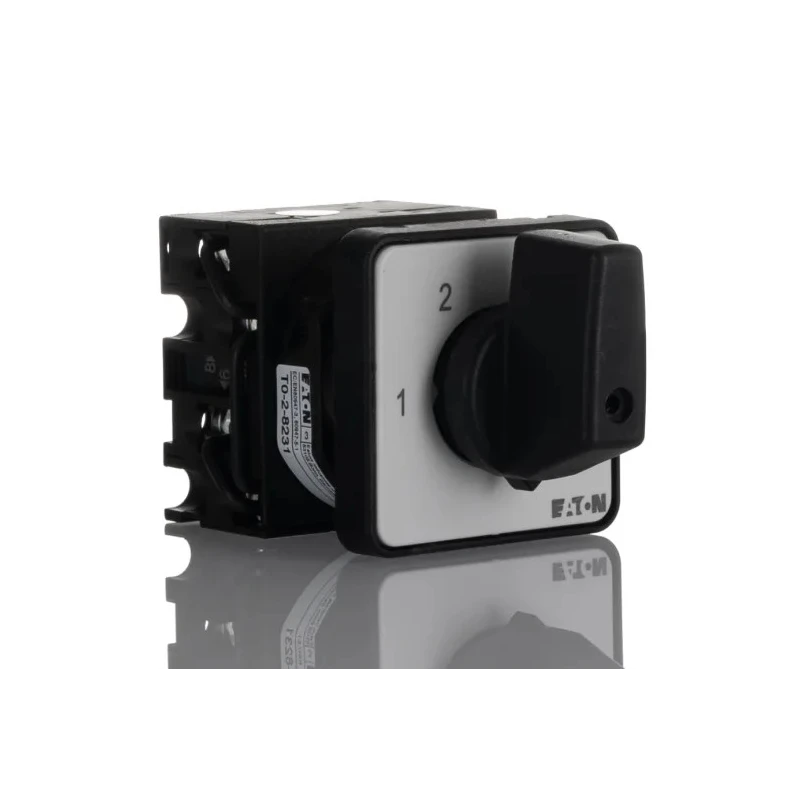

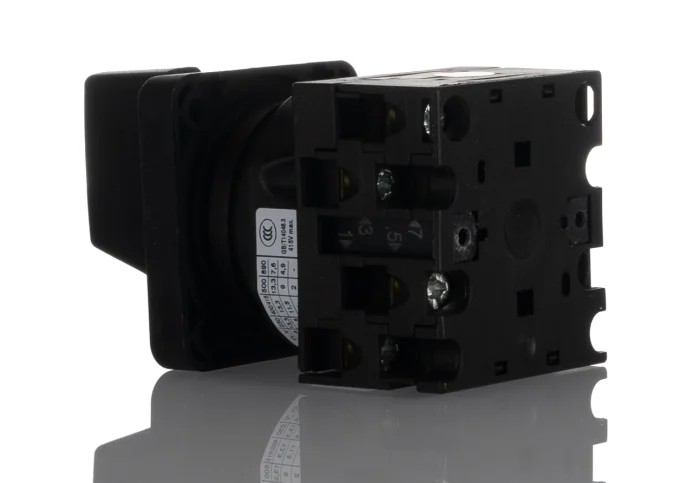

Eaton Cam Switch 4 Position 60 ° Toggle Actuator 20A 690V AC T0-2-8231/E 012750 T0-2-8231/E
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Eaton |
| Length | 86mm |
| Model | 012750 T0-2-8231/E |
| Depth | 86mm |
| IP Rating | IP65 |
| Width | 48mm |
| Mount Type | Flush |
| Series | T0 |
| Maximum Operating Temperature | 50°C |
| Actuator Type | Toggle |
| Number of Positions | 4 |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Hazardous Area Certification | IECEx |
| Number of Poles | 1 |
| Standards/Approvals | VDE 0660, CSA, IEC/EN 60204, IEC/EN 60947, UL |
| Mechanical Life | 10000000Operations |
| Contact Voltage | 690V ac |
| Contact Current | 20A |
| Angle of Throw | 60 ° |
Key Features
- Designed with a multi-step cam switch for accurate control in industrial settings.
- Rated for a contact current of 20A and voltage of 690V AC suitable for power systems.
- Features a toggle actuator type with 4 positions and 1 pole configuration.
- Flush mount type with screw terminals for secure and easy installation.
- Robust IP65 front rating ensures protection against dust and water ingress.
- Wide operating temperature range from -25°C to 50°C for industrial environments.
- Offers a mechanical life of 10,000,000 operations, ensuring long-term durability.
- Complies with IECEx hazardous area certification and multiple standards including VDE 0660, CSA, IEC/EN, and UL.
Product Description
Eaton 012750 T0-2-8231/E Cam Switch is a high-quality 4 position, 60-degree toggle actuator designed for industrial electrical applications requiring reliable and precise control. Rated for a contact current of 20A and a contact voltage of 690V AC, this cam switch is part of the Eaton Moeller series, known for superior performance and durability.
The multi-step cam switch design enables accurate control for diverse industrial equipment and automation systems. It features a single-pole, four-position configuration, allowing versatile switching operations. The toggle actuator provides a robust and ergonomic interface for manual operation.
This product is equipped with screw terminals facilitating secure electrical connections and easy installation. Its flush mount type and compact dimensions (86mm length, 86mm depth, 48mm width) allow integration in constrained spaces.
With a front IP65 rating, the switch ensures resistance to dust and water ingress, making it suitable for harsh operating environments. It withstands a wide temperature range from -25°C to 50°C, supporting reliable function under extreme conditions.
The Eaton cam switch also carries hazardous area certification IECEx, and meets stringent electrical and safety standards including VDE 0660, CSA, IEC/EN 60204, IEC/EN 60947, and UL. Its robust mechanical design offers an extensive operational life of 10 million cycles.
This cam switch is ideal for industrial machinery control, automation systems requiring high-current switching, and applications demanding secure and precise operational control in electrical and mechanical industries.
Multi-step cam switch design for precise control. 20A contact current rating at 690V AC. Toggle actuator with 4 positions and 1 pole. Screw terminal connection for secure wiring. Durable IP65 front protection rating. Operating temperature from -25°C to 50°C.
Certified for hazardous areas (IECEx) and multiple safety standards. Compact dimensions: 86mm x 86mm x 48mm. Long mechanical life of 10 million operations. Suitable for industrial automation and control switch applications.
Explore Eaton products and other high-quality Cam Switches for versatile industrial use on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cam switch has a contact current rating of 20A.
It is rated for a maximum contact voltage of 690V AC.
This model features a toggle actuator with 4 positions.
The switch has an IP65 rating, providing protection against dust and water ingress.
The dimensions of the cam switch are 86mm in length, 86mm in depth, and 48mm in width.
It operates within a temperature range of -25°C to 50°C.
It uses screw terminals for secure wiring connections.
The mechanical life of this model is rated for 10 million operations.
Yes, it carries IECEx hazardous area certification.
It complies with several standards including VDE 0660, CSA, IEC/EN 60204, IEC/EN 60947, and UL.
The angle of throw for the toggle actuator is 60 degrees.
This model features a flush mount type for installation.
