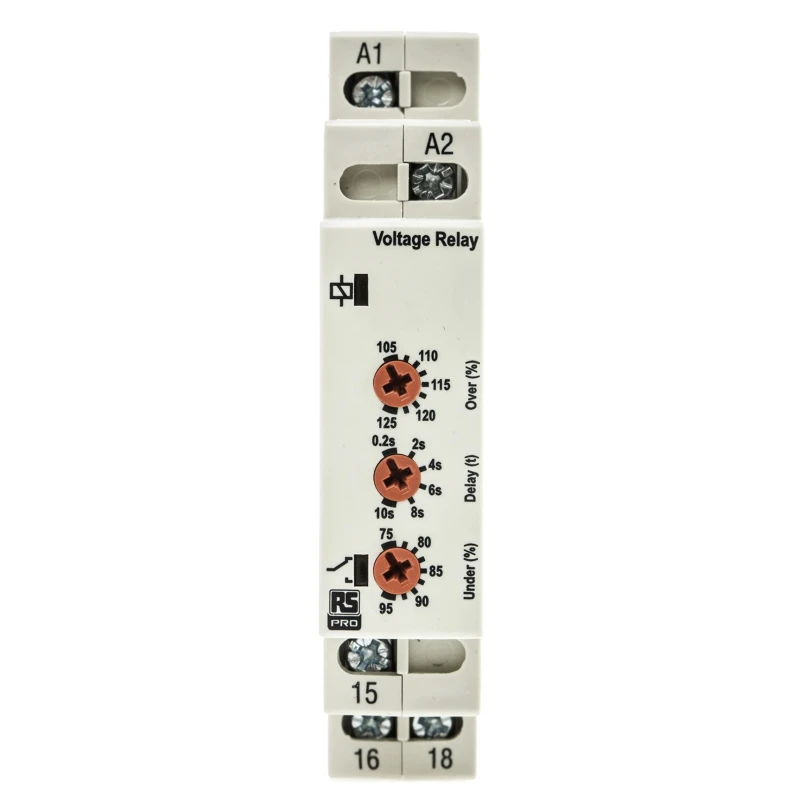

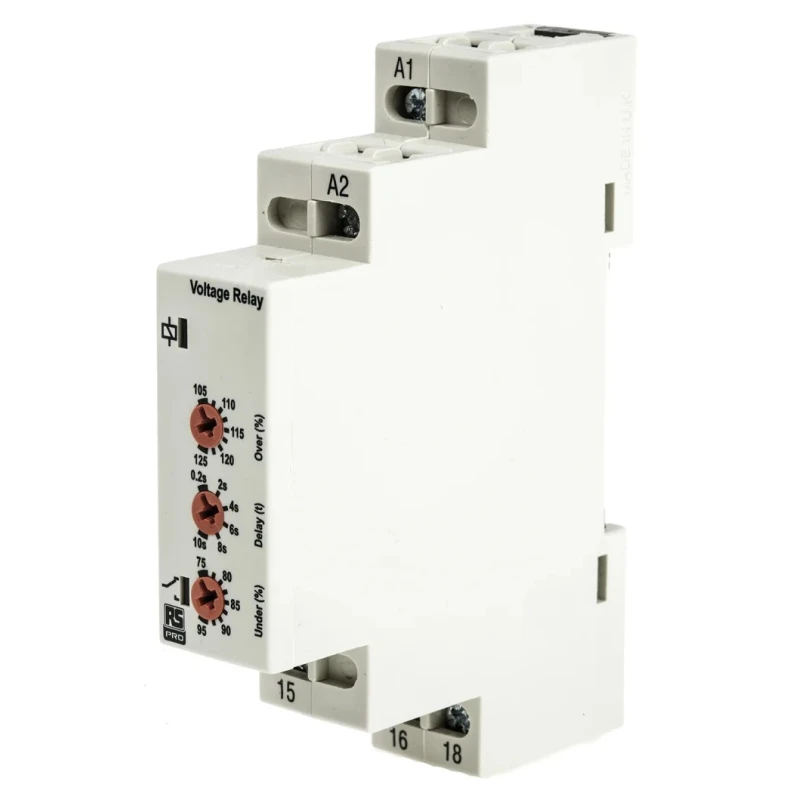

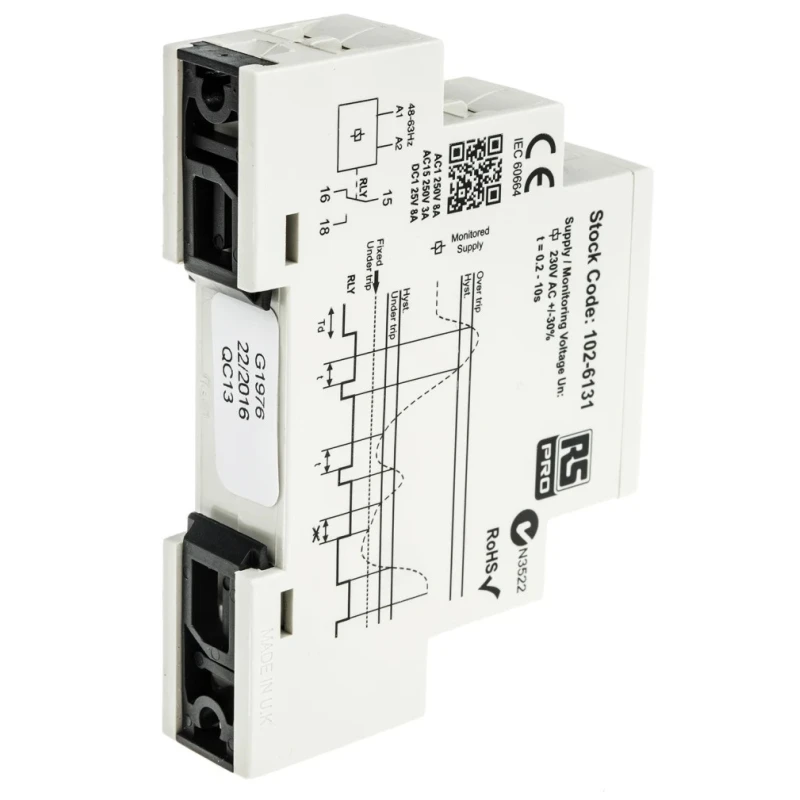

RS PRO Monitoring Relay 1 Phase SPDT DIN Rail Mount 230V AC 25V AC 102-6131

RS PRO 102-6131 Monitoring Relay is a high-performance single-phase electrical protection device designed for monitoring supply voltages in industrial, electrical, and automation applications. It uses a microprocessor-based mechanism to accurately detect undervoltage and overvoltage conditions, helping to safeguard electrical equipment from damage due to voltage abnormalities.

The relay features a single pole double throw (SPDT) contact configuration with a switching capability of up to 250V AC, making it suitable for a wide range of control circuits. It is designed for DIN rail mounting, facilitating easy installation and integration into control panels and distribution boards.

Equipped with screw terminal connections, the RS PRO relay ensures secure wiring and reliable electrical contact. The device operates effectively in temperatures ranging from -20°C to +60°C, catering to various industrial environments.

The relay includes two LEDs for clear visual indication of relay and supply status, and offers adjustable time delay between 0.2 and 10 seconds to avoid false tripping from transient dips in voltage supply. It senses undervoltage between 173V and 218V and overvoltage between 242V and 288V, providing precise voltage monitoring.

This monitoring relay is compliant with multiple international standards including CE, UL EN 61000-6-2, IEC, RoHS, and EN 61000-6-4, guaranteeing safety and electromagnetic compatibility for industrial use.

Ideal for industrial automation, manufacturing plants, electrical substations, and facilities requiring robust voltage monitoring and protection to maintain operational reliability.

The relay features SPDT contact configuration allowing versatile electrical switching. It supports a switching voltage of up to 250V AC. Equipped with screw terminals for secure and easy wiring connections. DIN rail mount design provides convenient installation in electrical panels.

Operating temperature range from -20°C to +60°C ensures suitability for varied industrial environments. Microprocessor-based design with LED indicators offers clear status monitoring. Adjustable time delay from 0.2 to 10 seconds to prevent nuisance tripping.

Voltage sensing range: undervoltage 173-218V and overvoltage 242-288V for protective control. Complies with CE, UL EN 61000-6-2, IEC, RoHS, and EN 61000-6-4 standards. Explore comprehensive RS PRO products and related Monitoring Relays in the Electronics & Electricals category at EnvMart for enhanced industrial system protection.
