Renesas Electronics Analogue Switch 4 CMOS Quad SPST 16-Pin SOIC DG412DYZ

Free Delivery in India | Lowest Global Shipping Charges

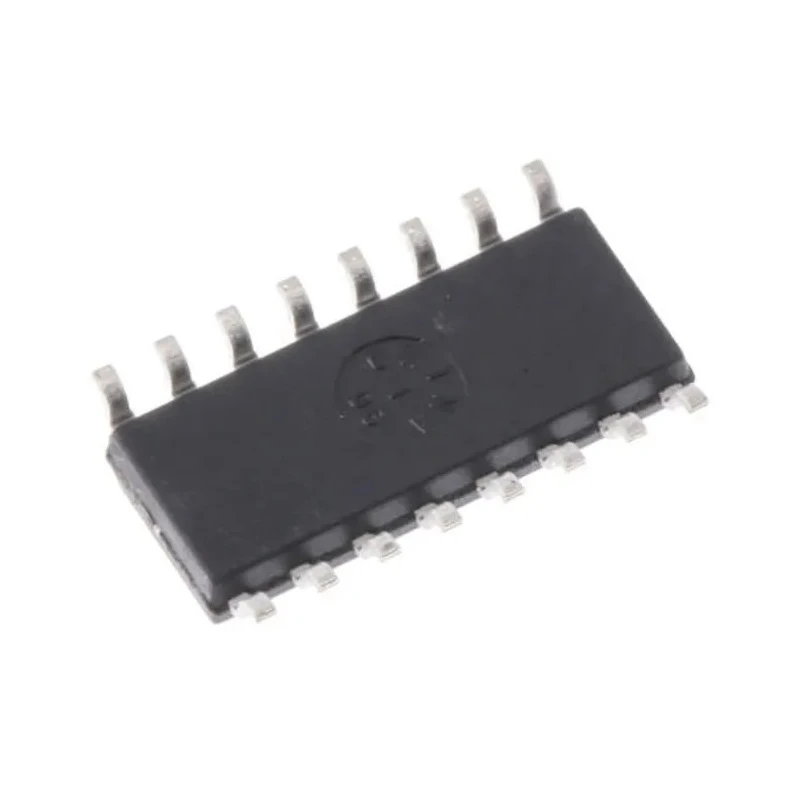

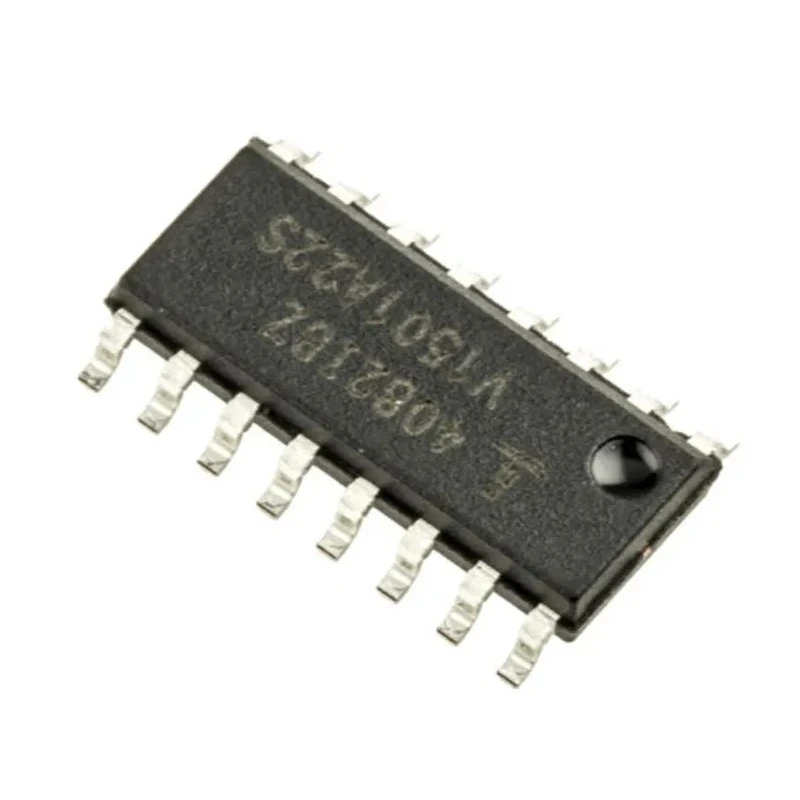

Renesas Electronics Analogue Switch 4 CMOS Quad SPST 16-Pin SOIC DG412DYZ

Name: Renesas Electronics Analogue Switch 4 CMOS Quad SPST 16-Pin SOIC DG412DYZ
Brand: Renesas Electronics
SKU: 181932
Price: 3.18 USD
Availability: InStock



Category Switch Brand Renesas Electronics Condition New

Specifications

Country of Origin	India
Brand	Renesas Electronics
Height	1.5mm
Length	10mm
Model	DG412DYZ
Width	4mm
Mount Type	Surface
Output type	CMOS/TTL
Series	DG412
Configuration	Quad SPST
Maximum Operating Temperature	85°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	16
Number of Elements per Chip	4
Maximum Supply Voltage	44V
Logic Family	CMOS
Minimum Supply Voltage	5V
Maximum On State Resistance	100Ω

Key Features

This analogue switch operates with a logic family CMOS configuration.
Includes 4 elements per chip configured as quad single-pole single-throw switches.
Suitable for surface mounting with a compact SOIC package.
Compatible output types include CMOS and TTL logic levels.
Operates at supply voltages from 5 volts up to a maximum of 44 volts.
Maximum on-state resistance is 100 ohms for reliable signal switching.
Designed for operating temperature range from -40°C to 85°C.
Complies with RoHS standards for environmental compliance.

Product Description

Renesas Electronics DG412DYZ is a high-performance analogue switch consisting of 4 CMOS quad SPST switches packaged in a 16-pin SOIC form factor. It offers versatile signal switching capabilities for electronic circuits requiring low on resistance and CMOS compatibility. With a surface mount design, it integrates seamlessly into compact PCB layouts.

Its logic family is CMOS, providing compatibility with modern digital and analog circuit environments, while output types include both CMOS and TTL. The quad SPST configuration includes 4 independent switches, allowing for flexible circuit designs in multiplexing and signal routing applications.

The device supports a minimum supply voltage of 5 volts and can operate up to a maximum voltage of 44 volts, making it suitable for a wide range of power supply conditions. Its maximum on-state resistance of 100 ohms ensures effective signal integrity when switching.

Operating temperature ranges from -40°C to 85°C allow reliable performance in varying industrial and commercial conditions. Its compact SOIC package measures 10mm in length, 4mm in width, and 1.5mm in height, facilitating space-efficient board layouts.

Renesas Electronics DG412DYZ meets RoHS standards, ensuring compliance with environmental directives. It is not rated for automotive standard use but suits industrial, consumer electronics, instrumentation, and signal processing applications where compact and reliable analogue switching is needed.

This analogue switch features a CMOS logic family configuration. Quad SPST switches per chip offer versatile application use. Surface mount package type SOIC supports PCB assembly. Maximum supply voltage rated at 44V ensures robustness.

Conforms to RoHS environmental standards.

Ideal for electronic components inventories, prototyping, and production, this switch supports multiple general-purpose analogue Switching needs. Browse other semiconductor components on EnvMart to complement your designs.
